Mark VI
Heavy Industrial Applications
Construction
Quick
Rental Fleets
Fab Shops
Specs
Petro Chemical
Shipbuilding
Training Facilities
Maintenance
The Power of Blue
Multiple capabilities CC or CC/CV.
Versatility and outstanding arc
welding performances in both CV
(MIG) and CC (TIG and Stick). The
CC/CV module has a high quality
arc for welding with cored wires.
Miller does not recommend that
the CC/CV module be used for short
circuit transfer MIG welding. The CC
module has the same great arc
characteristic as the Gold Star 302.
Rugged and durable enclosure
steel frame protects system.

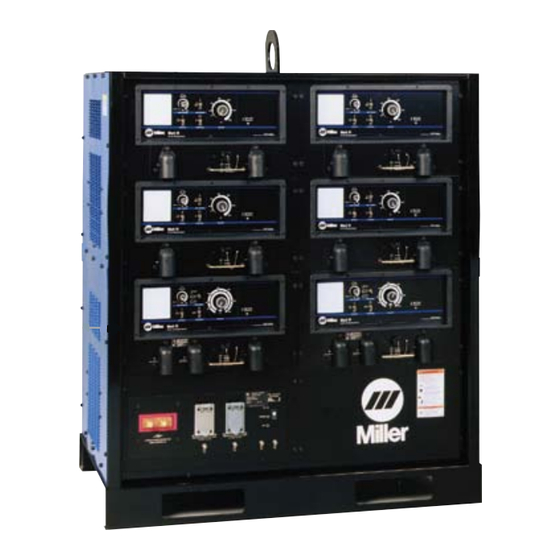

Capable of four to six welding arcs,
Miller's unique modules are designed
for easy removal and connection.
If you need only four arcs today,
purchase the Mark VI-2. If you
have a requirement for more arcs,
additional modules (CC or CV)
are available for purchase.
Weighs less than one ton which
makes it portable when secured on a
flatbed, construction truck, or when
moved by one-ton hoist. Fits through
36 in (914 mm) door opening.
Processes
Stick (SMAW) CC
TIG (GTAW) CC
Air Carbon Arc (CAC-A)
Cutting and Gouging CC
Flux Cored (FCAW) CV
MIG Spray Transfer (GMAW)
with Voltage-Sensing Feeder CV
.
®
Optional Low OCV in CC/CV modules reduces maximum
open-circuit voltage to 26 volts in CC and CV modes when
not welding.
Welder is warranted for 3 years, parts and labor.
Original main power rectified parts are warranted for 5 years.
Miller Electric Mfg. Co.
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Voltage Range
Max. Open-Circuit Voltage
Weight
Mark VI: 1725 lb (784 kg)
Mark VI-2: 1575 lb (718 kg)
International Headquarters
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
Issued January 2006 • Index No. DC/9.8
Multiple Arc
Welding System
CC: 20 – 315 A
CV: 10 – 30 V (with CC/CV Module)
CC: 75 VDC CV: 38 VDC
CC/CV Low OCV Module: 26 VDC ±2 V
Adjustable arc control lets you get in
tight without sticking the electrode. An
electrode compensation circuit ensures
arc control performance regardless of
the electrode size.
Hot Start makes it easy to start difficult-
™
to-start Stick electrodes, such as E-6010
and E-7018.
Line voltage compensation keeps
output power constant even if primary
input power varies by ±10%, ensuring
consistent weld performance.
Operator identification label helps
operators remember who is using
which module.
60 Hz models have two 115 V GFCI duplex
receptacles which supply 15 amps of
auxiliary power. 50 Hz models have one
220 V and one 115 V duplex receptacle.
14-pin receptacle provides quick, direct
connection to Miller wire feeders and
accessories.
Work connections are electrically isolated
from the frame, and service panels in
chassis provide easy access to internal
parts for routine maintenance.
