A CCESSORIES & COMPONENTS
Cat # Description
#475 Rubber Feet (set of 3)
#993 Mid Level Spreader
#470 Ground Spreader
P5380 Carry Handle Assembly
P6434 Sprint-Lok Upper Lever
P6436 Sprint-Lok Lower Lever
P5330 Transport Clip
P6579 5mm Hex Key
WARRANTY
Please refer to warranty card for complete details
Tripod Carbon 2-Stage II Sprinter
Tripod Alloy 2-Stage II Sprinter
Tripod Alloy 1-Stage II Sprinter
L A U N A M S ' R O T A R E P
SERVICE, SALES & SUPPORT
Miller Authorised Service Agents must carry out all service and repair work
on Sprinter tripods. Failure to observe this requirement may void warranty. It
is advisable to notify Miller or a Miller Authorised Service Agent if a change
of performance is observed as a result of dropping or rough usage. For
information regarding sales and service of Miller products, or for your
nearest Miller representative, please contact us via our website or at the
following:
MILLER CAMERA SUPPORT EQUIPMENT MILLER CAMERA SUPPORT LLC (USA)
30 Hotham Parade, Artarmon, Sydney 218 Little Falls Road, Cedar Grove,
NSW 2064 Australia New Jersey 07009-1231 USA
Tel: +61 2 9439 6377 Tel: (973) 857 8300
Fax: +61 2 9438 2819 Fax: (973) 857 8188
Email: sales@miller.com.au Email: sales@millertripods.us
MILLER FLUID HEADS (Europe) LTD.
Unit 12A, Shepperton Business Park
Govett Avenue, Shepperton
Middlesex TW17 8BA United Kingdom
Tel: +44 (0)1932 222 888
Fax: +44 (0)1932 222 211
Email: sales@millertripods-europe.com
WEBSITE www.millertripods.com

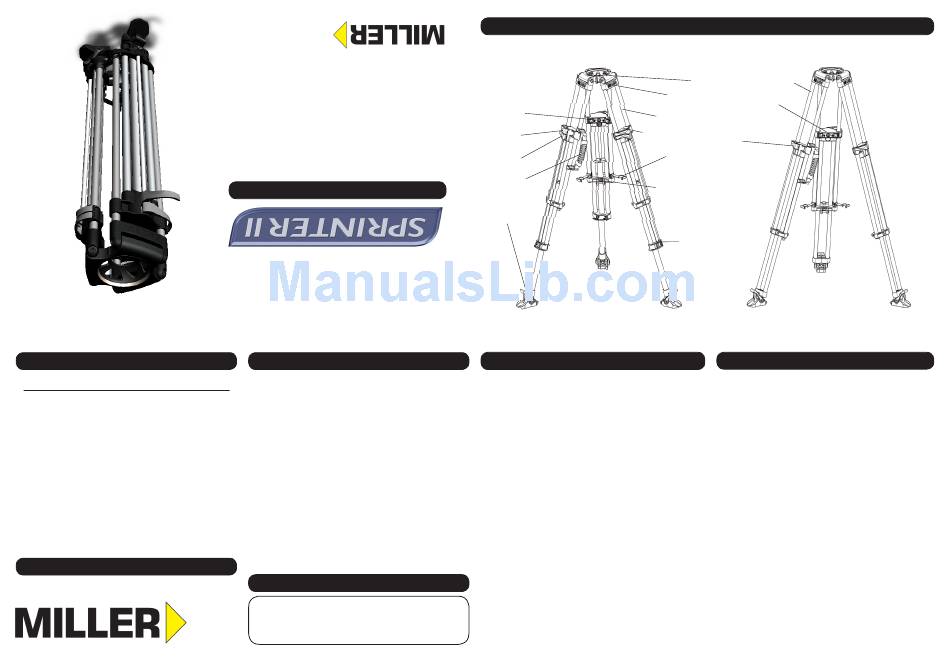

FEATURES AND CONTROLS
2-stage tripod
#1576
#1580
#1589
Upper Leg
Lock Adjuster
Sprint Lok
Upper Lever
Sprint Lok
Lower Lever
Carry Handle
O
Rubber Foot
INTRODUCTION
Thank you for purchasing the Sprinter II Tripod. The Sprinter II Tripod has
been designed to suit payload capacities from lightweight DVCAM up to
standard configuration EFP cameras.
The Sprinter II Tripod is available in 1-Stage or 2-Stage models. The
2-Stage Tripod comes in ultra-light, high strength carbon fibre tubing or
in durable and cost effective anodised alloy tubing. The Sprinter II Tripod
is designed primarily to give excellent stability and durability. While many
integrated features enable the user to operate the Tripod safely and
easily – such as the Inline Carry Handle, Co-Located side action levers,
Forever-Flat rubber feet, Fine height adjustable Mid-level spreader and
self aligning swivel for rapid leg deployment.
The Sprinter II Tripod will give best performance when used with the
Arrow Fluid Head range. This will ensure maximum system stability to
suit any professional set-up. The Sprinter II Tripod will suit most industry
standard 100 mm Fluid Heads as well, please refer to manufacturers'
manual for mounting details.
D7412-2
1-stage tripod
Bowl Aluminum or Carbon Fibre tubes
Tie Down Hook
Upper Leg Lock Assembly
Aluminium or
Carbon Fibre Tubes
Upper Leg Lock Assembly
Sprint Lok
Transport Clips
Self-aligning swivel
(Mid Level Spreader
Mount)
Lower Leg
Lock Adjuster
Fig 1.
TECHNICAL DATA
Cat# #1589
Tube Configuration 1 Stage
Tube Material Alloy
Maximum Load 45kg
Weight 3.0kg
Maximum Height- mm (in)
Mid Level Spreader 1435 (56.5)
Ground Spreader 1430 (56.3)
Minimum Height- mm (in)
Mid Level Spreader 670 (26.4)
Ground Spreader 635 (25.0)
Transport Length- mm (in) 840 (33.1)
Fig 2.
#1580 #1576
2 Stage 2 Stage
Alloy Carbon Fibre
45kg 45kg
3.5kg 2.9kg
1530 (60.2) 1530 (60.2)
1565 (61.6) 1565 (61.6)
440 (17.3) 440 (17.3)
415 (16.3) 415 (16.3)
700 (27.6) 700 (27.6)
