Summary of Contents for Superior M
-

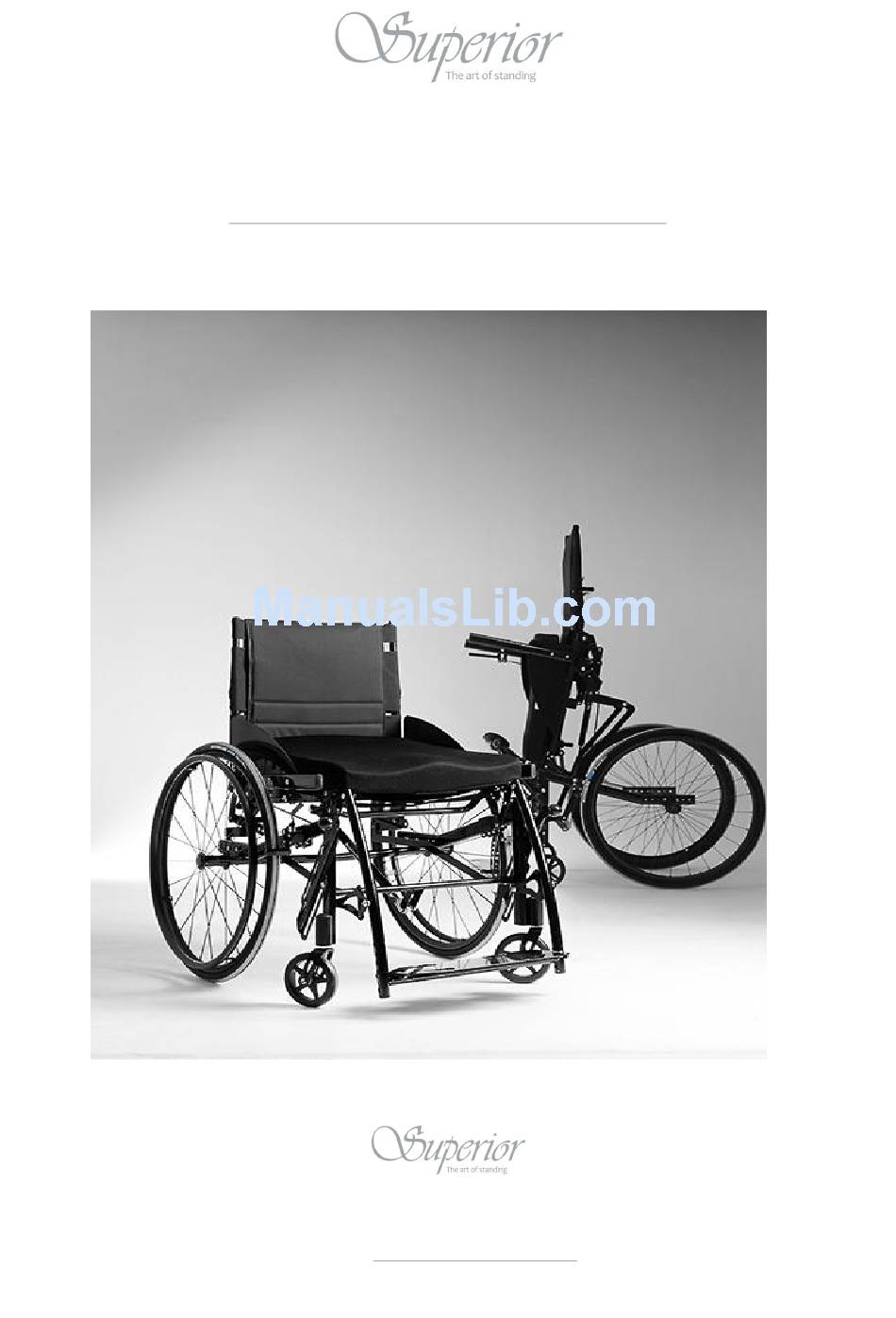

Page 1: User Manual
User Manual Radiovägen 3, 135 48 Tyresö 08-776 26 54 www.superiorstanding.com e.mail : info@superiorstanding.com Artnr: S333001 Version: 1.1... -
Page 2: Delivery Control
Congratulations! Superior We want to congratulate you on your new . This standing wheelchair is intended to be used every day, indoors and outdoors, at home and at work. Superior is made of Docol and has a total weight of 15 kg*. Thanks to this Superior is easy to bring everywere. -
Page 3: Warranty
Adjustments In order to avoid false settings and possible damage, it is only your controller proven that has the power to make new and modify existing settings on your Superior Standing up Superior At the uprising with the , all four wheels must remain on solid level ground at a safe distance from slopes, ravines, stairs, etc. -
Page 4: Seat Depth Adjustment
How to measure The user is sitting down. Measure the length of the thigh (from lumbar to the front of the knee). Measure the length of the shank, from the shoe soles to the top of the kneecap. Make sure that the user is comfortable in the chair or sits against a straight wall on a bench. -
Page 5: Center Of Gravity Adjustment
Center of gravity adjustment Adjustment of seat depth changes the center of gravity. When the seat depth increased the CG need to be moved back by moving the back wheels back. The CG must be adjusted by authorized personal. WARNING: When the seat depth is adjusted, the backwheel need to be adjusted proportionately. - Page 6 Never stand alone the first time you test your wheelchair. Raising may affect your bloodpreasure and cause fainting etc. The chair must be in the brake mode before raising. Superior At the uprising with the , all four wheels must remain on solid level ground at a safe distance from slopes, ravines, stairs, etc.
- Page 7 WARNING: Make sure that the belt does not get stuck in the spokes of the backwheels. The belt must NEVER be used as a safety belt during a car transportation. . IMPORTANT: After having gone through the above described steps, you may now rais.
-
Page 8: Emergency Lowering
När alla säkerhets anordningar är fastsatta så sköts uppresningen genom en knapptryckning på manöverdosan. Manöverdosan är märkt med upp och ned pilar för val av upp och nedfärd. Emergency lowering If the wheelchair should get stuck in a standing position, the chair needs to be emergency lowered. -
Page 9: Control Adjustments
2) If the wheelchair should get stuck in a standing position due to a broken cable or something else, the wheelchair must be lowered manually (for this maneuver it takes tools and assistants). The bolt that holds the engine in the upper engine mount must be unscrewed and the engine shall be folded dawn and backwards. -
Page 10: Safety Instructions
SAFETY INSTRUCTIONS Warning and safety instruction Transfer to and from the standing wheelchair It is important to always lock the brakes. If your wheelchair has pneumatic tires, the air pressure affects the brakes and its afficiency. Always make sure to keep the right air pressure. - Page 11 Never drive up or down a slope diagonal. It is very important to always control the speed and driving directions using the handrims. You can lower the risk of falling by not driving in slopes that are too steep or too long. Transportation &...
-
Page 12: Lifting Points
Lifting points Never lift the wheelchair in the raising handles or the foldable backrest. To unload your back or lower the risk of crushing your should lift the wheelchair without the wheels and in a folded position. Keep the wheelchair as close to your body as possible and lift only in the fixed frame. -
Page 13: Maintenance
Maintenance We advise you to once a year make an inventory of the most important functions on your wheelchair. For this reason we have attached a Service Book to the wheelchair, to make it easier for you to keep track of what and when something has been done with the wheelchair during the usage. -
Page 14: Technical Specifications
Technical specifications Seat depth (cm) : 40 to 50, in steps of 2 cm. Frame : Docol, steel and aluminium. Seat : Adjustable seat depth with a pressure relieving cushion. Backrest : Adjustable angle. Foldable at transportation. Padding : Fire proof polyester material (M4). Washable. Footplate : Heigth adjustable. -
Page 15: Personal Data
For us to be able to proceed developing, we would like to know what you think of Superior your . Please tell us! info@superiorstanding.com - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Warranty proof Please send this warranty proof in a sealed envelope. - Page 16 For technical information or use, please contact nearest dealer or authorized workshop. Stamp Dealer: Selling date: 20_ _-_ _ - _ _ Radiovägen 3, 135 48 Tyresö 08-776 26 54 www.superiorstanding.com e.mail : info@superiorstanding.com Artnr: S333001 Version: 1.1...
