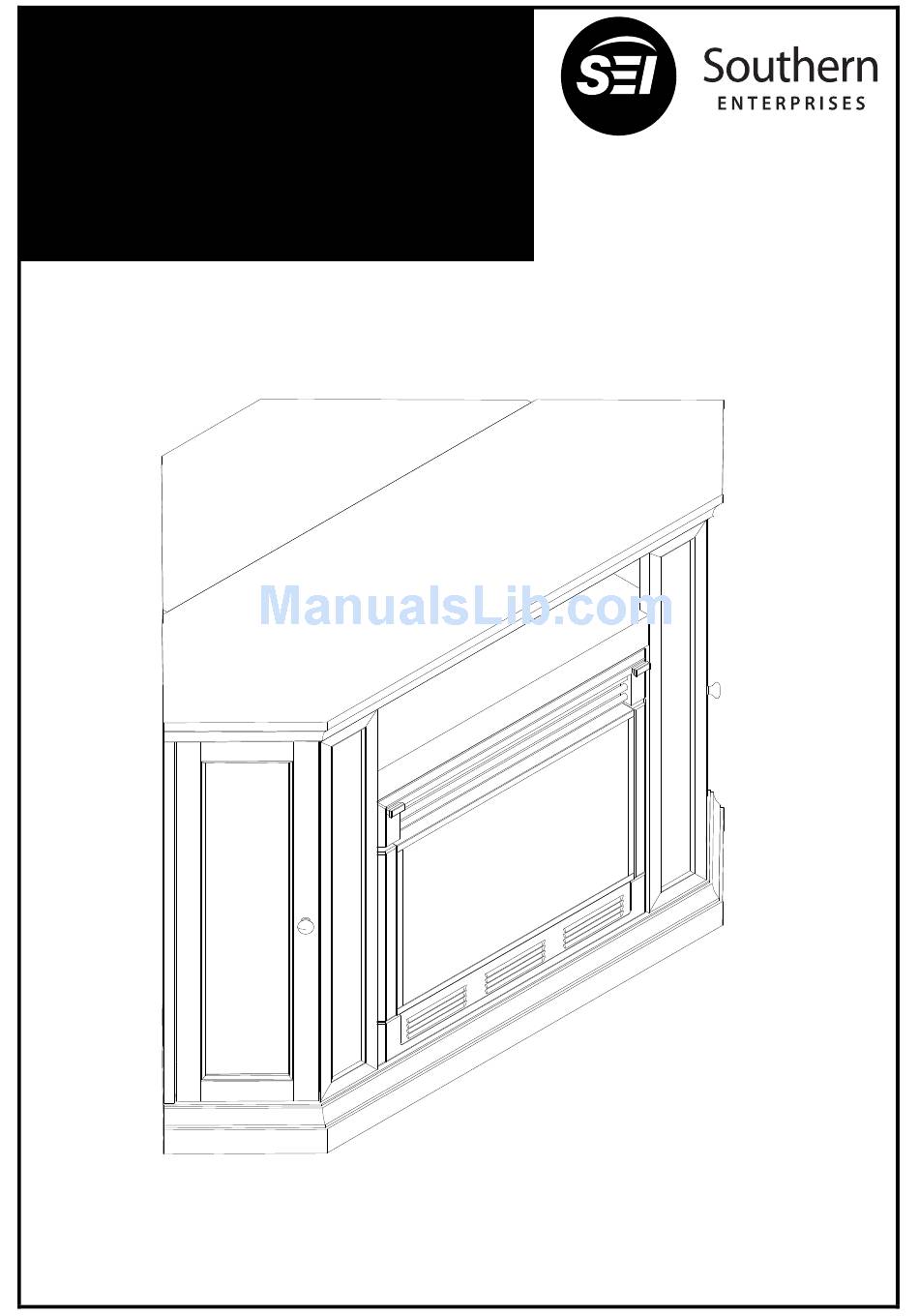

- Page 1 Claremont Convertible Media Fireplace FA9316R0TX-Brown Mahogany For assistance with assembly contact: Southern Enterprises Inc. Assembly Instructions Customer Service 1-800-633-5096 service@seidal.com www.seidal.com...
-
Page 2: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Top Panel Base Corner Top Panel Back Panel Front Side Panel (L/R) Adjustable Shelf panel(L/R) Side Panel (L/R) Door (L/R) Middle Partition Panel (L/R) Insert Fixed Bar Firebox Shelf Panel (shipped in a separate carton) -
Page 3: Hardware Contents
HARDWARE CONTENTS Cam Bolt Wood Dowel Cam Lock Hexagon Socket Bolt Qty: 22 Qty: 32 Qty: 22 Qty: 4 Spring Washer Flat Washer Allen Wrench Flat Head Short Screw Qty: 4 Qty: 4 Qty: 1 Qty: 4 Flat Head Long Round Head Screw Knob Long Bolt... - Page 5 ASSEMBLY INSTRUCTIONS 1. Use cam bolts (A) and wood dowels (B) to connect middle partition panel (5R, 5L) and shelf panel (6). Insert cam locks (C) into holes with slots for screwdriver facing outward. Rotate cam locks (C) clockwise to secure cam bolts (A), then plug covers (P) into the cam locks.
- Page 6 ASSEMBLY INSTRUCTIONS 3. Insert the wood dowel (B) into corresponding holes. Use flat head long screw (I) to connect side panels (4L, 4R) and finished part from figure 2. HARDWARE USED Wood Dowel Flat Head Long Screw 4. Use cam bolts (A) and wood dowels (B) to connect top panel (1) and finished part from figure 3.
- Page 7 ASSEMBLY INSTRUCTIONS 5. Use cam bolts (A) and wood dowels (B) to connect base (7) and finished part from figure 4, insert cam locks (C) into holes with slots for screwdriver facing outward. Rotate cam locks (C) clockwise to secure cam bolts (A), then plug covers (P) into the cam locks.
- Page 8 ASSEMBLY INSTRUCTIONS 7. Use flat head short screws (O) and hinge (N) to connect doors (10). You may need to adjust the door by tightening or loosening the two screws on the hinge itself. Insert shelf holder (M) into the corresponding holes, then put adjustable shelf panels (9L, 9R) on the shelf holders (M).
- Page 9 ASSEMBLY INSTRUCTIONS 9. Pull the wood bar from the support wood slide, so the corner top panel will keep parallel with the top panel. 10. Place firebox (12) into the back of the unit. 11. Insert the wood screw (I) into the corresponding holes of the inner fixed bar (11), then use screwdriver to tighten.
- Page 10 ASSEMBLY INSTRUCTIONS 12. Now your new fireplace is ready to use.
- Page 11 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
- Page 12 This unit contains a permanent warning sticker located on under side of top shelf or inside drawer. Model: FA932600TX/ FA932700TX Do not allow children under 16 years old to move the cart. KINGSBURYMEDIA FIREPLACE Southern Enterprises, Inc Model: FA9316R0TX 1970 Crown Drive Claremont Convertible Media Fireplace...
