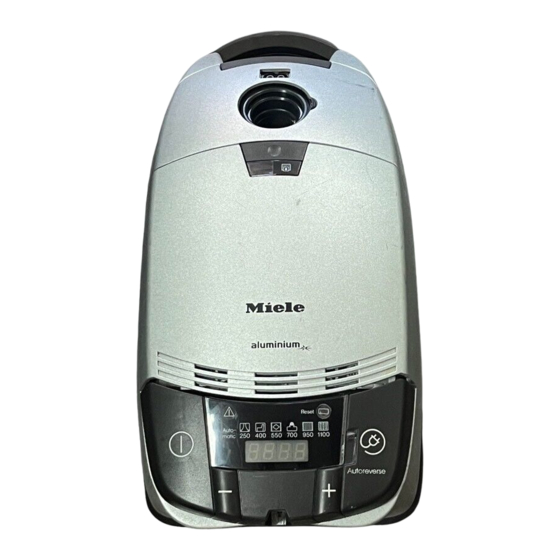

Miele S 500 Operating Instructions Manual

Miele operating instructions vacuum cleaner s 500, s 548, s 600, s 648

Hide thumbs Also See for S 500:

Technical information (65 pages)

Operating instructions manual (52 pages)

Operating instructions manual (48 pages)

page of 52

/ 52
Bookmarks

Quick Links

Download this manual See also: Technical Information

Operating Instructions

Vacuum Cleaner

S 500 - S 548

S 600 - S 648

To prevent accidents

and machine damage,

read these instructions

installation and use.

M.-Nr. 06 051 030

Summary of Contents for Miele S 500

Page 1: Operating Instructions
Operating Instructions Vacuum Cleaner S 500 - S 548 S 600 - S 648 To prevent accidents and machine damage, read these instructions installation and use. M.-Nr. 06 051 030...
Page 2 Crevice nozzle ........... . 20 Crevice nozzle extension .
Page 3 Connecting the vacuum cleaner to a higher voltage than indicated in these instructions may result in damage to the vacuum cleaner or injury. To reduce the the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other.) This plug will only fit in a...
Page 4 Do not use outdoors or on wet surfaces. Only be vacuumed. Only use the vacuum as described in this manual. Use only Miele recommended accessories. The manufacturer cannot be held responsible for damage caused by non-compliance with these "Important Safety Instructions".
Page 5 Please make certain that your hand remains around this metal insert. The Miele Electrobrush is a motor driven accessory for use only with Miele vacuum cleaners. It must not be used with vacuum cleaners produced by another manufacturer. When vacuuming with the Miele Electrobrush or Turbobrush, do not touch the rotating brush.
Page 6 A damaged power cord must only be replaced with a genuine Miele cord by an authorized service agent. Do not leave the vacuum plugged in. Unplug from the outlet when not in use and before servicing. Do not put anything into openings or use with any opening blocked.
Page 7 Lorsque vous utilisez un appareil électrique, vous devez toujours prendre des précautions essentielles, dont : Vérifiez la tension nominale de l’aspirateur avant de le brancher. La tension électrique de votre résidence doit correspondre à celle indiquée sur la plaque signalétique de l’aspirateur.
Page 8 Pour utiliser l’aspirateur, suivez uniquement les instructions d’utilisation contenues dans le présent manuel. N’utilisez que les accessoires recommandés par Miele. Le fabricant décline toute responsabilité quant à des dommages causés par la non-conformité aux présentes consignes de sécurité. Cet appareil est destiné...
Page 9 à poussière, le réservoir à poussière et les filtres sont bien en place. N’utilisez que des sacs à poussière doublés et des filtres Miele (consultez la section "Entretien" pour les instructions d’insertion du sac à poussière et des filtres). Si vous n’avez pas inséré...
Page 10 Il ne doit pas être utilisé avec des aspirateurs d’une marque autre que Miele. Lorsque vous nettoyez avec l’électrobrosse ou la turbobrosse Miele, ne touchez pas la brosse rotative. Soyez prudent lorsque vous utilisez l’aspirateur avec une électrobrosse et un tuyau porteur de courant. Le tuyau contient des fils électriques.
Page 11 Si le cordon d’alimentation est endommagé, ne le remplacez que par un cordon d’alimentation original Miele disponible chez un détaillant autorisé. Ne laissez pas l’aspirateur branché. Débranchez-le lorsque vous ne l’utilisez pas et avant de procéder à son entretien. Ne placez aucun objet dans aucune des ouvertures.
Page 13 Miele vacuum cleaners. Those features marked depend on the model and may vary or not be available on your model. Some models are supplied with a Miele Electrobrush or Turbobrush as standard (not illustrated). Separate operating and maintenance instructions are supplied...
Page 14 The dust compartment shutter is designed for hygienic handling and prevents dust and odors from escaping. If you remove the suction hose from the vacuum cleaner for storage purposes, close the dust compartment shutter before storing. ^ Insert the elbow into the suction socket.
Page 15 ^ Using the inlet guides, fit the handpiece of the suction hose firmly into the wand until they lock with a click. ^ To release the handpiece from the telescopic wand, press the locking button (see arrow) and pull apart. (select models) Both sections of the telescopic wand have locating arrows to guide insertion.
Page 16 (select models) One section of the telescopic wand is located inside the other and can be adjusted to your height for comfortable vacuum cleaning. ^ Press the telescopic wand release button (see arrow) to release the tubes and adjust to the required height.
Page 17 The floor brush is suitable for cleaning carpets, rugs and hard surfaces. For flooring susceptible to scratches, use one of Miele’s specially designed floor brushes (see "Optional accessories"). ^ Insert the telescopic wand into the floor brush and turn in either direction until it locks with a click.
Page 18 Accessory tools for cleaning difficult to reach areas are located in the accessory compartment. a Crevice nozzle b Crevice nozzle extension * c Dust brush d Upholstery nozzle e Filter frame f Blower connection socket * (not illustrated; see "Operation - Blower connection socket") depending on vacuum model The filter frame e is supplied...
Page 19 ^ Press the release button to open the accessory compartment lid. ^ Take out the accessory needed. ^ Close the lid securely. The crevice nozzle extension is located in the compartment underneath the crevice nozzle.
Page 20 The accessory tools can either be fitted to the handpiece or to the suction wand. The standard floor brush can be used for normal cleaning of carpets, rugs, stairs and hard surfaces. For cleaning in folds, crevices and corners. (select models) This accessory can be used to extend the length of the crevice nozzle.
Page 21 For cleaning moldings, ornate or carved articles, etc. The head of the dusting brush can be turned to attain the best cleaning position. For cleaning upholstery, mattresses, cushions, curtains, covers, etc.
Page 22 If the vacuum cleaner is operated for more than 30 minutes, the power cord must be unwound at least its maximum length. ^ Hold the plug and pull out the power cord to the required length: length is 24’ 7" (7.5 m) length is 31’...
Page 23 ^ Press the On/Off switch. The vacuum cleaner can also stand on its end for vacuuming stairs, drapes etc. To prevent static discharge your hand must touch the metal inlay on the underside of the vacuum handpiece. Be certain to continously...
Page 24 (for models with suction power selector) The suction power can be adjusted depending on the type of flooring. The symbols on the controls indicate the type of use the settings are suitable for: curtains, lightweight fabrics upholstery, cushions thick pile carpets, rugs and runners energy-saving daily use lightly soiled textured carpets...
Page 25 ^ Turn the selector knob to the desired suction power setting. ^ Move the slide selector to the desired suction power setting.
Page 26 ^ Press the control to select a lower setting. When turned on, the vacuum cleaner operates at the power setting last used. A single short press on the + / - controls moves the suction power up or down one setting at a time. If the...
Page 27 If the Automatic setting is chosen, the vacuum cleaner automatically adjusts the suction power to suit the carpet or floor surface being cleaned. ^ Press the control until the Automatic setting is activated. ^ Press the control to deactivate the Automatic setting.
Page 28 (depending on model) The blower connection socket can be used to connect the suction hose to the blower outlet of the vacuum cleaner. This is useful for dusting off radiators and blowing dust out of inaccessible corners so that it can be vacuumed up.
Page 29 If your vacuum cleaner is equipped with +/- suction power selector controls, you can activate or deactivate the Park-System’s On/Off feature: ^ Turn off the vacuum cleaner using the On/Off button. ^ Hold the buttons simultaneously and turn the vacuum on using the On/Off button.
Page 30 Dustbags and filters can be purchased from your local Miele Vacuum Dealer. – Miele type dustbags are intended for models S 500 - S 548 – Miele type dustbags are intended for models S 600 - S 648. Every box of Miele dustbags also contains a "SUPER air clean"...
Page 31 ^ Turn the vacuum cleaner on and select the highest power setting. ^ Lift the floor brush a little off the floor. If the marker completely fills the indicator window, the dustbag needs to be changed.
Page 32 ^ Open the dust compartment lid. ^ Grasp the card collar by the two finger holes and pull it out from the dustbag holder. The dustbag has a flap which closes automatically when the dustbag is removed to prevent any dust from escaping.
Page 33 "SUPER air clean" filter "ACTIVE air clean" filter "ACTIVE HEPA" filter A "SUPER air clean" filter is supplied with every box of Miele dustbags. It should be replaced each time a new box of bags is started. An "ACTIVE air clean" or "ACTIVE HEPA"...
Page 34 The indicator lights up after about 50 hours of operation, which is equivalent to about a year of average use. The vacuum cleaner can still be used with the exhaust filter indicator lit. However, the suction power will be reduced as will the effectiveness of the filter if it is not replaced.
Page 35 ^ Open the dust compartment lid. ^ Release the filter frame. Raise it up and remove the filter. ^ Insert a new "SUPER air clean" filter. It can be inserted with either side up. ^ Lower and secure the filter frame back into place.
Page 36 ^ Open the dust compartment lid. ^ Release the catch and remove the filter. ^ Insert the new filter so that it engages at the back, then close the catch. ^ Close the dust compartment lid firmly until it clicks into place. The filter change indicator (Reset button 7) must be reset each time the filter is replaced.
Page 37 Depending on the model, the vacuum cleaner is fitted with one of the following exhaust filters: "SUPER air clean" "ACTIVE air clean" "ACTIVE HEPA" 1. If you wish to replace the air clean" filter with the clean" filter or the "ACTIVE HEPA"...
Page 38 A dust compartment filter is supplied inside each box of Miele dustbags. ^ Open the dust compartment lid. ^ Open the filter frame, remove the old filter and replace with a new one.
Page 39 ^ Use a coin to release the roller pin and pull out the pin. ^ Take out the roller. Remove all threads, hair, etc. and reassemble the parts. Spare parts are available from your Miele Vacuum Dealer or from the Miele Technical Service Department.
Page 40 Turn off the vacuum and unplug it from the outlet before performing any maintenance work. External surfaces of the vacuum cleaner and accessories can be cleaned with a slightly damp cloth or with a cleaner specifically for plastics. Do not use abrasive, glass or all purpose cleaners! They will damage the surface.
Page 41 A temperature limiter automatically turns the vacuum cleaner off if it gets too hot. This can occur if large articles block the suction wand or if the dustbag is full or contains particles of fine dust. A heavily soiled exhaust or dust compartment filter can also be the cause of overheating.
Page 42 In the event of a fault which you cannot correct, please contact he Miele Technical Service Department 1-800-999-1360 techserv@mieleusa.com 1-800-565-6435 service@miele.ca...
Page 43 The Electrobrush is intended for intensive cleaning and restoration of robust carpeting. Vacuum cleaner models designed for use with an Electrobrush have a release button on the cover cap to the connection socket. If there is no release button on this cover cap, an Electrobrush cannot be used.
Page 44 The Hard floor brush is intended for vacuuming sturdy hard floors, e.g. tile and stone. The parquet floor brush is a special brush with natural bristles intended for cleaning parquet and laminate floors, especially those susceptible to scratching.
Page 45 For dusting books, shelves, etc. For dusting particularly delicate objects. For cleaning radiators, narrow shelves or crevices. (only compatible with the crevice nozzle)
Page 46 For cleaning deep crevices, mattresses and upholstery. For cleaning in folds, crevices and corners.
Page 47 This set is specially designed for cleaning small objects and difficult to reach areas (such as PC keyboards, stereo equipment, carved furniture and ornaments, models, etc). The MicroSet accessory set consists of: – a micro hose with combi nozzle (crevice nozzle and dust brush) –...
Page 48 A special active charcoal filter which absorbs odors from the dust collected in the dustbag, helping to prevent odors. The "ACTIVE air clean" filter can be used in place of the "SUPER air clean" filter. The "ACTIVE HEPA" filter combines activated charcoal and HEPA filtration in one.
Page 49 These items pose a danger of suffocation. Genuine Miele dustbags and filters are made of environmentally friendly materials. They can be thrown out with the household trash provided the vacuum has been used only for normal household dust.
Page 52 Alteration rights reserved / 2204 M.-Nr. 06 051 030 / 01 This paper was bleached without the use of chlorine.
