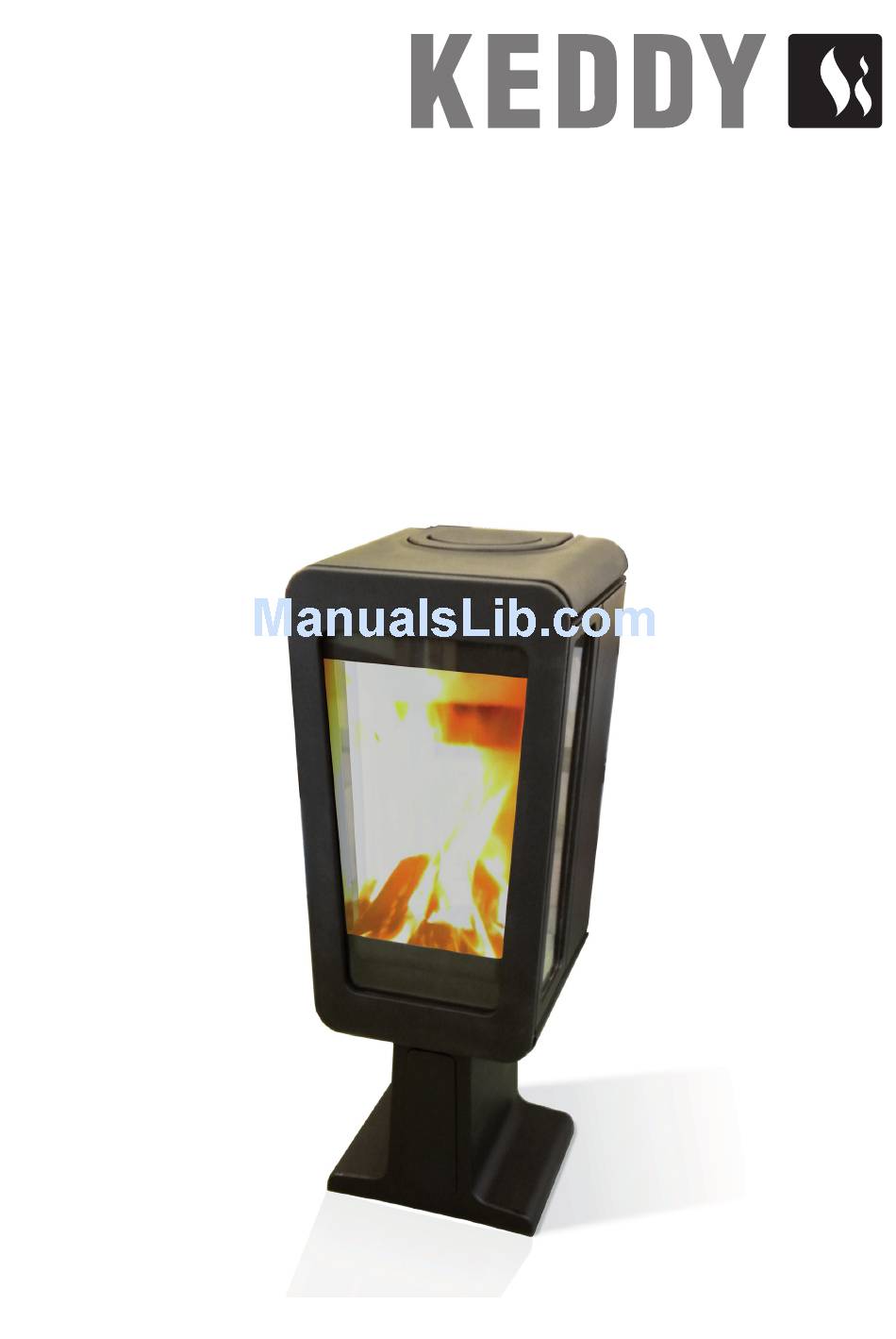

- Page 1 K800 Installation instructions Care and firing instructions...
-
Page 2: Table Of Contents
CONTENTS GENERAL INFORMATION....................3 IMPORTANT POINTS......................3 PREREQUISITES........................4 Building notice Distance to flammable structural units Floor plate Outdoor air supply Flue Chimney connections PREPARATIONS........................5-8 Flue connections for rear and top installation Floor plate and outdoor air connection Unpacking INSTALLATION INSTRUCTIONS..................9-11 CARE & FIRING INSTRUCTIONS .................12-14 TECHNICAL SPECIFICATION...................15 Dimensions and performance Dimension drawings... -
Page 3: General Information
Important! Keep these installation instructions and the associated firing instructions! Quality approval The K800 series has been tested by the Swedish National Testing and Research Institute and has met the requirements of the Swedish Building Regulations and CE Marking. Apart from this, it also fulfils the most stringent environmental requirements and it is certified by Svanen. -
Page 4: Prerequisites
OUTDOOR AIR SUPPLY The K800 must be placed at a distance of 100 mm The combustion of wood requires air/supply air. The from flammable walls. K800 can be provided with an external air supply,... -
Page 5: Preparations
Height from the floor to the height of the connection top: 1060 mm Note! If you install Keddy's floor glass, the di- mensions above must be extended by 6 mm, i.e. they become 926 and 1066 mm. Outer diam. of the rear/top sleeve connection: Ø150 For so-called top connection of the chimney, this has to be done after the stove has been installed. -
Page 6: Unpacking
353 mm x 353 mm. 3. UNPACKING / DISMANTLING The K800, broadly speaking, is supplied completely assembled, regardless of the model (815, 825 or 835). In the vast majority of cases, the parts of the stove... - Page 7 1. When the outer packaging has been removed, the stove is screwed on a wooden pallet. Start by open- ing the door, by pressing up the handle on the bot- tom right. Take out the box with installation fittings. In the box, you will find an electric cable, a globe, base glass, a rear sleeve connection and an outdoor air kit (accessory), if this has been ordered.
- Page 8 5. Dismantle the top part. If the top is made of cast CAST IRON TOP iron, the two rear screws must be removed, as shown TOP RING in the illustration, before you can remove the top. If the top is made of concrete/stone, it only needs to CONCRETE/STONE TOP be lifted straight up, since it located vertically against TOP RING...
-
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Before starting on the installation of the stove, the following steps need to be fully completed: The chimney: Alternative 1 An existing chimney prepared for rear connection Alternative 2 A newly installed chimney prepared for rear connection Alternative 3 Preparation for a new top connection chimney Outdoor air supply (if so required) Floor plate (unless a floor plate or floor glass is to be installed afterwards) Several operations have to be carried out before the stove is put into place. - Page 10 We are now ready to place the stove in its intended position. 3. Put the bottom plate in place. Place the stove on the bottom plate and balance the stove verti- cally and horizontally using the four adjustment screws in each corner of the base. The adjust- ment screws must fit into the holes punched in the bottom plate.
-
Page 11: Installation Instructions
7. If the chimney is to be installed on top, the chimney must be installed now. Connect the start module using sealant. Make sure that the joint is sealed by sticking your hand into the stove and spreading the sealant. NOTE! Always leave at least 5 mm of ven- tilated space between the top of the stove and the chimney's insulation/outer steel... -
Page 12: Care & Firing Instructions
73%. For the K800 to work optimally, it is of key importance that you follow the care and firing instructions below. Non-compliance will invalidate the warranty. - Page 13 When you optimise firing manually, you should meas- 4. Close the door and wait until the fire has burned ure the amount of burned wood per hour. The K800 is down before you fill up the stove again. (If the chim- not intended for an output exceeding 9 kWh, i.e.
- Page 14 GOOD TO KNOW REMOVAL OF SOOT AND MAINTENANCE Since it can take some time for a cold chimney to start Soot must be removed at least once per season. The working properly, i.e. to force the smoke in the right soot from the chimney and the connections should direction, you can light a couple of sheets of news- be removed by a chimney sweep.
-
Page 15: Technical Specification
K800 TECHNICAL SPECIFICATION DIMENSIONS AND PERFORMANCE Height 1060 mm Width 392.5 mm Depth 400 mm Weight K815 125 kg Weight K825/835 135 kg Height, centre rear connection 920 mm (If installed with floor glass) 926 mm Height, top connection 1060 mm Outer dimensions, connection sleeve Ø150 mm... - Page 16 www.keddy.se...
