Summary of Contents for Resol DeltaSol BS

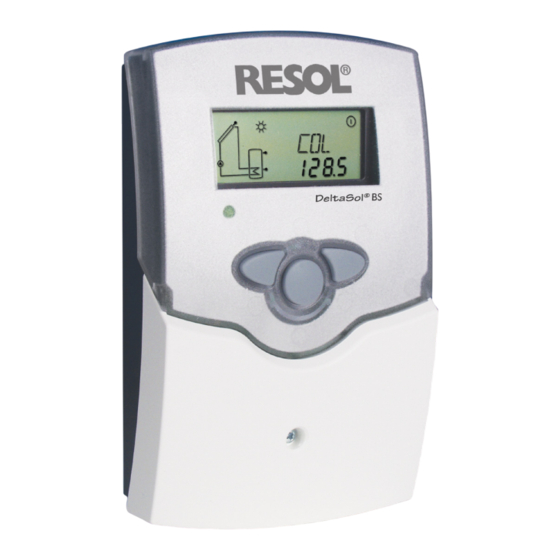

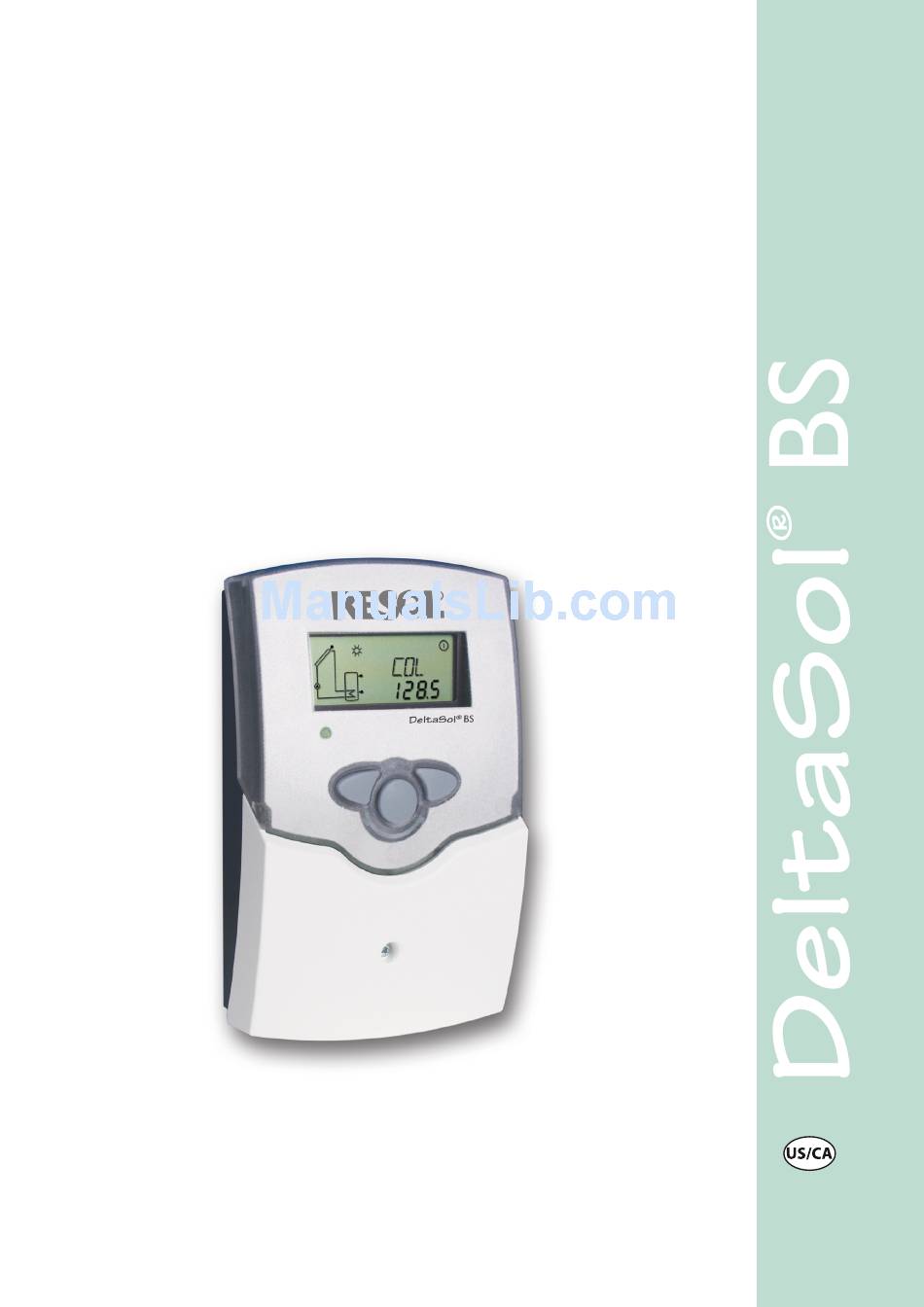

- Page 1 ® RESOL DeltaSol Mounting Connection Handling Fault localization Examples manual Thanks for buying a RESOL product. Read this manual carefully to get the best perfomance from this unit. www.resol.de...
-
Page 2: Table Of Contents
Please the approval of RESOL - Elektronische Regelungen GmbH. observe that the mounting is adapted to the characteristics This especially applies for copies, translations, micro films of the building, that the local regulations are respected and and the storage into electronic systems. -
Page 3: Technichal Data And Function Survey
DeltaSol ® • system-monitoring-display • up to 4 temperature sensors Pt1000 • heat balancing • function control • user-friendly operation by simple handling • solar operating hours counter Scope of delivery: 1 x DeltaSol ® 1 x accessory bag 1 x spare fuse T4A 2 x screws and dowels 4 x strain relief and screws... -
Page 4: Installation
DeltaSol ® Installation display Warning! 1.1 Mounting Switch-off power supply before opening the housing. The unit must only be located indoors. It is not suitable for installation in hazardous locations and should not be cover sited near to any electromagnetic field.The controller must additionally be equipped with an all-polar gap of at least 3 mm pushbutton or with a gap according to the valid installaton regulations,... -
Page 5: Standard Solar System
DeltaSol ® 1.2.1 Allocation of clamps for system 1 Standard solar system with 1 tank, 1 pump and 3 sen- sors. The sensor S4 / TRF can optionally be used for heat quantity balancing. Symbol Specification Collector sensor Tank sensor below Tank sensor at the top (optionally) S4 / TRF... -
Page 6: Operation And Function
DeltaSol ® Operation and function 2.1 Pushbuttons for adjustment The controller is operated by 3 pushbuttons below the display. The forward-key (1) is used for scrolling forward through the indication menu or to increase the adjustment values. The backwards-key (2) is accordingly used for the reverse function. -
Page 7: System Screen
DeltaSol ® 2.2.3 System screen The system screen (active system scheme) shows the schemes selected on the controller. It consists of several system component symbols, which are - depending on the current status of the system - either flashing, permanently shown or hidden. -
Page 8: Control Parameter And Indication Channels
DeltaSol ® Controller parameter and indication channels 3.1 Channel-overview Legend: Corresponding channel is available if the appropriate option Corresponding channel is only available if the option heat is activated. quantity measurement is activated (OWMZ). Please note: Corresponding channel is only available if the option heat S3 and S4 are only indicated if sensors are connected. -
Page 9: Indication Channels
DeltaSol ® 3.1.1 Indicataion of collector temperatures Shows the current collector temperature. COL: Collector temperature • COL : collector temperature (1-collector-system) display range: -40 ...+482 °F 3.1.2 Indication of tank temperatures Shows the current tank temperature. TST: Tank temperatures • TST : tank temperature (1-tank-system) Display range: -40 ...+482 °F 3.1.3 Indication of sensor 3 and sensor 4... -
Page 10: Adjustment Channels
DeltaSol ® 3.1.6 Heat quantity balancing OHQM:Heat quantity balan- A heat quantity balancing is possible for all systems in cing conjunction with a flowmeter.You just have to activate the Adjustment range: OFF ...ON option heat quantity balancing in the channel OHQM. Factory setting: OFF The volume flow readable at the flowmeter (l/min) must FMAX:... -
Page 11: S Mx X Maximum Temperature Tank
DeltaSol ® 3.1.8 Maximum tank temperature S MX: If the adjusted maximum temperature is exceeded, a further Maximum tank temp. loading of the tank is stopped so that a damaging overheating Adjustment range can be avoided. If the maximum tank temperature is 40 ... -
Page 12: Orec
DeltaSol ® 3.1.13 Recooling function OREC: If the adjustem maximum tank temperature (S MX) option recooling is reached, the solar pump remains activated in order adjustment range to avoid an overheating of the collector. The tank OFF ...ON temperature might continue to increase but only up to Factory setting: OFF 203 °F (emergency shutdown of the tank). -
Page 13: Tips For Fault Localization
DeltaSol ® 4.Tips for fault localization can fuse T4A If a malfunction occurs, a notification is given on the display of the controller: Inc. US-West Hatfield, MA 01088 SOKI 6 SI 2 (1) A (115) V~ Warning symbol Temp. Sensor Pt1000 Operating control lamp Operating control lamp flashes red. -
Page 14: Miscellaneous
DeltaSol ® 4.1Various: Pump is overheated, but no heat transfer from collector Pump starts for a short moment, switches-on/off to the tank, feed flow and return flow are equally warm, reapeatedly possibly also bubble in the tubes Air in the system? Is the temperature diffe- Exhaust the system;... - Page 15 DeltaSol ® Tanks are cooled during the night. Control the return flow Please also check further preventer in warm water pumps which are connec- circulation- o.k. ted to the solar tank. Does collector circuit pump run during the night? Check the controller Cleaning or replacement.
- Page 16 Overvoltage protection We highly recommend to install the RESOL overvoltage protection in order to avoid overvoltage damages at the collector (e.g. by lightening). Flowmeter If you are interested in realising a heat quantity balancing, you need a flowmeter for measuring the volume flow in...
