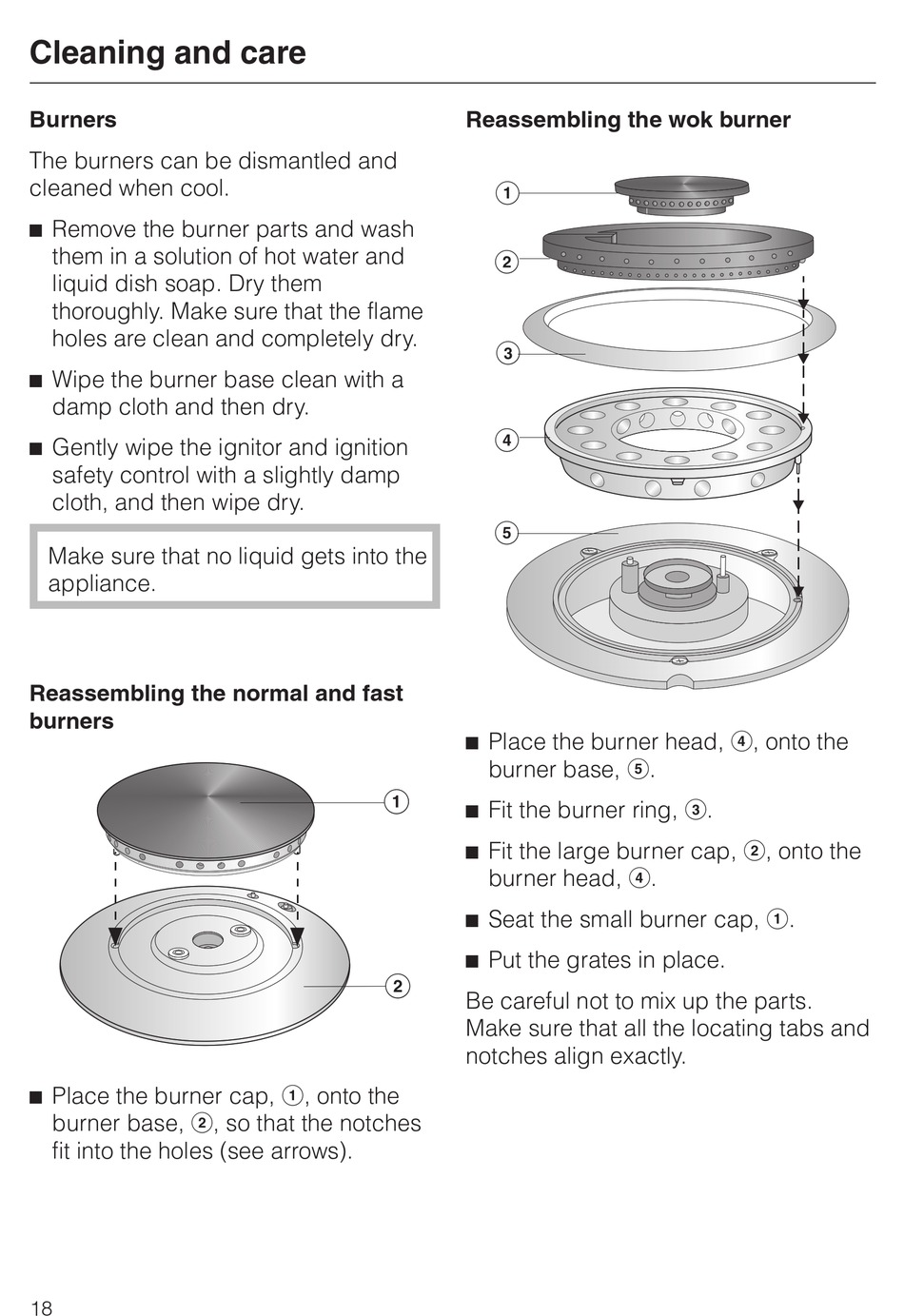

Cleaning and care
Burners
The burners can be dismantled and
cleaned when cool.
^ Remove the burner parts and wash
them in a solution of hot water and
liquid dish soap. Dry them
thoroughly. Make sure that the flame
holes are clean and completely dry.
^ Wipe the burner base clean with a
damp cloth and then dry.
^ Gently wipe the ignitor and ignition
safety control with a slightly damp
cloth, and then wipe dry.
Make sure that no liquid gets into the
appliance.
Reassembling the normal and fast
burners
^ Place the burner cap, a, onto the
burner base, b, so that the notches
fit into the holes (see arrows).
18
Reassembling the wok burner
a
b
c
d
e
^ Place the burner head, d, onto the
burner base, e.
a
^ Fit the burner ring, c.
^ Fit the large burner cap, b, onto the
burner head, d.
^ Seat the small burner cap, a.
^ Put the grates in place.
b
Be careful not to mix up the parts.
Make sure that all the locating tabs and
notches align exactly.
