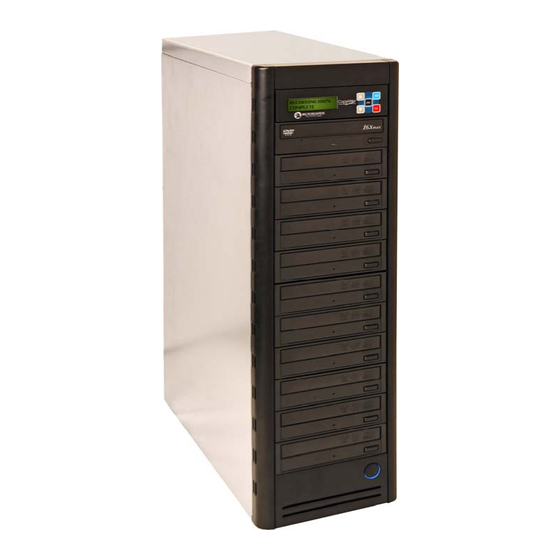

Page 1: Users Manual
DVD Premium Series Users Manual www.microboards.com Version 1.04... - Page 2 DVD Premium Series MICROBOARDS TECHNOLOGY, LLC...
-
Page 3: Table Of Contents
TABLE OF CONTENTS System Overview ...5 Unpacking your system...5 Microboards Statement Regarding Improper Duplication ...5 Installation Requirements ...6 Main Menu ...7 Copy Disc to Disc...7 Simulation Disc to Disc ...7 Erasing RW media ...8 Setup Menu ...9 Mode Select...10 DVD WR Speed ...10 CD WR Speed ...10 ISRC Check ...10 Auto Run...10... - Page 4 DVD Premium Series MICROBOARDS TECHNOLOGY, LLC...
-
Page 5: System Overview
• Starter Kit (includes User’s Manual and Warranty information) If any of these items are missing, please contact or Microboards Technology Technical Support at 952-556-1639. IMPORTANT: Please keep all the packing for your DVD Premium Series duplicator. If your unit ever needs to be sent in for service, it must be returned in the original packing or the warranty will be voided. -
Page 6: Installation Requirements
Installation Requirements System Setup • Connect the power cable to the DVD Premium Series tower and plug in to a protected power outlet strip or UPS power supply. • Turn on power to the tower. The system is now ready to use. Install your DVD Premium Series duplicator in the following environment: •... -
Page 7: Main Menu
Main Menu The Arrow buttons (▼▲)allow you to move forward or backward in the menu without selecting the current menu item. The NO button will move you to the next menu item. YES will select the current menu item. INSERT COPY START? (DISCtoDISC) MASTER DISC... -
Page 8: Erasing Rw Media
5. The drive trays will open on any recorder without blank discs installed. If you do not want to make a copy in those drives, close the tray(s), wait for the drive light to go out, and then press the YES button to start the copy job. 6. -
Page 9: Setup Menu
Setup Menu SETUP MODE SELECT? COPY? (COPY MODE) (DISC to DISC) DVD WR MAX? SPEED? (MAX) CD WR SPEED? MAX? (MAX) ISRC CHECK? ISRC ON? (OFF) Auto Run? (OFF) COPY QUANTITY? (xxxx/xxxx) Session Mode? AUTO? (AUTO) Reader Select? DRIVE01 (DRIVExx) READER DRIVE02 RECORDER... -
Page 10: Mode Select
Setup Menu 1. At the COPY START? (DISC to DISC) menu, press the NO or ▼ button until the display shows SETUP? (MODE CHANGE) SETUP? (MODE CHANGE) 2. Press the YES button 3. The first setup option is Mode Select, followed by Write Speeds, ISRC Check, Copy Quantity, Session Mode, Drive Inquiry, Firmware Version and Exit. -
Page 11: Error Codes
Error Codes Read Errors ASCQ Description NO ADDITIONAL SENSE INFORMATION I/O PROCESS TERMINATED, PLAY OPERATION ABORTED AUDIO PLAY OPERATION IN PROGRESS AUDIO PLAY OPERATION PAUSE AUDIO PLAY OPERATION SUCCESSFULLY COMPLETED AUDIO PLAY OPERATION STOPPED DUE TO ERROR NO CURRENT AUDIO STATUS TO RETURN CLEANINF REQUESTED NO INDEX/SECTOR SIGNAL NO SEEK COMPLETE... - Page 12 RECOVERED DATA WITH NEGATIVE HEAD OFFSET RECOVERED DATA WITH RETIES AND/OR CIRC APPLIED RECOVERED DATA USING PREVIOUS SECTOR ID RECOVERED DATA WITH ERROR CORRECTION APPLIED RECOVERED DATA WITH ERROR CORP. & RETRIES APPLIED RECOVERED DATA WITH CIRC RECOVERED DATA WITH L-EC PARAMETER LIST LENGTH ERROR SYNCHRONOUS DATA TRANSFER ERROR RECOVERED ID WITH ECC CORRECTION...
- Page 13 MEDIUM MAGAZINE UNLOCKED MECHANICAL POSITIONING OR CHANGER ERROR INVALID BITS IN IDENTIFY MESSAGE LOGICAL UNIT HAS NOT SELF-CONFIGURED YET LOGICAL UNIT FAILURE TIMEOUT ON LOGICAL UNIT TARGET OPERATING CONDITIONS HAVE CHANGED MICROCODE HAS BEEN CHANGED CHANGED OPERATING DEFINITION INQUIRY DATA HAS CHANGED DIAGNOSTIC FAILURE ON COMPONENT NN (80H-FFH) MESSAGE ERROR INTERNAL TARGET FAILURE...
- Page 14 Write Errors ASCQ Description NO ADDITIONAL SENSE INFORMATION I/O PROCESS TERMINATED, PLAY OPERATION ABORTED AUDIO PLAY OPERATION IN PROGRESS AUDIO PLAY OPERATION PAUSED AUDIO PLAY OPERATION SUCCESSFULLY AUDIO PLAY OPERATION STOPPED DUE TO ERRPOR NO CURRENT AUDIO STATUS TO RETURN NO SEEK COMPLETE LOGICAL UNIT NOT READY, CAUSE NOT REPORTABLE LOGICAL UNIT IS IN PROCESS OF BECOMING READY...
- Page 15 RECOVERED DATA WITH NEGATIVE HEAD OFFSET RECOVERED DATA WITH RETRIES AND/OR CIRC APPLIED RECOVERED DATA USING PREVIOUS SECTOR ID RECOVERED DATA WITHOUT ECC - DATA AUTO-REALLOCATED RECOVERED DATA WITHOUT ECC - RECOMMEND REASSIGNMENT RECOVERED DATA WITHOUT ECC - RECOMMEND REWRITE RECOVERED DATA WITHOUT ECC - DATA REWRITTEN RECOVERED DATA WITH ERROR CORRECTION APPLIED RECOVERED DATA WITH ERROR CORR.
- Page 16 LOG PARAMETERS CHANGED RESERVATIONS PREEMPTED COPY CANNOT EXECUSE SINCE HOST CANNOT DISCONNECT COMMAND SEQUENCE ERROR NOT READY TO READY CHANGE, MEDIUM MAY HAVE CHANGED POWER ON, RESET, OR BUS DEVICE RESET OCCURRED PARAMETERS CHANGED MODE PARAMETERS CHANGED COMMAND SEQUENCE ERROR CURRENT PROGRAM AREA IS NOT EMPTY CURRENT PROGRAM AREA IS EMPTY PERSISTENT PREVENT CONFLICT...
- Page 17 COMMAND PHASE ERROR DATA PHASE ERROR LOGICAL UNIT FAILED SELF-CONFIGURATION TAGGED OVERLAPPED COMMANDS (NN=QUEUE TAG) OVAERLAPPED COMMANDS ATTEMPTED ERASE FAILURE ERASE FAILURE - Incomplete erase operation detected MEDIA LOAD OR EJECT FAILED MEDIUM REMOVAL PREVENTED SYSTEM RESOURCE FAILURE UNABLE TO RECOVER TABLE-OF-CONTENTS OPERATOR REQUEST OR STATE CHANGE INPUT OPERATOR MEDIUM REMOVAL REQUEST OPERATOR SELECTED WRITE PROTECT...
-
Page 18: Specifications
Only those firmware versions recommended and provided by Microboards Technical Support for this specific product should be installed. Installation of an incorrect firmware on any Microboards Technology product may result in any remaining warranty being voided. Technical Support For technical questions or support issues, contact Microboards Technology technical support:... - Page 19 Any unauthorized modification to this equipment may result in the revocation by the FCC of the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
