Summary of Contents for MicroBoards Technology CopyWriter BluRay Series
-

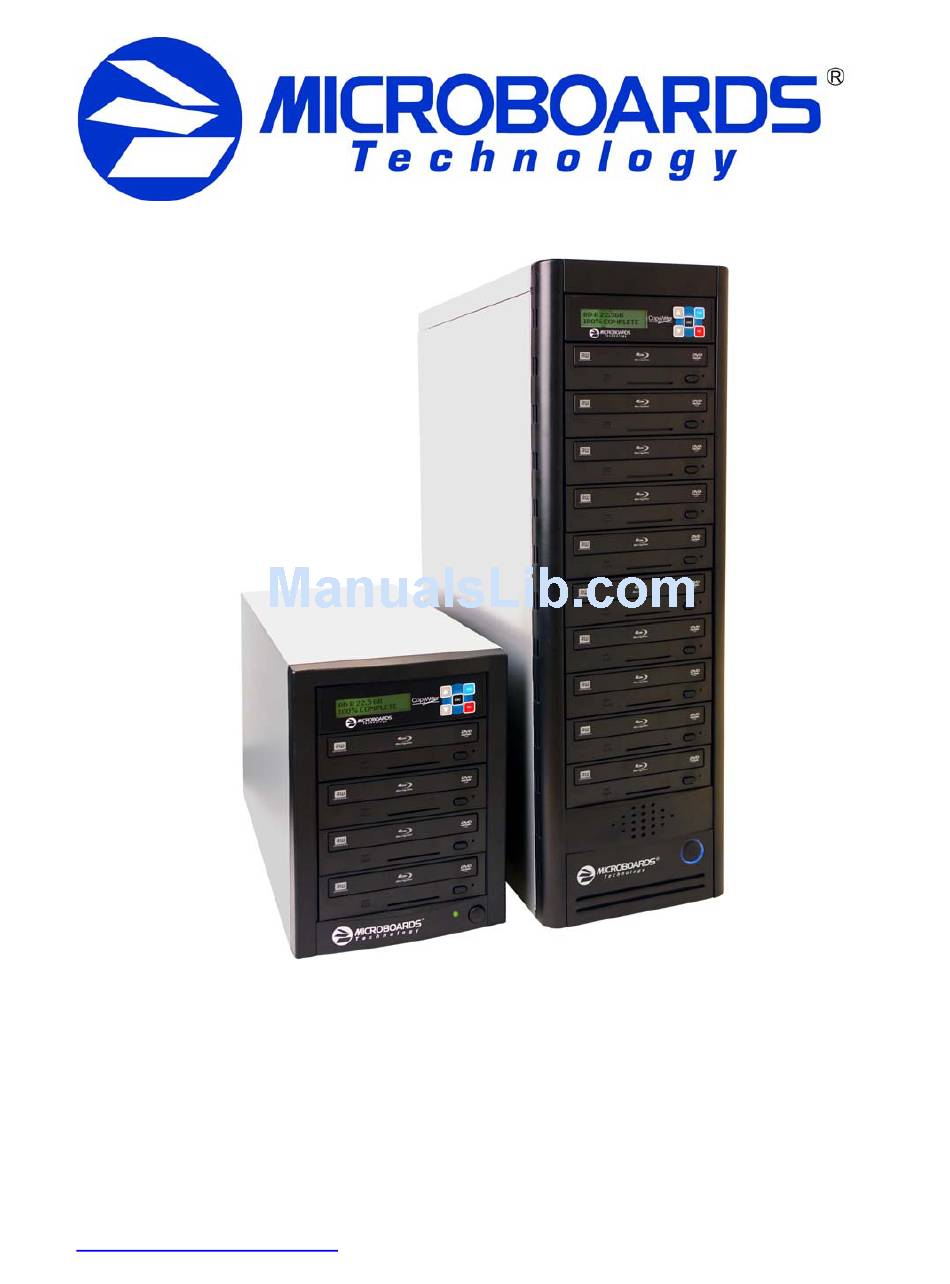

Page 1: Users Manual
BluRay Series Users Manual www.microboards.com Version 1.07... - Page 2 BluRay Series MICROBOARDS TECHNOLOGY, LLC...
-
Page 3: Table Of Contents
TABLE OF CONTENTS System Overview ...5 Unpacking your system...5 Microboards Statement Regarding Improper Duplication ...5 Installation Requirements ...6 Main Menu ...7 Copy Disc to Disc...8 Simulation Disc to Disc ...8 Registering Data to the Hard Drive (HDD) ...9 Erasing RW media ...10 Copy Hard Drive (HDD) to Disc ...10 Clearing the Hard Drive (HDD) ...11 Setup Menu ...12... - Page 4 BluRay Series MICROBOARDS TECHNOLOGY, LLC...
-
Page 5: System Overview
Power cable • User’s Manual If any of these items are missing, please contact or Microboards Technology Technical Support at 952-556-1639. IMPORTANT: Please keep all the packing for your BluRay Series duplicator. If your unit ever needs to be sent in for service, it must be returned in the original packing or the warranty will be voided. -
Page 6: Installation Requirements
Installation Requirements System Setup • Connect the power cable to the BluRay Series tower and plug in to a protected power outlet strip or UPS power supply. • Turn on power to the tower. The system is now ready to use. Install your BluRay Series duplicator in the following environment: •... -
Page 7: Main Menu
Main Menu The Arrow buttons (▼▲)allow you to move forward or backward in the menu without selecting the current menu item. The NO and ESC buttons will move you to the next menu item. YES will select the current menu item. INSERT COPY START? (DISCtoDISC) -
Page 8: Copy Disc To Disc
Copy Disc to Disc Please see page 13 regarding the use of BD-RE media. 1. Place the Master Disc into the drive designated as the Reader in the Setup menu (see page 13). Place the blank disc(s) into the Recorder drive(s) and wait for the LED(s) on the front of the Recorder(s) to go out. -
Page 9: Registering Data To The Hard Drive (Hdd)
Registering Data to the Hard Drive (HDD) When registering data to a partition on the internal hard drive, you do have the option of recording to the blank media as well. In the SETUP menu, go to “Copy DISC to HD/DISC” and change the setting from OFF to ON. -
Page 10: Erasing Rw Media
Erasing RW media 1. At the COPY START? (DISC to DISC) menu, press the NO or ▼ button until the display shows DISC ERASE? (REWRITABLE): DISC ERASE? (REWRITABLE) 2. Load the Recorder(s) with the BD-RE, DVD-+RW, or CD-RW media you wish to erase. You can erase one disc at a time or fill all the Recorders to erase multiple discs at once. -
Page 11: Clearing The Hard Drive (Hdd)
8. Place the blank disc(s) into all drive(s) and wait for the LED(s) on the front of the Recorder(s) to go out. available as a Recorder when burning HDD to Disc 9. Press the YES button. If you have the Auto Run feature set to ON, the duplication will begin when all drives are loaded with blank media. -
Page 12: Setup Menu
Setup Menu SETUP MODE SELECT? COPY? (COPY MODE) (DISC to DISC) BD-RE? Write+Verify? (Write+Verify)) COPY HD/DISC? HD/DISC ON? (OFF) BD WR Speed? MAX? (MAX) DVD WR Speed? MAX? (MAX) CD WR Speed? MAX? (MAX) Auto Run? (OFF) Copy Quantity? Copy Quantity? (xxxx/xxxx) Reader Select? DRIVE01... -
Page 13: Mode Select
Setup Menu 1. At the COPY START? (DISC to DISC) menu, press the NO or ▼ button until the display shows SETUP? (MODE CHANGE) SETUP? (MODE CHANGE) 2. Press the YES button 3. The first setup option is Mode Select, followed by Copy DISC to HD/DISC, Write Speed, ISRC Check, Copy Quantity, Session Mode, Drive Inquiry, Firmware Version and Exit. -
Page 14: Drive Inquiry
PC. 5. You will now be able to access the bottom recorder drive in the duplicator as an external DVD recorder. DO NOT PRESS THE YES BUTTON ON THE DUPLICATOR WHILE YOU ARE BURNING TO... -
Page 15: Error Codes
Error Codes Read Errors ASCQ Description NO ADDITIONAL SENSE INFORMATION I/O PROCESS TERMINATED, PLAY OPERATION ABORTED AUDIO PLAY OPERATION IN PROGRESS AUDIO PLAY OPERATION PAUSE AUDIO PLAY OPERATION SUCCESSFULLY COMPLETED AUDIO PLAY OPERATION STOPPED DUE TO ERROR NO CURRENT AUDIO STATUS TO RETURN CLEANINF REQUESTED NO INDEX/SECTOR SIGNAL NO SEEK COMPLETE... - Page 16 RECOVERED DATA WITH NEGATIVE HEAD OFFSET RECOVERED DATA WITH RETIES AND/OR CIRC APPLIED RECOVERED DATA USING PREVIOUS SECTOR ID RECOVERED DATA WITH ERROR CORRECTION APPLIED RECOVERED DATA WITH ERROR CORP. & RETRIES APPLIED RECOVERED DATA WITH CIRC RECOVERED DATA WITH L-EC PARAMETER LIST LENGTH ERROR SYNCHRONOUS DATA TRANSFER ERROR RECOVERED ID WITH ECC CORRECTION...
- Page 17 MEDIUM MAGAZINE UNLOCKED MECHANICAL POSITIONING OR CHANGER ERROR INVALID BITS IN IDENTIFY MESSAGE LOGICAL UNIT HAS NOT SELF-CONFIGURED YET LOGICAL UNIT FAILURE TIMEOUT ON LOGICAL UNIT TARGET OPERATING CONDITIONS HAVE CHANGED MICROCODE HAS BEEN CHANGED CHANGED OPERATING DEFINITION INQUIRY DATA HAS CHANGED DIAGNOSTIC FAILURE ON COMPONENT NN (80H-FFH) MESSAGE ERROR INTERNAL TARGET FAILURE...
- Page 18 Write Errors ASCQ Description NO ADDITIONAL SENSE INFORMATION I/O PROCESS TERMINATED, PLAY OPERATION ABORTED AUDIO PLAY OPERATION IN PROGRESS AUDIO PLAY OPERATION PAUSED AUDIO PLAY OPERATION SUCCESSFULLY AUDIO PLAY OPERATION STOPPED DUE TO ERROR NO CURRENT AUDIO STATUS TO RETURN NO SEEK COMPLETE LOGICAL UNIT NOT READY, CAUSE NOT REPORTABLE LOGICAL UNIT IS IN PROCESS OF BECOMING READY...
- Page 19 RECOVERED DATA WITH NEGATIVE HEAD OFFSET RECOVERED DATA WITH RETRIES AND/OR CIRC APPLIED RECOVERED DATA USING PREVIOUS SECTOR ID RECOVERED DATA WITHOUT ECC - DATA AUTO-REALLOCATED RECOVERED DATA WITHOUT ECC - RECOMMEND REASSIGNMENT RECOVERED DATA WITHOUT ECC - RECOMMEND REWRITE RECOVERED DATA WITHOUT ECC - DATA REWRITTEN RECOVERED DATA WITH ERROR CORRECTION APPLIED RECOVERED DATA WITH ERROR CORR.
- Page 20 LOG PARAMETERS CHANGED RESERVATIONS PREEMPTED COPY CANNOT EXECUSE SINCE HOST CANNOT DISCONNECT COMMAND SEQUENCE ERROR NOT READY TO READY CHANGE, MEDIUM MAY HAVE CHANGED POWER ON, RESET, OR BUS DEVICE RESET OCCURRED PARAMETERS CHANGED MODE PARAMETERS CHANGED COMMAND SEQUENCE ERROR CURRENT PROGRAM AREA IS NOT EMPTY CURRENT PROGRAM AREA IS EMPTY PERSISTENT PREVENT CONFLICT...
- Page 21 COMMAND PHASE ERROR DATA PHASE ERROR LOGICAL UNIT FAILED SELF-CONFIGURATION TAGGED OVERLAPPED COMMANDS (NN=QUEUE TAG) OVAERLAPPED COMMANDS ATTEMPTED ERASE FAILURE ERASE FAILURE - Incomplete erase operation detected MEDIA LOAD OR EJECT FAILED MEDIUM REMOVAL PREVENTED SYSTEM RESOURCE FAILURE UNABLE TO RECOVER TABLE-OF-CONTENTS OPERATOR REQUEST OR STATE CHANGE INPUT OPERATOR MEDIUM REMOVAL REQUEST OPERATOR SELECTED WRITE PROTECT...
-
Page 22: Specifications
