Summary of Contents for PRESIDENT TAYLOR 3

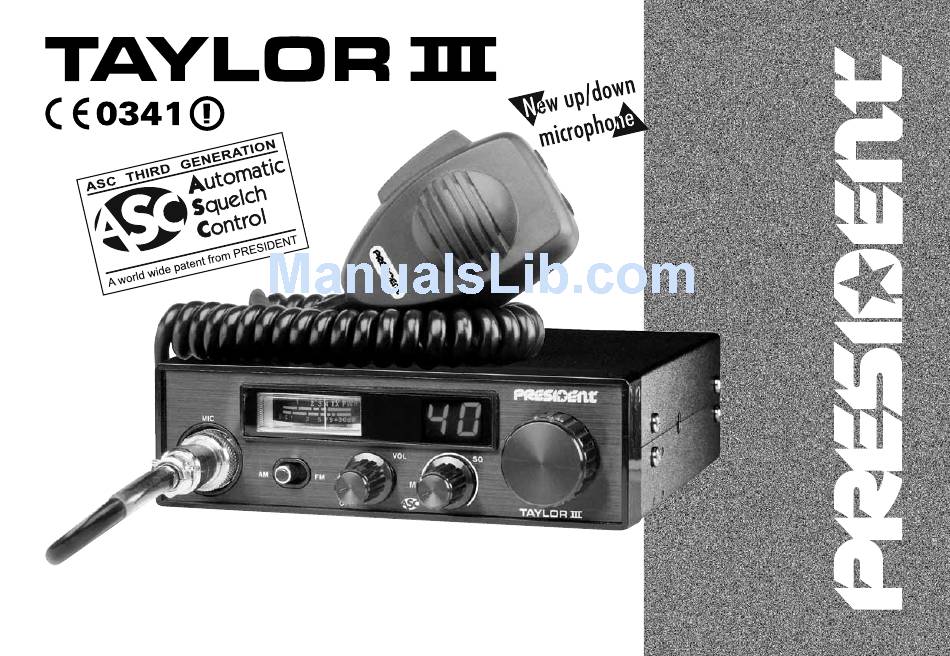

  • Page 1 Owner's manual...

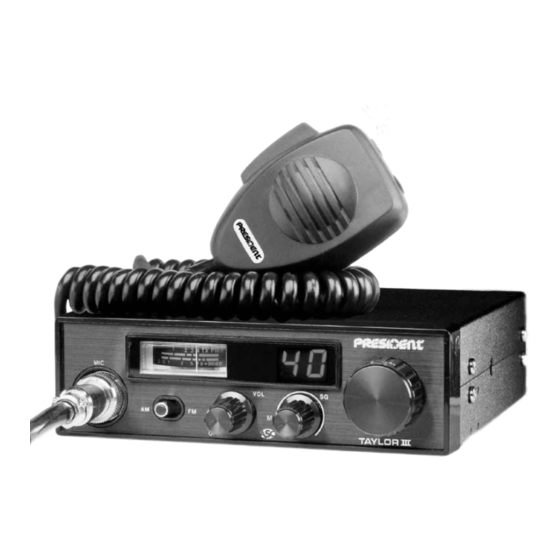

  • Page 2 Your PRESIDENT TAYLOR III ASC at a glance...
  • Page 3 SUMMARY INSTALLATION HOW TO USE YOUR CB TECHNICAL CHARACTERISTICS TROUBLE SHOOTING HOW TO TRANSMIT OR RECEIVE A MESSAGE GLOSSARY CERTIFICATE OF CONFORMITY FREQUENCY TABLES EUROPEAN NORMS...
  • Page 4 WARNING ! Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio) ! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee.
  • Page 5 CB equipment. With the use of up-to-date technology, which guarantees unprecedented quality, your PRESIDENT TAYLOR III ASC is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure...
  • Page 6 Mobile antenna Your PRESIDENT TAYLOR III ASC is protected against an inversion of polarities. - Must be fixed to the vehicle where there is a maximum of metallic surface However, before switching it on, you are advised to check all the connec- (ground plane), away from windscreen mountings.
  • Page 7 - Connect the SWR meter between the CB radio and the antenna as close as noise disappears. This adjustment should be done with precision as, if set to possible to the CB (use a maximum of 40 cm cable, type President CA 2C). maximum, (i.e. fully clockwise) only the strongest signals will be received.
  • Page 8 5) MODE A) DC-POWER TERMINAL (13.2 V) B) ANTENNA CONNECTOR (SO-239) Use this key to select AM or FM. The modulation mode must correspond with C) EXTERNAL SPEAKER JACK (8 Ω, Ø 3.5 mm) that of the person with whom you communicate. A/ Amplitude Modulation (AM) is for communications in areas where there are obstacles and over medium distances.
  • Page 9 D) TROUBLE SHOOTING F) GLOSSARY 1) YOUR CB RADIO WILL NOT TRANSMIT OR YOUR TRANSMISSION Below you will find some of the most frequently used CB radio expressions. IS OF POOR QUALITY: Remember this is meant for fun and that you are by no means obliged to use them.

  • Page 10: Certificate Of Conformity

    Coming in loud and proud : Good reception Doughnut : Tyre Down and gone : Turning CB off We, GROUPE PRESIDENT ELECTRONICS, Route de Sète, BP 100 – 34540 Down one : Go to a lower channel Balaruc – FRANCE, Do you copy?
  • Page 11 SIEGE SOCIAL/HEAD OFFICE - FRANCE Route de Sète - BP 100 - 34540 BALARUC Site Internet : http://www.president-electronics.com E-mail : groupe@president-electronics.com UTZZ01369DZ(0)
