Other connectors:
1, CN19 to Upgrade the program of MTK5380C (U13) AND FLASH (U17)
+3V3SB
U0RX
U0TX

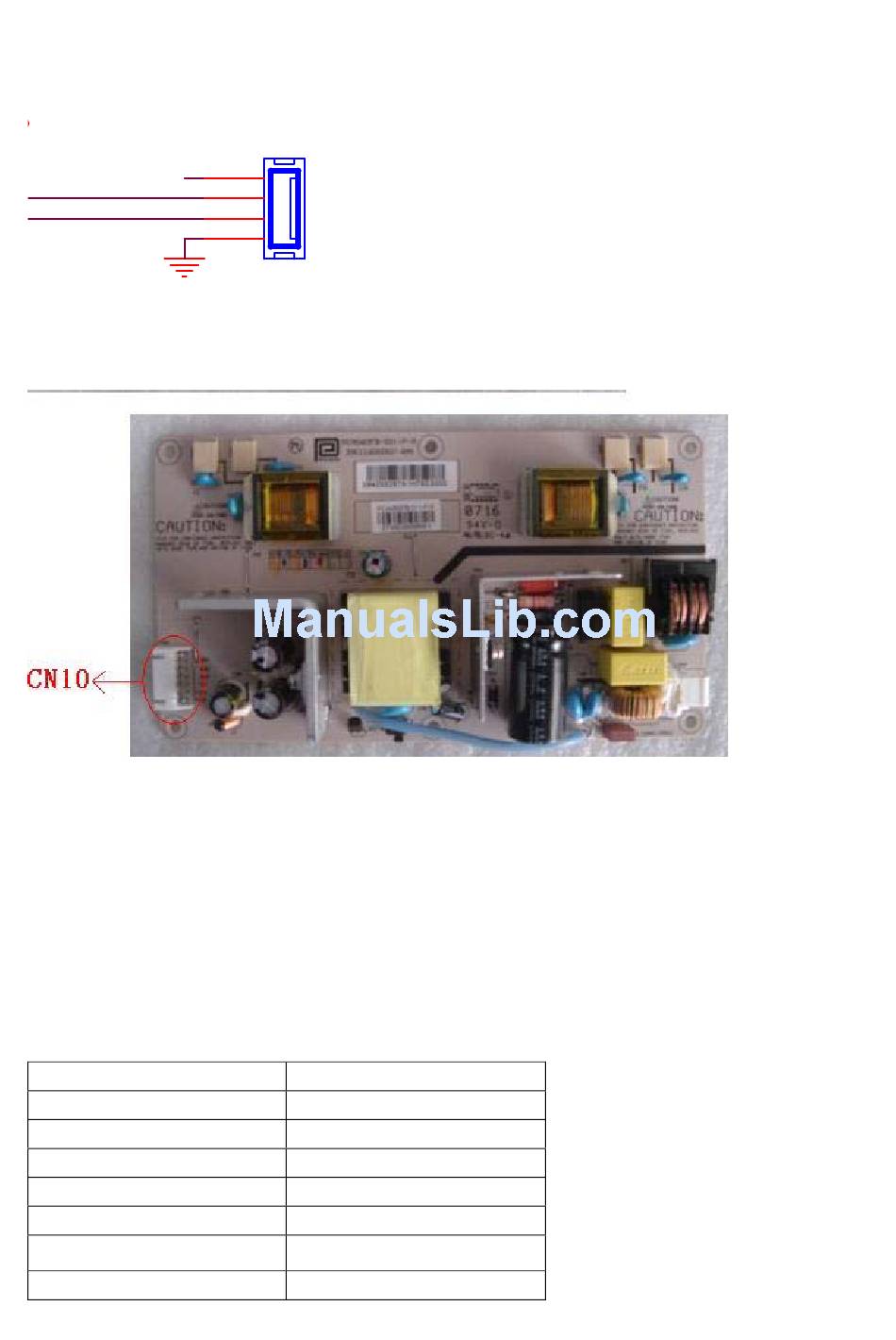

3.3. Power Board

3.3.1 Function Description:
Supply power for Main board, Panel.
3.3.2Connectordefinition
INPUT CONNECTOR (CN6)
CN10
1
2
3
4
5
6
7
J3
1
2
3
4
4x1 W/HOUSING
DIP4/W/H/P2.0
Signal name
N
GND
GND
DIM
EN
+12V
+12V
9
