Meyer Sound Control Electronics Unit M-5 Operating Instructions

M-5
Control
Electronics
Operating Instructions
Unit
The Meyer Sound M-5 is an ac-
tive signal processor designed
for use with the MSL-5 loud-
speaker. It is a single channel
device, and it occupies a single
1 3 ⁄ -inch rack space. The func-
4
tions of the M-5 are:
• Active crossover for bi-
amplification.
• Loudspeaker frequency
response and phase
response alignment.
• MultiSense™ driver
protection.
Connections
The M-5 operates at line level and is designed to be the
last component in the signal chain before the power
amplifiers. Connections to the M-5 should be made
according to Diagram A.
1. Signal Inputs to the M-5 should be balanced. For
the best signal-to-noise ratio, the average input level
should be at least 1 volt RMS. The M-5 will accept
peak inputs of up to +26 dBV.
Note: The M-5 utilizes Meyer Sound's exclusive ISO™
Input. Pins 1, 2 and 3 are transformer-isolated, and the
connector shell is connected to earth ground (pin 3
positive for positive pressure out from the MSL-5).
2. MultiSense™ connections are made from the
outputs of the power amplifiers to the M-5 Sense
inputs. The output(s) of the High power amplifier(s)
must be connected to the Hi Sense inputs, and the
Meyer Sound Laboratories, Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
PUSH
+ + + +
Lift
- - - -
GND
Input Input Lo Sense Hi Sense
2 3
1
(Red)
(Black)
Type 3 Amplifier with 16 dB fixed voltage gain.
Type 3 Amplifier with 16 dB fixed voltage gain.
Out to MSL-5

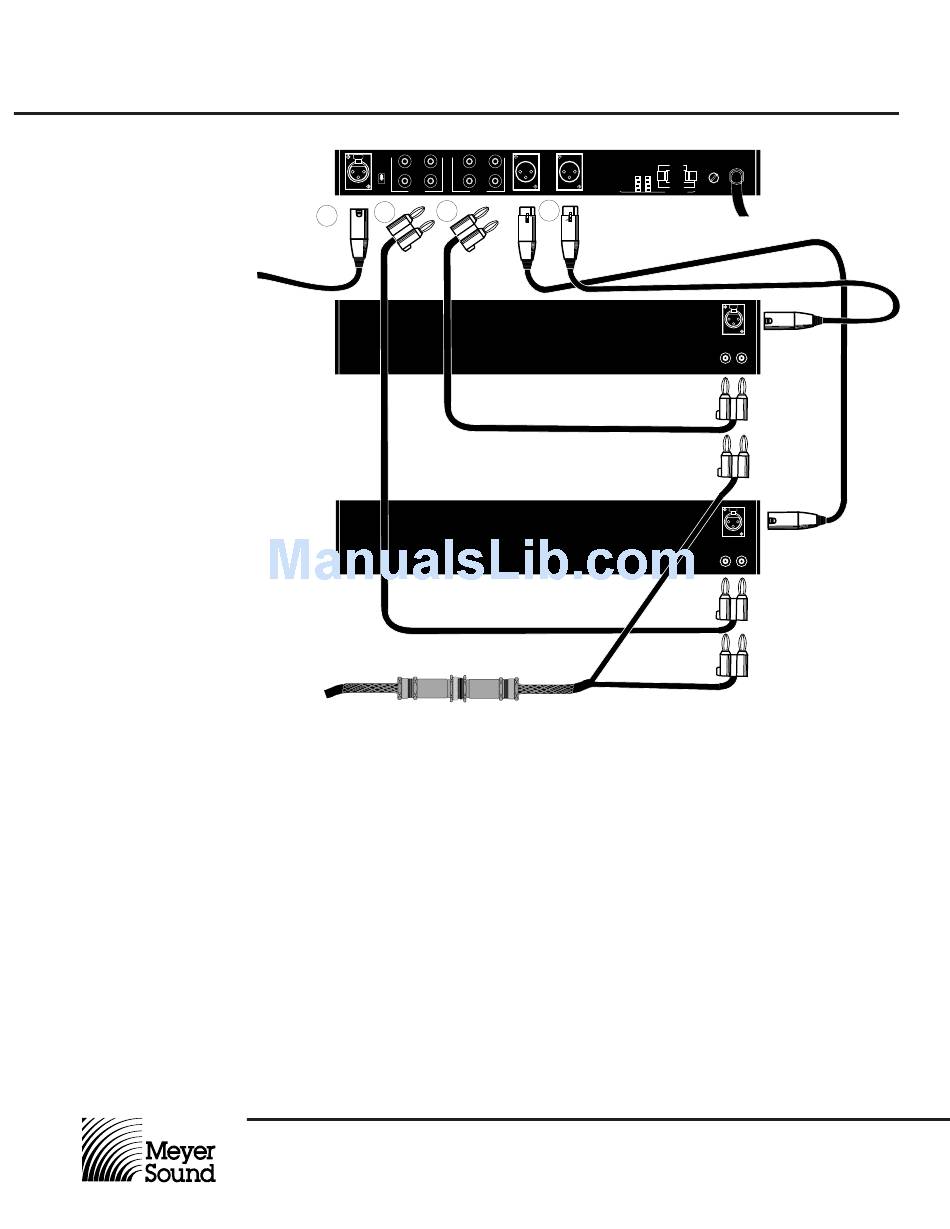

Diagram A: Connections for use with MSL-5
