VX-1
Stereo
Program
Equalizer
Operating Instructions

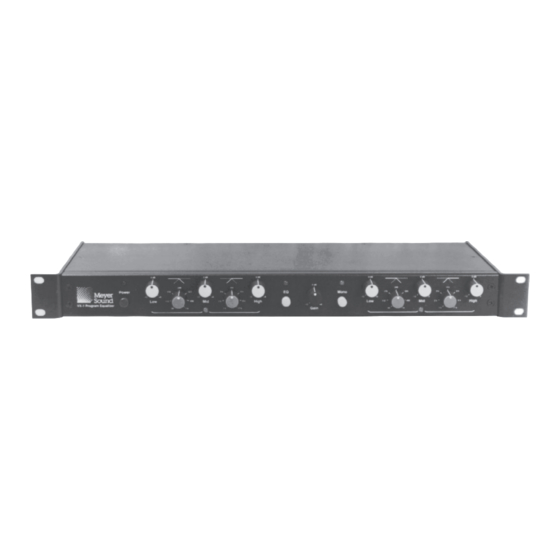

The Meyer Sound VX-1 is a two-channel program equal-
izer featuring three bands of minimum-phase boost or
cut equalization per channel. Optimized for composite
response shaping of stereo program material, the VX-1
utilizes a unique Virtual Crossover™ implementation,
with two frequency breakpoint controls and separate
gain controls for the Low, Mid and High bands.
Meyer Sound Laboratories, Inc.
2832 San Pablo Avenue
Berkeley, CA 94702
The VX-1 occupies a single 1.75" standard rack
space, and the clearly marked controls include a
Master gain control, a single EQ In/Out switch and
a convenient Mono switch. Single-pole, minimum-
phase circuitry assures natural, graceful sonic
characteristics, even at extreme settings. The
dynamic range of the VX-1 exceeds 100 dB.
Advertisement
Related Manuals for Meyer Sound VX-1
Summary of Contents for Meyer Sound VX-1

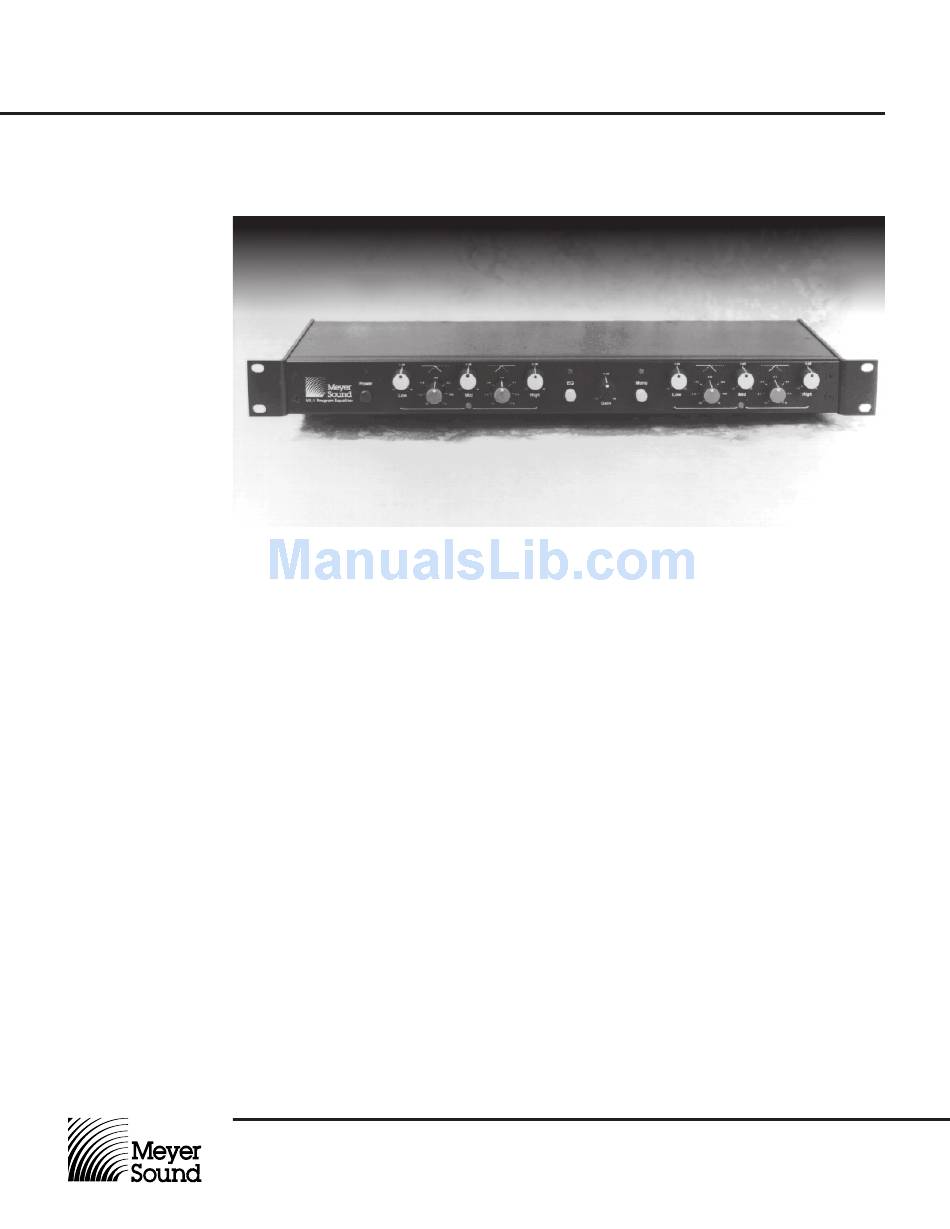

- Page 1 Stereo Program Equalizer Operating Instructions The Meyer Sound VX-1 is a two-channel program equal- izer featuring three bands of minimum-phase boost or cut equalization per channel. Optimized for composite response shaping of stereo program material, the VX-1 utilizes a unique Virtual Crossover™ implementation, with two frequency breakpoint controls and separate gain controls for the Low, Mid and High bands.
- Page 2 Output Connections Signal outputs from the VX-1 are active balanced, at nominal +4 dBu operating level. The connectors may be wired bal- AC Power Inlet and The VX-1 is equipped with an international standard IEC 320...
- Page 3 VX-1 equalization stages. When the equalization is engaged, the LED lights and the equalization controls are active. Master Gain Control The Master Gain Control regulates the gain of the VX-1. Its range is from off to +6 dB, with 0 dB (unity) gain at the center position.
- Page 4 Dimensions before clipping. 8. 0 dBu ³ 0.775 vrms 0 dBV = 1 vrms Weight © 1991, Meyer Sound. Meyer Sound Laboratories, Inc. 2832 San Pablo Avenue Berkeley, CA 94702 05.045.010.01 A 20 – 20,000 Hz +0, -0.5 dB 20 –...
- Page 5 Stereo Program Equalizer Operating Instructions Examples of Program The examples on this page illustrate typical response Equalization characteristics obtained with various settings of the VX-1 band gain and frequency controls. 50 Hz Frequency 50 Hz Frequency Meyer Sound Laboratories, Inc.
- Page 6 VX-1 Stereo Program Equalizer Operating Instructions 50 Hz Frequency 50 Hz Frequency Meyer Sound Laboratories, Inc. 2832 San Pablo Avenue Berkeley, CA 94702 0 dB 0 dB 0 dB High Channel A 17 k Gradual Downward Tilt 0 dB 0 dB...
