Slate Raven MTX User Manual

Hide thumbs Also See for Raven MTX:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

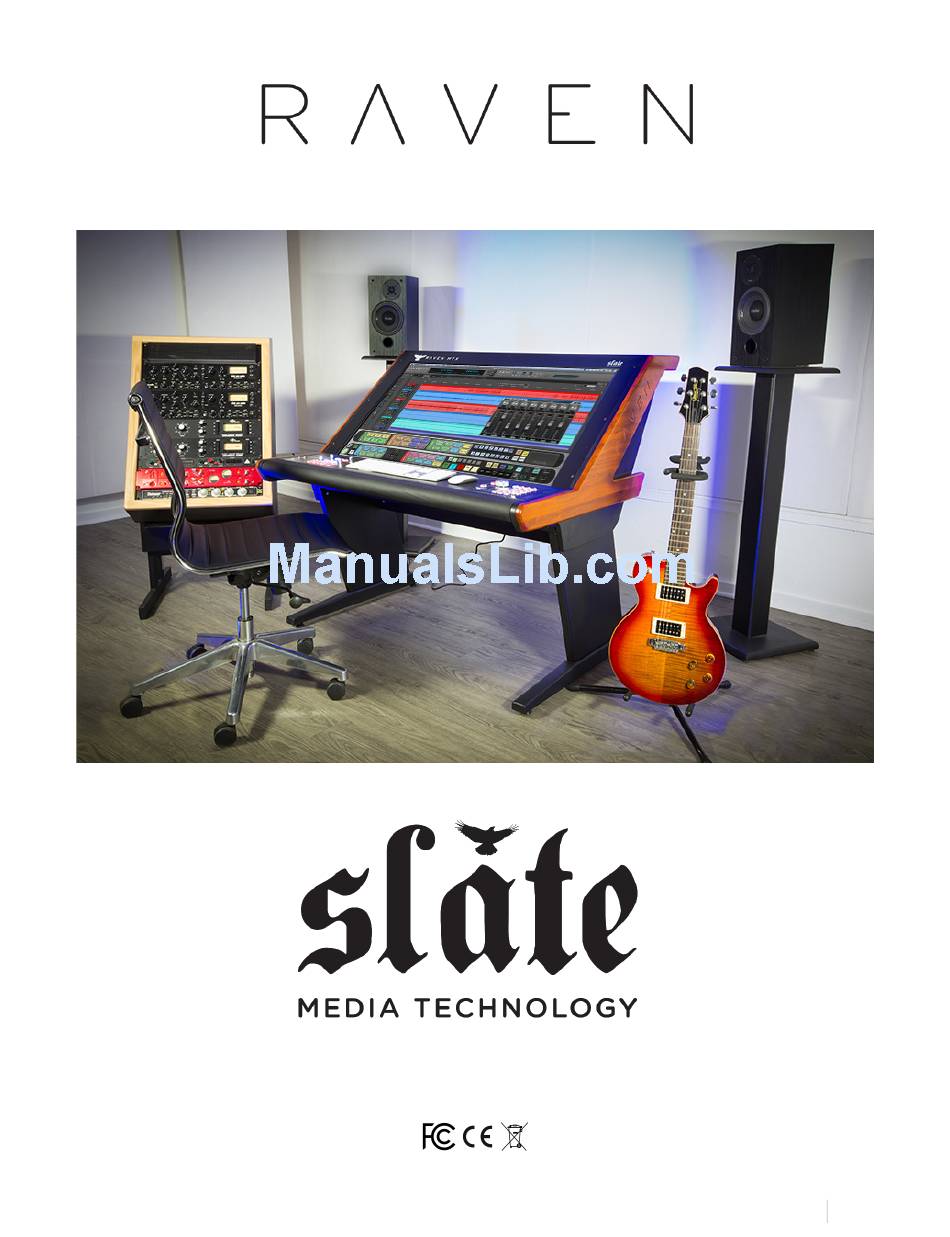

MTX
DIGITAL PERFORMER USER GUIDE & BATCH COMMAND SYSTEM MANUAL
RAVEN Version 3.0.0
Updated 10/24/2015
RAVEN MTX DIGITAL PERFORMER USER MANUAL 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raven MTX and is the answer not in the manual?

Questions and answers

Related Manuals for Slate Raven MTX

Summary of Contents for Slate Raven MTX

  • Page 1 DIGITAL PERFORMER USER GUIDE & BATCH COMMAND SYSTEM MANUAL RAVEN Version 3.0.0 Updated 10/24/2015 RAVEN MTX DIGITAL PERFORMER USER MANUAL 1...

  • Page 2: Table Of Contents

    System Requirements .................................. 1 2 RAVEN MTX Dimensions .................................. 1 3 Software Installation & Touch Calibration .......................... 1 4 Connecting RAVEN MTX to Digital Performer ........................ 2 2 Launching RAVEN MTX Software .............................. 2 4 INSTALLING RAVEN MTX FOR DIGITAL PERFORMER ............24 Setting Up &...

  • Page 3: Important Safety Notes Before You Start

    This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your RAVEN MTX. This symbol indicates there are important operating and maintenance instructions in the literature accompanying your RAVEN MTX. 1. Read these instructions. 2. Keep these instructions.
  • Page 4 Operate your RAVEN MTX only from the power source included. Moving Make sure the product is turned off, unplugged, and all cables have been removed. It will take a minimum of two people to move your RAVEN MTX, although three are recommended. Servicing Servicing of the RAVEN MTX is to be done by qualified service personnel only.
  • Page 5 Important Note About DVI Cables & Display As in many studios, your computer may be located in a room far away from your console. For DVI cable lengths over 15ft, a DVI signal booster is required. This will ensure the video signal reaches the display with no signal degradation. Additionally, when switching sources between DVI and HDMI for the display, you must press the center button of the remote, or the source button on the OSD board behind the meter access panel.

  • Page 6: Warranty Information

    Hardware Limited Warranty A. Limited Warranty Slate Media Technology (SMT) warrants that its hardware will be free from defects in materials and workmanship, for one (1) year after it has been acquired by the first user when given normal, proper and intended usage. SMT will repair or replace nonconforming product (or a component thereof) that is returned to SMT within the warranty term at no charge.
  • Page 7 Hardware may require return-to-factory, and customer is responsible for properly packing and labeling and insuring any warranty returns for shipment to Slate Media Technology. Customer is responsible for any damage or loss incurred due to improper packaging or labeling.

  • Page 8: Maintenance And Care

    Be sure to not spray cleaner on the RAVEN MTX directly, rather spray the cleaner on to a cleaning cloth away from the RAVEN MTX, then use the dampened cloth on the RAVEN MTX’s metal parts.

  • Page 9: Revitalizing The Raven Mtx Glass

    Revitalizing the RAVEN MTX Glass The RAVEN MTX comes out of the box with a NanoGlide™ coating that repels oil, water, and leaves the surface incredibly smooth to the touch. After some use, it may be necessary to revitalize to bring the glass back to its original slickness.
  • Page 10 Using a microfiber cloth, clean the RAVEN MTX screen to remove dust and fingerprints. Spray the revitalizer solution directly onto the RAVEN MTX glass. It should take approximately six sprays to cover the glass completely. IMPORTANT Do not spray so much that the solution drips down the screen. Excess moisture could damage the display and touch system.
  • Page 11 Using a microfiber cloth LIGHTLY spread the solution around to cover the entire screen. IMPORTANT DO NOT WIPE/BUFF AWAY ALL OF THE REVITALIZER SOLUTION FROM THE SCREEN. The coating on the glass leaves a very thin residual layer of Revitalizer, which significantly adds to the slickness and oil repellency.

  • Page 12: Getting Started

    Your RAVEN MTX is now back to its original slickness. Getting Started System Requirements The RAVEN MTX will run on any Mac computer, however we recommend these specifications for optimal performance. • OSX 10.7 (Lion,) OSX 10.8 (Mountain Lion,) OSX 10.9 (Mavericks.) •...

  • Page 13: Raven Mtx Dimensions

    NOTE: MacBook Pro’s are not recommended with the RAVEN MTX. RAVEN MTX Dimensions NOTE: If you are creating custom furniture for your RAVEN MTX, CAD drawings with precise dimensional information may be available on request. RAVEN MTX DIGITAL PERFORMER USER MANUAL 13...

  • Page 14: Software Installation & Touch Calibration

    You will now need to install Multi-Touch Driver in order to get touch response from your RAVEN MTX. Software Installation & Touch Calibration Installing the RAVEN MTX software and calibrating the touchscreen is a quick process. IMPORTANT Calibration is the most important process for accurate use of the screen. Failure to calibrate properly will result in poor touch performance.
  • Page 15 We have also included a Calibrate button within your RAVEN Settings for easy access to the MultiTouchPlatform application. At any time, quickly recalibrate. This is important to do if multiple users are sharing the RAVEN MTX. DUAL RAVEN SOFTWARE: RAVEN MTX DIGITAL PERFORMER USER MANUAL 15...
  • Page 16 If using two RAVEN’s, users now have access to the “DUAL” button on the RAVEN opening menu is will activate the RAVEN Software for DUAL functionality. This again, only is to be used with two RAVEN’s. If using multiple displays that are not RAVEN’s, you should still use the regular version of the RAVEN software.
  • Page 17 Now, you will need to configure Multi-Touch for two RAVEN’s. Hit, “Configure Composite.” Follow the instructions on the white screens being: Press and hold the left display and then release. Then repeat the press, hold and release for the right display. Now calibrate each screen.
  • Page 18 From a center, seated position, press and hold the center of the red addition symbol like you are giving a fingerprint to the top of your finger until it turns green, using your left hand for the left side of the screen and your right hand for the right side of the screen.
  • Page 19 NOTE: TRIPLE RAVEN IS NOT YET SUPPORTED, BUT WILL BE AVAILABLE SOON. SYSTEM PREFERENCES CONFIGURATION: IMPORTANT: Be sure to hide the OS X Dock when using RAVEN. 1. Navigate to “System Preferences” by going to the Apple drop-down menu on the top left of the Finder and select, System Preferences.
  • Page 20 Finder window and add the following applications to the area on the right for allowing apps to control your computer: - Automator - Digital Performer 8 or 9 - RAVEN MTX - Terminal Note: Terminal is located within your “Utilities” folder within the “Applications” folder.
  • Page 21 6. For users on OS X 10.7 and 10.8 only, on the main System Preferences window, select “Accessibility” from the menu options and confirm “Enable access for assistive devices” is checked to the “ON” state as imaged below. RAVEN MTX DIGITAL PERFORMER USER MANUAL 21...

  • Page 22: Connecting Raven Mtx To Digital Performer

    Connecting RAVEN MTX to Digital Performer In order for RAVEN MTX to effectively communicate with Digital Performer, use the following setup instructions. NOTE: The V-Control Pro app is included in your RAVEN MTX installer. Launch V-Control Pro. Launch Digital Performer 8 or 9.
  • Page 23 correctly, hit RAVEN Settings and hit the, “RAVEN SETUP” button and RAVEN will automatically configure itself for you. The second option is to manually configure your control surface settings for RAVEN. To setup manually, first navigate to the “Setup” drop-down menu and select “Device Setup.”...

  • Page 24: Launching Raven Mtx Software

    V-Control Pro app and having it automatically launch with the Finder. Once RAVEN MTX is launched it will sync with your current session, and make all connections automatically. The mouse will not function in the RAVEN Mixer window, however, touch will control it from this point forward.

  • Page 25: Raven Mtx Digital Performer Software Features

    RAVEN Toolbar and you are ready to mix. RAVEN MTX Digital Performer Software Features RAVEN MTX is loaded with many custom features made for a touch screen. The RAVEN Mixer The RAVEN Toolbars provide controls typical of most DAWs. From the RAVEN Mixer you are able to have multi-touch access to all of the controls of the mixer.

  • Page 26: Raven Channel Strip

    RAVEN Channel Strip The RAVEN channel strip is where you find your controls such as faders, solos, mutes, and pans. Fine Faders: Tap the DB display window to put single channels into fine mode. RAVEN MTX DIGITAL PERFORMER USER MANUAL 26...

  • Page 27: Icons

    Icons The RAVEN has built-in icons to help you identify your tracks in a busy mix. To load an icon: Press and hold the Icon slot below the fader module. A floating icon window will appear. RAVEN MTX DIGITAL PERFORMER USER MANUAL 27...
  • Page 28 Tap an icon and a yellow box will appear around selected image. RAVEN MTX DIGITAL PERFORMER USER MANUAL 28...
  • Page 29 Touch each channel icon slot that you wish to load with an image. You can also swipe across the icon slot to load the images. To remove an icon, touch the blank icon box in the palette, and then touch the channel icon slot you wish to remove.

  • Page 30: Raven Toolbar

    RAVEN Toolbar The RAVEN Toolbar rests on the bottom of the screen and is the control center for many essential features. It can be viewed with a single, double, or triple rack space using the + and – rack buttons. To Add or Remove Racks press the + to show more racks in your toolbar or –...
  • Page 31 To interact with your OS while RAVEN is open, we have provided a quick an easy Hide RAVEN button above the RAVEN Power button on the RAVEN Toolbar. Touch or Click with your mouse to Hide your RAVEN software almost entirely except for the RAVEN on the bottom left hand side displaying the text, “Show.”...
  • Page 32 Power: Exits the RAVEN software. When power button is pressed and held, users will be prompted to save a raven session. If you wish to save your RAVEN session, press yes. If not, press no. Pressing cancel will keep the current RAVEN session running. (See section on Saving a RAVEN Session for further details.) Banking: Moving between tracks is quick and easy.
  • Page 33 Banking Buttons: Users may choose to bank tracks by 1 or 24 tracks. To switch between the two modes, simply press and hold the banking buttons and they will switch between 24 and 1. NOTE: Users may feel they’ve reached the end of their project but are missing tracks. This is not the case, RAVEN will only recognize full sets of 24 Tracks.
  • Page 34 This button alllows users to quickly hide the open floating windows. NAVPAD: Launches a floating navigation window where you can Scroll using two=fingers, up-down-left and right. There are two NAVPAD’s on the RAVEN Mixer. One floating window, and one built into the toolbar. Both have the same functionality. Put the window anywhere on the screen by grabbing one of the two side handles.
  • Page 35 Note: Easily flip between “REGULAR” direction and “INVERSE” direction for all navigation with the NAVPAD. Touch the text, “REGULAR” or “INVERSE” to toggle and select. RAVEN Mixer. You can remove the RAVEN Mixer by touching the RAVEN Mixer button and see the actual Ableton Live mixer.
  • Page 36 We have also included the ability to control the response of the Fine Faders by pushing and holding the Fine Faders button on the RAVEN Toolbar. Adjust between 1 and 20, 1 being the slowest response for extreme detail and 20 being the fastest Fine Fader response time.
  • Page 37 NOTE: This also works with adding to your “Floating Toolbar & Essentials Palette.” Drag any icon to your desired location in customize toolbar mode. Floating Toolbar & Essentials Palette: Pressing one of these buttons will bring up their own customizable floating window.
  • Page 38 Once the “Floating Toolbar” or the “Essential” button is pressed, the semi- transparent window will appear with the familiar Customize Toolbar button & Hide RAVEN. To customize your Essentials Palette or Floating Toolbar: • Press the Customize Toolbar button on the top left corner of the palette.
  • Page 39 Save Layout: Saves your RAVEN toolbar layout, your Floating Toolbar & Essentials Palette layouts and your configured Batch Commands to a specific button you can get back to easily. Press Save layout and choose a number 1-4, 1-6 or 1-8 to save. To recall your saved layout, press the assigned button.
  • Page 40 Touch Tools: These buttons activate the tools commonly used in Ableton Live such as “Cut, Copy, Paste & even access to the Pencil tool.” Zoom in/Zoom Out: Zooms in or out of a section in the Edit window. Floating Mixer: Brings up a bank of faders on a floating window over the Edit window.
  • Page 41 The floating mixer can be expanded or collapsed by pressing the “-“ or “+” button on the floating mixer header. The mixer can be viewed as 8, 16 or 24 channels. Pressing the pan button will switch the top section of the mixer from automation modes to pan modes.

  • Page 42: Raven Settings

    Pressing the “X” button on the top right of the header will close the floating mixer. Banking the mixer using finger gestures: • Like the RAVEN Mixer, the floating mixer can also be banked using finger swipes. Touch the fader faceplate and glide your one finger left and/or right to bank by one track at a time.
  • Page 43 There are thirteen buttons on the RAVEN Settings bar. Save As: Brings up the dialog window for renaming and saving the RAVEN session to a location. Load RAVEN Session: Loads a previously saved RAVEN session. (.ravlay file) Set User Default/User Default: RAVEN automatically launches in RAVEN Factory Default layout.
  • Page 44 FORUM: This button will automatically open the default browser and naigate to the Slate Media Technology Forum. You can trade Batch Commands here as well as ask questions to other RAVEN Users. NAVPAD Response:...
  • Page 45 Within RAVEN Settings is the NAVPAD Response Button included to allow users to adjust the NAVPAD Sensitivity from 1 to 20, 1 being slow and precise and 20 being quick and forceful. Note: Easily flip between “REGULAR” direction and “INVERSE” direction for all navigation with the NAVPAD.
  • Page 46 CHECK FOR UPDATES Easily check to confirm your RAVEN software is up-to-date. SWITCH DEFAULT LAYOUTS: Easily change between preset default layouts we have included for various workflows including: Basic, Advanced, Blank & Performance. RAVEN SETUP RAVEN MTX DIGITAL PERFORMER USER MANUAL 46...

  • Page 47: Saving A Digital Performer Session

    The RAVEN SETUP button is designed to be used when first configuring your RAVEN. The RAVEN Setup will automatically syncronize RAVEN with your DAW. It is important to have your System Preferences properly configured before performing this function. Saving a Digital Performer Session On the RAVEN Toolbar, we have included a Save DP button that allows you to quick and easily save your Digital Performer progress.
  • Page 48 Press Save. To Load a RAVEN Session: Press the Load RAVEN Session button. Locate your previously saved RAVEN Session folder and press open. RAVEN MTX DIGITAL PERFORMER USER MANUAL 48...

  • Page 49: Restoring To Factory Default

    Your RAVEN session will now load exactly as you saved it. Restoring to Factory Default Press the button for Restore Factory Default You will be prompted with a warning. Press OK if you wish to restore the RAVEN Software to its factory settings, press cancel if you don’t want to complete this action.

  • Page 50: Edit Window

    Edit Window RAVEN allows for single touch control over the Digital Perfomer. Familiar tools and functions can be easily accessed with your fingertips, offering an improved workflow. All of the edit tools can be accessed from the toolbar as discussed in the previous section.
  • Page 51 desired. Once the plugin loads, you can easily make detailed adjustments the plugin and once finished, close the plugin by using the “Hide Floating Window” or “Close Plugin” buttons. HIDE FLOATING WINDOW & Close Plugin: The “Hide Floating Window” button is designed to alllow users to quickly Show/Hide the floating windows in their session.

  • Page 52: Controlling Plugins

    Controlling Plugins: Using linear vertical or horizontal adjustments, touch the center of the plugin parameter you’re wishing to modify. Then, simply adjust the plugin to your preference. Single touch works perfectly with all plugins. IMPORTANT: It is not recommended to touch controls that are small in size. Plugins should only be touched when there is a large control that is easy to activate via touch.

  • Page 53: Batch Command System For Digital Performer

    BATCH COMMAND SYSTEM FOR DIGITAL PERFORMER NOTE: THE BATCH COMMAND SYSTEM REQUIRES THE “ENGLISH” KEYBOARD TO BE ACTIVE IN THE OSX KEYBOARD PREFERENCES. The Batch Command System is a series of single buttons that can execute up to one thousand key commands, menu selections and mouse clicks. The software is complete with over one hundred preset Batch Commands, however it is very easy for users to create their own and even share with other RAVEN users.
  • Page 54 Editing A Batch Command: Push and hold one of the Batch Command buttons on the RAVEN Toolbar. The Batch Command Menu will launch and you can use the various buttons explained below to accomplish your goal. Key Command: Press the Key Command button in the Batch Command System to enter a Key Command into the command sequence.
  • Page 55 Search & Filter: On the top of the QuickList, users can search quickly through the Factory & User Batch Commands. For further search refinement, users can quickly filter your search results between various worflow types such as, “General,” “Music,” “Post,” and more within the “Factory”...
  • Page 56 Clear All: Clear All will completely eliminate all programmed information in the Batch Command menu associated with the selected button. This includes Name & Color. Name & Color: On the bottom left of the Batch Command Menu there is an empty bar for naming your Batch Command and a block of multiple colors to choose a color for the Batch Command on the RAVEN Toolbar.
  • Page 57 USING THE USER TAB IN THE QUICKLIST MENU: Once the QuickList button has been pressed a menu will appear with multiple tabs of preset Batch Commands labeled, “FACTORY” or “USER.” The “User” tab allows you to create and save your own Batch Commands within your RAVEN software.
  • Page 58 Note: As a user, you are privileged to our on-going support. If you need help with the Batch Command System or do not know how to program one yourself, contact us on the RAVEN FORUM on www.slatemt.com and we may be able to create one for you and other RAVEN users.
  • Page 59 SAVE ENTIRE BATCH COMMAND PANEL: Push and hold on the Batch Command Panel label and hit “SAVE” to add a customized Batch Command Panel to your Batch Command Panel User QuickList to use to locate across multiple different layouts. CLEAR ENTIRE BATCH COMMAND PANEL: Push and hold on the Batch Command Panel label and hit “Clear All”...
  • Page 60 PROGRAM YOUR OWN BATCH COMMAND: To program your own Batch Command, enter a sequence of key commands and/or mouse click and menu selection QuickLIst items to create a custom Batch Command. When finished, use the SAVE button and locate your saved Batch Command within the USER tab of the QuickList menu.
  • Page 61 IMPORTANT: The Batch Command System Recording feature records based on the X/Y- Axis screen location. Be sure when performing the recorded Batch Command that the window locations are the same as when recorded as the Batch Commands require the correct X/Y-Axis locations. LOAD &...
  • Page 62 RAVEN 3.0 USER MANUAL DIGITAL PERFORMER – BASIC LAYOUT RAVEN DIGITAL PERFORMER BASIC LAYOUT USER MANUAL Version 3.0 Updated 10/22/2015 RAVEN DIGITAL PERFORMER BASIC USER MANUAL | 1...
  • Page 63 TABLE OF CONTENTS RAVEN DEFAULT PRE-PROGRAMED LAYOUTS ......................3 RAVEN MTX/MTI DIGITAL PERFORMER BASIC LAYOUT 1 OF 5 .................. 5 LAYOUT 1.1 “QUICK RECORDING” ............................5 LAYOUT 1.2 “CREATE TRACKS” ............................6 LAYOUT 1.3 “INSTANT TRACK NAMING” ..........................7 LAYOUT 1.4 “NAVIGATION” ..............................8 RAVEN MTX/MTI DIGITAL PERFORMER BASIC LAYOUT 2 OF 5 ..................

  • Page 64: Raven Default Pre-Programed Layouts

    RAVEN DEFAULT PRE-PROGRAMED LAYOUTS Show the right sidebar of Digital Performer window and select “Commands” from the tab. Then, click the import drop menu on the right of the sidebar. Select import key bindings and choose the Raven Keys XML. TIP: Many of the Batch Commands may correspond to a custom made key binding.
  • Page 65 To add custom and preset plugins with Batch Commands, be sure the “Channel Strip” is open in the left sidebar of Digital Performer. This will insure the pre programmed mouse clicks reach the correct insert on the screen. RAVEN DIGITAL PERFORMER BASIC USER MANUAL | 4...

  • Page 66: Raven Mtx/Mti Digital Performer Basic Layout 1 Of 5

    RAVEN MTX/MTi DIGITAL PERFORMER BASIC LAYOUT 1 of 5 LAYOUT 1.1 “QUICK RECORDING” NEW TAKE AND RECORD In the Sequence window with a track record armed, press NEW TAKE AND RECORD to create a new take and then start recording.

  • Page 67: Layout 1.2 "Create Tracks

    LINK PLAYBACK TO MEMORY In the Tracks or Sequence windows press LINK PLAYBACK TO MEMORY to set the playback cursor to play from the memory markers. PRE-ROLL POST-ROLL In any window, press PRE-ROLL POST-ROLL to toggle on/off the pre-roll and post roll. LAYOUT 1.2 “CREATE TRACKS”...

  • Page 68: Layout 1.3 "Instant Track Naming

    OPEN VST INSTRUMENT In any window, with an instrument track selected press OPEN VST INSTRUMENT to open the current VST for the selected track. LAYOUT 1.3 “INSTANT TRACK NAMING” NAME LEAD VOCAL X4 In the Tracks or Sequence window option click the track name and press Name Lead Vocal X4 to name the next four tracks Lead Vocal.

  • Page 69: Layout 1.4 "Navigation

    COPY NAME DOWN X8 In the Tracks or Sequence window option click the track name and press Copy Name Down X8 to copy the selected name the next seven tracks. LAYOUT 1.4 “NAVIGATION” OPEN PLUGIN WINDOW With a track selected press OPEN PLUGIN WINDOW to open up the plugins on the selected track. ZOOM TO SELECTION With a soundbite or a selection on the timeline highlighted press ZOOM TO SELECTION to fit the selection to the screen.

  • Page 70: Raven Mtx/Mti Digital Performer Basic Layout 2 Of 5

    RAVEN MTX/MTi DIGITAL PERFORMER BASIC LAYOUT 2 of 5 LAYOUT 2.1 “COMPING” NEW TAKES In the sequence window, press NEW TAKE to create a new take on the selected track. TAKES INTO TRACKS In the Sequence window, press TAKES INTO TRACKS to move all the takes on the selected track to their own individual tracks.

  • Page 71: Layout 2.2 "Clip Gain

    COMPING TOOL In the Sequence window, press COMPING TOOL to use the comping tool. POINTER TOOL In the Sequence or Waveform window, press POINTER TOOL to use the pointer tool. SHOW TAKES In the Sequence window, press SHOW TAKES to expand the currently selected track to show all takes. HIDE TAKES In the Sequence window, press HIDE TAKES to collapse the currently selected track to show only the current take.

  • Page 72: Layout 2.3 "Windows

    LAYOUT 2.3 “WINDOWS” CLEAR INSERTS In the Sequence window and a plugin open, press CLEAR INSERTS to send a mouse click to the channel strip drop menu, select Clear, select it from the menu. ZOOM TO SELECTION With a soundbite or a selection on the timeline highlighted press ZOOM TO SELECTION to fit the selection to the screen.
  • Page 73 MULTI BOUNCE Press MULTI BOUNCE to open up the Multi-Bounce dialog window from the File menu. MERGE SOUNDBITES Press MERGE SOUNDBITES to merge the selected soundbites into one. FREEZE SELECTED TRACKS In the sequence window, press FREEZE SELECTED TRACKS to render the track and save processor power. BOUNCE AND SELECT SOURCE Press BOUNCE AND SELECT SOURCE to open up the Bounce dialog window from the File menu and send a mouse click to the “SOURCE”...

  • Page 74: Raven Mtx/Mti Digital Performer Basic Layout 3 Of 5

    RAVEN MTX/MTi DIGITAL PERFORMER BASIC LAYOUT 3 of 5 LAYOUT 3.1 “WINDOWS TRANSPORT” TRIM In the Sequence or Waveform window with a soundbite highlighted press TRIM to trim the edges of the selection. SPLIT In the Sequence or Waveform window with a soundbite highlighted press SPLIT to split the selection.

  • Page 75: Layout 3.2 "Instant Audiosuite

    NEW SOUNDBITE FROM BEATS In the Sequence or Waveform window, press NEW SOUNDBITE FROM BEATS to create a new soundbite from the selected beats. ADJUST BEAT SENSITIVITY In the Sequence or Waveform window, press ADJUST BEAT SENSITIVITY to open the Beat Sensitivity window. EXPORT SELECT SOUNDBITES In the Sequence or Waveform window, press EXPORT SELECT SOUNDBITE to export the selected soundbites.

  • Page 76: Layout 3.3 "X-Fades

    INSTANT AUTO-PAN In the sequence window with a soundbite selected press INSTANT AUTOPAN to open the MOTU AUTOPAN process from the Audio Menu, select Slow, and process the soundbite. INSTANT HIGH PASS In the sequence window with a soundbite selected press INSTANT HIGH PASS to open the MOTU EQ process from the Audio Menu, select High Pass, and process the soundbite.
  • Page 77 LAYOUT 3.4 “OPEN PLUGIN AUDIOSUITE” OPEN “(PLUGIN)” In the Sequence window, press OPEN PLUGIN to open up the various plugin process’s window for use in processing soundbites without using the AU plugin on the channel. OPEN PAR EQ 8 In the Sequence window, press OPEN PAR EQ 8 to open up the MOTU PARA EQ 8 process window for use in processing soundbites without using the AU plugin on the channel.

  • Page 78: Raven Mtx/Mti Digital Performer Basic Layout 4 Of 5

    RAVEN MTX/MTi DIGITAL PERFORMER BASIC LAYOUT 4 of 5 LAYOUT 4.1 “COPY TO MARKERS” FLY HOOK MARKER 4-6-8 In the Tracks or Sequence window, select one or more soundbites and press FLY HOOK MARKERS 4-6-8 to copy the selected region and paste it to session marker 4,6 and 8.

  • Page 79: Layout 4.2 "Windows

    FLY HOOK MARKERS 6-8 In the Tracks or Sequence window, select one or more soundbites and press FLY HOOK MARKERS 4-6-8 to copy the selected region and paste it to session marker 4,6 and 8. Note: Use “Create Session Markers” for the correct alignment of name and marker number FLY VERSE MARKERS 3-5 In the Tracks or Sequence window, select one or more soundbites and press FLY VERSE MARKERS 3-5 to copy the selected region and paste it to session marker 3 and 5.

  • Page 80: Layout 4.3 "Quick Recording

    LAYOUT 4.3 “QUICK RECORDING” NEW TAKE AND RECORD In the Sequence window with a track record armed, press NEW TAKE AND RECORD to create a new take and then start recording. TOGGLE PRE-ROLL AND RECORD In the Sequence window with a track record armed, press TOGGLE PRE-ROLL AND RECORD to toggle the pre roll on, start recording, then toggle pre-roll off.
  • Page 81 SET LOOP START-END In the Sequence window, press SET LOOP START – END to instantly set the play loop for the entire session. START RECORD START-END In the Sequence window, press SET RECORD START-END to instantly set the record loop to the beginning and end of the session.

  • Page 82: Raven Mtx/Mti Digital Performer Basic Layout 5 Of 5

    RAVEN MTX/MTi DIGITAL PERFORMER BASIC LAYOUT 5 of 5 LAYOUT 5.1 “INSTANT MOTU PLUGINS” DYNAMIC EQ INSERT 1 CHAN STRIP In the Sequence window and the channel strip side window open, press DYNAMIC EQ INSERT 1 CHAN STRIP to send a mouse click to the insert 1, pull up the plugin window, search for Dynamic EQ, cursor down and select it from the menu.

  • Page 83: Layout 5.2 "Preset Chains

    DYNAMIC EQ NEXT INSERT In the Sequence window and a plugin open, press DYNAMIC EQ NEXT INSERT to send a mouse click to scroll to the next insert, pull up the plugin window, search for Dynamic EQ, cursor down and select it from the menu. MW COMPRESSOR NEXT INSERT In the Sequence window and a plugin open, press MW COMPRESSOR NEXT INSERT to send a mouse click to scroll to the next insert, pull up the plugin window, search for MW COMPRESSOR, cursor down and select it from the menu.

  • Page 84: Layout 5.3 "Instant Slate Plugins

    LAYOUT 5.3 “INSTANT SLATE PLUGINS” VMR INSERT 2 CHAN STRIP In the Sequence window and the channel strip side window open, press VMR INSERT 2 CHAN STRIP to send a mouse click to the insert 2, pull up the plugin window, search for Virtual Mix Rack, cursor down and select it from the menu.
  • Page 85 LAYOUT 5.4 “COPY PLUGIN SETTINGS” COPY PLUGIN LEFT X7 COPY PLUGIN LEFT X7 With a plugin open, press to scroll to the previous track left and paste the settings to the same plugin type on the track previous to the one which had the plugin open. Then repeat this process 6 more times. COPY PLUGIN RIGHT X7 COPY PLUGIN RIGHT X7 With a plugin open, press...
