Metrologic 46-00709 Installation Manual

Optional Wall/Tabletop Stand (PN 46-00885)

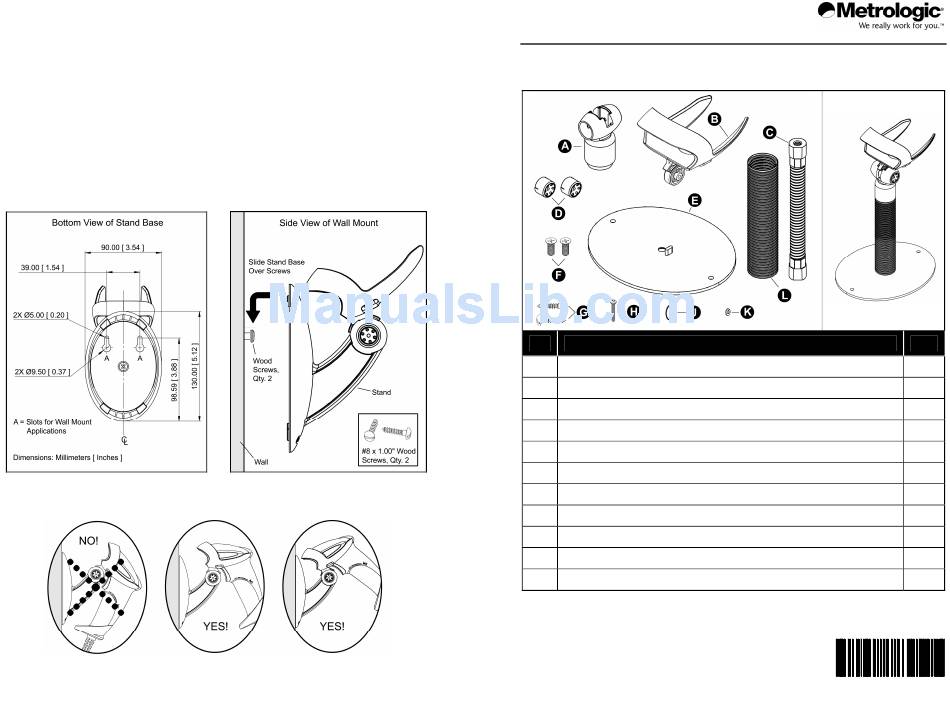

To fix mount the stand to the wall:
1. Drill two #39 pilot holes in the wall spaced 39 mm (1.54") apart on a
horizontal centerline.
2. Install one #8 wood screw in each of the pilot holes, leaving a space
between the head of the screw and the wall surface.
3. Locate the two slots marked as "A" on the stand base in Figure 5.
4. Match the "A" slots on the stand to the heads of the installed wood
screws.
5. Slide the stand over the screw heads and down to lock the stand in place.
Figure 5.
Cradle Angle Warning
Copyright 2007, Metrologic Instruments, Inc.
Figure 6.
- 4 -
MS9590 S I
TAND NSTALLATION
Flex Stand Components (PN 46-00709)
Item Item Description
A Cradle Coupler
B Cradle
C Flexible Shaft
D Screw Cap
E Stand Base
F ¼" - 20 x ⅜" Flat Head Phillips Screw, 100° Undercut
G #8 Round Head Wood Screw (for fixed mount applications)
H M3 -.5 x 20 mm, Pan Head Phillips Screw
J M3 Flat Washer
K M3 Split Lock Washer
L Flexible Shaft Cover
Figure 1. Stand Components
G
UIDE
November 2007
Printed in the USA
0 0 - 0 5 2 4 9 B
- 1 -
Qty.
1
1
1
2
1
2
2
1
1
1
1
