METRObility Optical Systems, Inc. Lancast and CenturyStack are registered trademarks of METRObility Optical Systems, Inc. All other trademarks appearing in this manual are the property of their respective owners.
Page 4
Modifying a Statistics Group ... 52 History Group Configuration ... 53 Adding a RMON History Group ... 53 Deleting a RMON History Group ... 54 Modifying a RMON History Group ... 54 Alarm Group Configuration ... 54 CenturyStack 8100 Managed Hub...
Page 5
Event Group Configuration ... 61 Statistics Information ... 63 History Information ... 65 Event Log ... 68 System Utility ... 70 System Restart ... 70 Additional Information ... 71 Agency Compliance ... 71 RFI Statements ... 71 Standards Compliance ... 72 Warranty &...
Introduction Overview of Managed CenturyStack 8100 Hub The Managed CenturyStack 8100 Hub is a series of auto sensing dual speed, manageable and stackable hubs. The Managed CenturyStack Series consists of masters and managed slaves with 12 or 24 ports. The features and functions of the Managed CenturyStack make it a powerful, cost effective solution for large campus networks and rapid growth companies.
NOTE: The SNMP agent, TCP/IP stack and the Web engine are implemented on the 10Mbps bus of the master hub. Therefore the 10Mbps segment must be used for Web-Based Management in the absence of a switch module. CenturyStack 8100 Managed Hub...
RMON Support RMON is a major step forward in internetwork management. It defines a remote monitoring MIB that supplements MIB-II and provides the network manager with vital information about the internetwork. The Managed CenturyStack Hub Series fully supports RMON Management Groups 1, 2, 3, and 9, and users can set up for RMON Management using Web-Based Management, or SNMP Management.
MIB, and an event can trigger an action defined elsewhere in the MIB. An event may also cause informa- tion to be logged in this group and may cause an SNMP trap message to CenturyStack 8100 Managed Hub...
Page 11
be issued. Managed CenturyStack RMON Management enables users to set up Event Groups. The Event Group Implementation of the Event Group is optional. The Event Group controls the generation and notification of events from the hub. Each entry in the event Table describes the parameters of the event that can be triggered.

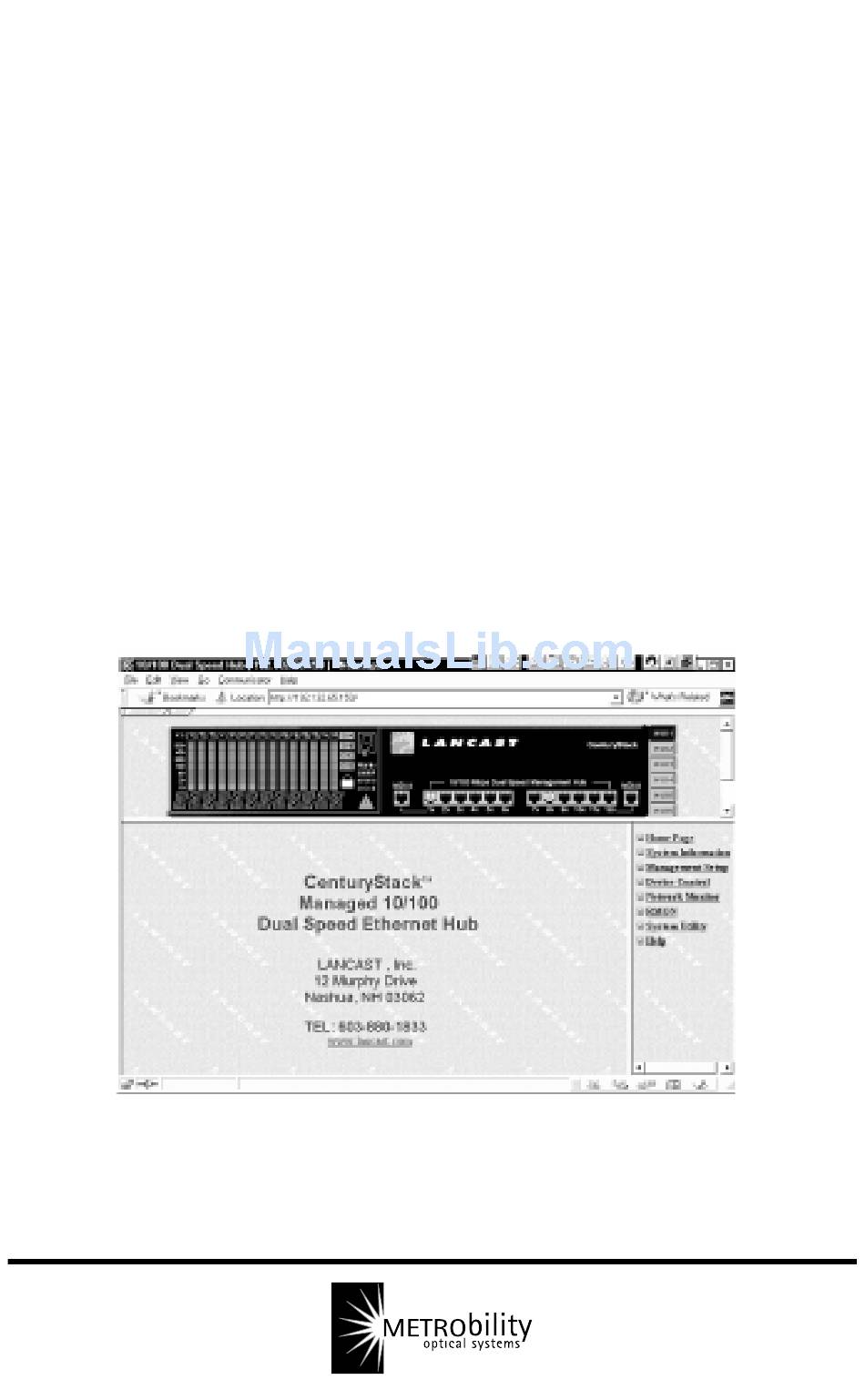

Before the CenturyStack Web Management feature can be used, users must configure the hub’s Network Configurations. See “Network Configu- ration” in the Lancast CenturyStack Series 8100 Managed Installation and User Guide. Users need a Web browser and must be either connected to the World Wide Web (for remote connections) or have an Ethernet connection to a hub in the stack (for in-band connections).
Page 14
NOTE: If the CenturyStack Home Page does not load: 1. Review “Network Configuration” in the Lancast Century- Stack 8100 Managed Hub Installation and User Guide. 2. Check the hub’s IP Address using the Mini-Consoles. From the main menu select System Info. The IP Address displays;...
Trap Window A Trap Window is loaded when a web connection is made to a CenturyStack hub. The Trap Window is used to indicate any trap messages from the device. The Trap Window can be closed. When the Trap Window pops up, users can use the two menu items: Display and Buffer as follows: Display The CenturyStack management Trap Window displays a...
Page 16
HubPortSecuIntrTrap: An intruder was detected for a particular port. HubPortBcastAlarmTrap: The broadcast packet rate of a given port is over the specified threshold value. HubOptionalModuleBcastAlarmTrap: The broadcast packet rate of a given optional module is over the specified threshold value. CenturyStack 8100 Managed Hub...
For more information about Cascaded Hubs, see the “Installation” section of the Lancast CenturyStack 8100 Managed Hub Installation and User Guide. For each hub that is in the CenturyStack, the Hub ID is highlighted as shown below.
System Location ______ Character string up to 48 bytes System information can be set by the user, allowing others viewing the device to know who is responsible for the device, where it is located and the system name. (i.e., accounting hub). CenturyStack 8100 Managed Hub System Information...
Chapter 2 Management Setup Network Configuration The Network Configuration Menu enables users to configure connections to the CenturyStack hubs. The Ethernet Menu is used to setup Ethernet connections. The Slip Menu is used to setup slip connections. The Console Menu is used to setup console or serial connections. The SNMP Community Setup Menu is used to setup SNMP Communities, and the Trap Receiver Menu is used to setup SNMP Trap Receivers.
Slip Menu The Slip Menu displays current Slip configurations and allows users to make new slip configuration settings, IP Address and Subnet Mask. Network Configuration – Slip Menu Please select Save to update the new configuration. CenturyStack 8100 Managed Hub...
Serial Port Configuration The Serial Port Configuration enables users to monitor and configure Out- of-Band serial connections through the sub menus, Console Menu and Out-of-Band Menu. Serial connections allow users to connect to the Hub while the hub is operating either by cable or modem. Console Menu A Console Port connection is made by connecting a null modem cable between the hub and a PC.
The following shows the configurations and the optional values available for this menu. Out-of-Band Serial Port Configurations Configuration Baud Rate Character Size Parity Stop Bits CenturyStack 8100 Managed Hub Serial Port Configuration – Out-of-Band Menu Default Options 9600 1200, 2400, 4800, 9600, 19200, 38400...
SNMP Community The SNMP Community Setup Menu allows setting up a maximum of six Community Names, setting Access Right and Status. SNMP Community Setup Menu To setup an SNMP community, enter a valid SNMP Community name in the SNMP Community Name field. Set the Access Right (Read Only or Read/Write) and Status, then select Add.
To edit an existing trap receiver, enter its index number and the new information and select Save. To delete a trap receiver, enter its index number and select Delete. Trap Receivers that have their Status set to “Disable” do not receive traps. CenturyStack 8100 Managed Hub Trap Receiver Setup Menu...
Control/Status External AUI Module** Control/Status Redundant Link Control Security Intrusion * The “Bridge Module” is also referred to as the “Switch Module.” ** METRObility does not support the AUI module. Description Monitor and configure hubs in the stack Monitor and configure ports...
Group Control The Repeater Group Control/Status Menu displays status information for groups and allows enabling or disabling a group as well as naming and resetting the group. Repeater Group Control ® CenturyStack 8100 Managed Hub...
Page 27
To configure the Repeater Group Control, first select a group (1 – 6) and click the Submit button, to load the configurations for the selected group. Next configure the items listed below and select Save, to update the new configuration. Repeater Group Control Group Admin State Group Reset...
The Repeater Port Control/Status Menu displays status information for each port of each linked repeater. This menu allows enabling or disabling the Administration State, setting the Speed Control, and enabling or disabling Link Status Change Notification for ports. Repeater Port Control-1 ® CenturyStack 8100 Managed Hub...
Page 29
To configure repeater ports, first select the group (1 – 6) and select Submit to load the configurations for the selected group. Next select the port of the selected group that is to be configured. Then configure the items listed below and select Save to update the new configuration. Repeat for each port of each group.
Switch Module Control Switch Modules are slide-in units that can be inserted into managed CenturyStack Hubs to gain additional functions such as extending distances and switching between different speeds. The 3-Port Bridge Module has two internal ports (to bridge 10M and 100M segments) and one external port.
Page 31
To configure the 3-Port Bridge Module, first select the group (1 – 6) where a module exists and select Submit. If a module exists in the selected group, it is indicated next to Description under Current Configuration. Next, configure the items listed below and select Save to update the new configuration.
Link Pairs are configured. Configuring Link Pairs requires naming the Link Pair with a numeral from 1~24, configuring primary and secondary groups and ports, setting the Link Switch Notify, setting the Status, and, finally, saving the configuration. Configuring Link Pairs 1.
6. Enable the Link Switch Over Notify. (Optional) 7. Enable the Status. 8. Select Save to update the new Linked Pair. Repeat these steps for each Link Pair. Editing a Link Pair Users can edit a Link Pair by entering the Link Pair number (of an existing Link Pair) and reconfiguring the rest of the columns, then select Save.
When a security violation is detected, a trap may be raised. The trap will be sent to the network manager to report the event and the port may also be disabled. Security Intrusion ® CenturyStack 8100 Managed Hub...
Page 35
To configure Security Intrusion: 1. Select a port number from the Port Number drop down list. 2. Set the Intrusion Status. 3. Set the Intrusion Auth Address Auto Learn. 4. Enter the Intrusion Auth MAC Address. 5. Set the Intrusion Action. 6.
Chapter 4 Monitoring the Network CenturyStack network management enables users to monitor network statistics counters. Counters can be monitored in relative and absolute values. Counters can be monitored for each segment, each group, and each port. The Network Monitoring Menu also enables Address Search and Tracking and configuring Broadcast Storm Protection.
Total Errors Total Octets Port Statistics Information The Repeater Port Statistics Information Menu shows statistics in Absolute and Relative values. CenturyStack 8100 Managed Hub Selected group’s Hub ID Counter values in Absolute/Relative terms Total frames received Total errors Total octets received...
Page 39
Port Statistics Information Menu – 2 To view port statistic information, select a group (1 – 6) from the Group Number drop down list. Then select a port (1 – 12/24), set the Display Mode and select Submit to load the counters for the selected port and group.
Page 40
Total Errors Broadcast Packets Multicast Packet *100Mbps only CenturyStack 8100 Managed Hub Number of the group in the stack (1 – 6) Port number of selected group (1 – 12/24) Absolute or Relative Total readable frames received by the port...
Address Tracking The Address Tracking Information Menu provides per port based, node tracking capability (MAC address based). This capability provides the basic traffic analysis capability to diagnose network problems, such as Intrusion. The node tracking function records the source MAC of each data packet. Up to 15 Source MAC Addresses can be detected on each port.
Page 42
Group Number Port Number Source Address Change Last Source Address Source MAC Address Tracking List CenturyStack 8100 Managed Hub Repeater Group (1 – 6) Port number of selected group (1 – 12/24) This counter is incremented by one for each time that the Last...
Address Search Information CenturyStack network management provides source (MAC address) search capability. This active address tracking capability is used to watch for a given MAC address and report which port on which it was seen. This capability can also be used to collect the necessary information for mapping the topology of a network.
Page 44
Address Search Lock Address Search Status Address Search Group Address Search Port Address Search Owner CenturyStack 8100 Managed Hub Address Search “In Use” Index number (1 – 8) MAC address to be searched This number will increment by one if the search lock is successful Search Status will be set to “In Use”...
Broadcast Storm Protection The CenturyStack Hub periodically monitors the broadcast counters of each hub port to detect a broadcast storm condition. If a hub port is detected to be causing a broadcast storm, the following actions can be taken: (1) sending a trap, (2) partition the port, or (3) both sending a trap and partitioning the port.
Page 46
Segment Rate Threshold Optional Module Rate Threshold Port Rate Threshold Alarm Action Alarm Status CenturyStack 8100 Managed Hub 10Mbps Segment or 100Mbps Segment Broadcast threshold value for each segment Broadcast threshold value for each module Broadcast threshold value for each port...
Broadcast Storm Detected CenturyStack network management provides broadcast storm detection. If a broadcast storm is detected, the Broadcast Storm Detected Menu displays the detected broadcast storm Group number, Port number, or the group number of the optional module. Monitoring the Network...
Chapter 5 Remote Network Monitoring The CenturyStack Hub fully supports RMON Management Group 1, 2, 3, and 9. Users can setup for RMON Management using Web-Based Management or SNMP Management. Described here is detailed information for RMON Group 1, 2, 3, and 9 as well as the operation with Web-Based Management.
Page 50
(e.g. engineering and operations), and in an attempt to provide disaster recovery. Because environments with multiple management stations are common, the Remote Network Monitoring device has to deal with more than one management station, potentially using its resources concurrently. CenturyStack 8100 Managed Hub...
Statistic Group Configuration The Statistic Group Configuration enables configuring statistic groups. Indexes can be edited, saved, added, and deleted. Statistics Group Configuration Menu Adding a Statistics Group To add an index item all the following must be entered: Index, Owner, and Status, otherwise the entry will not be saved.
Then, select Save to complete the modification. The following lists the configurable items in the Statistics Group Configuration Menu. Statistics Group Configuration Index Data Source Owner Status CenturyStack 8100 Managed Hub Any number 10 Mbps segment/100 Mbps segment/No Change Owner name of this entry Valid/underCreation/invalid...
History Group Configuration The History Group Menu provides a means of collecting the data gathered by the statistics group over time intervals and storing them for later retrieval. History Groups can be monitored, edited, saved, added and deleted with the History Group Configuration Menu. If any fields are left blank, the Status is saved as underCreation.
This function generates one event as a threshold is crossed in the appropriate direction. No more events are generated for that CenturyStack 8100 Managed Hub A value from 1 – 65535. The value must be unique. Not to be confused with Data Source Index.
Page 55
threshold until the opposite threshold is crossed. The Hub provides the threshold control function to support the RMON Alarm Group. Up to 16 Alarm Control Entries can be created. The syntax and semantic checking are performed to verify the value input by the user before it can be set to the object of Alarm group.
Page 56
“For Modification and Deletion” field, and is ready for modification. 3. Configure the remaining fields. 4. Select Save. The following table explains the meaning of each field in the Alarm Group Configuration Menu. CenturyStack 8100 Managed Hub Alarm Group Configuration Menu-2...
Page 57
Alarm Group Configuration Alarm Group Index • creation • modification & deletion Select an existing alarm group to monitor or edit. Variable Category Alarm Index Alarm Variable Category Read only Alarm Interval Alarm Sample Type • Absolute • Delta Alarm Value Alarm Startup Alarm Rising Threshold Alarm Falling Threshold Threshold for the sampled statistic.
Page 58
NOTE: this does not include multicast packets. EtherStats Multicast Pkts: The total number of good packets received which were directed to a multicast address. NOTE: this number does not include packets directed to the broadcast address. CenturyStack 8100 Managed Hub...
Page 59
EtherStats CRC Align Errors: The total number of packets received that had a length (excluding framing bits, but including FCS octets) between 64 and 1518 octets, but had either a bad Frame Check Sequence (FCS) with an integral number of octets (FCS Error) or a bad FCS with a non-integral number of octets (Alignment Error).
Page 60
Port Counter: Port counter is an entry in the table. It contains performance and error statistics for a single port. CenturyStack 8100 Managed Hub...
Event Group Configuration The Event group controls the generation and notification of events from the CenturyStack. Each entry in the event Table describes the parameters of the event that can be triggered. Each event entry is fired by an associated condition located elsewhere in the MIB.
Page 62
Event Group Index Event Description Event Type Event Community Event Owner Event Status CenturyStack 8100 Managed Hub The event group index number Event description No Change/Event None/Log/Trap/Log & Trap Name of a valid event community Name of the Event Owner...
Statistics Information The RMON Statistics Information Menu displays statistics counters in Absolute or Relative values, for 10Mbps segments and 100Mbps segments. To view statistics information, select an Ethernet Statistics Index from the drop down list. Select the Display Mode and click Submit. The statistics display.
Page 64
Undersize Packets Oversize Packets Fragments Jabbers Collisions Readable Octets Drop Events CenturyStack 8100 Managed Hub 1 (10M segment)/2 (100M segment) Absolute/Relative 10M segment/100M segment The name of the Statistics group Valid Total readable frames received by the segment Total multicast frames received by the segment...
History Information The History Information Menu enables users to view history information as configured in the History Group Configuration Menu. RMON History Information To view history information, select an Ethernet History Index from the drop down list and click Submit. To view a sample, select an index number from the Sample Index drop down list and select Submit.
Page 66
RMON History Information-2 CenturyStack 8100 Managed Hub...
Page 67
History Information History Control Data Source History Control Owner History Control Bucket Request History Control Bucket Granted History Control Status History Control Interval Readable Frames Drop Events Octets Packets Broadcast Frames Multicast Frames Utilization CRC Alignment Errors Undersize Packets Oversize Packets Fragments Jabbers Collisions...
RMON Event Group Configuration Menu. RMON Event Log To view Event Logs, select the Log Index drop down list and select an index number from the Event Index drop down list and then select Submit. CenturyStack 8100 Managed Hub...
Page 69
Event Log Event Index Log Index Event Description Event Type Event Community Event Owner Event Status Log Time Log Description Valid index items configured in the RMON Event Configuration Menu Number of the event log Description of the event No Change/Event None/Log/Trap/Log & Trap Name of the event community Owner of the event community No Change/valid/underCreation/invalid...
System Restart The System Restart Menu allows the user to reset the system with a Warm start. A warm restart only reloads the system software. System Restart CenturyStack 8100 Managed Hub...
Chapter 6 Additional Information Agency Compliance Product Safety and Compliance Statements: This equipment complies with the following requirements: • UL • CSA • EN60950 (safety) • FCC Part 15, Class A • EN55022 Class A (emissions) • EN50082-1 (immunity) This product shall be handled, stored and disposed of in accordance with all governing and applicable safety and environmental regulatory agency requirements.
• VT-100 Terminal Interface support Warranty and Servicing Information METRObility Optical Systems, Inc. warrants the CenturyStack 8100 Managed Hub to be in good working order for a period of THREE YEARS from the date of METRObility shipment. Should the unit fail anytime during said three-year period, METRObility will, at its option, replace or repair the product.
