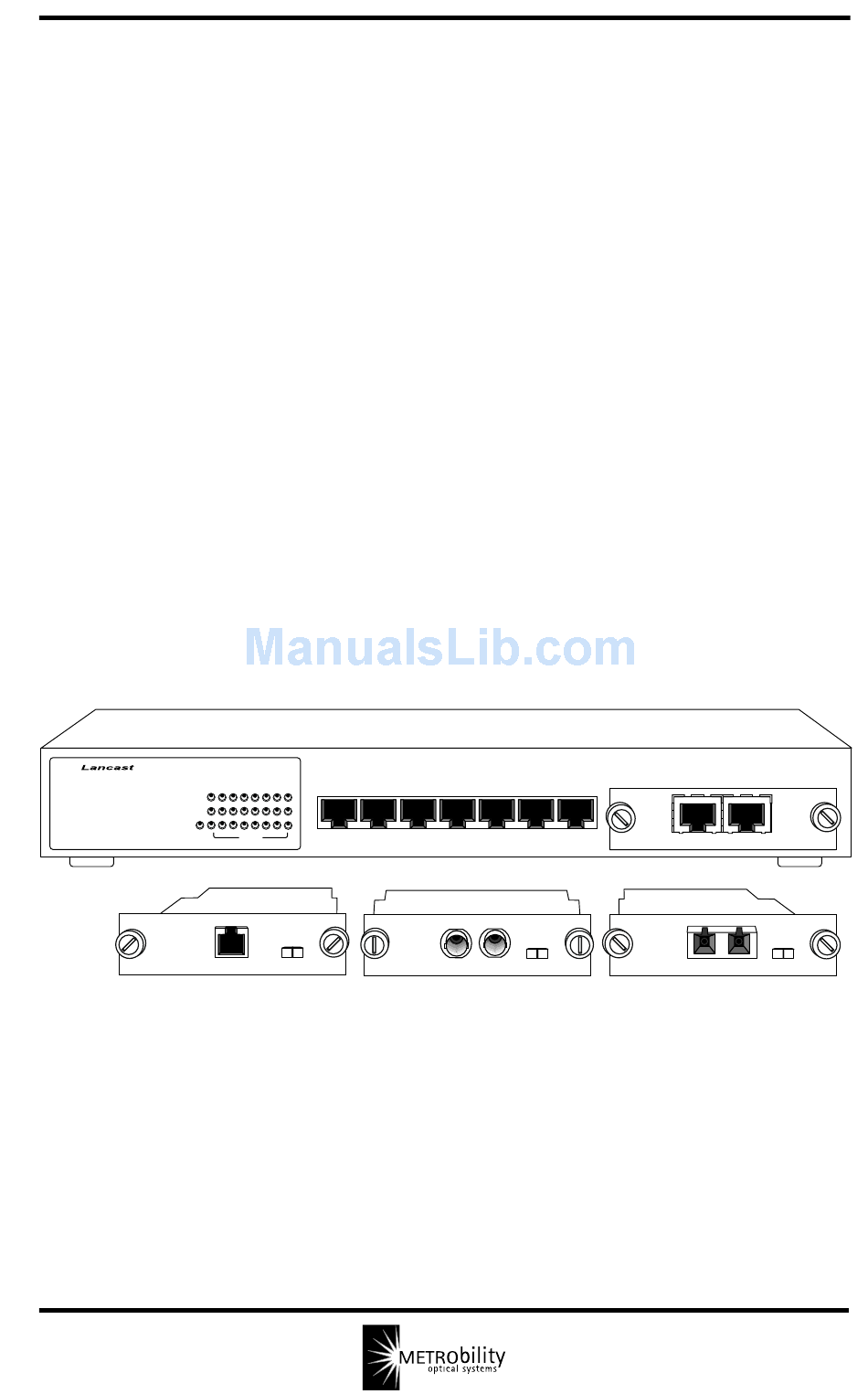

- Page 1 CenturySwitch 1 2 3 4 5 6 7 8 Link/Act 100Mbps Power 3508-11 100BASE-FX HDX FDX Installation & User Guide ® Lancast 8-Port 10/100 Ethernet Switch 100BASE-FX HDX FDX Model: 3508-11 ® Module Port 8 MDI-X MDI-II 100BASE-FX HDX FDX...
-
Page 2: Fiber Optic Modules
Lancast CenturySwitch 8-Port CenturySwitch: 3508-11 ______ 8-port switch with 10/100 TX module Fiber Optic Modules: 3508-03-F ____ 100Base-FX multimode SC 3508-04-F ____ 100Base-FX singlemode SC (15km) 3508-05-F ____ 100Base-FX multimode ST 3508-07-F ____ 100Base-FX singlemode SC (40km) 3508-0E-F ____ 100Base-FX multimode MT-RJ This publication is protected by the copyright laws of the United States and other countries, with all rights reserved. -
Page 3: Table Of Contents
Product Safety, EMC and Compliance Statements ... 17 Warranty & Servicing ... 18 Lancast and CenturySwitch are registered trademarks of METRObility Optical Systems, Inc. All other trademarks appearing in this manual are the property of their respective owners. The information contained in this document is assumed to be correct and current. The manufacturer is not responsible for errors or omissions and reserves the right to change specifications at any time without notice. -
Page 4: Product Overview
Thank you for choosing the Lancast CenturySwitch. Designed to meet the needs of today’s growing networks, the Lancast 8-Port CenturySwitch is a compact, low-cost switch featuring a unique replaceable port module. The standard unit provides eight auto-negotiating 10/100 TX ports including one modular port with two connectors to support either a crossover or parallel connection. -
Page 5: Installation Guide
Follow the steps outlined in this section to install and start using your Lancast CenturySwitch. Unpack the Lancast CenturySwitch Check that the following components have been included: • 8-Port CenturySwitch 3508-11 • Rackmounting hardware: 2 mounting brackets, 4 screws • Power cord Your order has been provided with the safest possible packaging. Inspect it carefully. -
Page 6: Step 3: Connect To The Network
1 2 3 4 5 6 7 8 Link/Act 100Mbps Power 3508-11 Fixed Ports The CenturySwitch provides seven fixed RJ-45 ports with connectors for devices wired crossover. The ports are labeled 1x through 7x. These dual- speed ports are 10/100Mbps auto-sensing and will automatically detect and operate at the speed of the connected device. -
Page 7: Step 4: Install The Fiber Module (Optional)
Set the Duplex Mode Switch Each fiber module can be configured for half duplex (HDX) or full duplex (FDX) operation by means of the slide switch located on the front panel. This switch should be set before applying power. The default setting on the modules is FDX (full duplex). - Page 8 1 2 3 4 5 6 7 8 Link/Act 100Mbps Power 3508-11 The 3508-03-F and 3508-05-F modules provide a pair of multimode SC and ST connectors, respectively. The 3508-0E-F provides a multimode MT-RJ connector. These modules support a maximum segment length of 2km.
-
Page 9: Step 5: Apply Power
The CenturySwitch is equipped with an internal 100-240V, 50-60Hz, 25W power supply. When making power connections, connect the power cord to the input jack located on the back of the switch before making the AC connection to the outlet. MADE IN TAIWAN IMPORTANT: If the CenturySwitch loses power, wait at least 10 seconds before applying power again. - Page 10 Installation Guide...
-
Page 11: User Guide
Lancast CenturySwitch. LED Operation The functional descriptions of the LED indicators are listed below. The port LEDs report the status of their corresponding ports labeled 1 through 8. CenturySwitch 3508-11 n i l c i f l l u Link/Act... -
Page 12: Troubleshooting
(TX) and receive (RX) cables are not crossed. The transmit cable from the worksta- tion should connect to the receive connector of the switch and the transmit cable from the switch should connect to the receive connector of the workstation. - Page 13 • No link signal is received from the remote device CenturySwitch does not work If the switch does not function or is experiencing interference (i.e., your site is located near a radio station, transmitter, etc.), try using shielded twisted-pair (STP) cables instead of UTP cables.
-
Page 14: Topology Solutions
Topology Solutions User Guide CenturySwitch CenturySwitch CenturySwitch Intelligent 7500 Chassis Copper Fiber Optic 100Mbps Enterprise Switch... -
Page 15: Technical Specifications
Technical Specifications Data Rate 10Base-T ports ___________________ 10Mbps half duplex; 20Mbps full duplex 100Base-TX ports _______________ 100Mbps half duplex; 200Mbps full duplex 100Base-FX ports _______________ 100Mbps half duplex; 200Mbps full duplex Switching Performance Buffer memory _____________________________________ 512KB for 8 ports Packet filtering/forwarding rate _____________ 148,800 packets/sec @100Mbps _______________ 14,880 packets/sec @10Mbps MAC addresses __________________________________________________ 8K... - Page 16 Physical Dimensions _________________________________ 13" W x 6.75" D x 1.75" H Weight ________________________________________________________ 4 lb Regulatory Compliance ______________________________ IEEE 802.3u and 802.3x, TUV Safety ___________________________________________ UL, CSA, EN60950 EMC _________________ FCC Part 15, Class A; EN55022 Class A; EN50082-1 User Guide...
-
Page 17: Product Safety, Emc And Compliance Statements
Product Safety, EMC and Compliance Statements This equipment complies with the following requirements: • UL • CSA • TUV • EN60950 (safety) • FCC Part 15, Class A • EN55022 Class A (emissions) • EN50082-1 (immunity) • IEEE 802.3 • IEEE 802.3u •... -
Page 18: Warranty And Servicing
Warranty and Servicing METRObility Optical Systems, Inc. warrants the Lancast CenturySwitch to be in good working order for a period of three years from the date of METRObility shipment. Should the unit fail anytime during said three-year period, METRObility will, at its option, replace or repair the product. This warranty is limited to defects in workmanship and materials and does not cover damage from accident, disaster, misuse, abuse or unauthorized modifications. - Page 19 Lancast 8-Port CenturySwitch...
- Page 20 25 Manchester Street, Merrimack, NH 03054 USA tel: 603-880-1833 • fax: 603-594-2887 www.metrobility.com 5660-350001-001 D 8/01...
