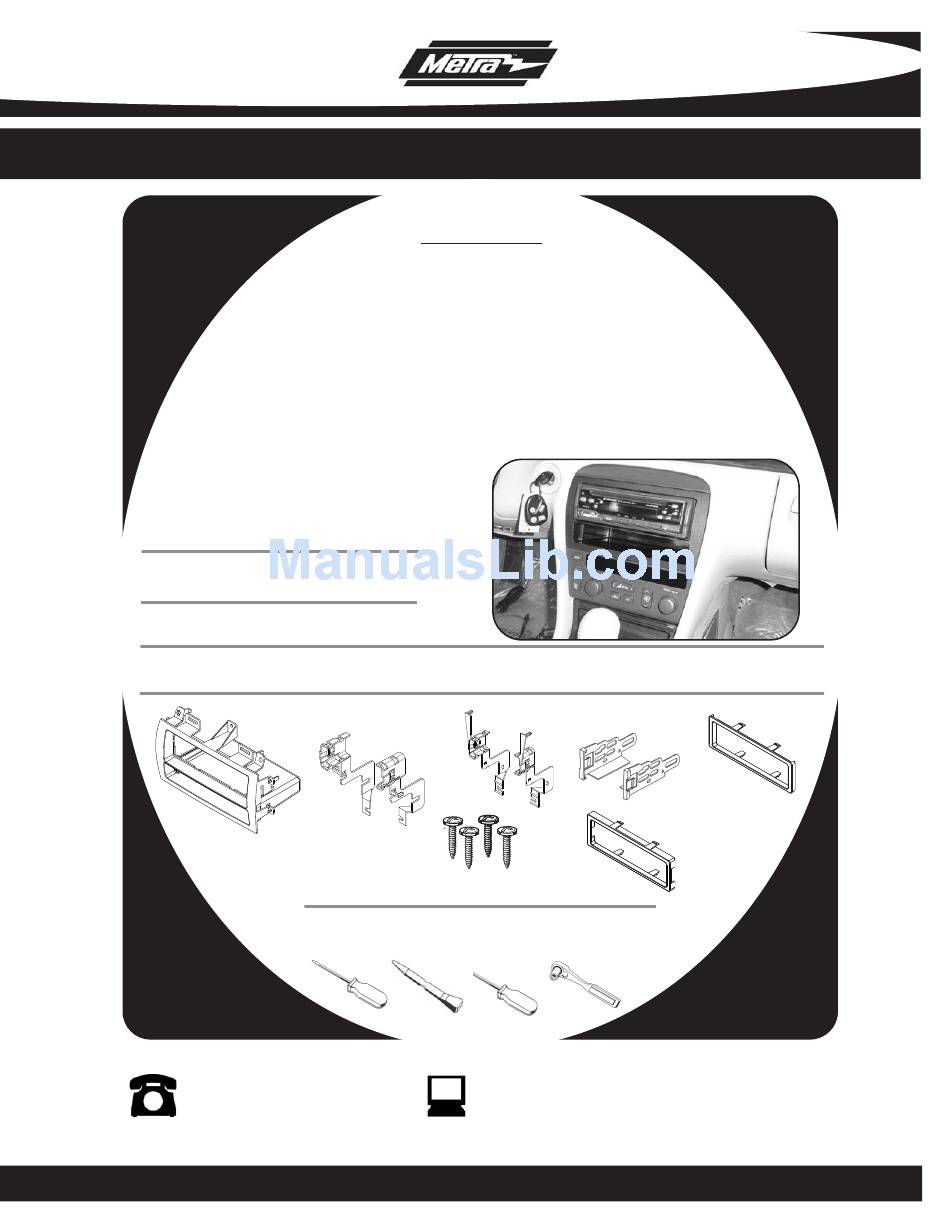

INSTALLATION INSTRUCTIONS FOR PART 99-2005
DEVILLE CONCOURS (CONSOLE SHIFT)1996-1999
99-2005
KIT FEATURES
• DIN Mount Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket

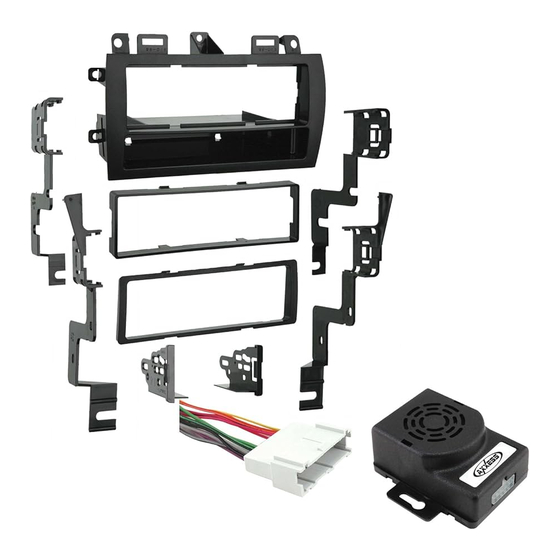

KIT COMPONENTS
• A) Radio Housing • B) Radio Housing Brackets • C) ISO Brackets • D) ISO Trim Plate • E) Spacer
• F) (4) Phillips Screws
A
1-800-221-0932
© COPYRIGHT 2004-2008 METRA ELECTRONICS CORPORATION
APPLICATIONS
CADILLAC
ELDORADO 1996-2002
SEVILLE 1996-2005
DEVILLE 2000-2005
98-04S
S-E
B
F
TOOLS REQUIRED:
Small Flat Blade Screwdriver • Panel Removal Tool
• Phillips Screwdriver • Socket Wrench
www.metraonline.com
C
D
E
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-2005
Summary of Contents for Metra Electronics 99-2005
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-2005 ELDORADO 1996-2002 SEVILLE 1996-2005 DEVILLE 2000-2005 DEVILLE CONCOURS (CONSOLE SHIFT)1996-1999 99-2005 KIT FEATURES • DIN Mount Radio Provision with Pocket • ISO Mount Radio Provision with Pocket KIT COMPONENTS • A) Radio Housing • B) Radio Housing Brackets • C) ISO Brackets • D) ISO Trim Plate • E) Spacer •...
-
Page 2: Table Of Contents
99-2005 T ABLE OF CONTENTS Dash Disassembly • - Cadillac Eldorado 1996-2002------------------------------------- 1 - Cadillac Seville 1996-1997--------------------------------------- 1 - Cadillac Seville 1998-2005--------------------------------------- 2 - Cadillac Deville 2000-2005--------------------------------------- 3 - Cadillac Deville Concours (Console Shift) 1996-1999----------- 2 Kit Assembly • - Cadillac Eldorado 1996-2002 ------------------------------------ 4... -
Page 3: Dash Disassembly
99-2005 CADILLAC ELDORADO CADILLAC SEVILLE Disconnect the negative battery ter- minal to prevent an accidental short circuit. Remove C-clip on forward facing side of shift knob and pull and remove knob. (Figure A) Remove (2) 9/32 screws on each side of the ashtray assembly and (1) in the mid- dle underneath ashtray insert. -
Page 4: Cadillac Seville 1998-2005
99-2005 CADILLAC SEVILLE 1998-2005 CADILLAC DEVILLE CONCOURS (CONSOLE SHIFT) 1996-1999 Disconnect the negative battery ter- minal to prevent an accidental short circuit. Remove (2) 9/32 screws on each side of the ashtray assembly and (1) in the mid- dle underneath ashtray insert. (Figure A) -
Page 5: Cadillac Deville 2000-2005
99-2005 CADILLAC DEVILLE 2000-2005 Disconnect the negative battery ter- minal to prevent an accidental short circuit. Unsnap and remove panel surrounding climate controls and radio. (Figure A) Depress clips on both sides of radio and pull out to remove. (Figure B) -
Page 6: Kit Assembly
Remove all tabs except the ones marked S-E from the radio housing. (Figure A) Slide the S-E radio housing bracket onto the 99-2005 until side clips engage. (Figure B) Slide the climate control assembly into the bracket / housing assembly and attach with the factory hardware. -
Page 7: Cadillac Seville 1998-2005
Remove all tabs except the ones marked 98-04 S from the radio housing. (Figure A) Slide the 98-04 S radio housing bracket onto the 99-2005 until side clips engage. (Figure B) Slide the climate control assembly into the bracket / housing assembly and attach with the factory hardware. -
Page 8: Cadillac Deville 2000-2005
DIN cage that came with your aftermarket radio before inserting it into the housing. (Figure B) When installing the 99-2005 housing into the sub dash, use the supplied (4) phillips screws and mount in the locations shown... -
Page 9: Din Mount Radio Provision
99-2005 DIN HEAD UNIT PROVISION NOTE: Refer also to the instructions included with the aftermarket radio. 1 Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the after-market head unit into the cage and secure. - Page 10 99-2005 ISO DIN HEAD UNIT PROVISION NOTE: Refer also to the instructions included with the aftermarket radio. Mount the ISO brackets to the after- market radio with the screws supplied with the unit. (Figure A) Slide the after-market radio unit into the cage and secure.
-
Page 11: Final Assembly
99-2005 FINAL ASSEMBL Y 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.) - Page 12 99-2005 INSTRUCTIONS 1-800-221-0932 www.metraonline.com Rev. 10-27-08 © COPYRIGHT 2004-2008 METRA ELECTRONICS CORPORATION INST99-2005...
