Metra Electronics 99-7308 Installation Instructions

ALL VEHICLES
3
Fig. A
Fig. B

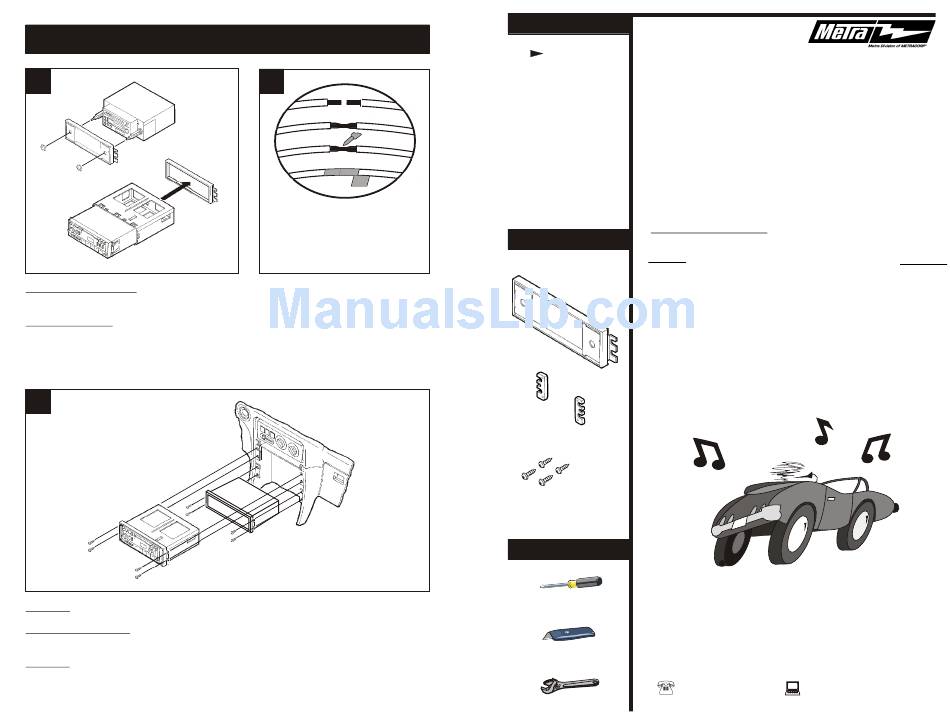

2-SHAFT HEAD UNITS: Slide the aftermarket
head unit into the Radio Housing and secure
with shaft nuts. (see Fig. A).
DIN HEAD UNITS: Cut and remove the shaft
supports from the Radio Housing. Slide the DIN
cage into the kit and secure by bending the metal
locking tabs down. Slide the aftermarket head
unit into the cage until secure. (see Fig. B)
5
Fig. A
ACCENT: Re-connect the battery terminal and test the unit for proper operation. Mount the
head unit/kit assembly to the sub-dash with (4) Phillips screws previously removed in step #1.
ELANTRA, TIBURON: Re-connect the battery terminal and test the unit for proper operation.
Mount the head unit/kit assembly to the sub-dash with (4) #10 x ¾" Phillips Truss-head
Screws supplied.
SONATA: Re-connect the battery terminal and test the unit for proper operation. Mount the
factory pocket to the sub-dash with (4) Phillips screws previously removed in step #1. Mount
the head unit/kit assembly to the sub-dash with (4) Phillips screws previously removed in step
#1. (see Fig. A).
3
4
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
rev. 06-14-07
KIT FEATURES
Shaft and
DIN head
99-7308
unit provisions
INSTALLATION
INSTRUCTIONS
APPLICATIONS
KIT COMPONENTS
CAR
HYUNDAI
Radio Housing
Accent 1995-99....................................1
Accent 2002-05....................................1
Elantra (single DIN) 1996-00............... 1
Sonata (Single DIN) 1995-98............... 2
Tiburon (single DIN) 1997-02.............. 2
Spacer 1L
Spacer 1R
(4) #10 x ¾" Phillips
Truss-head Screws
TOOLS REQUIRED
Phillips screwdriver
Cutting tool
1-800-221-0932
© COPYRIGHT 2001-07 METRA ELECTRONICS CORPORATION
Adjustable wrench
PAGE
www.metraonline.com
