INSTALLATION INSTRUCTIONS FOR PART 98-8999

Applications

MITSUBISHI

(page1)

3000 GT 1991-1999, Diamante 1997-2004, Eclipse 1995-2005,

Galant*1994-2009 (* With Manual Climate Control), Mirage 1997-2003,

Montero 1996-2005, Montero Sport 2000-2004

SUBURU

(page2)

Baja 2003-2005, Forester 1998-2008, Impreza 1993-2007,

Impreza WRX 2002-2005, Legacy 1995-2004, Outback 2000-2004

VOLKSWAGEN

(page3)

Golf 2001-2005, Jetta**2001-2005 (** No Including New A5)

Passat 2001-2005

98-8999

KIT FEATURES

• Holds Three CD Jewel Cases

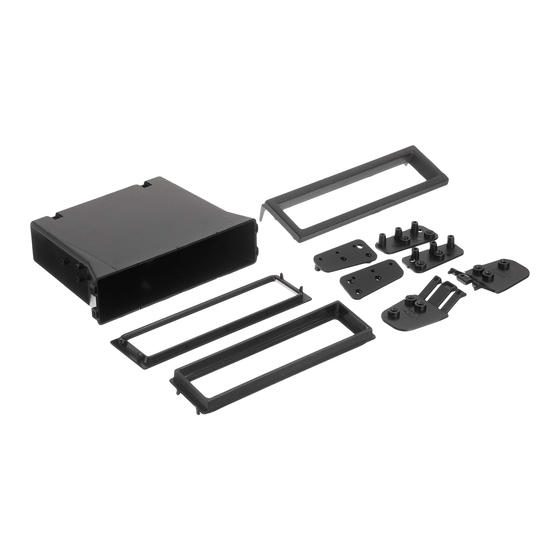

KIT COMPONENTS

A) VW Pocket Trim Plate • B) Subaru Pocket Trim Plate • C) Mitsubishi Trim Plate • D) Pocket

• E) (2) VW Brackets • F) (2) Left Brackets • G) (2) Right Brackets • H) (4) #8 x 1/4" Phillips Pan Head Screws

I) (6) #6 x 1/4" Phillips Flat Head Screws

TOOLS REQUIRED:

Phillips Screwdriver

1-800-221-0932

www.metraonline.com

Page 1 INSTALLATION INSTRUCTIONS FOR PART 98-8999 Applications MITSUBISHI (page1) 3000 GT 1991-1999, Diamante 1997-2004, Eclipse 1995-2005, Galant*1994-2009 (* With Manual Climate Control), Mirage 1997-2003, Montero 1996-2005, Montero Sport 2000-2004 SUBURU (page2) Baja 2003-2005, Forester 1998-2008, Impreza 1993-2007, Impreza WRX 2002-2005, Legacy 1995-2004, Outback 2000-2004...
Page 2 98-8999 MITSUBISHI POCKET Disconnect the negative battery terminal to prevent an accidental short circuit. Snap Pocket Trimplate MIT onto the front of the Pocket. Locate one of the Left Brackets and mount it to the “L” side of the Pocket with (2) #6 x 1/4"...
Page 3 98-8999 SUBARU POCKET Disconnect the negative battery terminal to prevent an accidental short circuit. Snap Pocket Trimplate SUB onto the front of the Pocket. Locate one of the Left Brackets and mount it to the “L” side of the Pocket with (2) #6 x 1/4"...
Page 4 (1) screw on the bot- tom (“B”). Slide the pocket into the dash opening until the side clips engage. (Figure B) 1-800-221-0932 REV. 08/12/08 © COPYRIGHT 2002-2008 METRA ELECTRONICS CORPORATION POCKET ASSEMBL Y NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
