Metra Electronics 99-5720 Installation Instructions

6
A
B
C
D

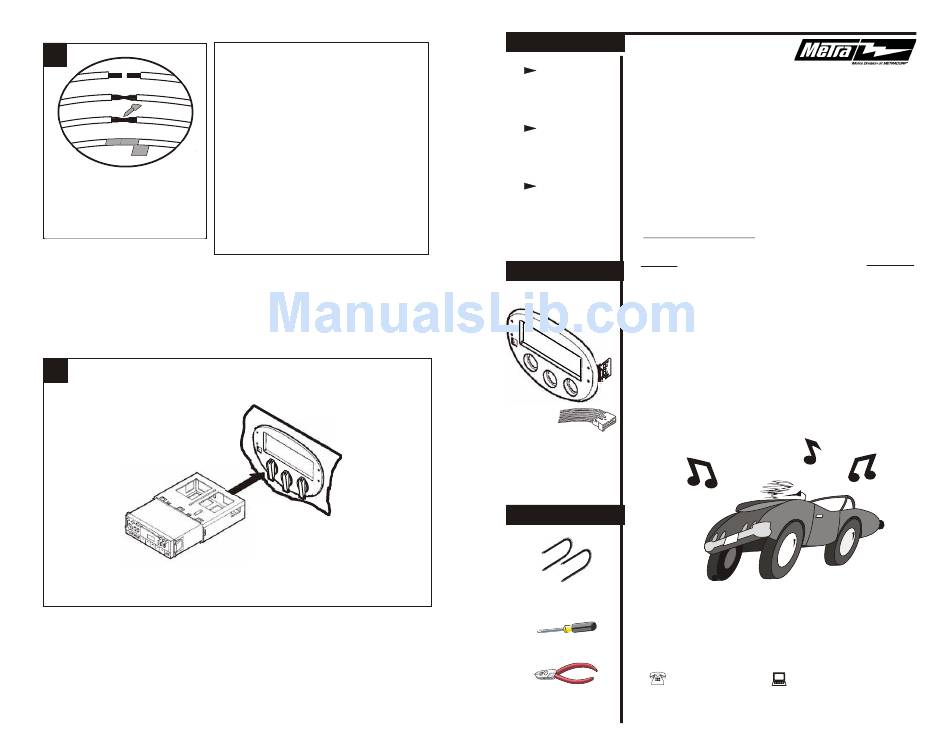

A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends making
connections as shown using the
supplied wire harness. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
7
DIN HEAD UNITS: Slide the DIN cage into the Integrated Mounting Kit and secure by bending
the metal locking tabs down. Slide the aftermarket head unit into the cage until secure. (see Fig. B)
3
Right Front + ...............Gray
Right Front - ................Gray/Black
Left Front + ..................White
Left Front - ...................White/Black
Right Rear + .................Violet
Right Rear - ..................Violet/Black
Left Rear + ...................Green
Left Rear - ....................Green/Black
12 Volt Power................Red
Memory..........................Yellow
Ground..........................Black
Power Antenna.............Blue
Dimmer..........................Orange/White
Amp Turn-On................Blue/White
NOTE: Ground head unit to vehicle
Fig. B
Rev. 12-21-07

KIT FEATURES

Shaft and
DIN unit
99-5720
provisions
Various INSTALLATION
mounting depth
alternatives INSTRUCTIONS
Incorporates
factory climate
controls into
APPLICATIONS
installation
CAR

KIT COMPONENTS

FORD
Escort 1997-04
Integrated
Mounting Kit Escort ZX2 1998-04
ZX2 2003-04*......................................1-3
MERCURY
Tracer 1997-99..................................1-3
Speaker
* Note: Metra's 70-5720 must be used on 2003-04 Zx2 and Escort Models
Harness

TOOLS REQUIRED

86-5618 - Head unit
removal keys
Torx-head screwdriver
1-800-221-0932
Cutting tool © COPYRIGHT 2001-07 METRA ELECTRONICS CORPORATION
PAGE
www.metraonline.com
