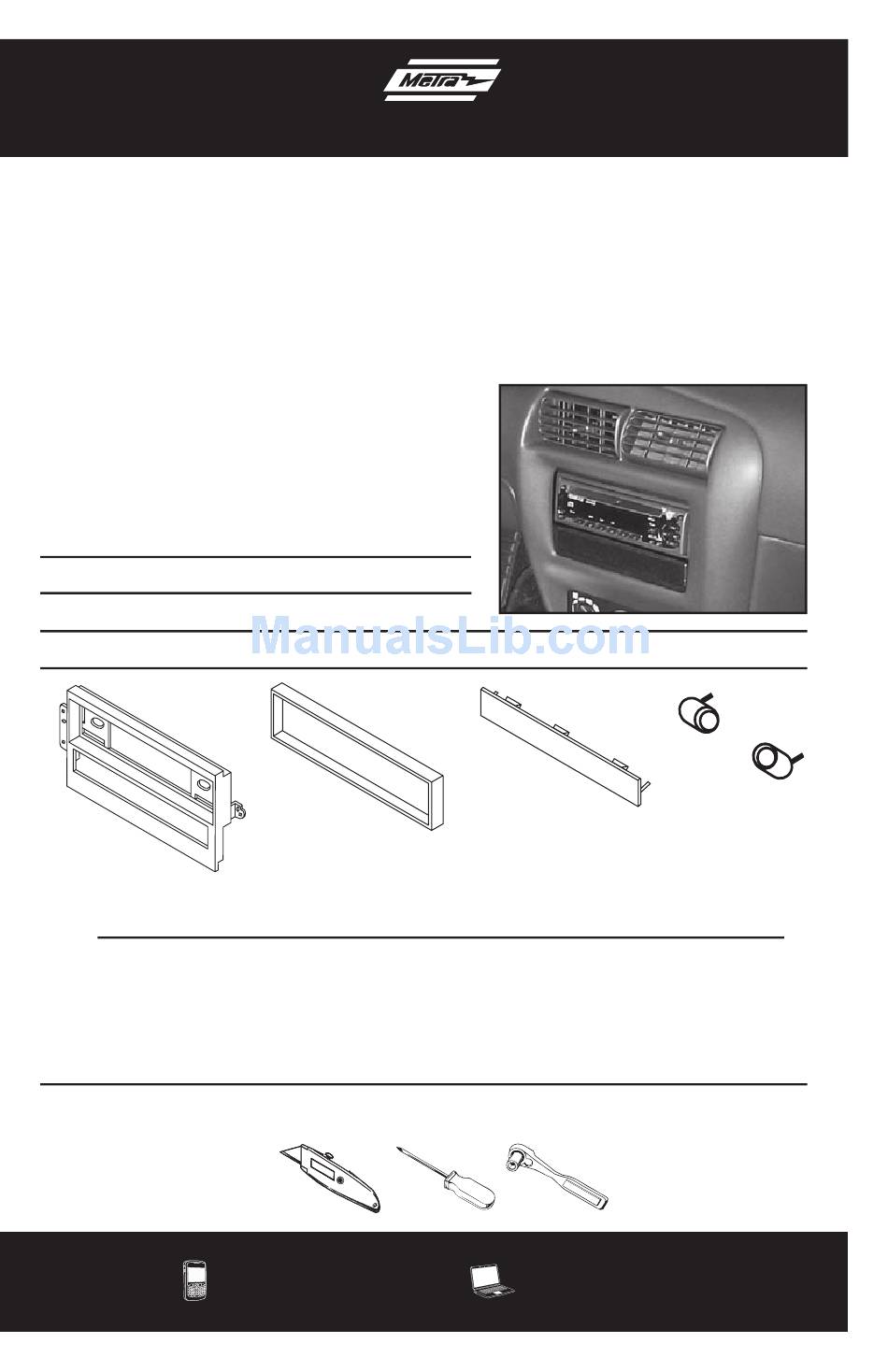

INSTALLATION INSTRUCTIONS FOR PART 99-2001, AW-200GM
GM multi-kit 1994 - 2008
KIT FEATURES
• DIN head unit with equalizer provision
KIT COMPONENTS
• A) Radio Housing • B) Spacer • C) Equalizer Dummy Plate • D) Shaft Masks
A
WIRING & ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness: Please see www.metraonline.com for specific interface applications
Antenna Adapter: • 40-GM10 GM Antenna Adapter 1988-up
APPLICATIONS
See application list inside
99-2001
AW-200GM
B
• 40-CR10 Chryler antenna adapter 2002-up
TOOLS REQUIRED
Utility Knife • Phillips Screwdriver • Socket Set
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
C
metraonline.com
D

Advertisement

Table of Contents
loading

Related Manuals for Metra Electronics AW-200GM

Summary of Contents for Metra Electronics AW-200GM

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-2001, AW-200GM GM multi-kit 1994 - 2008 KIT FEATURES • DIN head unit with equalizer provision KIT COMPONENTS • A) Radio Housing • B) Spacer • C) Equalizer Dummy Plate • D) Shaft Masks WIRING & ANTENNA CONNECTIONS (Sold Separately) Wiring Harness: Please see www.metraonline.com for specific interface applications...

  • Page 2: Le Sabre 1995-2005

    Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. 99-2001, AW-200GM Applications Chevrolet (cont.) Silverado 2003-2006 Silverado Classic...

  • Page 3: Table Of Contents

    Cavalier 2000-2005 Colorado 2004-2008 Express Van (full size) 2001-2002 Express Van (full size) 2003-2007 Impala 2000-2005 Malibu 2001-2003 Malibu Classic 2004 Monte Carlo 2000-2005 99-2001, AW-200GM Chevrolet (cont.) S-10 2002-2004 Silverado 2003-2006 Silverado Classic 2007 Suburban 2003-2006 Tahoe 2003-2006 Trailblazer 2002-2007...
  • Page 4 Cutlass 1997-1999 Cutlass Supreme 1995-1997 Eighty-Eight 1994-1999 Intrigue 1998-2002 LSS 1996-1999 Ninety-Eight 1994-1996 Regency 1997-1998 Silhouette 2000 Silhouette 2001-2004 99-2001, AW-200GM Pontiac Aztec 2001-2005 Bonneville 2000-2005 Grand Am 2001-2005 Montana 2000 Montana 2001-2005 Sunfire 2000-2005 Kit Assembly All vehicles-DIN head unit provisions...
  • Page 5 Dash Disassembly 99-2001, AW-200GM Buick Century 1997-2005 Buick Regal 1995-2004 1. Remove the plastic trim piece to the left of the glove box and (1) Phillips screw exposed. 2. Unsnap the top edge of the knee bolster panel. 3. Remove (1) Phillips screw from the panel.
  • Page 6 Dash Disassembly 99-2001, AW-200GM Buick Le Sabre 1995-1999 Buick Park Avenue 1995-1999 1. Unsnap the climate control trim panel (from door to door) and remove (4) Phillips screws exposed. 2. Pop out the a/c vents and remove (1) Phillips screw exposed in each vent cavity.

  • Page 7: Rendezvous 2002-2007

    Dash Disassembly 99-2001, AW-200GM Buick Rendezvous 2002-2007 1. Open center console and remove 2 screws at front of console opening. (Figure A) 2. Remove liners from cup holders and storage pocket next to cup holders, then remove screws. Unsnap and remove panel.
  • Page 8 Dash Disassembly 99-2001, AW-200GM Buick Riviera 1996-1999 1. Unsnap left side panel exposing (1) Phillips screw to remove. 2. Remove (1) Phillips screw and unsnap right side panel to expose (1) Phillips screw beneath panel and remove. 3. Unsnap underside of overhanging dash to unsnap (6) plastic rivets and remove panel.

  • Page 9: Roadmaster 1995-1996

    Dash Disassembly 99-2001, AW-200GM Buick Roadmaster 1995-1996 1. Unclip dash panel sides and remove. 2. Unclip panel below steering column and remove. 3. Remove (2) 7 mm screws above instrument cluster. 4. Set parking brake, turn car on, and move shifter to the lowest gear. Tilt...

  • Page 10: Skylark 1996-1998

    Dash Disassembly 99-2001, AW-200GM Buick Skylark 1996-1998 1. Remove (6) 9/32” screws inside glove box. 2. Under glove box and drivers knee bolster, remove (2) plastic panels by turning (2) 1/4 turn fasteners per side. 3. Remove (4) 9/32” screws revealed.

  • Page 11: Cadillac Escalade/Ext 2003-2006

    Dash Disassembly 99-2001, AW-200GM Cadillac Escalade 2003-2006 Chevrolet Avalanche 2003-2006 Chevrolet Silverado/Classic 2003-2007 Chevrolet Suburban 2003-2006 Chevrolet Tahoe 2003-2006 GMC Sierra/Classic 2003-2007 GMC Yukon/Denali/XL 2003-2006 1. Unsnap and remove dash bezel. 2. Remove (3) 9/32” screws and remove radio. Continue to kit assembly...

  • Page 12: Chevrolet (Cont.) S-10 2002-2004

    Dash Disassembly 99-2001, AW-200GM Chevrolet Blazer 2002-2005 Chevrolet S-10 2002-2004 GMC Sonoma 2002-2004 Oldsmobile Bravada 1998-2001 1. Remove (2) 9/32” hex-head screws from the knee bolster panel. 2. Pull down on the panel and remove the 9/32” hex-head screws exposed on the bottom of the dash trim bezel.
  • Page 13 Dash Disassembly 99-2001, AW-200GM Chevrolet Cavalier 2000-2005 1. Open drivers door and remove fuse panel on end of dash. 2. Open passenger door and remove panel on end of dash. 3. Remove (1) Phillips screw from each side exposed. 4. Remove (3) screws from top of glove box liner.
  • Page 14 Dash Disassembly 99-2001, AW-200GM Chevrolet Colorado 2004-2008 GMC Canyon 2004-2008 Isuzu I-290/I-370 2007-2008 Isuzu I-280/I-350 2006 1. Unsnap and remove the entire panel surrounding the radio and A/C controls. (Figure A) 2. Remove (3) 9/32”screws securing the radio to remove. (Figure B)
  • Page 15 Dash Disassembly 99-2001, AW-200GM Chevrolet Express Van 2001-2002 GMC Savanna 2001-2002 1. Unsnap and remove small trim panel below steering column. (Figure A) 2. Unsnap radio/climate/instrument panel. (Figure B) 3. Move shift lever to first gear position. 4. Rotate panel counterclockwise to lift over steering column and remove.
  • Page 16 Dash Disassembly 99-2001, AW-200GM Chevrolet Express Van 2003-2007 GMC Savanna 2003-2007 1. Remove (2) 10 mm bolts from below knee bolster under steering column and remove panel. (Figure A) 2. Remove (2) 10 mm bolts from panel below passenger dash airbag and remove panel.
  • Page 17 Dash Disassembly 99-2001, AW-200GM Chevrolet Impala 2000-2005 1. Unclip each side of the dash trim bezel (fuse access) and remove (1) Phillips screw exposed on each side. 2. Remove (2) Phillips screws under the instrument cluster. 3. Unclip the trim panel above the pedals.
  • Page 18 Dash Disassembly 99-2001, AW-200GM Chevrolet Monte Carlo 2000-2005 1. Unclip the trim panel above the pedals. (It is NOT necessary to remove the panel it may be left hanging). 2. Remove (2) 9/32” screws from the knee panel and unclip the panel.
  • Page 19 Dash Disassembly 99-2001, AW-200GM Chevrolet Trailblazer 2002-2009 1. Remove (2) Phillips screws inside instrument cluster. 2. Remove (1) Phillips screw under climate controls to the left of the power outlet. 3. Remove (2) 7 mm hex heads from under steering column and lower the panel.

  • Page 20: Venture 2000

    Dash Disassembly 99-2001, AW-200GM Chevrolet Venture 2000 Oldsmobile Silhouette 2000 Pontiac Montana 2000 1. Remove the ashtray and (1) phillips screw exposed in the ashtray cavity. 2. Remove (1) Phillips screw from the cigarette lighter compartment. 3. Remove (2) Phillips screws securing the factory head unit and disconnect the wiring.

  • Page 21: Venture 2001-2005

    Dash Disassembly 99-2001, AW-200GM Chevrolet Venture 2001-2005 Oldsmobile Silhouette 2001-2004 Pontiac Montana 2001-2005 1. Open cup holders and remove (2) Phillips 7 mm screws. (Figure A) 2. Unsnap and remove dual power outlet assembly from lower storage. 3. Open lower storage door and remove (2) 7mm screws inside.
  • Page 22 Dash Disassembly 99-2001, AW-200GM GMC Envoy 2002-2007 Isuzu Ascender 2003-2005 Oldsmobile Bravada 2002-2004 Buick Ranier 2004-2007 1. Remove (4) Phillips screws, (2) from left and (2) from right of carpeted panel. (Figure A) 2. Slide carpeted panel down and backwards to reveal (2) Phillips screws and remove.

  • Page 23: Hummer H2 2003-2007

    Dash Disassembly 99-2001, AW-200GM Hummer H2 2003-2007 1. Open center console and remove (4) 9/32” screws from console box and remove box. (Figure A) 2. Remove (4) phillips screws from hinge on console door inside console and remove door. (Figure B) 3.
  • Page 24 Dash Disassembly 99-2001, AW-200GM Hummer H2 2003-2007 7. Remove (1) 10 mm bolt to right of shift lever. (Figure A) 8. Remove (2) Phillips screws from under console box on drivers side and (2) Phillips screws from under console trimtop on passenger side. (Figure A) 9.

  • Page 25: Oldsmobile Achieva 1996-1998

    Dash Disassembly 99-2001, AW-200GM Oldsmobile Achieva 1996-1998 1. Open the glove box, press inward on the walls of the glove box liner and remove the liner. 2. Remove (10) torx-head screws from the glove box location. 3. Remove (2) 9/32” hex-head screws under the steering column.

  • Page 26: Aurora 1995-2003

    Dash Disassembly 99-2001, AW-200GM Oldsmobile Aurora 1995-2003 1. Unclip the radio trim bezel and remove the bezel. 2. Remove (2) 7 mm screws securing the factory head unit and disconnect the wiring. Continue to kit assembly Oldsmobile Cutlass 1997-1999 Oldsmobile Cutlass Supreme 1995-1997 1.

  • Page 27: Eighty-Eight 1994-1999

    Dash Disassembly 99-2001, AW-200GM Oldsmobile Eighty-Eight 1994-1999 1. Unclip the radio trim bezel and remove. Oldsmobile Ninety-Eight 1994-1996 1. Open the glove box and remove (2) hex-head screws securing the wood trim. 2. Unsnap the wood trim and remove. 3. Remove (2) hex-head screws below the radio trim bezel.

  • Page 28: Regency 1997-1998

    Dash Disassembly 99-2001, AW-200GM Oldsmobile LSS 1996-1999 Oldsmobile Regency 1997-1998 1. Open glove box and remove two-center trim bezels attached by screws. (Figure A) 2. Unsnap and remove radio trim bezel. (Figure A) (Figure A) 3. Remove (3) 9/32” hex-head screws and remove radio.

  • Page 29: Pontiac Aztec 2001-2005

    Dash Disassembly 99-2001, AW-200GM Pontiac Aztec 2001-2005 1. Pull out cup holder inserts. 2. Remove (1) Phillips screw exposed inside bottom cup holder. 3. Unsnap and remove shifter trim with cup holders. 4. Remove (2) #15 torx at bottom of radio/ climate bezel.

  • Page 30: Grand Am 2001-2005

    Dash Disassembly 99-2001, AW-200GM Pontiac Grand Am 2001-2005 1. Unsnap and remove radio trim bezel. 2. Remove (3) 9/32” screws from radio brackets and remove radio. Continue to kit assembly Pontiac Sunfire 2000-2005 1. Open the glove box and remove (2) Phillips screws exposed on the right edge of the radio trim bezel.

  • Page 31: Kit Assembly

    Kit Assembly 99-2001, AW-200GM All vehicles – DIN head unit provisions 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.

  • Page 32: All Vehicles-Shaft Head Unit Provisions

    Kit Assembly 99-2001, AW-200GM All vehicles – Shaft head unit provisions 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation.
  • Page 33 Notes...
  • Page 34 Notes...
  • Page 35 Notes...
  • Page 36 INSTALLATION INSTRUCTIONS FOR PART 99-2001, AW-200GM METRA. THE WORLD’S BEST KITS.™ metraonline.com 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
