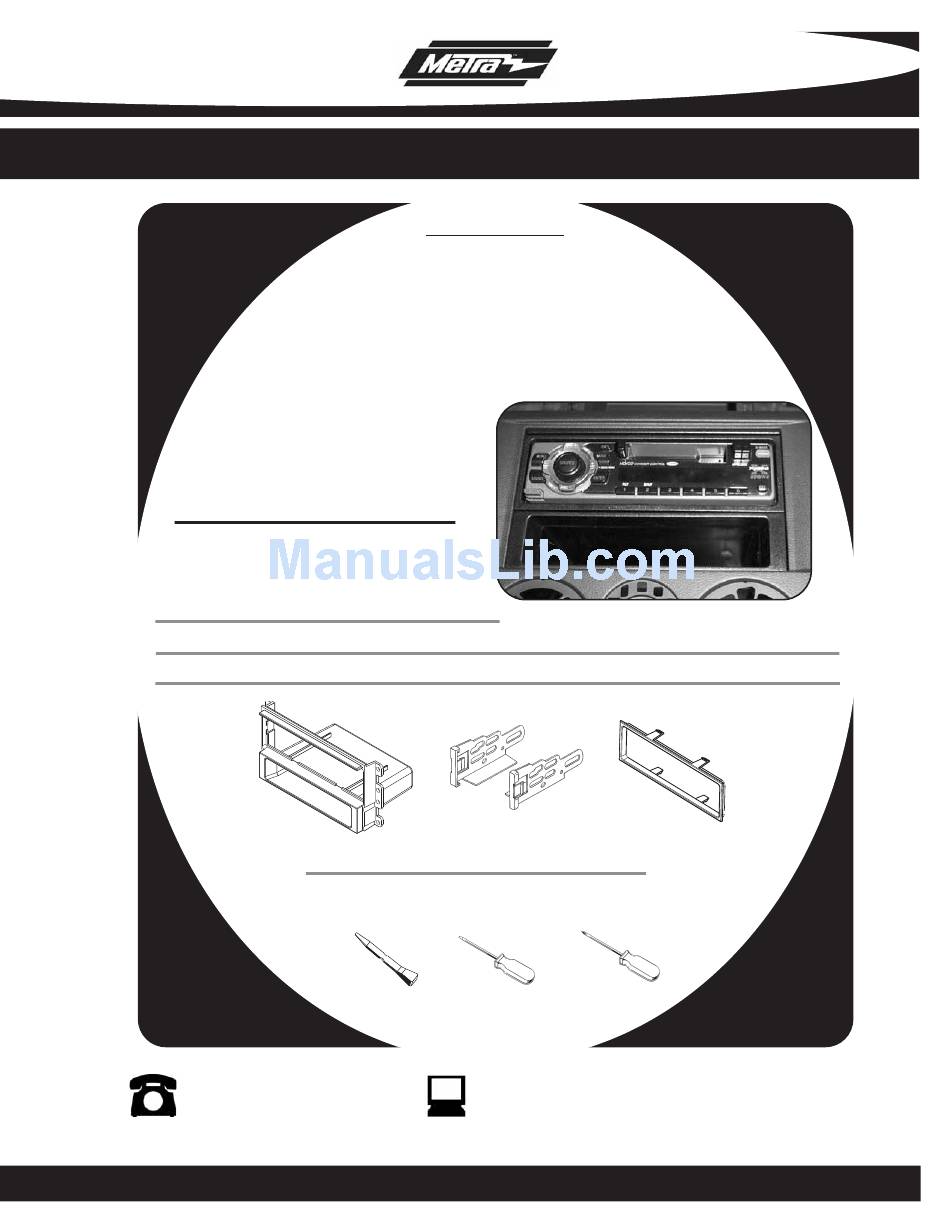

INSTALLATION INSTRUCTIONS FOR PART 99-7008
APPLICATIONS
2003-2006
Mitsubishi Outlander
99-7008
KIT FEATURES
• DIN Radio Provision with pocket
• ISO Radio Provision with pocket
KIT COMPONENTS
A) Radio Housing
B) ISO Brackets
C) ISO Trim Plate
A
B
C
TOOLS REQUIRED:
Panel Removal Tool or
•
Phillips Screwdriver
Small Flat Blade Screwdriver
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics 99-7008
Summary of Contents for Metra Electronics 99-7008
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7008 APPLICATIONS 2003-2006 Mitsubishi Outlander 99-7008 KIT FEATURES • DIN Radio Provision with pocket • ISO Radio Provision with pocket KIT COMPONENTS A) Radio Housing B) ISO Brackets C) ISO Trim Plate TOOLS REQUIRED: Panel Removal Tool or •...
-
Page 2: Table Of Contents
99-7008 T ABLE OF CONTENTS Dash Disassembly ... 1 2003-2006 Mitsubishi Outlander Kit Assembly Din Mount Radio Provision with pocket... ISO Mount Radio Provision with pocket... Final Assembly ... 4... -
Page 3: Dash Disassembly
Climate controls. It is not necessary to completely remove this panel. (Figure B) Unsnap and remove the radio/climate control trim panel. (Figure C) Remove (4) Phillips head screws securing the radio. Unplug and remove the radio. 99-7008 DASH DISASSEMBL Y... -
Page 4: Kit Assembly
99-7008 DIN MOUNT RADIO PROVISION WITH POCKET Slide the DIN cage (supplied with radio) into the Radio Housing from the front. (Figure A) Secure DIN cage to radio housing by bending the locking tabs outward. (Figure B) Slide the radio into the DIN cage until it snaps into place. -
Page 5: Iso Mount Radio Provision With Pocket
99-7008 ISO MOUNT RADIO WITH POCKET Align the holes in the ISO brackets with the holes in the radio. Mount the brackets to the radio using screws supplied with the radio. (Figure A) Slide the radio/bracket assembly into the radio housing until it snaps into place. -
Page 6: Final Assembly
99-7008 FINAL ASSEMBL Y 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.) - Page 7 99-7008 NOTES...
- Page 8 99-7008 INSTRUCTIONS 1-800-221-0932 www.metraonline.com © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION INST99-7008 REV. 03/14/06...
