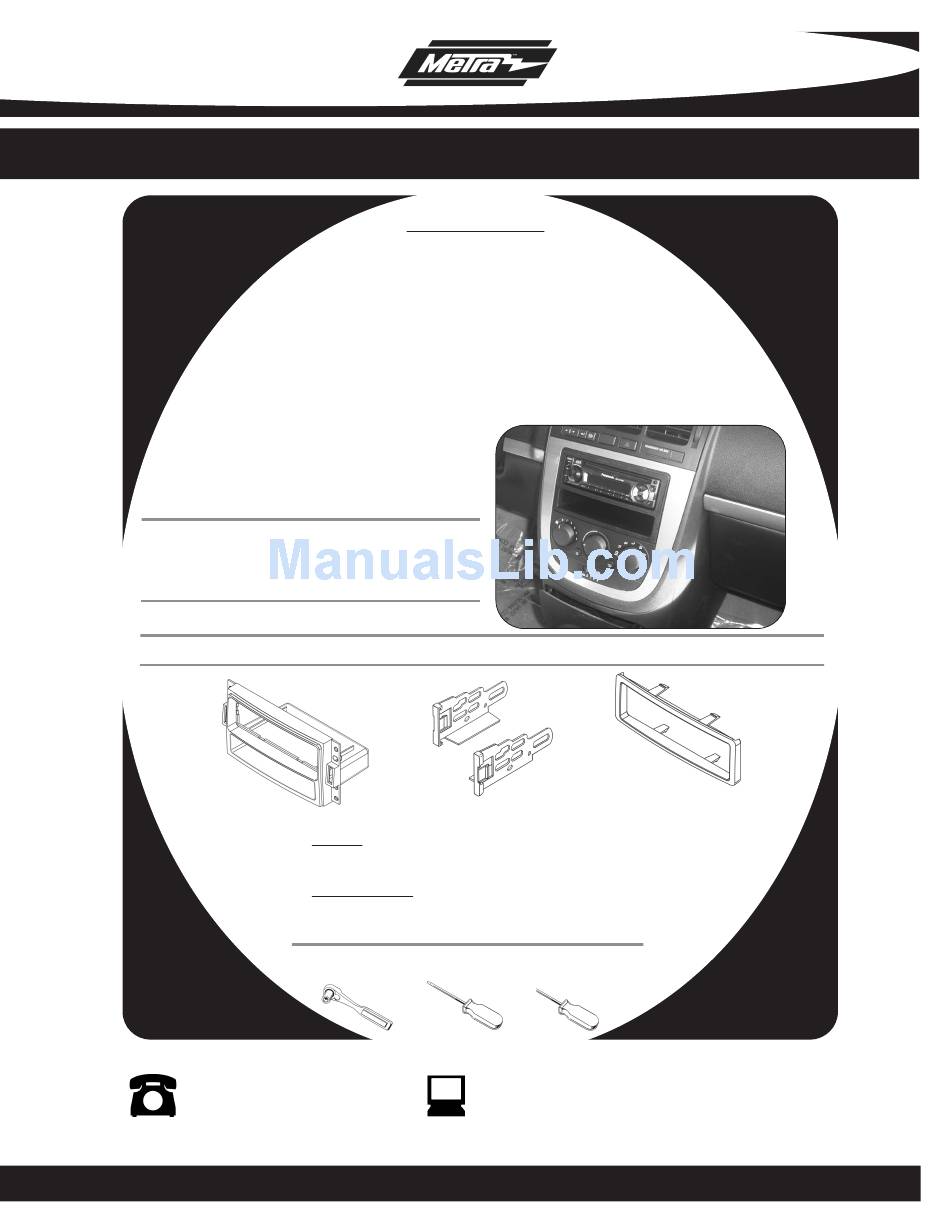

INSTALLATION INSTRUCTIONS FOR PART 99-3304
Pontiac Montana (SV6 only) 2005-2007
99-3304
KIT FEATURES
• DIN Head Unit Provisions with Pocket
• ISO DIN Head Unit Provisions with Pocket
KIT COMPONENTS
A) Radio Housing • B) ISO Brackets • C) Trim Plate
A
Socket Wrench • Flat Blade Screwdriver • Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2004-2009 METRA ELECTRONICS CORPORATION
APPLICATIONS
Buick Terraza 2005-2008
Chevrolet Corvette 2005-2010
Chevrolet Uplander 2005-2008
Hummer H3 2006-2009
Saturn Relay 2005-2007
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• GMOS-01 - GM Interface 2002-up
• GMOS-04 - GM Amplified Interface 2002-up
Antenna Adapter:
• 40-GM10 - GM antenna adapter 1988-up
TOOLS REQUIRED:
www.metraonline.com
C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-3304
Summary of Contents for Metra Electronics 99-3304
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-3304 Buick Terraza 2005-2008 Chevrolet Corvette 2005-2010 Chevrolet Uplander 2005-2008 Hummer H3 2006-2009 Pontiac Montana (SV6 only) 2005-2007 Saturn Relay 2005-2007 99-3304 KIT FEATURES • DIN Head Unit Provisions with Pocket • ISO DIN Head Unit Provisions with Pocket KIT COMPONENTS A) Radio Housing •...
- Page 2 99-3304 Dash Disassembly ... 1-3 Kit Assembly ... 4-5 Final Assembly ... 6...
- Page 3 99-3304 CHEVY UPLANDER, PONTIAC MONTANA SV6, BUICK TERRAZA 2005-2008/ SATURN RELAY 2005-2007 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove trim panel around radio and a/c control. (Figure A) Remove (8) 9/32” screws to extract radio and a/c control from sub dash.
- Page 4 99-3304 CHEVROLET CORVETTE 2005-2010 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove ride control switch/blank plate at front edge of center console lid. (Figure A) Remove (2) 9/32” screws from under plate removed in step 2. (Figure A) Unclip and remove entire panel surrounding radio and including a/c controls.
- Page 5 HUMMER H3 2006-2009 99-3304 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove trim panel around radio and a/c controls. (Figure A) Remove (4) 9/32” screws securing radio. (Figure B) Unplug and remove radio.
- Page 6 99-3304 DIN HEAD UNIT PROVISIONS Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the aftermarket head unit into the cage and secure. (Figure B)
-
Page 7: Iso Din Head Unit Provision
Mount the ISO Brackets to the head unit with the screws supplied with the unit. (Figure A) Slide the head unit into the radio opening until the side clips engage. (Figure B) Snap the Trim plate into the Radio Housing. (Figure B) 99-3304... -
Page 8: Final Assembly
*NOTE: When Black a wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 1-800-221-0932 REV. 04/21/10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION FINAL ASSEMBLY Strip wire ends back 1/2" Twist ends together...
