INSTALLATION INSTRUCTIONS FOR PART 99-2004
APPLICATIONS
Cadillac
1997-2001 Catera
1996-1999 Deville
(Column Shift Only)
99-2004
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO DIN Radio Provision with Pocket
KIT COMPONENTS
( A) Radio Housing • ( B) Trim Plate • ( C) ISO Brackets • (D) (4) Speed Clips • (E) (4) Phillips head screws
D
B
C
A
E
TOOLS REQUIRED:
Phillips Screwdriver • Cutting Tool
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-2004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metra Electronics 99-2004

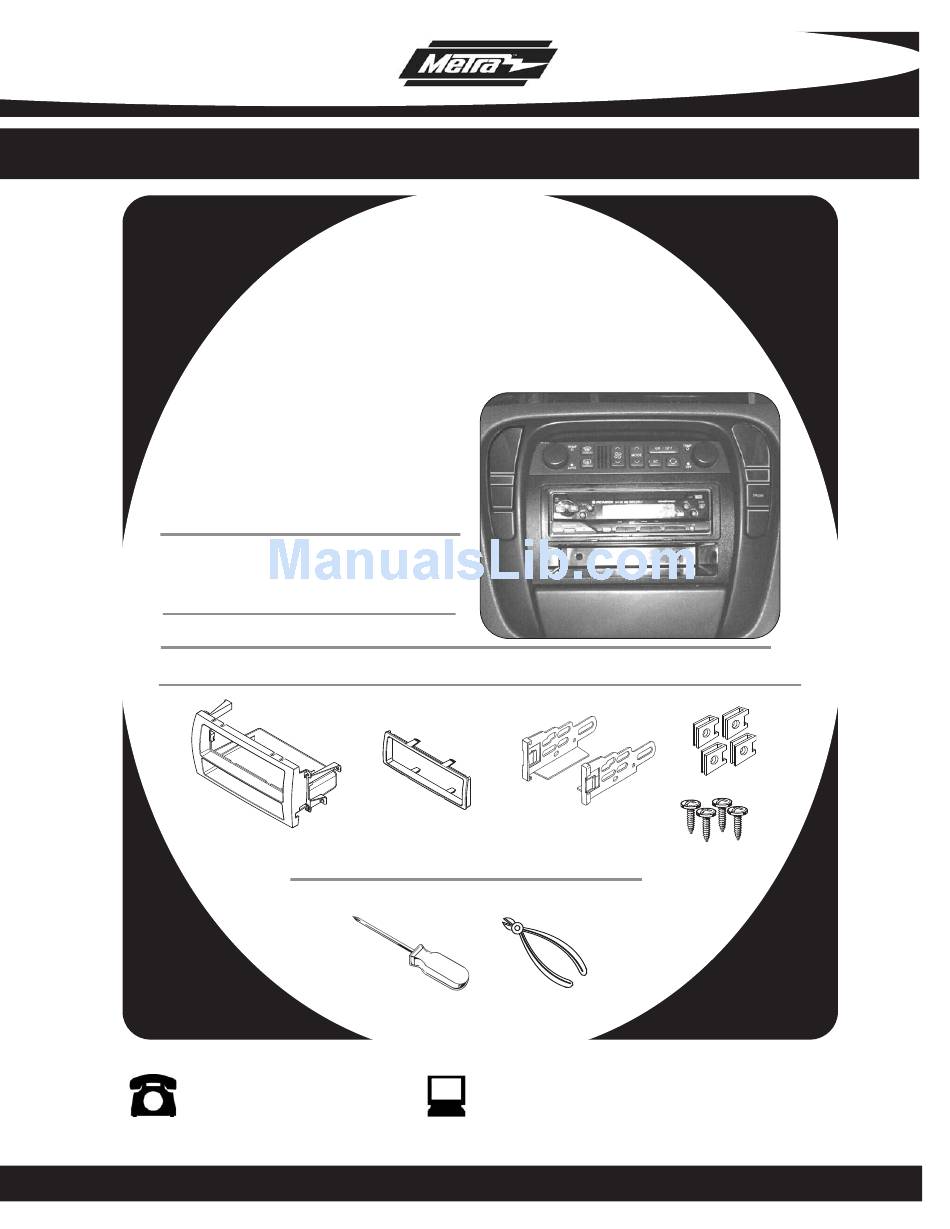

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-2004 APPLICATIONS Cadillac 1997-2001 Catera 1996-1999 Deville (Column Shift Only) 99-2004 KIT FEATURES • DIN Radio Provision with Pocket • ISO DIN Radio Provision with Pocket KIT COMPONENTS ( A) Radio Housing • ( B) Trim Plate • ( C) ISO Brackets • (D) (4) Speed Clips • (E) (4) Phillips head screws TOOLS REQUIRED: Phillips Screwdriver •...
  • Page 2 99-2004 T ABLE OF CONTENTS Dash Disassembly 1997-2001 Cadillac Catera ......1...
  • Page 3 99-2004 1997-2001 CADILLAC CATERA Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (1) Phillips head screw from inside the ashtray and remove ash- tray. (Figure A) Remove screw covers from the radio trim panel. Remove traction control and hazard switch covers.
  • Page 4 99-2004 1997-2001 CADILLAC CATERA Remove (2) tabs from the top edge of the radio housing. (Figure A) DIN RADIO PROVISION Slide the DIN cage into the radio housing and secure by bending the metal locking tabs outward. (Figure A) Continue with final assembly.
  • Page 5 99-2004 1996-1999 CADILLAC DEVILLE Install (4) speed clips into the sub- dash mounting positions. (Figure A) DIN RADIO PROVISION Slide the DIN cage into the radio housing and secure by bending the metal locking tabs outward. (Figure A) Continue with final assembly.
  • Page 6 99-2004 FINAL ASSEMBL Y 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
