Metra Electronics 99-3301 Installation Instructions

ALL VEHICLES
2
"L"
"R"
Slide Mounting Brackets ("L" and "R")
into the slots on the sides of the Radio
Housing as indicated.
4
A
B
C
D
A) Strip wire ends back ½"
B) Twist ends together
C) Solder
D) Tape
Locate the factory wiring harness in the
dash. Metra recommends using the
proper mating adaptor and making
connections as shown. (Isolate and
individually tape off the ends of any
unused wires to prevent electrical short
circuit).
3
Slide the ISO-DIN head unit into the kit. Align
the holes in the Mounting Brackets with the
holes in the head unit and mount the Brackets
to the head unit with the screws included with
the unit.
5
Re-connect the battery terminal and test the unit
for proper operation. Mount the head unit/kit
assembly to the sub-dash with those screws
previously removed in step #1.
REV. 07-29-09
KIT FEATURES
99-3301
ISO-DIN unit
provisions
INSTALLA
CD pocket holds
APPLICATIONS
(2) jewel cases
CAR
BUICK
Century 1997-2005........................................................ 1
LeSabre 1995-2005...................................................... 1
Park Avenue 1995-2005................................................ 1
Regal 1995-2004.............................................................. 6

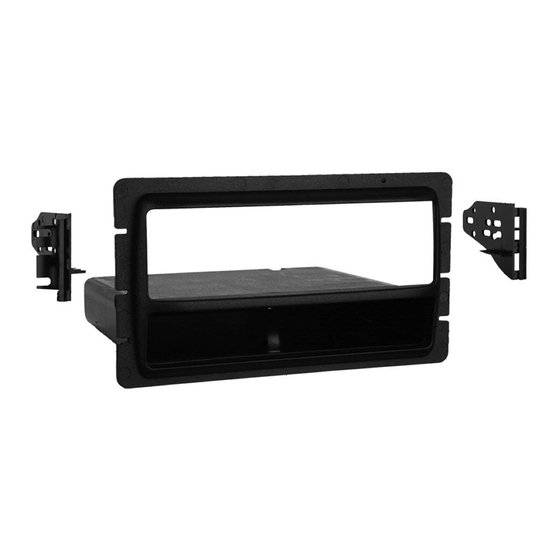

KIT COMPONENTS
Rendezvous 2002-2007................................................ 6
CHEVROLET
Radio Housing
Avalanche 2003-2006 ................................................. 6
Cavalier 2000-2005....................................................... 6
Express Van 2001-2007............................................... 5
Impala 2000-2005......................................................... 5
Malibu 2001-2003........................................................... 5
Monte Carlo 2000-2005 ............................................. 5
Trailblazer 2002-2007.................................................... 2
Venture 2000-2005....................................................... 2
GMC
Envoy 2002-2007............................................................ 2
Mounting
OLDMOBILE
Brackets
Bravada 1998-2001......................................................... 2
Silhouette 2000-2004................................................... 5
PONTIAC
Aztec 2001-2005.............................................................. 3
Bonneville 2000-2005.................................................. 3
Grand Am 2001-2005 ................................................... 4
Montana 2000-2005..................................................... 4
Sunfire 2000-2005........................................................ 4
TOOLS REQUIRED
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
Please visit www.metraonline for specific interface
applications
Antenna adapter: • 40-GM10 - GM antenna adapter 88-up
Phillips screwdriver
Socket wrench
1-800-221-0932
© COPYRIGHT 2001-2009 METRA ELECTRONICS CORP.
INSTRUCTIONS
TION
K P
NOWLEDGE IS OWER
Enhance your installation and fabrication skills
by enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com
or call 800-354-6782 for more information
and take steps toward a better tomorrow.
www.metraonline.com
