WOOD SANDING MACHINES

SMOOTHING

THE WAY TO

PERFECTION.

Metabo manufacture a wide range of quality sanders for those who require a profes -

sional finish. The wide range allows the user to select exactly the right sander for the

job, be it for sanding flat surfaces, curved surfaces, sanding into corners or along edges.

Backed up with a wide range of accessories Metabo sanders are able to finish a whole

host of materials, be it wood, metal, paints, varnish or filler. Metabo. Work. Don't play.

150 |

Need help?

Do you have a question about the Wood Sanding Machine and is the answer not in the manual?

Questions and answers

Summary of Contents for Metabo Wood Sanding Machine

Page 1 Backed up with a wide range of accessories Metabo sanders are able to finish a whole host of materials, be it wood, metal, paints, varnish or filler. Metabo. Work. Don’t play.
Page 2 WOOD SANDING MACHINES | 151...
Page 3 CONSIDERED THE BEST, NOT ONLY ON THE SURFACE. The Metabo range of sanders are considered amongst the best in the industry. Copied by many and perfected by none the Metabo sanding range gives you a choice of machines built to the demands of the profes- Ergonomic design...
Page 4 Which sanding machine for which application? Application Delta sander with comfortable one-hand operation and dust extraction unit. Low weight with good material removal. Suitable for sanding at places difficult to reach such as corners, edges, intermediate spaces. Disc sander with comfortable one-hand operation and dust extraction unit.
Page 5 1,25 kg Standard equipment carry case FMS 200 Intec Type 6.00065 Order no. 300 Watt Electronic Triangular Base-Plate Sander DSE 300 Intec 93 mm 14.000 - 22.000 /min 18.000 /min 300 W 1,8 mm 1,3 kg 3 perforated sanding sheets...
Page 6 FOR THE FMS 200 INTEC Velcro-faced base-plates Sanding plate, perforated Sanding plate for FSR 200 Intec (as spare) Dimensions: 147 x 100 mm Dust collection box Dust collector cartridge Dust collector cartridge including dust filter 6.25602 Pleated filter Pleated filter, polyester, for dust collector cartridge (6.25601) Connector...
Page 7 Weight (without mains cable) Standard equipment disc, allen key SX E 400 Type 6.00405 Order no. 240 Watt Palm Grip Random Orbital Sander FSX 200 Intec 125 mm 11.000 /min 240 W 90 W 9.500 /min 2,7 mm 1,3 kg...
Page 8 Dust extraction unit with Intec filter system, with washable filter cartridge External dust extraction outlet 250-Watt Electronic Disc Sander SXE 325 Intec Comparative device characteristics 125 mm Diameter of backing pad 5.000 - 11.000 /min...
Page 9 ACCESSORIES FOR DISC SANDERS FOR SX E 400 Velcro-faced backing pad Diameter: 80 mm Hardness: Medium-hard Version: Perforated Backing pad, for self-adhesive sanding discs Diameter: 80 mm Hardness: Medium Version: Perforated Velcro-faced intermediate disc For sanding curved surfaces Diameter: 80 mm Hardness: Soft Version: Perforated Cling-fit polishing sponge...

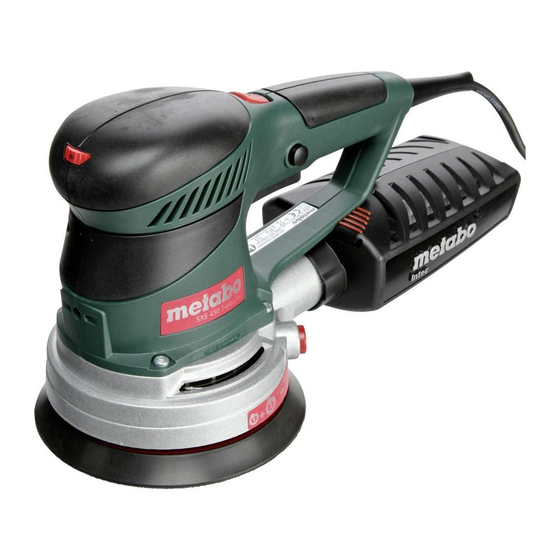

Page 10 Velcro-faced backing pad Diameter Backing pad, for self-adhesive sanding discs Diameter Velcro-faced intermediate disc Additional accessories for SXE 450 TurboTec 350 Watt Electronic Disc Sander SXE 450 TurboTec 150 mm 13100 /min 350 W 180 W 8.500 /min 2,8/6,2 mm...
Page 11 160 | COMMON FEATURES Universal use for sanding wood, plastics, metals, stone and varnished surfaces Robust sander with long service life even under tough conditions Very good weight-performance ratio High material removal Even sanding pattern with high class base plate made...
Page 12 Sr 356 Sr 358 6.00356 6.00358 SANDERS Sr E 359 350 Watt 350 Watt Electronic Sander Electronic Sander Sr E 357 Sr E 359 92 x 190 mm 112 x 236 mm 12.000 - 22.000 /min 12.000 - 22.000 /min...
Page 13 ACCESSORIES FOR SANDERS PERFORATED VELCRO-FACED BASE-PLATES For the palm grip sander FSR 200 Intec Perforated, velcro-faced sanding plate FSR 200 Intec (as spare) Length: 114 mm Width: 112 mm For the Sr 356 and Sr E 357 sanders The base-plate of sanders...
Page 14 Very good polished section by extremely precise belt path Excellent sanding results and comfortable operation by favourable centre of gravity position of the motor Metabo S-automatic torque limiting clutch Variospeed (V) electronics Thumbwheel for preselection of belt speed Auto-stop carbon brushes...
Page 15 Structure and purpose of Metabo abrasive mediums 164 | right accessory for the machine and the material. At Metabo we do not just make accessories for our own machines but for other manufactures as well. The sanding compound carries the grains and transfers the chip removal forces. Besides high strength and small expansion, the sanding compound has to render a sanding process matching flexibility .
Page 16 The quality of Metabo sanding mediums for example for orbital sander: Wood + metal / wood + metal "professional" E-paper, pink aluminium oxide, resin bonded – High quality grinding paper with dense dispersion and high material removal rate – For the best results when sanding wood and metal in...
Page 17 Festo DX 93E/E Plus 100 x 150 mm, 7 holes, velcro Festo DS 400/E/EQ 100 x 150 mm, 11 holes, velcro Metabo FMS 200 Intec Bosch PSM 160 A PSM 80 A PRIO 105 mm, 6 holes, velcro DSE 220...
Page 18 Velcro for extended grinding disc Bosch GSS 23AE GSS 230 A/AE 115 x 103 mm, 6 holes, velcro Metabo FSR 200 Intec Makita BO 4553 / 4554 Hitachi SV 12 SF 115 x 107 mm, 6 holes, velcro Bosch GSS 140 A...
Page 19 ABRASIVE ACCESSORIES CLING-FIT SANDING SHEETS FOR MULTISANDERS Cling-fit sanding sheets for wood and metal, "professional" series Dimensions Grit Cling-fit sanding sheets 100 x 150 mm, 7 holes 100 x 150 P 40 100 x 150 P 60 100 x 150 P 80 100 x 150 P 100...
Page 20 CLING-FIT SANDING SHEETS FOR DISC SANDERS Cling-fit sanding sheets for wood and metal, "professional" series Diameter Grit Cling-fit sanding sheets Ø 80 mm, 6 holes P 40 P 60 P 80 P 100 P 120 P 180 P 240 P 320 P 400 P 40 P 60...
Page 21 ABRASIVE ACCESSORIES Diameter Grit Cling-fit sanding sheets Ø 115 mm, 8 holes P 40 P 60 P 80 P 100 P 120 P 180 P 240 P 320 P 400 Cling-fit sanding sheets Ø 125 mm, 8 holes P 40 P 60 P 80 P 100...
Page 22 Dimensions Grit Sanding sheets 115 x 140 mm, 6 holes, for clamping 115 x 140 P 40 115 x 140 P 60 115 x 140 P 80 115 x 140 P 100 115 x 140 P 120 115 x 140 P 180 115 x 140 P 240...
Page 23 ABRASIVE ACCESSORIES Dimensions Grit Cling-fit sanding sheets 115 x 230 mm, 14 holes, with velcro 115 x 230 P 40 115 x 230 P 60 115 x 230 P 80 115 x 230 P 100 115 x 230 P 120 115 x 230 P 180 115 x 230...
Page 24 Dimensions Grit Cling-fit sanding sheets 115 x 230 mm, 14 holes, with velcro 115 x 230 P 40 115 x 230 P 60 115 x 230 P 80 115 x 230 P 100 115 x 230 P 120 115 x 230 P 180 115 x 230 P 240...
Page 25 60 x 400 mm Bosch PBS 60 PBS 60E 63 x 406 mm Skil 5903 593U 65 x 410 mm Metabo BA 0665 BAE 0666 HBS 65 HBSE 65 Black&Decker BD 83/E BS 650 DN 83/E KA 83/E Holz Her 2405...
Page 26 SANDING BELTS FOR BELT SANDERS Sanding belts for wood and metal, "professional" series Dimensions Grit Sanding belts 65 x 410 mm 65 x 410 P 40 65 x 410 P 60 65 x 410 P 80 65 x 410 P 100 65 x 410 P 120 65 x 410...
