Every Metabo is checked thoroughly before leaving our factory. This precision pays off
for our customers, especially with routers and planers. Their areas of application require
absolute precision. Adjustments, trimming or dressing jobs demand precision to the
millimetre. With routers, the safety aspect is also of importance. Good for whoever relies
on Metabo. Metabo. Work. Don't play.
176 |
Advertisement
Related Manuals for Metabo Routers and Planers
Summary of Contents for Metabo Routers and Planers
- Page 1 WITH PROFILE. Every Metabo is checked thoroughly before leaving our factory. This precision pays off for our customers, especially with routers and planers. Their areas of application require absolute precision. Adjustments, trimming or dressing jobs demand precision to the millimetre. With routers, the safety aspect is also of importance. Good for whoever relies on Metabo.
- Page 2 ROUTERS AND PLANERS | 177...
-
Page 3: Common Features

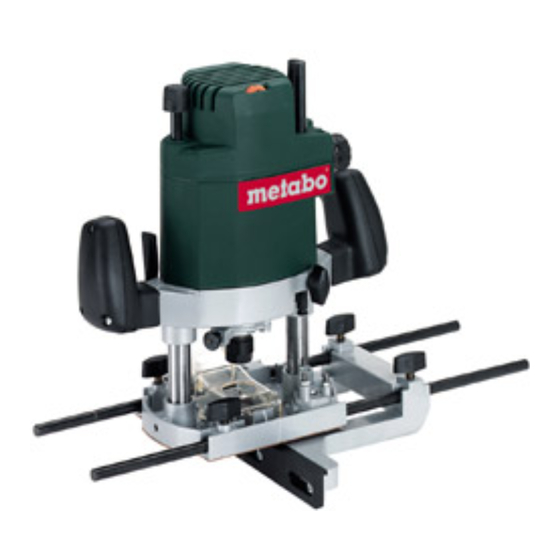

ROUTERS COMMON FEATURES Sturdy 2-column guide Robust plastic-covered aluminum die cast bearing flange Hardened and ground interchangeable collect chuck for precise concentricity of tools Spindle lock for easy router bit change Very suitable for moulding/routing heat-sensitive materials and plastics OFE 738 Of E 1229 Special advantages Dial gauge for fine tuning the moulding/... -
Page 4: Equipment Features
EQUIPMENT FEATURES Robust plastic-covered aluminum die cast bearing flange Hardened and ground interchangeable collect chuck for precise concentricity of tools Vario Constamatic (VC) full-wave electronics Thumbwheel for preselection of speed Auto-stop carbon brushes FME 737 Router and Grinder Motor Comparative device characteristics No load speed 10.000 - 27.000 /min Rated input power... - Page 5 ACCESSORIES FOR ROUTERS FOR OFE 738 AND OFE 1229 SIGNAL Parallel guide Parallel guide/ ripping fence with fine adjustment for routers OFE 738 and Of E 1229 Signal (supplied as standard) Guide with guide roller For fitting on the parallel guide/ripping fence of routers OFE 738 and Of E 1229 Signal,...
- Page 6 ACCESSORIES FOR ROUTERS Order no. Work benches 6.27609 Flexo 500 universal table For the stationary use of Metabo jig saws, routers and circular saws (when using appropriate accessories) 6.30714 With foldable stand and height adjustment 6.30715...
- Page 7 To ensure a safe seat of the cutter in the collet, all cutter-shanks of the Metabo cutters are ground to a tol. of -0.005 to -0.020 mm. The minimum clamping length on each cutter shank is 20 mm and the shank-ends are all chamfered.
- Page 8 Router bits with 8 mm shank diameter The router bits with two cutters are not suitable for free-hand working with the router motor OFE 738 and the router and grinder motor FME 737 Version Dia- Overall Usable Radius Angle meter length length Straight bit...
- Page 9 ROUTER BITS Version Dia- Overall Usable Radius Angle meter length length Dovetailing bits 12,2 Dovetailing bits with relieving tooth 14,3 13,5 Carbide 14,3 13,5 Chamfering bits with ball bearing Carbide Flush trimming bits with ball bearing Carbide 12,7 25,4 Rebating bits with pilot 23,8 11,5...
- Page 10 Version Dia- Overall Usable Radius Angle meter length length Core-box bit Carbide Carbide Beading bit Carbide Carbide Rounding-over bit with ball bearing Carbide 44,5 15,9 Dovetailing bits Carbide Carbide Hinge mortising bit Carbide Carbide Router bits with 6 mm shank diameter For free-hand working with the motor unit of router OFE 738, and the router and grinder motor FME 737 and the flexible shafts...
- Page 11 Variably adjustable chip removal setting Sheathed, sturdy die cast aluminum gear housing Universal motor with high capacity reserve Metabo S-automatic torque limiting clutch 4 reversible carbide blades with high tool life Vibration-free and thereby fatigue-free operation External dust extraction outlet...
- Page 12 Reduced speed for reduced noise during no load Aluminum die cast and milled cut planer base V-groove in front part of the planer base for easy chamfering Guide fence for incline planing, tiltable up to 45° External dust extraction outlet...
