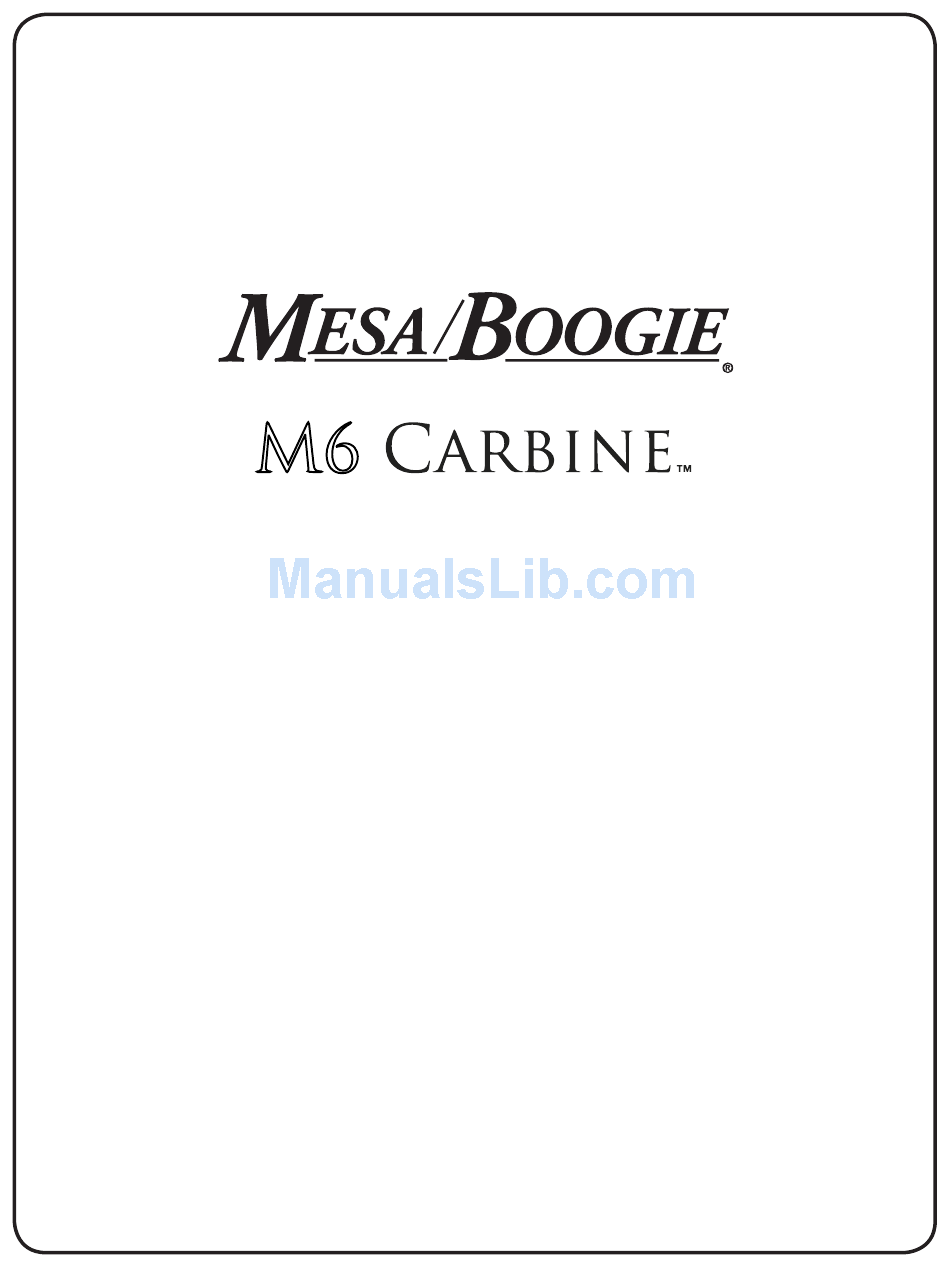

- Page 1 Owner’s Manual...
- Page 2 Greetings from the Home of Tone ...You, smart player and intuitive human, have put your trust in us to be your amplifier company. This is something we do not take lightly. By choosing this instrument to be a part of your musical voice, you have become part of the Mesa family...WELCOME! Our goal is to never let you down.
-
Page 3: Table Of Contents
Table_of_Contents Precautions Overview_ _ ________________________________________________________________________________________ 1-2 FRONT_PANEL: INSTRUMENT_INPUT__________________________________________________________________________________ 3 ACTIVE_/_PASSIVE_SWITCH_ ___________________________________________________________________________ 3 CONTROLS: GAIN_______________________________________________________________________________________________ 3 BASS_ _ _____________________________________________________________________________________________ 4 PULL_DEEP_ ________________________________________________________________________________________ 4 MID______________________________________________________________________________________________ 4-5 VOICE______________________________________________________________________________________________ 5 TREBLE_ _________________________________________________________________________________________ 5-6 DI_LEVEL_ __________________________________________________________________________________________ 6 PULL-PRE_ _ _________________________________________________________________________________________ 6 MASTER____________________________________________________________________________________________ 6 MUTE_LED_ _________________________________________________________________________________________ 7 POWER_SWITCH_ ____________________________________________________________________________________ 7 REAR_PANEL: FUSE_ _ _____________________________________________________________________________________________ 8... -
Page 4: Precautions And Warnings
PRECAUTIONS & WARNINGS Your MESA/Boogie Amplifier is a professional instrument. Please treat it with respect and operate it properly. USE COMMON SENSE AND ALWAYS OBSERVE THESE PRECAUTIONS: WARNING: EU: permission from the Supply Authority is needed before connection. WARNING: Vacuum tube amplifiers generate heat. To insure proper ventilation always make certain there is at least four inches (100mm) of space behind the rear of the amplifier cabinet. -
Page 5: Overview
Congratulations on your choice of the M6 Carbine and welcome to the Mesa/Boogie Family! First we would like to thank you for choosing us as your amplifier company and trusting us to help create your musical voice. This is something we never take for granted and you’ll find that we are here ready to assist you should you ever need help. Our goal is to help you sound your best at all times! We feel confident that your new amplifier will bring you many years of reliable service and rewarding inspiration and create for you a newfound freedom to express through your music. -
Page 6: Overview
verview (Continued) DI LEVEL and MASTER controls make adjusting your playing volume levels quick and easy on stage. The DI LEVEL features both post and pre Tone control options, with post being the default (pushed in) setting and PULL PRE activating the pre setting that by- passes the entire preamp. -
Page 7: Front_Panel
FrONT PANeL CONTrOLS: INPUT: This jack is the instrument INPUT which feeds the first tube in the all-tube preamp of the M6 CARBINE. It is set up with enough headroom to handle both passive and active style instruments. For active instruments you may find yourself running the GAIN control somewhere between 10:00 and 2:00 for optimum headroom. -
Page 8: Bass
FrONT PANeL CONTrOLS: BASS: This control is responsible for the basic mix of low frequencies in the tube pre-amp. The BASS control is an active shelving type control as opposed to a passive style control. This means that a center Q point has been chosen and this control allows you to either boost or cut that frequency. -
Page 9: Voice
FrONT PANeL CONTrOLS: VOICE: This simple to use feature puts the shaping power of a parametric EQ at your fingertips without the learning curve and allows you to go right to the most iconic sounds instantly. The 5 position rotary allows you to select from four distinct and different voices aimed at all the classic Bass sounds. -
Page 10: Treble
FrONT PANeL CONTrOLS: TREBLE:_(Continued) This active shelving TREBLE control completes the rotary tone control string to create a powerful and extremely accurate network to use as your fundamental platform. It’s no wonder many first time M6 CARBINE players make the comment that just these controls combined with the GAIN create the best tone they have ever heard! NOTE: As with the BASS control, may we remind you that a control of this type with its increased power should be used with finesse. -
Page 11: Mute_Led
FrONT PANeL CONTrOLS: MUTE_LED: This LED indicates that the Tuning MUTE function has been triggered either by pulling out the Front Panel MAS- TER PULL MUTE, or by the Rear Panel Function Switch jack. When this LED is illuminated there will be no signal present at the SPEAKER OUTPUT jacks. -
Page 12: Fuse
reAr PANeL CONTrOLS: REAR_VIEW:_M6_CARBINE FUSE: This is the A.C. Mains Fuse for the M6 CARBINE. REPLACE ONLY WITH A SLO-BLO TYPE FUSE OF THE PROPER RATING. THIS IS EXTREMELY IMPORTANT, AS THE M6 CARBINE DRAWS A SUBSTANTIAL AMOUNT OF CURRENT AT HIGH OUTPUT LEVEL SETTINGS. -
Page 13: Function_Switches
reAr PANeL CONTrOLS: FUNCTION_SWITCHES:_(Continued) of the Function Switch jacks as you gain access to alternate sounds without having to walk back to the amplifier or stop playing to adjust knobs. NOTE: If the Front Panel VOICE select switch is set to any position other than 3/EXT SWITCH and you use a function switch jack to trigger another different VOICE mode, you will activate two VOICE modes at once. -
Page 14: Ground_Lift,_Direct_Out
reAr PANeL CONTrOLS: EFFECTS_LOOP:_(Continued) your effects. One foot lengths are preferable - with lengths of more than 3 feet (each cable) starting to roll off top end and reduce midrange punch and clarity. The LOOP is fitted with a “Hard Bypass” switch that allows you to completely remove all associated LOOP circuitry from the signal path when you are in the studio or when the LOOP is not to be used. -
Page 15: Factory_Sample_Settings
SAMPLE_#1:__STRAIGHT_UP_GREAT ACUUM REAMPLIFIER MOSFET P OWER SAMPLE_#2:__BIG_&_WIDE ACUUM REAMPLIFIER MOSFET P OWER SAMPLE_#3:__TIGHT_TRACKING ACUUM REAMPLIFIER MOSFET P OWER SAMPLE_#4:__SLAP_HAPPY ACUUM REAMPLIFIER MOSFET P OWER FACTORY_SAMPLE_SETTINGS EXT SW PULL-DEEP EXT SW PULL-DEEP (Pull) EXT SW PULL-DEEP EXT SW PULL-DEEP (Pull) PAGE_11 PULL-PRE PULL-MUTE PULL-PRE... -
Page 16: Personal_Settings
PERSONAL_SETTINGS_SHEET ACUUM REAMPLIFIER MOSFET P OWER PULL-DEEP ACUUM REAMPLIFIER MOSFET P OWER PULL-DEEP ACUUM REAMPLIFIER MOSFET P OWER PULL-DEEP ACUUM REAMPLIFIER MOSFET P OWER PULL-DEEP EXT SW PULL-PRE EXT SW PULL-PRE EXT SW PULL-PRE EXT SW PULL-PRE PAGE_12 PULL-MUTE PULL-MUTE PULL-MUTE PULL-MUTE... -
Page 17: Diagnosing_Pre-Amp_Tube_Problems
DIAGNOSING_PRE-AMP_TUBE_PROBLEMS: At some point it is quite possible that you will experience some kind of minor pre- amp tube noise. Rest assured - this is no cause for alarm and you can take care of the problem yourself in a matter of minutes by simply swapping tubes. -
Page 18: Parts_Sheet
PAGE_14... - Page 19 ® ®...
