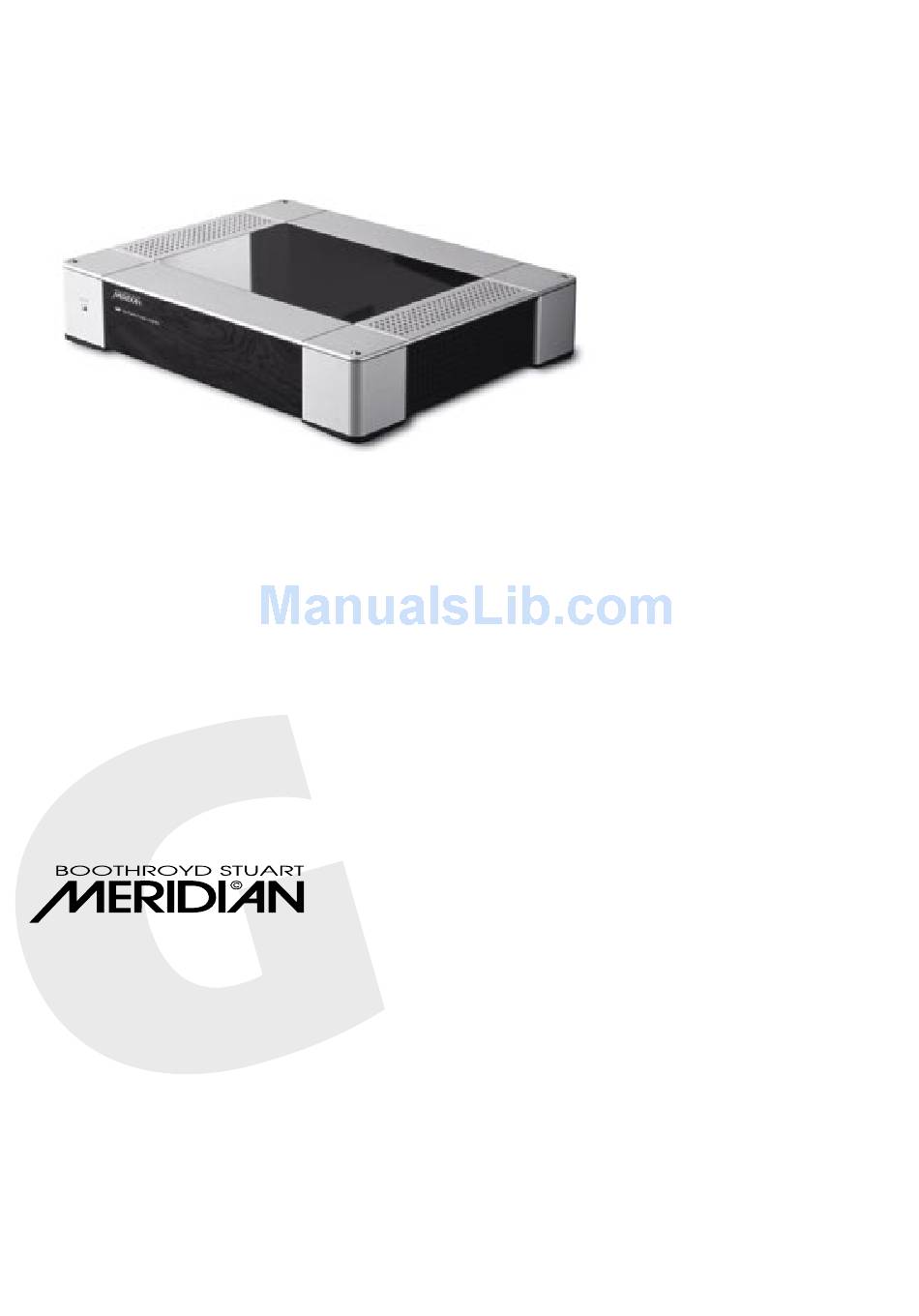

Meridian G56 Specification Sheet

G56 2-Channel Power Amplifier
Meridian's G Series line of high performance
digital & analogue consumer audio components
feature a stylish cabinet design in traditional
black or a sleek silver finish.
Designed to be either free-standing or rack-
mounted, G Series components build on their
predecessors, the multi-award-winning 500 and
our flagship 800 Series, and include entirely new
circuitry developed specifically for the G Series.
Multi-layer boards reduce system noise and
improve performance. In products which include
video capabilities, broadcast-quality, wide-
bandwidth video components are employed for
maximum image integrity.
G Series units are easy to use. Where appropri-
ate, a knob is included to control volume. The
positive-action front-panel keys are software-
defined: their legends are presented in the
vacuum fluorescent display and change
intelligently according to context.
Full installation configuration of many G Series
components is achieved by running a special
setup program on a Windows computer,
connected to the G Series unit via a serial link,
or direct from the front panel.
G Series products also include serial ports for
remote operation and configuration, along with
infra-red sensor input and trigger capabilities,
plus Meridian communications ports. A compre-
hensive back-lit learning/programmable remote
is included with products other than amplifiers.
Based on the unique
DSP8000 amplifier
2 x 100W continuous
amplification
Unique ultra-low-feedback
design for superb overall
sound
Capacitor-free signal path for
fast, accurate bass
Remote trigger/standby
operation
Standby mode maintains
voltage rails for instant
warm-up
Balanced/unbalanced inputs
Full DC/thermal protection

Bridge Mode

Although Meridian is today best-known for its
superb-sounding digital theatre systems, it is a
company built on analogue foundations, and
indeed, superb analogue circuit design and
implementation are important parts of all Merid-
ian products.
The G Series power amplifiers offer the ideal
way to interface G Series components to passive
loudspeakers from other manufacturers. They
include the latest power amp developments
from Meridian, utilised in their flagship DSP8000
digital loudspeaker systems, and share many
common design parameters.
In the case of the complete line of G Series
amplifiers, pairs of channels can be bridged for
additional output and flexibility, and the ampli-
fiers are gain-matched to further add to the
possibilities when building a system.

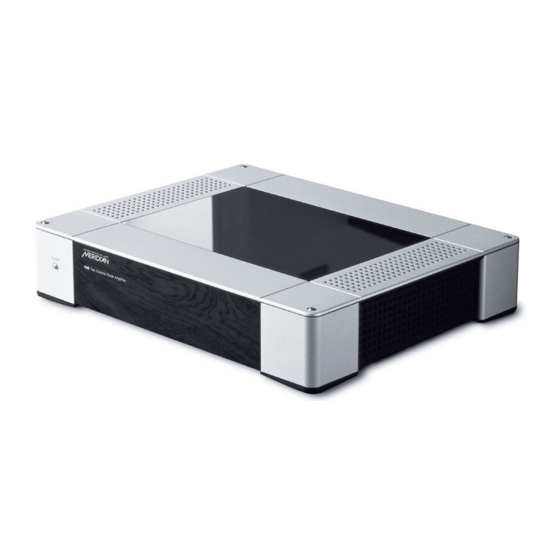

The Meridian G56 is a compact, 2-channel unit
with dual-mono construction, delivering a solid
100W continuous mean power per channel
into 8Ω and suitable for even the most difficult
loads.
The amplifier modules feature a symmetrical
design with fully electronically-balanced inputs.
Both balanced and unbalanced inputs are
provided, but in fact the unbalanced inputs are
converted to balanced before they enter the
amplifier itself.
The discrete active input components are ther-
mally and electrically matched in pairs, and the
