Summary of Contents for Lang GGB-24

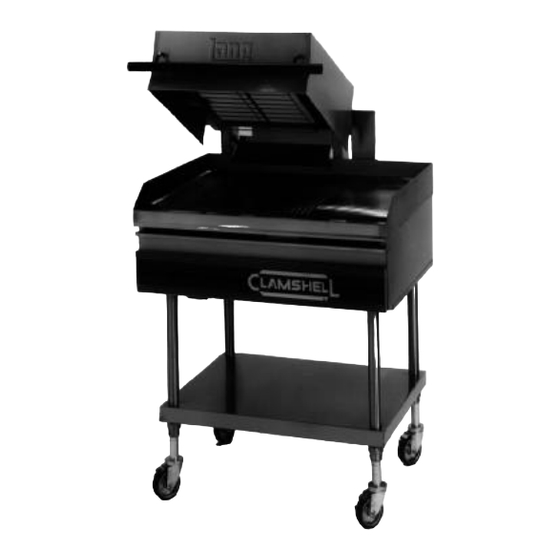

- Page 1 Installation Operation Maintenance Model: GGB-24, GGB-36, GGB-48, Lang Manufacturing Company 6500 Merrill Creek Parkway Everett, WA 98203 PN 60801-04 Rev. F Ph: 425-349-2400 Fax: 425-349-2733 Copyright 1994, 1995...
- Page 2 Installation, startup and adjustments of this appliance should be accomplished by personnel qualified to install gas equipment. Retain this manual for future reference. Lang Manufacturing Company 9040 Willows Rd. P. O. Box 905 Redmond, WA 98052-0905 Phone: 1-800-224-LANG (5264)
-
Page 3: Table Of Contents
TABLE OF CONTENTS INSTALLATION..............................1 RECEIVING THE GRIDDLE..........................1 DATA PLATE ............................... 1 VENTILATION AND CLEARANCES ......................1 GAS CONNECTION ............................2 SPECIFICATIONS..............................3 MISCELLANEOUS INSTALLATION REQUIREMENTS ................4 LEGS.................................. 4 STAND, LEG AND CASTER ......................... 4 DROP DOWN DOOR ............................4 BURNER NUTS.............................. -
Page 4: Installation
All packing material should be kept for inspection. Do not return damaged merchandise to Lang Manufacturing Company. File your claim with the carrier. Uncrate the appliance as near its intended location as practical. The crating will help protect the unit from the physical damage normally associated with moving it through hallways and doorways. -
Page 5: Gas Connection
GAS CONNECTION DANGER FIRE AND EXPLOSION HAZARD AS WITH ANY GAS APPLIANCE ON CASTERS, ANY LANG GAS GRIDDLE, GAS CLAMSHELL®, OR GAS CONVECTION OVEN ON CASTERS MUST BE INSTALLED WITH: A CONNECTOR THAT COMPLIES WITH THE STANDARD FOR CONNECTORS FOR MOVABLE GAS APPLIANCES, ANSI Z21.69A LATEST EDITION... -
Page 6: Specifications
When replacing the plug in the manifold, a use a pipe joint compound or sealant that is resistant to the action of liquid petroleum gas. Initial adjustments are the responsibility of the installer and are not chargeable to Lang Manufacturing Company. -
Page 7: Miscellaneous Installation Requirements
MISCELLANEOUS INSTALLATION REQUIREMENTS LEGS This griddle must be installed on the provided 4 inch legs, or on an optional stand. The legs are shipped in the grease drawer. To install the legs, lift one end of the griddle body and block it about 6 inches off of the floor. Screw the legs into threaded holes provided at the side of the body at the lower front and rear corners. -
Page 8: Operation
OPERATION INITIAL STARTUP PROCEDURE CLEANING THE SHIPPING PRESERVATIVE WARNING PRIOR TO LIGHTING THIS APPLIANCE, THE MAIN GAS VALVE MUST BE OFF FOR AT LEAST FIVE MINUTES. Make sure the appliance is plugged into a 110 volt power supply. Make sure the main gas valve is turned on. Set the temperature dials to the lowest temperature setting. -
Page 9: Broiler Operation
During busy periods, a systematic approach should be utilized in loading the griddle. Load the entire section from the front to rear and continue to the next section if necessary. Turn the product and continue cooking until it has reached its desired degree of doneness. Remove the product from the griddle. -
Page 10: Maintenance
If a liquid cleaner containing either Potassium or Sodium Hydroxide is used and damage to the broiler tiles occur, the repair will not be chargeable to Lang Manufacturing as a warranty expense. A liquid cleaner which DOES NOT contain Potassium or Sodium Hydroxide is acceptable. - Page 11 Allow the burners to cycle several times while recording the temperature at which the burners turn On and Off. Average the temperatures together, if the average temperature is within 10 degrees of the thermostat set temperature, the thermostat is within specification and no adjustment is necessary. If the thermostat is out of specification, remove the thermostat knob and insert a small flat blade screw driver down the stem of the thermostat until contact is made with the adjustment screw at the base of the stem.
-
Page 12: Service
SERVICE WARNING SERVICE ON THIS, OR ANY OTHER LANG APPLIANCE, MUST BE PERFORMED BY QUALIFIED PERSONNEL ONLY. CONSULT YOUR LANG AUTHORIZED SERVICE STATION DIRECTORY OR CALL THE FACTORY AT 1-800-224-5264 FOR THE SERVICE STATION NEAREST YOU. ALWAYS DISCONNECT THE APPLIANCE FROM POWER AND GAS BEFORE PERFORMING SERVICE. -
Page 13: Access To Broiler Control Components
Tighten the air shutter screws. If the broiler flame ignites on 1/2 of the tile face only, the gas/air mixture is too lean, push the air shutter in slightly and test for proper ignition Figure 1 ACCESS TO BROILER CONTROL COMPONENTS TRANSFORMER AND AIR SWITCH The transformer and air switch are located in a sheet metal box located under the griddle on the left hand side as you face the front of the griddle. -
Page 14: Safety Thermostat
Figure 1 SAFETY THERMOSTAT The safety thermostat is located on the left end of the griddle behind control panel. Remove the grease drawer. Open the drop down door and remove four screws from the corners of the control panel. Tip the control panel down on its hinges to access the thermostat. The capillary tube is installed with the griddle thermostat capillary tube for section number one. -
Page 15: Trouble Shooting
TROUBLE SHOOTING GRIDDLE Trouble Possible Cause No spark at any pilot burners Griddle not plugged in Failed power toggle switch Controller wire disconnect from terminal block No spark at one pilot burner Failed spark controller Failed wire to pilot spark electrode Pilot electrode gap too large Spark but no pilots light Manual gas valves turned off... -
Page 16: Broiler
BROILER Trouble Possible Cause Ignitor not sparking Failed spark controller Failed tilt switch Failed air switch Failed combustion blower Failed transformer Failed safety thermostat Failed spark electrode Spark but not ignition Failed spark controller Failed gas solenoid valve Broiler gas valve turned off Incorrectly adjusted air shutter Plugged orifice Broiler turns off after extended use... -
Page 17: Parts List
PARTS LIST Description Part Number Bearing, Broiler Pivot 70200-03 Burner, Broiler Tile 51100-33 Burner, Broiler Tile "E" Type 51100-52 Burner, Main, Griddle 80002-04 Burner, Pilot, Griddle, Sections - 2,3, and 4 80201-24 Burner, Pilot. Griddle, Section 1 80201-25 Connector, Broiler Timer 40302-02 Cord, Power Supply 31107-01... -
Page 18: Wiring Diagram
WIRING DIAGRAM... -
Page 19: Warranty
Lang warrants its Equipment to labor costs incurred for removal of adjacent be free from defects in material and equipment or objects to gain access to Lang workmanship for (12) twelve consecutive Equipment. This warranty does not cover defects...
