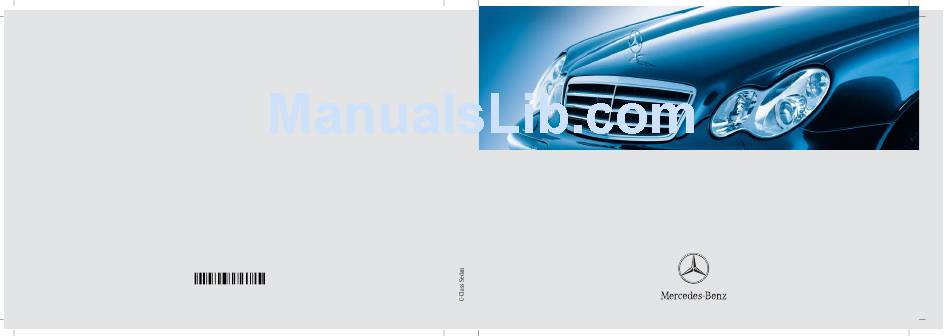

  • Page 1 Sommer\ Corporate\ Media\ AG Operator’s Manual C-Class Sedan Order No. 6515 0183 13 Part No. 203 584 34 71 USA Edition A, 2007...
  • Page 2 C 230 C 230 Sport C 280 C 280 4MATIC C 350 C 350 4MATIC C 350 Sport...
  • Page 3 Your Mercedes-Benz represents the ef- forts of many skilled engineers and crafts- men. To help assure your driving pleasure, and also the safety of you and your passen-...

  • Page 4: Table Of Contents

    Product information... 9 Operator’s Manual ... 10 Service and warranty information .. 10 Important notice for California retail buyers and lessees of Mercedes-Benz automobiles ... 11 Maintenance ... 12 Roadside Assistance ... 12 Change of address or ownership... 12 Operating your vehicle outside the USA or Canada ...
  • Page 5 Contents Safety and Security ... 57 Occupant safety... 58 Air bags ... 59 Occupant Classification System... 64 Seat belts ... 69 Active head restraint ... 73 Children in the vehicle... 74 Blocking of rear door window operation ... 80 Panic alarm* ... 81 Activating ...
  • Page 6 Vehicle status message memory menu ... 130 Settings menu... 131 Trip computer menu... 144 TEL menu* ... 146 Manual transmission ... 149 Shifting into reverse... 150 Automatic transmission*... 151 Gear selector lever... 151 Shifting procedure ... 152 Gear selector lever positions ... 153 Driving tips...
  • Page 7 Contents Power tilt/sliding sunroof* ... 224 Opening and closing the power tilt/sliding sunroof ... 224 Synchronizing the power tilt/sliding sunroof ... 226 Driving systems ... 227 Cruise control... 227 Loading ... 230 Roof rack*... 230 Ski sack* (Canada only) ... 230 Split rear bench seat* ...
  • Page 8 Maximum tire inflation pressure .. 301 Uniform Tire Quality Grading Standards (U.S. vehicles) ... 302 Tire ply material ... 304 Tire and loading terminology... 304 Rotating tires ... 307 Winter driving ... 308 Winter tires ... 308 Block heater (Canada only) ... 309 Snow chains...
  • Page 9 Contents Technical data... 395 Parts service ... 396 Warranty coverage... 397 Loss of Service and Warranty Information Booklet... 397 Identification labels... 398 Layout of poly-V-belt drive ... 400 Engine... 401 Rims and Tires ... 403 Same size tires... 404 Mixed size tires ... 405 Minispare wheel ...

  • Page 10: Introduction

    Product information Please observe the following in your own best interest: We recommend using Genuine Mercedes-Benz parts as well as conversion parts and accessories explicitly approved by us for your vehicle model. We have tested these parts to determine their reliability, safety and special suitability for Mercedes-Benz vehicles.

  • Page 11: Operator's Manual

    Therefore, you may find explanations for optional equipment not installed in your vehicle. If you have any questions about the operation of any equipment, your authorized Mercedes-Benz Center will be glad to demonstrate the proper proce- dures. We continuously strive to improve our...

  • Page 12: Of Mercedes-Benz Automobiles

    Under California law you may be entitled to a replacement of your vehicle or a refund of the purchase price or lease price, if Mercedes-Benz USA, LLC and/or its au- thorized repair or service facilities fail to fix one or more substantial defects or mal-...

  • Page 13: Maintenance

    Always have the Maintenance Booklet with you when you take the vehicle to your au- thorized Mercedes-Benz Center for ser- vice. The service advisor will record each service in the booklet for you. Roadside Assistance...

  • Page 14: Operating Your Vehicle Outside The Usa Or Canada

    Certain Mercedes-Benz models are avail- able for delivery in Europe under our European Delivery Program. For details, consult an authorized Mercedes-Benz Center or write to:...

  • Page 15: Where To Find It

    Here you will find all the information you need for your first drive. You should read this section first if this is your first Mercedes-Benz vehicle or if you are rent- ing or borrowing this vehicle. Safety and Security Here you will find descriptions of the safety and security features of your vehicle.

  • Page 16: Symbols

    Symbols Trademarks: ® is a registered trademark of DaimlerChrysler. ® HomeLink is a registered trademark of Prince, a Johnson Controls Company. SIRIUS and related marks are trade- marks of SIRIUS Satellite Radio Inc. The following symbols are found in this Operator’s Manual: Optional equipment is identified with an asterisk.

  • Page 17: Operating Safety

    Electronic malfunctions could seriously impair the operating safety of your vehicle. See an authorized Mercedes-Benz Center for repairs or modifications to electronic components. Other improper work or modifications on the vehicle could also have a negative impact on the operating safety of the vehicle.

  • Page 18: Problems With Your Vehicle

    If you should experience a problem with your vehicle, particularly one that you believe may affect its safe operation, we urge you to immediately contact an authorized Mercedes-Benz Center to have the problem diagnosed and corrected if required. If the matter is...

  • Page 19: Reporting Safety Defects

    If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Mercedes-Benz USA, LLC. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.

  • Page 20: Vehicle Data Recording

    Vehicle data recording Information regarding electronic recording devices (Including notice pursuant to California Code § 9951) Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system, may transmit some data in certain accidents. This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety.

  • Page 22: At A Glance

    At a glance Cockpit Instrument cluster Multifunction steering wheel Center console Overhead control panel Door control panel...

  • Page 23: Cockpit

    At a glance Cockpit...
  • Page 24 Item Page 1 Cruise control lever 2 Multifunction steering wheel 3 Horn 4 Instrument cluster 5 Overhead control panel 6 Glove box lid release 7 Glove box lock 8 Center console 9 Starter switch Item Page a Hood lock release b Steering wheel release handle (manual) c Steering wheel adjustment...

  • Page 25: Instrument Cluster

    At a glance Instrument cluster...
  • Page 26 Item Page 1 Speedometer with: v Electronic Stability ® Program (ESP warning lamp ; Brake warning lamp, 48, 54, USA only 3 Brake warning lamp, 48, 54, Canada only B Low beam headlamp indicator lamp 2 L Left turn signal indicator lamp 3 Multifunction display with:...

  • Page 27: Multifunction Steering Wheel

    At a glance Multifunction steering wheel Item Page 1 Multifunction display Operating control system 2 Selecting the submenu or setting the volume: Press button æ up/to increase ç down/to decrease 3 Telephone*: Press button s to take a call to dial a call t to end a call to reject an incoming call...

  • Page 28: Important Notice For California Center Console

    Center console Upper part Item Page 1 Seat heating*, driver’s side 2 Rear window sunshade switch* 3 ESP ® control switch 4 Hazard warning flasher switch – switching on/off 5 Central locking switch Central unlocking switch 6 Switch for folding back rear seat head restraints 7 Anti-theft alarm system indicator lamp*...

  • Page 29: Lower Part

    At a glance Center console Lower part Item Page 1 Ashtray Cigarette lighter 2 Gear selector lever for automatic transmission* Gearshift lever for manual transmission 3 Cup holder 4 Storage compartment/tele- phone* compartment under the center armrest 5 Program mode selector switch for automatic transmission*...

  • Page 30: Overhead Control Panel

    Overhead control panel Item Page 1 Rear interior lighting on/off 2 Power tilt/sliding sunroof* 3 Right reading lamp on/off 4 Interior lighting control 5 Interior rear view mirror 6 Garage door opener* 7 Hands-free microphone for 146, Tele Aid* (emergency call 208, system) and telephone* 8 Left reading lamp on/off...

  • Page 31: Door Control Panel

    At a glance Door control panel Item Page 1 Inside door handle 2 Memory function* (for storing seat, exterior mirror and steering wheel settings) 3 Switches for seat adjustment* 4 Switches for opening/closing front door windows 5 Rear door window override switch 6 Switches for opening/closing rear door...

  • Page 32: Getting Started

    Getting started Unlocking Adjusting Driving Parking and locking...

  • Page 33: Unlocking

    Getting started Unlocking The “Getting started” section provides an overview of the vehicle’s most basic func- tions. First-time Mercedes-Benz owners should pay special attention to the infor- mation given here. If you are already familiar with the basic functions described here, the “Controls in detail”...

  • Page 34: Starter Switch

    SmartKey Starter switch 0 For removing SmartKey The steering is locked when the SmartKey is removed from the starter switch. 1 Power supply for some electrical consumers, such as seat adjustment 2 Ignition (power supply for all electrical consumers) and driving position. All lamps (except low beam headlamp indicator lamp, high beam headlamp in- dicator lamp, and turn signal indicator...

  • Page 35: Adjusting

    Getting started Adjusting Warning! All seat, head restraint, steering wheel, and rear view mirror adjustments, as well as fas- tening of seat belts, must be done before the vehicle is put into motion. Seats The seats can be adjusted either manually or electrically, depending on the vehicle’s equipment.
  • Page 36 Warning! According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat- ing position. Thus, we strongly recommend that children be placed in the rear seats whenever possible. Regardless of seating position, children 12 years old and under must be seated and properly secured in an appropriate infant, or toddler restraint, or...
  • Page 37 Getting started Adjusting Head restraint height 1 Release button Raising: Manually adjust the height of the head restraint by pulling it upward. Lowering: To lower the head restraint, push release button 1 and push down on the head restraint. Adjust the head restraint in such a way that it is as close to the head as possible.

  • Page 38: Steering Wheel Release

    Power seat* adjustment The seat adjustment switches are located on the respective front door. 1 Head restraint height 2 Seat height 3 Seat cushion tilt 4 Seat fore and aft adjustment 5 Seat backrest tilt Switch on the ignition ( page 32). Open the respective door.

  • Page 39: Steering Wheel

    Getting started Adjusting Warning! For your protection, drive only with properly positioned head restraints. Adjust head restraint so that the head re- straint supports the back of the head at eye level. This will reduce the potential for injury to the head and neck in the event of an ac- cident or similar situation.
  • Page 40 Steering wheel adjustment, manual Warning! Only adjust the steering wheel with the vehicle at a standstill and make sure the steering column is securely locked in place before driving off. Driving without the steering column locked may cause an unexpected steering wheel movement which could cause the driver to lose control of the vehicle.
  • Page 41 Getting started Adjusting Steering wheel adjustment, electrical* The stalk for the electrical steering wheel adjustment is located on the lower left of the steering column. 1 Adjusting steering column, in or out 2 Adjusting steering column, up or down Switch on the ignition ( page 32). Open the driver’s door.

  • Page 42: Mirrors

    With the easy-entry/exit feature activated, the steering wheel will return to its last set position when you: close the driver’s door with the ignition switched on, insert the SmartKey into the starter switch with the driver’s door closed. The last set steering wheel position is stored when the ignition is switched off the position is stored in memory...
  • Page 43 Getting started Adjusting Interior rear view mirror Manually adjust the interior rear view mirror. For more information, see “Rear view mir- rors” ( page 160). Exterior rear view mirrors Warning! Exercise care when using the passen- ger-side exterior rear view mirror. The mirror surface is convex (outwardly curved surface for a wider field of view).

  • Page 44: Driving

    Driving Warning! Make sure that absolutely no objects are ob- structing the pedals’ range of movement. Keep the driver’s footwell clear of all obsta- cles. If there are any floormats or carpets in the footwell, make sure that the pedals still have sufficient clearance.
  • Page 45 Getting started Driving Warning! Never let more people ride in the vehicle than there are seat belts available. Be sure everyone riding in the vehicle is correctly restrained with a separate seat belt. Never use a seat belt for more than one person at a time.
  • Page 46 Do not bleach or dye seat belts as this may severely weaken them. In a crash, they may not be able to provide adequate protection. Damaged seat belts or belts that were highly stressed in an accident must be replaced. Contact an authorized Mercedes-Benz Center.

  • Page 47: Starting The Engine

    Getting started Driving Starting the engine Warning! Inhalation of exhaust gas is hazardous to your health. All exhaust gas contains carbon monoxide (CO), and inhaling it can cause un- consciousness and possible death. Do not run the engine in confined areas (such as garage) which are not properly ven- tilated.
  • Page 48 Get a jump start ( page 386). If the engine does not start after several starting attempts, there could be a mal- function in the engine electronics or in the fuel supply system. Notify an authorized Mercedes-Benz Center.

  • Page 49: Parking Brake

    Getting started Driving Parking brake Warning! When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Children could release the parking brake, which could result in an accident and/or serious personal injury.
  • Page 50 Manual transmission Depress the brake pedal. Fully depress the clutch pedal. In order to avoid damage to the transmis- sion, place the gearshift lever to reverse gear only when the vehicle is stopped. Move gearshift lever to first gear to drive forward, or to reverse gear to drive rearward.

  • Page 51: Switching On Headlamps

    Getting started Driving Switching on headlamps Low beam headlamps The exterior lamp switch is located on the dashboard to the left of the steering wheel. Exterior lamp switch 1 Off 2 Low beam headlamps on Turn the exterior lamp switch to position B.

  • Page 52: Windshield Wipers

    If the combination switch is pressed to the point of resistance and released, the corresponding turn signals will flash three times. Windshield wipers The combination switch is located on the left of the steering column. Combination switch 1 Single wipe Wiping with windshield washer fluid 2 Switching on windshield wipers Switch on the ignition ( page 32).
  • Page 53 Turn the windshield wipers on again. If the windshield wipers fail to function at all with combination switch in position I, set the combination switch to the next high- er wiper speed have the windshield wipers checked at the nearest authorized Mercedes-Benz Center...

  • Page 54: Problems While Driving

    Unburned gasoline may have entered the catalytic converter and damaged it. Give very little gas. Have the problem repaired by an au- thorized Mercedes-Benz Center as soon as possible. The coolant temperature is above 248°F (120°C) The coolant is too hot and is no longer cooling the engine.

  • Page 55: Parking And Locking

    Getting started Parking and locking You have now completed your first drive. You have properly stopped and parked your vehicle. End your drive as follows. Warning! Vehicles with manual transmission: Wait until the vehicle is stationary before removing the SmartKey from the starter switch.

  • Page 56: Switching Off Headlamps

    1 Release handle 2 Parking brake pedal Step firmly on parking brake pedal 2. When the engine is running, the brake warning lamp ; (USA only) or 3 (Canada only) in the instrument cluster comes on. Warning! When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle.

  • Page 57: Releasing Seat Belts

    Such damage is not covered by the Mercedes-Benz Limited Warranty. Damaged seat belts must be replaced. Contact an authorized Mercedes-Benz Center. Locking Warning! To prevent possible personal injury, always keep hands and fingers away from the door openings when closing the doors.

  • Page 58: Safety And Security

    Safety and Security Occupant safety Panic alarm* Driving safety systems Anti-theft systems...

  • Page 59: Occupant Safety

    Safety and Security Occupant safety In this section you will learn the most im- portant facts about the restraint system components of the vehicle. Seat belts ( page 69) Child restraints ( page 77) Lower Anchors and Tethers for CHildren (LATCH) ( page 79) Additional protection potential provide Supplemental Restraint System (SRS) with...

  • Page 60: Air Bags

    Mercedes-Benz Center. If it is necessary to modify an air bag system to accommodate a person with disabilities, contact your local authorized Mercedes-Benz Center or call our Customer Assistance Center at 1-800-FOR-MERCedes (1-800-367-6372) for details. Safety and Security...
  • Page 61 If you have any prob- lems, please see an authorized Mercedes-Benz Center. Do not lean your head or chest close to the steering wheel or dashboard. Keep hands on the outside of steering wheel rim.
  • Page 62 Mercedes-Benz Center at an additional cost. Please contact your local authorized Mercedes-Benz Center or call our Customer Assistance Center at 1-800-FOR-MERCedes (1-800-367-6372) for details.
  • Page 63 These instructions are available from your authorized Mercedes-Benz Center. Given the considerable deployment speed, required inflation volume, and the textile structure of the air bags,...
  • Page 64 When you sell your vehicle we strongly urge you to give notice to the subsequent owner that it is equipped with an SRS by alerting them to the applicable section in the Operator’s Manual. Front air bags 1 Driver air bag 2 Passenger air bag Driver and front passenger front air bags are deployed:...

  • Page 65: Occupant Classification System

    Safety and Security Occupant safety Front side impact air bags, rear side im- pact air bags*, window curtain air bags 1 Window curtain air bag 2 Front side impact air bag 3 Rear side impact air bag* The front side impact air bags, the rear side impact air bags*, and the window cur- tain air bags are deployed: on the impacted side of the vehicle...
  • Page 66 If your seat, including your trim cover and cushion needs to be serviced in any way, take the vehicle to an authorized Mercedes-Benz Center. Only seat accessories approved by Mercedes-Benz may be used. Both driver and the front passenger should...
  • Page 67 Safety and Security Occupant safety If the 56 indicator lamp is illuminated, the front passenger front air bag is deactivated and will not be deployed. If the 56 indicator lamp is not illuminated, the front passenger front air bag is activated and will be deployed: in the event of certain frontal impacts if impact exceeds a preset deployment threshold...
  • Page 68 If you must install a rear-facing child restraint on the front passenger seat because circumstances require you to do so, make sure that the 56 in- dicator lamp is illuminated, indicating that the front passenger front air bag is deactivated. Should the 56 indi- cator lamp not illuminate or go out while the restraint is installed, please check installation.
  • Page 69 OCS to be unable to correctly approximate the occupant weight category. Only have the seat repaired or replaced by an authorized Mercedes-Benz Cen- ter. Read and observe all warnings in this chapter.

  • Page 70: Seat Belts

    Warning! If the 56 indicator lamp should not illuminate, the system is not functioning. You must see an authorized Mercedes-Benz Center before seating any child on the front passenger seat. More information can be found in the “Practical hints” section ( page 332).
  • Page 71 Only use seat belts which have been approved by Mercedes-Benz. Do not make any modifications to the seat belts. This can lead to unintended activation of the ETDs or to their failure to activate when necessary.
  • Page 72 and side (front side impact air bags, rear side impact air bags*, window curtain air bags and ETD) impacts which exceed preset deployment thresholds. Never wear the shoulder belt under your arm, against your neck or off your shoul- der. In a frontal crash, your body would move too far forward.
  • Page 73 Warning! An emergency tensioning device (ETD) that was activated must be replaced. When disposing the emergency tensioning device, our safety instructions must be followed. These are available at your authorized Mercedes-Benz Center.

  • Page 74: Active Head Restraint

    Warning! Only use seat or head restraint covers which have been tested and approved by Mercedes-Benz for your vehicle model. Using other seat or head restraint covers may interfere with or prevent the activation of the active head restraints. Contact an authorized Mercedes-Benz Center for availability.

  • Page 75: Children In The Vehicle

    Safety and Security Occupant safety Children in the vehicle If an infant or child is traveling with you in the vehicle: Secure the child using an infant or child restraint appropriate to the age and size of the child. Make sure that the infant or child is properly secured at all times while the vehicle is in motion.
  • Page 76 Warning! Never release the seat belt buckle while the vehicle is in motion, since the special seat belt retractor will be deactivated. Information on child seats with anchor fit- tings for tether anchorages ( page 77). For information on LATCH-type child seat an- chors ( page 79).
  • Page 77 Safety and Security Occupant safety death should the air bag be triggered. Al- ways sit nearly upright, properly use the seat belts and use an appropriately sized in- fant or toddler restraint or booster seat rec- ommended for the size and weight of the child.
  • Page 78 Warning! Infants and small children should never share a seat belt with another occupant. During an accident, they could be crushed between the occupant and seat belt. A child’s risk of serious or fatal injuries is significantly increased if the child restraints are not properly secured in the vehicle and/or the child is not properly secured in the child restraint.
  • Page 79 Safety and Security Occupant safety Warning! Always lock backrest in its upright position when rear seat bench is occupied by pas- sengers, or the extended cargo area is not in use. Check for secure locking by pushing and pulling on the backrest. Remove cover 1 from anchorage ring 3.
  • Page 80 Child seat anchors – LATCH-type This vehicle is equipped with two LATCH- (Lower Anchors and Tethers for CHildren) type anchors (at each of the outer rear seats) for the installation of a LATCH-type child seat with the matching mounting fittings. Warning! Children too big for a toddler restraint must ride in seats using regular seat belts.

  • Page 81: Blocking Of Rear Door Window Operation

    Safety and Security Occupant safety Blocking of rear door window operation You can block the rear door window operation (for instance when you have children riding in the rear passenger compartment). The override switch is located on the door control panel of the driver’s door. 1 Deactivating override switch 2 Activating override switch 3 Override switch...

  • Page 82: Panic Alarm

    Panic alarm* 1 Â button Canada only: Only vehicles equipped with an anti-theft alarm system* have SmartKeys with integrated panic button 1. USA only: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interfer- ence, and...

  • Page 83: Driving Safety Systems

    Safety and Security Driving safety systems In this section you will find information on the following driving safety systems: ABS (Antilock Brake System) BAS (Brake Assist System) ® (Electronic Stability Program) 4MATIC (Four Wheel Electronic Traction System) Warning! The following factors increase the risk of accidents: Excessive speed, especially in turns Wet and slippery road surfaces...
  • Page 84 Braking At the instant one of the wheels is about to lock up, a slight pulsation can be felt in the brake pedal, indicating that the ABS is in the regulating mode. Keep firm and steady pressure on the brake pedal while experiencing the pulsation.

  • Page 85: Bas

    Safety and Security Driving safety systems The Brake Assist System (BAS) operates in emergency situations. If you apply the brakes very quickly, the BAS automatically provides full brake boost, thereby poten- tially reducing the braking distance. Apply continuous full braking pressure until the emergency braking situation is over.

  • Page 86: Esp

    ® ® The Electronic Stability Program (ESP ) is operational as soon as the engine is run- ning and monitors the vehicle’s traction (force of adhesive friction between the tires and the road surface) and handling. ® The ESP recognizes when a wheel is spinning or if the vehicle starts to skid.
  • Page 87 Safety and Security Driving safety systems Vehicles without 4MATIC: ® Because the ESP operates automatically, the engine must be turned off (SmartKey in starter switch position 0 or 1) when the parking brake is being tested on a brake test dynamometer the vehicle is being towed with the front axle raised ®...
  • Page 88 Avoid spinning of a drive wheel for an ® extended period with the ESP switched off. This may cause serious damage to the drivetrain which is not covered by the Mercedes-Benz Limited Warranty. ® Switching on the ESP ® switch 1 until the ESP ®...

  • Page 89: Four Wheel Electronic Traction System (4Matic) With The Esp

    Do not tow with one axle raised. Otherwise the transfer case can be damaged, which is not covered by the Mercedes-Benz Limited Warranty. Performance testing must only be conduct- ed on a two-axle dynamometer.

  • Page 90: Anti-Theft Systems

    Starting the engine will also deactivate the immobilizer. In case the engine cannot be started (yet the ve- hicle’s battery is charged), the system is not op- erational. Contact an authorized Mercedes-Benz Center or call 1-800-FOR-MERCedes (in the USA), or 1-800-387-0100 (in Canada). Anti-theft alarm system*...
  • Page 91 Safety and Security Anti-theft systems Arming the alarm system The indicator lamp is in the center console. 1 Indicator lamp Lock the vehicle with the SmartKey. The turn signal lamps flash three times and an acoustic signal sounds three times, to indicate that the alarm sys- tem is armed.

  • Page 92: Controls In Detail

    Controls in detail Locking and unlocking Seats Memory function* Lighting Instrument cluster Control system Manual transmission Automatic transmission* Good visibility Climate control Automatic climate control Audio system Power windows Power tilt/sliding sunroof* Driving systems Loading Useful features...

  • Page 93: Locking And Unlocking

    Controls in detail Locking and unlocking In the “Controls in detail” section you will find detailed information on how to oper- ate the equipment installed on your vehi- cle. If you are already familiar with the basic functions of your vehicle, this section will be of particular interest to you.
  • Page 94 When unlocking or locking the vehicle with the SmartKey an acoustic signal sounds. The acoustic signal is activated at the factory. If you wish to deactivate the feature, or adjust its signal volume, contact an authorized Mercedes-Benz Center. Global unlocking Press button Œ.
  • Page 95 Controls in detail Locking and unlocking The vehicle will lock again automatically and rearm the anti-theft alarm system* within approximately 40 seconds of un- locking if: neither door nor trunk is opened the SmartKey is not inserted in the starter switch the central locking switch is not activated Global locking...

  • Page 96: Checking The Batteries

    Have the SmartKey deactivated by an authorized Mercedes-Benz Center. Report the loss of the SmartKey or the mechanical key immediately to your car insurance company. Have the mechanical lock replaced if necessary. Your authorized Mercedes-Benz Center will be glad to supply you with a replacement.

  • Page 97: Opening The Doors From The Inside

    Controls in detail Locking and unlocking Opening the doors from the inside You can open a locked door from the inside. Open door only when conditions are safe to do so. 1 Locking knob 2 Inside door handle If the vehicle has previously been locked with the SmartKey, opening a door from the inside will trigger the anti-theft alarm system*.

  • Page 98: Closing The Trunk

    Opening the trunk from the outside 1 Handle Press and hold button Š on the SmartKey until trunk unlocks and be- gins to open. Pull on handle 1. The vehicle must be unlocked. If the trunk does not open, it is still locked separately ( page 99).

  • Page 99: Trunk Emergency Release

    Controls in detail Locking and unlocking Be especially careful when small children are around. When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle.

  • Page 100: Valet Locking

    Valet locking To deny any unauthorized person access to the trunk, lock it separately with the mechanical key. Leave only the SmartKey less its mechani- cal key with the vehicle. The lock is located next to the handle above the rear license plate recess. 1 Neutral position 2 Locked Close the trunk ( page 97).

  • Page 101: Locking And Unlocking From The Inside

    Controls in detail Locking and unlocking Locking and unlocking from the inside You can lock or unlock the doors and the trunk from inside using the central locking or unlocking switch. This can be useful, for example, if you want to lock the vehicle before starting to drive.

  • Page 102: Seats

    For removal of the active head restraints we recommend that you contact an autho- rized Mercedes-Benz Center. Adjust the head restraint in such a way that it is as close to the head as possible. For information on head restraint adjustment, see “Seats”...
  • Page 103 Controls in detail Seats Head restraint height (rear outer seats) 1 Release button Warning! For your protection, drive only with properly positioned head restraints. Adjust head restraint so that the head re- straint supports the back of the head at eye level.
  • Page 104 Folding head restraints back with switch in the center console 1 Switch for rear seat head restraints Start the engine ( page 46). Press switch 1. The rear seat head restraints will fold backward. Placing head restraints upright Pull the head restraint forward until it locks into position.
  • Page 105 Controls in detail Seats Removing and installing rear seat head restraints (rear outer seats) The rear center seat head restraint cannot be removed. Warning! For your protection, drive only with properly positioned head restraints. Adjust head restraint so that the head re- straint supports the back of the head at eye level.

  • Page 106: Lumbar Support

    Lumbar support The curvature of the front seats can be ad- justed to help enhance lower back support and seating comfort. 1 Adjustment lever Move adjustment lever 1 in direction of arrows until you have reached a comfortable seating position. Multicontour seats* (Canada only) This driver’s multicontour seat has a mov- able seat cushion and inflatable air cush-...

  • Page 107: Seat Heating

    Controls in detail Seats Seat heating* Both switches for the front seats are locat- ed in the center console. The red indicator lamps in the switch come on to show heat- ing level you have selected. 1 Seat heating switch 2 Indicator lamps Switch on the ignition ( page 32).

  • Page 108: Memory Function

    Memory function* Prior to operating the vehicle, the driver should check and adjust the seat height, seat position fore and aft, and seat back- rest angle if necessary, to ensure adequate control, reach and comfort. The head re- straint should also be adjusted for proper height.

  • Page 109: Storing Positions Into Memory

    Controls in detail Memory function* The memory button and memory position switch are located on the door. 1 Memory button 2 Memory position switch Switch on the ignition ( page 32). Open the respective door. Storing positions into memory Adjust the seat, steering wheel and exterior rear view mirrors to the desired position ( page 34).

  • Page 110: Lighting

    Relevant information can be obtained at your authorized Mercedes-Benz Center. Exterior lamp switch Exterior lamp switch M Off...
  • Page 111 Controls in detail Lighting Manual headlamp mode The low beam headlamps and the parking lamps can be switched on and off with the exterior lamp switch. Turn the exterior lamp switch to position B. Automatic headlamp mode The following lamps switch on and off automatically depending on the brightness of the ambient light: Low beam headlamps...
  • Page 112 Daytime running lamp mode Turn the exterior lamp switch to position M or U. When the engine is running, the low beam headlamps are switched on. In low ambient light conditions, the following lamps will switch on additionally: Tail and parking lamps License plate lamps Side marker lamps With the daytime running lamp mode...
  • Page 113 Controls in detail Lighting Locator lighting and night security illumination The locator lighting and the night security illumination are described in the “Control system” section, see “Setting locator light- ing” ( page 140) and “Setting night secu- rity illumination” ( page 141). Fog lamps Warning! In low ambient lighting or foggy conditions,...

  • Page 114: Combination Switch

    Combination switch Combination switch 1 High beam 2 High beam flasher High beam Turn the exterior lamp switch to position B ( page 109). Push the combination switch in direction of arrow 1 to switch on the high beam. The high beam headlamp indicator lamp A in the instrument cluster comes on ( page 24).
  • Page 115 Controls in detail Lighting Driving forward Switching on corner-illuminating front fog lamps Switch on the left or right turn signal ( page 50), depending on whether you are turning left or right. The respective front fog lamp comes on and illuminates the area in the direction into which you are turning.

  • Page 116: Hazard Warning Flasher

    Driving in reverse Switching on corner-illuminating front fog lamps Place the gear selector lever (manual transmission: gearshift lever) in position R. The corner-illuminating front fog lamp opposite to your steering direction comes on. Switching off corner-illuminating front fog lamps Place the gear selector lever (manual transmission: gearshift lever) out of position R.

  • Page 117: Interior Lighting

    Controls in detail Lighting Interior lighting The controls are located in the overhead control panel. 1 Rear interior lighting on/off 2 Right front reading lamp on/off 3 Rocker switch for automatic control system 4 Left front reading lamp on/off An interior lamp switched on manually does not go out automatically.

  • Page 118: Door Entry Lamps

    Manual control Switching front interior lighting on and Press the W symbol on rocker switch 3. The front interior lighting comes on. Press rocker switch 3 to center position to activate the automatic control. Switching rear interior lighting on and Press button V.

  • Page 119: Instrument Cluster

    Driving characteristics may be impaired. If you must continue to drive, please do so with added caution. Visit an authorized Mercedes-Benz Center as soon as possible. Adjusting instrument cluster illumination Use reset button 1 to adjust the illumination brightness for the instrument cluster.

  • Page 120: Coolant Temperature Gauge

    The engine should not be operated with the cool- ant temperature above 248°F (120°C). Doing so may cause serious engine damage which is not covered by the Mercedes-Benz Limited Warran- During severe operating conditions, e.g. stop-and-go traffic, the coolant temperature may rise close to 248°F (120°C).

  • Page 121: Tachometer

    Avoid driving at excessive engine speeds, as it may result in serious engine damage that is not covered by the Mercedes-Benz Limited Warran- To help protect the engine, the fuel supply is interrupted if the engine is operated within the red marking.

  • Page 122: Control System

    Control system The control system is activated as soon as the SmartKey in the starter switch is turned to position 1. The control system enables you to call up information about your vehicle change vehicle settings For example, you can use the control system to find out when your vehicle is next due for service, to set the language for messages in the instrument cluster...

  • Page 123: Multifunction Steering Wheel

    Controls in detail Control system Multifunction steering wheel The displays in the multifunction display and the settings in the control system are controlled by the buttons on the multifunc- tion steering wheel. 1 Multifunction display Operating the control system 2 Selecting the submenu or setting the volume: Press button æ...
  • Page 124 Depending on the selected menu ( page 125), pressing the buttons on the multifunction steering wheel will alter what is shown in the multifunction display. The information available in the multifunc- tion display is arranged in menus, each containing a number of functions or sub- menus.

  • Page 125: Menus

    Controls in detail Control system Menus This is what you will see when you scroll through the menus. The table on the next page provides an overview of the individual menus.
  • Page 126 Menus, submenus and functions Menu 1 Menu 2 Standard AUDIO display ( page 126) ( page 127) Run Flat Selecting radio Indicator* station (Canada only) Digital speed- Selecting satel- ometer or out- lite radio sta- side temperature tion* (USA only) Call up main- Operating tenance service...

  • Page 127: Standard Display Menu

    Controls in detail Control system Standard display menu In the standard display, the main odometer and the trip odometer are shown in the multifunction display. 1 Trip odometer 2 Main odometer If another display is shown instead of the standard display: Press button è...

  • Page 128: Audio Menu

    AUDIO menu The functions in the AUDIO menu operate the audio equipment which you currently have turned on. If no audio equipment is currently turned on, the message appears in the AUDIO OFF multifunction display. The following functions are available: Function Page Selecting radio station...
  • Page 129 Controls in detail Control system 1 SAT mode and preset number 2 Channel name or number Press button k or j repeatedly until the desired channel is found. For more information on satellite radio oper- ation, see “Introduction to satellite radio* (USA only)”...

  • Page 130: Nav* Menu

    Selecting CD MP3-track (vehicles with COMAND* and/or CD changer*) Turn on the radio and select the CD changer* ( page 205) or turn on COMAND* and select CD or CD changer*. Vehicles with COMAND*: Refer to separate operating instructions. A CD with MP3 files insert in the CD changer* is handled by the audio/COMAND* system like an audio CD.

  • Page 131: Vehicle Status Message Memory Menu

    Mercedes-Benz Center to address the mal- function and warning messages ( page 333). Press button è or ÿ repeatedly...

  • Page 132: Settings Menu

    Should the vehicle’s system record any conditions while driving, the number of messages will reappear in the multifunc- tion display when the SmartKey in the starter switch is turned to position 0 or removed from the starter switch. The vehicle status message memory will be cleared when you turn the SmartKey in the start- er switch to position 1 or 2.
  • Page 133 Controls in detail Control system The settings you have changed will not be re- set unless you confirm the action by pressing the reset button a second time. After approximately 5 seconds, the Settings menu reappears in the multifunction display. For safety reasons, the following function are not reset while driving: the Headlamp mode function in the Light-...
  • Page 134 Instrument cluster Time/Date ( page 134) ( page 136) Select speedometer Time synchronization with head display mode unit* Select language Set the time (hours) Select display (speed Set the time (minutes) display or outside temperature) for status indicator Select automatic time change (Daylight Saving Time (DST) summer/Standard time winter) Set the date (month)
  • Page 135 Controls in detail Control system Instrument cluster submenu Access the Inst.cluster submenu via the Settings menu. Use the Inst.cluster submenu to change the instrument cluster display settings. The following functions are available: Function Page Select speedometer display mode Select language Select display (speed display or outside temperature) for status indicator...
  • Page 136 Press button æ or ç to select the language to be used for the multifunction display messages. Available languages: German English French Italian Spanish Dutch Danish Swedish Portuguese Turkish Russian (Canada only) Select display (digital speedometer or outside temperature) for status indicator Move the selection marker with button æ...
  • Page 137 Controls in detail Control system Time/Date submenu Access the Time/Date submenu via the Settings menu. Use the Time/Date submenu to change the instrument cluster display settings. The following functions are available: Function Page Time synchronization with head unit* Set the time (hours) Set the time (minutes) Select automatic time change (Daylight Saving Time (DST)
  • Page 138 Press button æ or ç to set the hour. Set the time (minutes) This function can be seen in vehicles with audio system, or in vehicles with COMAND* if the time synchronization with head unit* feature was set to Vehicles with COMAND*: For information on setting the time, refer to the separate COMAND operating instructions.
  • Page 139 Controls in detail Control system Set the date (month) This function can be seen in vehicles with audio system, or in vehicles with COMAND* if the time synchronization with head unit* feature was set to Vehicles with COMAND*: For information on setting the date, refer to the separate COMAND operating instructions.
  • Page 140 Vehicles with COMAND*: For information on setting the date, refer to the separate COMAND operating instructions. Move the selection marker with button æ or ç to the Time/Date submenu. Press button j or k repeatedly until the message Date Set year pears in the multifunction display.
  • Page 141 Controls in detail Control system Press button æ or ç to select manual operation ( Manual ) or daytime running lamp mode ( Constant With daytime running lamp mode activated and the exterior lamp switch in position M or U, the low beam headlamps are switched on when the engine is running.
  • Page 142 Turn the exterior lamp switch to position U when exiting the vehicle. The locator lighting feature is activated. Setting night security illumination (Headlamps delayed shut-off feature) Use this function to set whether you would like the exterior lamps to remain on for 15 seconds during darkness after exiting the vehicle and closing all doors.
  • Page 143 Controls in detail Control system Setting interior lighting delayed shut-off Use this function to set whether you would like the interior lighting to remain on for 10 seconds during darkness after you have removed the SmartKey from the starter switch. Move the selection marker with button æ...
  • Page 144 Setting automatic locking Use this function to activate or deactivate the automatic central locking. With the automatic central locking system activated, the vehicle is centrally locked at vehicle speeds of approximately 9 mph (15 km/h). Move the selection marker with button æ...

  • Page 145: Trip Computer Menu

    Controls in detail Control system Activate easy-entry/exit feature* Use this function to activate and deactivate the easy-entry/exit feature ( page 40). Warning! You must make sure no one can become trapped or injured by the moving steering wheel when the easy-entry/exit feature is activated.
  • Page 146 1 Distance driven since start 2 Time elapsed since start 3 Average speed since start 4 Average fuel consumption since start All statistics stored since the last engine start will be reset approximately 4 hours after the SmartKey in the starter switch is turned to position 0 or removed from the starter switch.

  • Page 147: Tel Menu

    Controls in detail Control system Distance to empty Switch on the ignition ( page 32). Press button ÿ or è repeatedly until the first function of the trip computer menu appears in the multifunction display. Press button j or k repeatedly until the message Range: appears in...
  • Page 148 If the telephone is off, the message Phone off appears in the multifunction display. If the telephone is on: The telephone will then search for a network. During this time the multi- function display is empty. As soon as the telephone has found a network, the message READY appears in...
  • Page 149 Controls in detail Control system 1 Name from the phone book If you press and hold button j or k for longer than 1 second, the system scrolls rap- idly through the list of names until you release the button again. Cancel the quick search mode by pressing button t.

  • Page 150: Manual Transmission

    Manual transmission Manual transmission is standard equipment on select models and not available on all models. For information on driving with a manual transmission, see “Manual transmission” ( page 46). Warning! For vehicles equipped with a manual trans- mission, getting out of your vehicle with the gearshift lever not engaged in first or reverse gear and parking brake engaged is dangerous.

  • Page 151: Shifting Into Reverse

    Mercedes-Benz Limited Warran- Never hold the vehicle stopped on a hill by using the clutch pedal. The clutch may be damaged which is not covered by the Mercedes-Benz Lim- ited Warranty. Do not exceed the engine speed limits. Refer to tachometer ( page 120) for engine speeds.

  • Page 152: Automatic Transmission

    Automatic transmission* Automatic transmission is standard equipment on select models and available as optional equipment on select other models. For more information on driving with an automatic transmission, see “Automatic transmission*” ( page 47). Your vehicle’s transmission adapts its gear shifting process to your individual driving style by continually adjusting the shift points up or down.

  • Page 153: Shifting Procedure

    Avoid spinning of a drive wheel when driving off on slippery road surfaces. This may cause seri- ous damage to the drivetrain which is not cov- ered by the Mercedes-Benz Limited Warranty. When the gear selector lever is in drive position D, you can influence transmission...

  • Page 154: Gear Selector Lever Positions

    Gear selector lever positions The current gear selector lever position appears in the multifunction display. 1 Current gear selector lever position Effect ì Park position Gear selector lever position when the vehicle is parked. Place gear selector lever in park position P only when vehicle is stopped.

  • Page 155: Automatic Transmission

    Coasting the vehicle, or driving for any other reason with gear selector lever in neutral position N can result in transmission damage that is not covered by the Mercedes-Benz Limited Warranty. Warning! Position P alone is not intended to or capa- ble of preventing your vehicle from moving, possibly hitting people or objects.

  • Page 156: Driving Tips

    Driving tips Accelerator position Your driving style influences the transmission’s shifting behavior: Less throttle Earlier upshifting More throttle Later upshifting Kickdown Use kickdown when you want maximum acceleration. Press the accelerator past the point of resistance. Depending on the engine speed the transmission shifts into a lower gear.

  • Page 157: Gear Ranges

    Controls in detail Automatic transmission* Gear ranges With the gear selector lever in drive position D, you can select a gear range for the automatic transmission to operate within. You can limit the gear range by pressing the gear selector lever to the left (D-), and reverse the gear range limit by pressing the gear selector lever to the right (D+) ( page 158).

  • Page 158: Automatic Shift Program

    Automatic shift program The program mode selector switch is located on the lower part of the center console. Program mode selector switch C Comfort For comfort driving S Sport For standard driving The selected program mode appears in the multifunction display. 1 Selected program mode (comfort or sport) Never change the program mode when the...

  • Page 159: One-Touch Gearshifting

    Avoid spinning of a drive wheel when driving off on slippery road surfaces. This may cause seri- ous damage to the drivetrain which is not cov- ered by the Mercedes-Benz Limited Warranty. Limiting gear range Warning! On slippery road surfaces, never downshift in order to obtain braking action.

  • Page 160: Emergency Operation (Limp-Home Mode)

    Turn off the engine. Wait at least 10 seconds before restarting. Restart the engine. Move the gear selector lever to position D (for second gear) or position R. Have the transmission checked at an authorized Mercedes-Benz Center as soon as possible.

  • Page 161: Good Visibility

    Controls in detail Good visibility For information on the windshield wipers, see “Windshield wipers” ( page 51). Headlamp cleaning system* The button is located on the left side of the dashboard. 1 Headlamp washer button Switch on the ignition ( page 32). Press button 1.

  • Page 162: Sun Visors

    Auto-dimming rear view mirrors* The reflection brightness of the exterior rear view mirror on the driver’s side and the interior rear view mirror will respond automatically to glare when the ignition is switched on incoming light from headlamps falls on the sensor in the interior rear view mirror.

  • Page 163: Rear Window Sunshade

    Controls in detail Good visibility 1 Mounting 2 Vanity mirror cover 3 Vanity mirror lamp 4 Sun visor Swing sun visor 4 down when you experience glare. To use illuminated vanity mirror, lift up vanity mirror cover 2. If sun visor 4 is disengaged from mounting 1 with vanity mirror cover 2 open, vanity mirror lamp 3 will switch off.

  • Page 164: Rear Window Defroster

    Make sure that the movement of the rear window sunshade is not restricted by objects on the rear window shelf. Otherwise, the sunshade or the objects could be damaged. Switch on the ignition ( page 32). Always raise or lower the sunshade fully for its support against the window frame.

  • Page 165: Climate Control

    Controls in detail Climate control USA standard equipped with climate control, depending on vehicle production date. Canada standard equipped with climate control.
  • Page 166 Item 1 Left side defroster vent, fixed 2 Left side air vent, adjustable 3 Thumbwheel for air volume control for left side air vent 4 Thumbwheel for air volume control for left center air vent 5 Left center air vent, adjustable 6 Right center air vent, adjustable 7 Thumbwheel for air volume control for right center air vent...
  • Page 167 Controls in detail Climate control The climate control is operational when- ever the engine is running. You can oper- ate the climate control system in either the automatic or manual mode. The system cools or heats the interior depending on the selected interior temperature and the current outside temperature.

  • Page 168: Climate Control System

    Deactivating the climate control system Warning! When the climate control is switched off, the outside air supply and circulation are also switched off. Only choose this setting for a short time. Otherwise the windows could fog up, impairing visibility and endangering you and others.

  • Page 169: Adjusting Air Distribution And Volume

    Controls in detail Climate control Setting the temperature Use temperature controls 2 and 3 ( page 165) to separately adjust the air temperature on each side of the passenger compartment. You should raise or lower the temperature setting in small incre- ments, preferably starting at 72°F (22°C).

  • Page 170: Adjusting Air Volume

    Press button U ( page 165). The indicator lamp on the button goes out. The automatic air distribution is switched off. The air distribution is controlled according to the selected control setting. Turn air distribution control 4 ( page 165) to the desired symbol. Opening center and side air vents Turn thumbwheels 3, 4, 7 and 8 ( page 164) upward.

  • Page 171: Air Recirculation Mode

    Controls in detail Climate control If you have switched on the defrost function using the P or 0 button, you cannot make any other settings. Deactivating Press button P or 0 ( page 165) again. The indicator lamp on the button goes out.
  • Page 172 Deactivating Press button , ( page 165). The indicator lamp on the button goes out. The air recirculation mode is deactivated au- tomatically: after 5 minutes if the outside temperature is below approximately 41°F (5°C) after 5 minutes if the air conditioning is turned off after 30 minutes if the outside temperature is above approximately 41°F (5°C)

  • Page 173: Air Conditioning

    If the air conditioning cannot be turned on again, this indicates that the air conditioning is losing refrigerant. The compressor has turned it- self off. Have the air conditioning checked at the nearest authorized Mercedes-Benz Center.

  • Page 174: Rear Passenger Compartment Adjustable Air Vents

    Rear passenger compartment adjustable air vents The air conditioning for the rear passenger compartment is controlled via the climate control panel ( page 165). The temperature at the center air vents 1 and 3 for the rear passenger compartment is the same as at the dashboard center air vents.

  • Page 175: Automatic Climate Control

    Controls in detail Automatic climate control USA standard equipped with automatic climate control, depending on vehicle production date. Automatic climate control* optional for Canada.
  • Page 176 Item 1 Left side defroster vent, fixed 2 Left side air vent, adjustable 3 Thumbwheel for air volume control for left side air vent 4 Thumbwheel for air volume control for left center air vent 5 Left center air vent, adjustable 6 Right center air vent, adjustable 7 Thumbwheel for air volume control for right center air vent...
  • Page 177 Controls in detail Automatic climate control The automatic climate control is operation- al whenever the engine is running. You can operate the automatic climate control sys- tem in either the automatic or manual mode. The system cools or heats the inte- rior depending on the selected interior temperature and the current outside tem- perature.

  • Page 178: Deactivating The Automatic Climate Control System

    Deactivating the automatic climate control system Warning! When the automatic climate control is switched off, the outside air supply and cir- culation are also switched off. Only choose this setting for a short time. Otherwise the windows could fog up, impairing visibility and endangering you and others.

  • Page 179: Setting The Temperature

    Controls in detail Automatic climate control Setting the temperature Use temperature controls 3 and d for the left side or 6 and b for the right side ( page 175) to separately adjust the air temperature on each side of the passenger compartment.

  • Page 180: Adjusting Air Volume

    The automatic air distribution is switched off. The air distribution is controlled according to the selected control setting. You can also turn the air distribution control to a position between two symbols. Opening center and side air vents Turn thumbwheels 3, 4, 7 and 8 ( page 174) upward.

  • Page 181: Maximum Cooling Maxcool

    Controls in detail Automatic climate control If you have switched on the defrost function using the P or 0 button, you cannot make any other settings. Deactivating Press button P or 0 ( page 175) again. The indicator lamp on the button goes out.

  • Page 182: Air Recirculation Mode

    Air recirculation mode Switch to air recirculation mode to prevent unpleasant odors from entering the vehicle from the outside (e.g. before driving through a tunnel). This setting cuts off the intake of outside air and recirculates the air in the passenger compartment. Warning! Fogged windows impair visibility, endanger- ing you and others.
  • Page 183 Controls in detail Automatic climate control Air recirculation mode with conve- nience closing or opening feature Warning! Never operate the side windows and the tilt/sliding sunroof* if there is the possibility of anyone being harmed by the closing pro- cedure. When using the air recirculation mode with convenience closing feature, should the up- ward movement of a window be blocked by...

  • Page 184: Charcoal Filter

    Charcoal filter An activated charcoal filter markedly reduces bad odors and removes pollutants from air entering the passenger compart- ment. The charcoal filter can be activated or deactivated. The system switches automatically to the air recirculation mode, if the charcoal filter is switched on carbon monoxide (CO) or nitrogen oxide (NO ) concentration of the out-...

  • Page 185: Air Conditioning

    Controls in detail Automatic climate control Deactivating Press button e ( page 175). The indicator lamp on the button goes out. Press and hold button e for approx. 2 seconds. The side windows and or tilt/sliding sunroof* will return to their previous position. You can release button e once the opening procedure has begun.

  • Page 186: Residual Heat And Ventilation (Canada Only)

    The compressor has turned it- self off. Have the air conditioning checked at the nearest authorized Mercedes-Benz Center. Residual heat and ventilation (Canada only) With the engine switched off, it is possible to continue to heat or ventilate the interior for up to 30 minutes.

  • Page 187: Rear Passenger Compartment Adjustable Air Vents

    Controls in detail Automatic climate control Rear passenger compartment adjustable air vents The air conditioning for the rear passenger compartment is controlled via the auto- matic climate control panel ( page 175). The temperature at the center air vents 1 and 3 for the rear passenger compartment is the same as at the dashboard center air vents.

  • Page 188: Audio System

    Audio system Audio and telephone, operation These instructions are intended to help you become familiar with your Mercedes-Benz audio system. They con- tain useful tips and a detailed description of the user functions. Warning! In order to avoid distraction which could...

  • Page 189: Operating And Display Elements

    Controls in detail Audio system Operating and display elements...
  • Page 190 Item Page 1 CD changer mode selector AUX mode selector 2 Single CD mode selector 3 Radio mode selector 4 Mute function (radio) Pause (CD) 5 Volume distribution 6 Sound settings 7 Display 8 Alphanumeric keypad Item Page 9 Speed dialing memory (telephone) in descending order a Accepting a call...

  • Page 191: Button And Soft Key Operation

    Controls in detail Audio system Button and soft key operation In these instructions, the alphanumeric keypad (right side of radio panel) and the function buttons (left side of radio panel) are referred to as “buttons”. The four keys below the display panel are referred to as “soft keys”.
  • Page 192 Adjusting sound functions The bass and treble functions are called up by pressing the O button. Settings for bass and treble are stored separately for the AM and FM wavebands, weather band, CD mode and telephone mode. Bass Press O button repeatedly until BASS appears in the display.
  • Page 193 Controls in detail Audio system Press soft key briefly. The sound setting is reset depending on the sound source activated. Radio mode: STANDARD CD/AUX mode: SURROUND Telephone: SPEECH The radio switches back to the standard radio menu 8 seconds after the last soft key is pressed.
  • Page 194 Feature description is based on preliminary information at time of printing. Contact an authorized Mercedes-Benz Center for availability. You can adjust the volume ( page 190), the sound settings ( page 191) and the volume distribution ( page 192) for the AUX input.

  • Page 195: Radio Operation

    Controls in detail Audio system Canceling AUX mode Press any audio source button. Radio operation Selecting radio mode Press b button. Calling up wavebands You can choose from among the FM, AM, and WB wavebands. Weather band ( page 196). FM waveband: 87.7...107.9 MHz AM waveband:...
  • Page 196 You can only enter frequencies within the re- spective waveband. If a button is not pressed within 4 seconds, the radio will return to the last station tuned. Manual tuning Select desired waveband. Press S or T button for approx. 3 seconds.
  • Page 197 Controls in detail Audio system Autostore – automatic station memory The Autostore memory function provides an additional memory level. The station memory for manually stored stations is not overwritten. Calling up Autostore memory level and storing stations Press soft key briefly. The radio switches to the Autostore memory level.

  • Page 198: Introduction To Satellite Radio* (Usa Only)

    Contact an authorized Mercedes-Benz Center for details and availability for your vehicle. Note that categories and channels shown in illus- trations are dependent on programming content delivered by the service provider.
  • Page 199 Controls in detail Audio system Program categories The channels are categorized. Categories allow you to tune to stations broadcasting a certain type of program (category mode) ( page 199). Calling up the SAT main menu Press soft key. is displayed in the upper left-hand corner of the display.
  • Page 200 Selecting a station The following options are available: Selecting a station using the selected category ( page 199). Tuning via station presets ( page 199). Tuning via scan search ( page 200). Tuning via manual channel input ( page 199). Tuning via the program category list ( page 199).
  • Page 201 Controls in detail Audio system Press X or Y soft key. This switches between the individual categories. When changing the category, the channel selected last in the new category becomes audible. The system will automatically switch to a station of the selected category if the currently selected station is not of the selected category.

  • Page 202: Cd Mode

    CD drive or CD changer*. In certain situations, the CDs can then no longer be ejected and cause damage to the drive. Such damage is not covered by the Mercedes-Benz Limited Warranty.
  • Page 203 CDs with an 8 cm diameter or playing such CDs with an adapter may cause damage to the CD drive. Such damage is not covered by the Mercedes-Benz Limited Warranty. Should excessively high or low tempera- tures occur while in CD changer mode*,...
  • Page 204 Compatible file systems and compres- sion methods Use Romeo or Joliet. Depending on file for- mat used, up to 128 characters are possi- ble. The following compression methods are compatible: Compatible bit and sampling rates Fixed and variable bit rates of up to 320 kBit/s are possible.
  • Page 205 CD in the slot with another CD still loaded will cause damage to the CD drive not covered by the Mercedes-Benz Limited Warranty. If a CD has been inserted incorrectly or can- not be read, WRONG CD ERROR will appear in the display.
  • Page 206 1 CD 2 CD changer 3 CD tray 4 CD magazine Remove magazine 4 and pull CD tray 3 fully out. Place CD 1 in recess of tray, label side Push tray into magazine in direction of arrow. CDs which have been inserted improperly or are unreadable will not be played.
  • Page 207 Controls in detail Audio system Selecting CDs in the audio unit with CD changer* You can select from among the inserted CDs with buttons R to 6. R = CD player in the audio unit 1 to 6 = CDs in the CD changer* The magazine slot number of the selected CD appears next to...
  • Page 208 Fast forward/reverse Fast forward Press and hold S button until desired point has been reached. Reverse Press and hold T button until desired point has been reached. The track number and the relative time of the track is shown in the display during the search.

  • Page 209: Gsm Network Phones

    If your audio system is set up for telephone operation, the t symbol will appear in the display. When you insert your Mercedes-Benz specified mobile telephone* into the telephone cradle, you will be prompted to enter your PIN for 30 seconds ( page 209).
  • Page 210 Switching on the telephone Switching on the telephone Press h button. If the telephone was previously switched off, appears in PROCESSING the display and you will then be prompted to enter your PIN. Switching off the telephone Press h button for approx. 3 seconds.
  • Page 211 Controls in detail Audio system Placing a call Entering a telephone number and starting the dialing process Enter desired telephone number using buttons 1 to R. The number can have up to 32 digits, but only twelve of these are visible in the display.
  • Page 212 Press and hold button ‚ or ƒ until desired initial letter has been reached. Press button ‚ or ƒ repeatedly until desired entry has been reached. The stored entries are selected in alphabetical order with the sub-entries. Several sub-entries can be stored for each main entry (name).
  • Page 213 Controls in detail Audio system Speed dial If you have stored telephone numbers as speed dial numbers in your telephone, you can also enter these with buttons 1 to R on the radio head unit. Press desired button 1 to R briefly.
  • Page 214 Muting a call It is possible to mute a call; the caller is then no longer able to hear you. Mute on Press soft key. MIC MUTE will appear in the display. Mute off Press soft key again. Terminating a call Press t button.

  • Page 215: Tdma Or Cdma Network Phones

    If your audio system is set up for telephone operation, the t symbol will appear in the display. When you insert your Mercedes-Benz specified mobile telephone* into the telephone cradle, you will be prompted to enter your PIN for 30 seconds ( page 209).
  • Page 216 Adjusting sound Adjust sound during a telephone call. Sound adjustment ( page 191). Placing a call Entering a telephone number and starting the dialing process Enter desired telephone number using buttons 1 to R. The number can have up to 32 digits, but only twelve of these are visible in the display.
  • Page 217 Controls in detail Audio system Press and hold button ‚ or ƒ. The system jumps from one initial letter to the next in ascending or descending order. Press and hold button ‚ or ƒ until desired initial letter has been reached. Press button ‚...
  • Page 218 Speed dial If you have stored telephone numbers as speed dial numbers in your telephone, you can also enter these with buttons 1 to R on the radio unit. Press desired button 1 to R briefly. Press s button. The call will be made. Turbo dial If you have stored telephone numbers as turbo dial numbers in your...
  • Page 219 Controls in detail Audio system Muting a call It is possible to mute a call; the caller is then no longer able to hear you. Mute on Press soft key. MIC MUTE will appear in the display. Mute off Press soft key again.

  • Page 220: Emergency Calls "911

    Emergency calls “911” The following describes how to dial a “911” emergency call using the audio system head unit when a Mercedes-Benz specified mobile phone* is inserted in the phone cradle*. Unless otherwise specified, the descriptions refer to the audio system head unit.
  • Page 221 Controls in detail Audio system soft key or s button for Press dialing to begin. DIALING appears in the audio display while the telephone establishes the connection. Wait until the emergency call center answers, then describe the emergency. Placing a “911” emergency call using audio head unit with the phone unlocked Press h button to switch to...

  • Page 222: Power Windows

    Power windows Opening and closing the windows The side windows are opened and closed electrically. The switches for all the side windows are on the driver’s door. The switches for the respective windows are on the front passenger door and the rear doors.

  • Page 223: Synchronizing Power Windows

    Controls in detail Power windows Opening the windows Press switch 1 to 4 to the resistance point. The corresponding window will move downwards until you release the switch. Closing the windows Pull switch 1 to 4 to the resistance point. The corresponding window will move upwards until you release the switch.

  • Page 224: Summer Opening Feature

    Pull the power window switches until the side windows are closed. Hold the switches for approximately 1 second. The power windows are synchronized. Summer opening feature If the weather is warm, you can ventilate the vehicle before driving off by simulta- neously: opening the side windows opening the tilt/sliding sunroof*...

  • Page 225: Power Tilt/Sliding Sunroof

    Controls in detail Power tilt/sliding sunroof* Opening and closing the power tilt/sliding sunroof The tilt/sliding sunroof can be opened and closed electrically. The switch for the tilt/sliding sunroof is on the overhead control panel. Sunroof switch 1 Push up to raise sunroof at rear 2 Pull down to lower sunroof at rear 3 Push forward to slide sunroof closed 4 Push back to slide sunroof open...
  • Page 226 When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you, and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. A child’s unsupervised access to a vehicle could result in an accident and/or serious personal injury.

  • Page 227: Synchronizing The Power Tilt/Sliding Sunroof

    Controls in detail Power tilt/sliding sunroof* Stopping the power tilt/sliding sunroof during Express-operation Move the sunroof switch in any direction. If the movement of the tilt/sliding sunroof is blocked during the closing procedure, the tilt/sliding sunroof will stop and reopen slightly. Synchronizing the power tilt/sliding sunroof The tilt/sliding sunroof must be...

  • Page 228: Driving Systems

    Driving systems The driving system of your vehicle is described on the following pages: Cruise control, with which the vehicle can maintain a preset speed. For information on the BAS, ABS and ESP see “Driving safety systems” ( page 82). Cruise control The cruise control automatically maintains the speed you set for your vehicle.
  • Page 229 Controls in detail Driving systems On uphill or downhill grades, cruise control may not be able to maintain the set speed. Once the grade eases, the set speed will be resumed. Canceling cruise control There are several ways to cancel cruise control: Step on the brake pedal.
  • Page 230 Setting a lower speed Depress cruise control lever to position 2 and hold it down until the desired speed is reached. Release cruise control lever. The new speed is set. Vehicles with automatic transmission*: When you use the cruise control lever to deceler- ate, the transmission will automatically down- shift if the engine’s braking power does not brake the vehicle sufficiently.

  • Page 231: Loading

    Controls in detail Loading Roof rack* Warning! Only use roof racks approved by Mercedes-Benz for your vehicle model to avoid damage to the vehicle. Follow the manufacturer’s installation in- structions. Otherwise, an improperly at- tached roof rack system or its load could become detached from the vehicle.
  • Page 232 4 Hook and loop fastener Unfasten hook and loop fastener 4. Pull ski sack into passenger compart- ment and unfold. 5 Button Open trunk lid. Press button 5. The flap opens downward. Controls in detail Loading From trunk, slide skis into ski sack. Warning! The ski sack is designed for up to four pairs of skis.
  • Page 233 Controls in detail Loading 6 Strap Tighten strap 6 by pulling at the loose end (arrow) until the skis in the ski sack are tightly secured. 7 Hook 8 Eye Connect hook 7 to eye 8. Tighten strap by pulling at the loose end (arrow).

  • Page 234: Split Rear Bench Seat

    Removing the ski sack You can remove the ski sack for cleaning or drying. 1 Button 2 Ski sack frame 3 Flap Open trunk lid. Press button 1. The flap 3 opens downward. Press button 1 firmly until ski sack frame 2 is released.
  • Page 235 Controls in detail Loading Folding the backrest forward The release handle 1 is located in the trunk. Pull release handle 1. Fully retract and fold rearward head restraints ( page 103). Pull release handle 2. Fold seat cushion 3 forward. Fold backrest 4 forward.

  • Page 236: Loading Instructions

    If the backrest is not locked into position, a red indicator 3 will be visible. Check for secure locking by pushing and pulling on the backrest. Warning! If a red indicator is visible with the backrest up, then the backrest is not properly locked into position.

  • Page 237: Cargo Tie-Down Rings

    Controls in detail Loading Always place items being carried against front or rear seat backrests, and fasten them as securely as possible. The heaviest portion of the cargo should al- ways be kept as low as possible since it in- fluences the handling characteristics of the vehicle.

  • Page 238: Useful Features

    Useful features Storage compartments Warning! Do not store any flammable substances in- side the vehicle or in the trunk. Otherwise the flammable substances could ignite and start a fire inside the vehicle. To help avoid personal injury during a colli- sion or sudden maneuver, exercise care when storing objects in the vehicle.
  • Page 239 Controls in detail Useful features Storage compartment/telephone* tray under front center armrest A flat storage tray with a deeper storage compartment underneath is located below the front center armrest. Both can be opened separately. 1 Handle to open storage compartment 2 Button to open storage tray/tele- phone* tray, passenger side 3 Button to open storage tray/tele-...

  • Page 240: Cup Holders

    Liquids spilled on vehicle occupants may cause serious personal injury. Liquids spilled on vehicle equipment may cause damage not covered by the Mercedes-Benz Limited Warranty. When not in use, keep the cup holder closed. An open cup holder may cause injury...

  • Page 241: Useful Features

    Controls in detail Useful features Sliding out swiveling cup holder Push button 1. The cup holder slides upward. No objects should be in the swiveling cup holder when the swiveling cup holder is slid up- ward. Otherwise the swiveling cup holder or the objects could be damaged.

  • Page 242: Ashtrays

    Cup holder in rear seat armrest 1 Cup holder Opening cup holder Briefly press the front of cup holder 1. The cup holder slides out slightly. Pull out the cup holder until it stops. Closing cup holder Slide cup holder back until it engages. Do not sit on or lean your body weight against the armrest when it is folded down, as you could otherwise damage it.

  • Page 243: Cigarette Lighter

    Controls in detail Useful features Reinstalling ashtray insert Push the ashtray insert 3 down into the retainer until it engages. Push down cover plate 1 to close ashtray. The cover plate engages. Rear seat ashtray 1 Button 2 Ashtray insert 3 Cover Pull at top of cover 3.

  • Page 244: Power Outlet

    1 Cover plate 2 Cigarette lighter Briefly press the bottom of cover plate 1. The cover plate opens automatically. Push in cigarette lighter 2. The cigarette lighter will pop out automatically when hot. The lighter socket can be used to accommo- date 12V DC electrical accessories (up to a max- imum of 85 W) designed for use with the standard “cigarette lighter”...

  • Page 245: Telephone

    These mobile phone cradles can be ob- tained from an authorized Mercedes-Benz Cen- ter. The functions and services available to you while using the mobile phone depend on your service provider and the type of mobile phone you are using.
  • Page 246 Please note that these functions are only available with Mercedes-Benz approved mobile phones. Please contact an authorized Mercedes-Benz Center for in- formation on features available for your mobile phone of choice. The cradle is located in the front center armrest.
  • Page 247 Controls in detail Useful features Removing mobile phone from mobile phone cradle Example illustration 1 Release catch for mobile phone 2 Mobile phone cradle When using a flip-style mobile phone, open flip top before removing from the cradle while a call is connected.

  • Page 248: Tele Aid

    Tele Aid* The initial activation of the Tele Aid system may only be performed by completing the sub- scriber agreement and placing an acquaintance call using the ¡ button. Failure to complete either of these steps will result in a system that is not activated.
  • Page 249 If a malfunction is indicated as outlined above, the system may not operate as expected. Have the system checked at the nearest Mercedes-Benz Center as soon as possible. Emergency calls An emergency call is initiated automatical-...
  • Page 250 A voice connection between the Response Center and the occupants of the vehicle will be established automatically soon af- ter the emergency call has been initiated. The Response Center will attempt to determine more precisely the nature of the accident provided they can speak to an occupant of the vehicle.
  • Page 251 Open the storage compartment under the center armrest ( page 238). Press and hold button (for longer than 2 seconds). A call to a Mercedes-Benz Roadside Assistance dispatcher will be initiated. The button will flash while the call is in progress. The message...
  • Page 252 Assistance Center representative and the occupants of the vehicle will be estab- lished. Information regarding the operation of your vehicle, the nearest Mercedes-Benz Center or Mercedes-Benz USA products and services is available to you. For more details concerning the Tele Aid system, please visit www.mbusa.com and...
  • Page 253 (in red) at any time, the Tele Aid system has detected a malfunction or the service is not currently active, and may not initiate a call. Visit your authorized Mercedes-Benz Center and have the system checked or contact the Response Center at 1-800-756-9018 (in the USA) or 1-888-923-8367 (in Canada) as soon as possi- ble.

  • Page 254: Garage Door Opener

    Report the incident to the police. The police will issue a numbered incident report. Pass this number on to the Mercedes-Benz Response Center along with your password issued to you when you subscribed to the service. The Response Center will then attempt to covertly contact the vehicle’s...
  • Page 255 Controls in detail Useful features Interior rear view mirror with integrated re- mote control Indicator lamp 2 3 4 Signal transmitter button Needed for programming (not part of vehi- cle equipment): Hand-held remote control of ga- rage door opener, gate operator or other device Hand-held remote control but- Warning!
  • Page 256 gins to flash after approximately 20 seconds (do not hold the button for longer than 30 seconds). This proce- dure erases any previous settings for all three channels and initializes the memory. If you later wish to program a second and/or third hand-held transmitter to the remaining two signal transmitter buttons, do not repeat this step and be-...
  • Page 257 Controls in detail Useful features Step 8: Locate “training” button on the garage door opener motor head unit. Exact location and color of the button may vary by garage door opener brand. Depending on manufacturer, the “training” button may also be referred to as “learn”...
  • Page 258 button 6 for 2 seconds, then release it for 2 seconds, and again press and hold it for 2 seconds. Repeat this se- quence on the hand-held remote con- trol until the frequency signal has been learned. Upon successful training, indi- cator lamp 1 will flash slowly and then rapidly after several seconds.
  • Page 259 Certain types of garage door openers are in- compatible with the integrated remote control. If you should experience further difficulties with programming the integrated remote control, contact an authorized Mercedes-Benz Center, or call Mercedes-Benz Customer Assistance Center (in the USA only) at 1-800-FOR-MERCedes, or Customer Service (in Canada) at 1-800-387-0100.

  • Page 260: Operation

    Operation The first 1000 miles (1500 km) Driving instructions At the gas station Engine compartment Tires and wheels Winter driving Maintenance Vehicle care...

  • Page 261: The First 1000 Miles (1500 Km)

    Operation The first 1000 miles (1500 km) In the “Operation” section you will find detailed information on operating, main- taining and caring for your vehicle. The more cautiously you treat your vehicle during the break-in period, the more satis- fied you will be with its performance later Drive your vehicle during the first 1000 miles (1500 km) at varying but moderate vehicle and engine speeds.

  • Page 262: Driving Instructions

    Have all maintenance work performed at the intervals specified in the Maintenance Booklet and as required by the maintenance service display. Contact an authorized Mercedes-Benz Center. Fuel consumption is also increased by driving in cold weather, in stop-and-go traffic, on short trips and in hilly area.

  • Page 263: Power Assistance

    Operation Driving instructions Power assistance Warning! With the engine not running, there is no power assistance for the brake and steering systems. In this case, it is important to keep in mind that a considerably higher degree of effort is necessary to brake and steer the vehicle.

  • Page 264: Driving Off

    ® period with the ESP switched off. Doing so may cause serious damage to the drivetrain which is not covered by the Mercedes-Benz Limited Warranty. Simultaneously depressing the accelerator pedal and applying the brake reduces engine performance and causes premature brake and...

  • Page 265: Parking

    Inspect the tires and the vehicle underbody for possible damage. If the vehicle or tires appear unsafe, have the vehicle towed to the nearest Mercedes-Benz Center or tire dealer for repairs. Treadwear indicators (TWI) are required by law. These indicators are located in six...

  • Page 266: Hydroplaning

    The treadwear indicator appears as a solid band across the tread. Warning! Although the applicable federal motor vehicle safety laws consider a tire to be worn when the treadwear indicators (TWI) become visible at approximately (1.6 mm), we recommend that you do not allow your tires to wear down to that level.

  • Page 267: Tire Speed Rating

    Exercise ap- propriate caution. Avoid spinning of a drive wheel. This may cause serious damage to the drivetrain which is not covered by the Mercedes-Benz Limited War- ranty. Tire speed rating Regardless of the tire speed rating, local speed limits should be obeyed.

  • Page 268: Winter Driving Instructions

    Winter driving instructions The most important rule for slippery or icy roads is to drive sensibly and to avoid abrupt acceleration, braking and steering maneuvers. Do not use the cruise control system under such conditions. When the vehicle is in danger of skidding, move gear selector lever to position N or in case of manual transmission declutch.

  • Page 269: Standing Water

    Any such damage is not covered by the Mercedes-Benz Limited Warranty. Passenger compartment Warning! Always fasten items being carried as securely as possible.

  • Page 270: Catalytic Converter

    Refer to the radio transmitter operation instructions regarding use of an external antenna. Catalytic converter Your Mercedes-Benz is equipped with monolithic-type catalytic converters, an important element in conjunction with the oxygen sensors to achieve substantial control of the pollutants in the exhaust emissions.

  • Page 271: Emission Control

    Any adjustments on the engine should, therefore, be carried out only by qualified Mercedes-Benz Center authorized techni- cians. Engine adjustments should not be altered in any way. Moreover, the specified service jobs must be carried out regularly according to Mercedes-Benz servicing requirements.

  • Page 272: At The Gas Station

    In case that the central locking system does not release the fuel filler flap, or the opening mechanism is clamping, notify Roadside Assis- tance or an authorized Mercedes-Benz Center. 1 To open the fuel filler flap 2 To insert the fuel filler cap...
  • Page 273 Operation At the gas station Only use premium unleaded gasoline with a minimum Posted Octane Rating of 91 (average of 96 RON/86 MON). Information on gasoline quality can normally be found on the fuel pump. C 230/C 230 Sport: Flexible Fuel Vehicles are identified by a label reading Premium gasoline or E85 only! on the fuel filler flap.

  • Page 274: Check Regularly And Before A Long Trip

    Notify an authorized Mercedes-Benz Center immediately. Do not add brake fluid as this will not solve the problem. For more information, see “Practical hints”...

  • Page 275: Engine Compartment

    Operation Engine compartment Hood Warning! Do not pull the release lever while the vehicle is in motion. Otherwise the hood could be forced open by passing air flow. This could cause the hood to come loose and injure you and/or others. Opening Warning! If you see flames or smoke coming from the...
  • Page 276 The hood lock release lever is located to the left of the steering wheel under the dashboard. 1 Hood lock release lever Pull lever 1 downwards. The hood is unlocked and handle 2 will extend out of the radiator grille. To avoid damage to the windshield wipers or hood, never open the hood if the wiper arms are folded forward away from the windshield.

  • Page 277: Engine Oil

    Do not use any special lubricant additives, as these may damage the drive assemblies. Us- ing special additives not approved by Mercedes-Benz may cause damage not covered by the Mercedes-Benz Limited Warranty. More information on this subject is available at any Mercedes-Benz Center.

  • Page 278: Transmission Fluid Level

    Factory Approved Service Products pamphlet in your vehicle literature portfolio, or contact an authorized Mercedes-Benz Center. Using engine oils and oil filters of specification other than those expressly required for the Maintenance System (U.S.

  • Page 279: Coolant Level

    Operation Engine compartment Coolant level The engine coolant is a mixture of water and anticorrosion/antifreeze. To check the coolant level, the vehicle must be parked on level ground and the engine must be cool. Warning! In order to avoid any potentially serious burns: Use extreme caution when opening the hood if there are any signs of steam or...

  • Page 280: Battery

    When replacing the battery, always use batteries approved by Mercedes-Benz. If you do not intend to operate your vehicle for an extended period of time, consult an authorized Mercedes-Benz Center about steps you need to observe.

  • Page 281: Windshield Washer System And Headlamp Cleaning System

    Operation Engine compartment Windshield washer system and headlamp cleaning system* The windshield washer reservoir is located in the engine compartment. 1 Washer fluid reservoir Fluid for the windshield washer system and the headlamp cleaning system* is supplied from the windshield washer reservoir. It has a capacity of: 3.2 US qt (3.0 l) in vehicles without headlamp cleaning system...

  • Page 282: Tires And Wheels

    When replacing rims, only use genuine Mercedes-Benz wheel bolts specified for the particular rim type. Failure to do so can result in the bolts loosening and possibly an accident.

  • Page 283: Tire Care And Maintenance

    Operation Tires and wheels Tire care and maintenance Warning! Regularly check the tires for damage. Dam- aged tires can cause tire inflation pressure loss. As a result, you could lose control of your vehicle. Worn, old tires can cause accidents. If the tire tread is badly worn, or if the tires have sustained damage, replace them.

  • Page 284: Tires And Wheels

    Tread depth Do not allow your tires to wear down too far. Adhesion properties on wet roads are sharply reduced at tread depths under in (3 mm). Treadwear indicators (TWI) are required by law. These indicators are located in six places on the tread circumference and become visible at a tread depth of approx- imately...

  • Page 285: Direction Of Rotation

    Operation Tires and wheels Direction of rotation Unidirectional tires offer added advan- tages, such as better hydroplaning perfor- mance. To benefit, however, you must make sure the tires rotate in the direction specified. An arrow on the sidewall indicates the intended direction of rotation (spinning) of the tire.
  • Page 286 Tire and Loading Information Warning! Do not overload the tires by exceeding the specified load limit as indicated on the plac- ard on the driver’s door B-pillar. Overloading the tires can overheat them, possibly caus- ing a blowout. Overloading the tires can also result in handling or steering problems, or brake failure.
  • Page 287 Operation Tires and wheels Steps for determining correct load limit The following steps have been developed as required of all manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the “National Traffic and Motor Vehicle Safety Act of 1966”. Step 1 Locate the statement “The combined weight of occupants and cargo should...
  • Page 288 Example Combined Number of weight limit occupants of occu- (driver and pants and passengers) cargo from placard 1500 lbs 1500 lbs 1500 lbs The higher the weight of all occupants, the less cargo and luggage load capacity is available. For more information, see “Trailer tongue load”...
  • Page 289 The tongue load typically is ten percent of the trailer weight and every- thing loaded in it. Your Mercedes-Benz has been designed primarily to carry passengers and their cargo. Mercedes-Benz does not recom- mend trailer towing with your vehicle.

  • Page 290: Recommended Tire Inflation Pressure

    Recommended tire inflation pressure Warning! Follow recommended tire inflation pressures. Do not underinflate tires. Underinflated tires wear excessively and/or unevenly, adversely affect handling and fuel economy, and are more likely to fail from being over- heated. Do not overinflate tires. Overinflated tires can adversely affect handling and ride comfort, wear unevenly, increase stopping distance, and result in sudden deflation...

  • Page 291: Checking Tire Inflation Pressure

    Operation Tires and wheels Important notes on tire inflation pressure Warning! If the tire inflation pressure repeatedly drops: Check the tires for punctures from foreign objects. Check to see whether air is leaking from the valves or from around the rim. Tire temperature and tire inflation pressure are also increased while driving, depending on the driving speed and the tire load.
  • Page 292 Warning! Follow recommended tire inflation pres- sures. Do not overinflate tires. Overinflating tires can result in sudden deflation (blowout) be- cause they are more likely to become punc- tured or damaged by road debris, potholes, etc. Do not underinflate tires. Underinflated tires wear unevenly, adversely affect handling and fuel economy, and are more likely to fail from being overheated.
  • Page 293 Operation Tires and wheels The Run Flat Indicator* may function in a restricted manner or with a delay if: snow chains are mounted to the vehicle winter road conditions prevail in presence of ice and snow you are driving on a loose surface (e.g. sand or gravel) you are driving in a very sporty manner (involving rapid acceleration or high...
  • Page 294 Reactivating the Run Flat Indicator* The tire inflation pressure monitor must be reactivated in the following situations: If you have changed the tire inflation pressure If you have replaced the wheels or tires If you have installed new wheels or tires Using the tire placard on the driver’s door B-pillar or, if available, the inside...

  • Page 295: Moextended System

    Operation Tires and wheels Potential problems associated with underinflated and overinflated tires Underinflated tires Underinflated tires can: cause excessive and uneven tire wear adversely affect fuel economy lead to tire failure from being overheated adversely affect handling characteristics Warning! Follow recommended tire inflation pres- sures.

  • Page 296: Tire Labeling

    Tire labeling Besides tire name (sales designation) and manufacturer name, a number of markings can be found on a tire. Following are some explanations for the markings on your vehicle’s tires: 1 Uniform Quality Grading Standards ( page 302) 2 DOT, Tire Identification Number (TIN) ( page 299) 3 Maximum tire load ( page 301) 4 Maximum tire inflation pressure...
  • Page 297 Operation Tires and wheels General: Depending on the design standards used, the tire size molded into the sidewall may have no letter or a letter preceding the tire size designation. No letter preceding the size designation (as illustrated above): Passenger car tire based on European design standards.
  • Page 298 Warning! The tire load rating must always be at least half of the GAWR ( page 305) of your vehi- cle. Otherwise, tire failure may be the result which may cause an accident and/or seri- ous personal injury to you or others. Always replace rims and tires with the same designation, manufacturer and type as shown on the original part.
  • Page 299 Operation Tires and wheels At the tire manufacturer’s option, any tire with a speed capability above 149 mph (240 km/h) can include a “ZR” in the size designation (for exam- ple: 245/40 ZR18). To determine the maximum speed capability of the tire, the service description for the tire must be referred to.

  • Page 300: Load Identification

    Load identification 1 Load identification For illustration purposes only. Actual data on tires is specific to each vehicle and may vary from data shown in above illustration. In addition to tire load rating, special load information may be molded into the tire sidewall following the letter designating the tire speed rating 6 ( page 295).
  • Page 301 Operation Tires and wheels 1 DOT 2 Manufacturer’s identification mark 3 Tire size 4 Tire type code (at the option of the tire manufacturer) 5 Date of manufacture For illustration purposes only. Actual data on tires is specific to each vehicle and may vary from data shown in above illustration.

  • Page 302: Maximum Tire Load

    Maximum tire load 1 Maximum tire load rating For illustration purposes only. Actual data on tires is specific to each vehicle and may vary from data shown in above illustration. The maximum tire load is the maximum weight the tires are designed to support. Warning! Do not overload the tires by exceeding the specified load limit as indicated on the plac-...

  • Page 303: Uniform Tire Quality Grading Standards (U.s. Vehicles)

    Operation Tires and wheels Always follow the recommended tire inflation pressure ( page 289) for proper tire inflation. Warning! Never exceed the max. tire inflation pressure. Follow recommended tire inflation pressures. Do not underinflate tires. Underinflated tires wear excessively and/or unevenly, adverse- ly affect handling and fuel economy, and are more likely to fail from being overheated.
  • Page 304 from the norm due to variations in driving habits, service practices and differences in road characteristics and climate. Traction The traction grades, from highest to low- est, are AA, A, B, and C. Those grades rep- resent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete.

  • Page 305: Tire Ply Material

    Operation Tires and wheels Tire ply material 1 Plies in sidewall 2 Plies under tread For illustration purposes only. Actual data on tires is specific to each vehicle and may vary from data shown in above illustration. This marking tells you about the type of cord and number of plies in the sidewall and under the tread.
  • Page 306 DOT (Department of Transportation) A tire branding symbol which denotes the tire meets requirements of the U.S. Department of Transportation. GAWR (Gross Axle Weight Rating) The GAWR is the maximum permissible axle weight. The gross vehicle weight on each axle must never exceed the GAWR for the front and rear axle indicated on the certification label located on the driver’s door B-pillar.
  • Page 307 Operation Tires and wheels PSI (Pounds per square inch) A standard unit of measure for air pressure -> bar, kilopascal (kPa). Recommended tire inflation pressure Recommended tire inflation pressure listed on placard located on driver’s door B-pillar for normal driving conditions. Provides best handling, tread life and riding comfort.

  • Page 308: Rotating Tires

    Wheels could become loose if not tightened with a torque of 80 lb-ft (110 Nm). Only use genuine Mercedes-Benz wheel bolts specified for your vehicle’s rims. For information on wheel change, see the “Practical hints” section ( page 356) and...

  • Page 309: Winter Driving

    Operation Winter driving Before the onset of winter, have your vehicle winterized at an authorized Mercedes-Benz Center. This service includes: Check of anticorrosion and antifreeze concentration. Addition of cleaning concentrate to the water of the windshield and headlamp cleaning system. Add MB Concentrate “MB SummerFit”...

  • Page 310: Block Heater (Canada Only)

    The tires or the vehicle could be damaged as a result. Only use snow chains that are approved by Mercedes-Benz. Any authorized Mercedes-Benz Center will be glad to advise you on this subject. Use of snow chains may be prohibited depending on location.

  • Page 311: Maintenance

    Operation Maintenance We strongly recommend that you have your vehicle serviced by an authorized Mercedes-Benz Center, in accordance with the Maintenance Booklet at the times called for by the maintenance service indicator display. Failure to have the vehicle maintained in...
  • Page 312 Vehicles equipped with Maintenance System (U.S. vehicles. Canada vehicles, depend- ing on vehicle production date): The Maintenance System in your vehicle tracks distance driven and the time elapsed since your last maintenance service and calculates other maintenance service work required. Vehicles equipped with FSS (Flexible Service System) only (Canada vehicles, depending on ve- hicle production date):...

  • Page 313: Calling Up The Maintenance Service Indicator Display

    Only reset if the proper maintenance service has been performed. Resetting the system without performing the proper service as called for by the maintenance service indicator will result in engine damage and/or other vehicle damage not covered by the Mercedes-Benz Limited Warran-...

  • Page 314: Vehicle Care

    Vehicle care Cleaning and care of the vehicle Regular and proper care will help to maintain the value of your vehicle. The best way to protect your vehicle from harmful environmental influences is to wash it and use protective treatments reg- ularly.
  • Page 315 Post-production treatment is neither necessary nor recommended by Mercedes-Benz because of the possibility of incompatibility between materials used in the production process and others applied later.
  • Page 316 Hand-wash Do not use hot water or wash your vehicle in direct sunlight. Only use a mild car wash detergent, such as Mercedes-Benz approved Car Shampoo. Thoroughly spray the vehicle with a diffused jet of water. Direct only a very weak spray towards the ventilation intake.

  • Page 317: Vehicle Care

    Mercedes-Benz Center. Headlamps, tail lamps, side markers, turn signal lenses Use a mild car wash detergent, such as Mercedes-Benz approved Car Shampoo, with plenty of water. Only use window cleaning solutions that are suitable for plastic lamp lenses. Window cleaning solutions which are not suitable may damage the plastic lamp lenses of the headlamps.
  • Page 318 To do so, please drive your vehicle for several minutes to allow the brakes to dry. When applying Mercedes-Benz approved Tire Care and Mercedes-Benz approved Wheel Care products, take care not to spray them on the brake disks.
  • Page 319 Otherwise you may scratch or damage the surface. Hard plastic trim items Use Mercedes-Benz approved Interior Care, a soft, lint-free cloth and apply with light pressure. Never apply strong force and only use a soft, non-scratching cloth when cleaning the surface.
  • Page 320 Wipe with a damp cloth and dry thoroughly or clean with Mercedes-Benz approved Leather Care. Carpets Use Mercedes-Benz approved Carpet and Fabric Care for cleaning the carpets. Headliner and shelf below rear window Use a soft bristle brush or a dry-shampoo cleaner in case of excessive dirt.
  • Page 321 Warning! Only use seat or head restraint covers which have been tested and approved by Mercedes-Benz for your vehicle model. Using other seat or head restraint covers may interfere with or prevent the activation of the active head restraints. Contact an authorized Mercedes-Benz Center for availability.

  • Page 322: Practical Hints

    Practical hints What to do if … Where will I find ...? Unlocking/locking in an emergency Opening/closing in an emergency Resetting activated head restraints Replacing SmartKey batteries Replacing bulbs Replacing wiper blades Flat tire Battery Jump starting Towing the vehicle Fuses...

  • Page 323: What To Do If

    Read and observe messages in the multifunction display ( page 333). Have the system checked at an autho- rized Mercedes-Benz Center as soon as possible. Failure to follow these instructions increases the risk of an accident. Switch off electrical consumers that are currently not needed, e.g.
  • Page 324 If the ABS indicator lamp does not go out: Continue driving with added caution. Have the system checked at an autho- rized Mercedes-Benz Center as soon as possible. Failure to follow these instructions in- creases the risk of an accident.
  • Page 325 Suggested solution Release the parking brake ( page 48). Risk of accident! Carefully stop the vehi- cle and notify an authorized Mercedes-Benz Center. Do not add brake fluid! This will not solve the prob- lem.
  • Page 326 Practical hints What to do if … Suggested solution Have the vehicle checked as soon as pos- sible by an authorized Mercedes-Benz Center. An on-board diagnostic connector is used by the service station to link the vehicle to the shop diagnostics system. It allows the...
  • Page 327 The limp-home mode is canceled. You do not need to have your vehicle checked. Check the fuel cap ( page 271). If it is not closed properly: Close the fuel cap. If it is closed properly: Have the fuel system checked by an authorized Mercedes-Benz Center.
  • Page 328 Observer additional messages that may appear in the multifunction display ( page 335). Have the system checked at an authorized Mercedes-Benz Center as soon as possible. When driving off, apply as little throttle as possi- ble. While driving, ease up on the accelerator.
  • Page 329 Practical hints What to do if … Problem The yellow fuel tank reserve warning lamp in the fuel gauge ( page 24) comes on while driving. < The red seat belt telltale comes on for a maximum of 6 seconds after starting the engine.
  • Page 330 Problem < During driving the red seat belt telltale flashes and you addition- ally hear an intermittent warning chime with increasing intensity. After 60 seconds with an unfastened seat belt the warning chime stops sounding and the seat belt telltale illuminates continuously. The seat belt telltale will only go out if both, the driv- er’s and the front passenger’s seat belt are fas- tened, or the vehicle is standing still and a front...
  • Page 331 There is a malfunction in the restraint systems. The air bags or emergency tensioning devices (ETDs) could deploy unexpectedly or fail to deploy in an acci- dent. Suggested solution Drive with added caution to the near- est authorized Mercedes-Benz Center.

  • Page 332: Lamp In Center Console

    Possible cause/conse- Suggested solution quence The system is malfunctioning. Have the system checked as soon as possible by an authorized Mercedes-Benz Center. Also note any messages in the multifunction display and follow corrective steps ( page 333). Practical hints What to do if …...
  • Page 333 If the front passenger front air bag off indicator lamp remains out, have the system checked as soon as pos- sible by an authorized Mercedes-Benz Center. Do not transport a child on the front passenger seat until the system has been repaired.

  • Page 334: Vehicle Status Messages In The Multifunction Display

    Mercedes-Benz Center. Failure to repair condition noted may cause damage not covered by the Mercedes-Benz Limited Warranty, or result in property damage or personal injury.
  • Page 335 If you must continue to drive, please do so with added caution. Visit an authorized Mercedes-Benz Center as soon as possible. Switching on the ignition causes all instrument cluster lamps (except low beam headlamp indicator lamp, high beam headlamp...
  • Page 336 Continue driving with added caution. Wheels will lock during hard braking, reducing steering capability. Have the system checked at an autho- rized Mercedes-Benz Center as soon as possible. Failure to follow these instructions in- creases the risk of an accident.
  • Page 337 If the message does not disappear: Continue driving with added caution. Have the system checked at an autho- rized Mercedes-Benz Center as soon as possible. Failure to follow these instructions increas- es the risk of an accident.
  • Page 338 Display message Possible cause/consequence Front-pass. Front passenger front air bag is airbag activated while driving even though enabled a child, small individual, or object below the system’s weight threshold is on the front passenger Operator’s Manual seat, or the front passenger seat is empty.
  • Page 339 56 indicator lamp will remain illuminated or go out. If above conditions are not met, the system is not working properly. Have the system checked as soon as possible by an authorized Mercedes-Benz Center. out even after performing the above correc-...
  • Page 340 Display message Possible cause/consequence Front-pass. Front passenger front air bag is deac- airbag tivated while driving even though an disabled adult or someone larger than a small individual is occupying the front pas- Operator’s senger seat. Forces acting on the Manual seat may make the system sense a decrease in weight.
  • Page 341 56 indicator lamp will remain illuminated or go out. If above conditions are not met, the system is not working properly. Have the system checked as soon as possible by an authorized Mercedes-Benz Center. illuminated with an adult occupant on the...
  • Page 342 Practical hints What to do if … Have the Run Flat Indicator* checked by an authorized Mercedes-Benz Center. Make sure that the correct tire inflation pressure is set for each tire. Then reactivate the Run Flat Indicator*.
  • Page 343 SRS may not be operational. For your safety, we strongly recommend that you visit an authorized Mercedes-Benz Center immediately to have the system checked; otherwise the SRS may not be deployed when needed in an accident,...
  • Page 344 Do not continue to drive. Otherwise the engine will overheat due to an inoperative water pump which may result in damage to the engine. Notify an authorized Mercedes-Benz Center. If it is intact: Drive immediately to the nearest authorized Mercedes-Benz Center.
  • Page 345 ( page 48). Have the brake pads replaced as soon as possible. Risk of accident! Stop the vehicle and notify an authorized Mercedes-Benz Center. Do not add brake fluid! This will not solve the problem. Brake pad thickness must be visually in- spected by a qualified technician at the intervals specified in the Maintenance Booklet.
  • Page 346 Do not ignore the low engine coolant level warning. Extended driving with the message and symbol displayed may cause serious engine damage not covered by the Mercedes-Benz Lim- ited Warranty. Do not drive without sufficient amount of coolant in the cooling system. The engine will overheat causing major engine damage.
  • Page 347 Mercedes-Benz Center. If it is intact: Wait for the message to disappear be- fore restarting the engine. Doing otherwise could result in seri- ous engine damage that is not covered by the Mercedes-Benz Limited War- ranty. (Continued on next page)
  • Page 348 ( page 24). Have the fan replaced as soon as possible. The engine should not be operated with the coolant temperature above 248°F (120°C). Do- ing so may cause serious engine damage which is not covered by the Mercedes-Benz Limited Warranty.
  • Page 349 If you must add engine oil frequently, have the engine checked for possible leaks. The engine oil level warnings should not be ignored. Extended driving with the symbol dis- played could result in serious engine damage that is not covered by the Mercedes-Benz Limit- ed Warranty.
  • Page 350 Mercedes-Benz Center. Remove the SmartKey from the starter switch. Change the SmartKey. Contact an authorized Mercedes-Benz Center as soon as possible. In the control system, set lamp opera- tion to manual mode ( page 139). Switch on the headlamps using the exterior lamp switch.
  • Page 351 Replace the bulb as soon as possible ( page 373). Replace the bulb as soon as possible ( page 373). Contact an authorized Mercedes-Benz Center as soon as possible. Contact an authorized Mercedes-Benz Center as soon as possible. Contact an authorized Mercedes-Benz Center as soon as possible.
  • Page 352 Replace the bulb as soon as possible ( page 374). Replace the bulb as soon as possible ( page 370). Bi-Xenon* headlamp: Contact an authorized Mercedes-Benz Center as soon as possible. Halogen headlamp: Replace the bulb as soon as possible ( page 370).
  • Page 353 Practical hints What to do if … Display symbol Display message Rear fog lamp Auxiliary bulb Reverse lamp left Reverse lamp right Switch off lights Tail lamp left Auxiliary bulb Tail lamp right Auxiliary bulb Possible cause/consequence The rear fog lamp is malfunctioning. A substitute bulb is being used.
  • Page 354 Replace the bulb as soon as possible ( page 371). Replace the bulb as soon as possible ( page 371). Contact an authorized Mercedes-Benz Center as soon as possible. Contact an authorized Mercedes-Benz Center as soon as possible. Replace the bulb as soon as possible ( page 373).
  • Page 355 Do not add steering oil without checking the steering system. Do not drive the vehicle. Have the system checked at an authorized Mercedes-Benz Center as soon as possible. Possible cause/consequence The steering gear oil level is too low.
  • Page 356 The fluid level has dropped to about of total reservoir capacity. Practical hints What to do if … Possible solution Have the Tele Aid system* checked by an authorized Mercedes-Benz Center. Add washer fluid ( page 280).

  • Page 357: Where Will I Find

    Practical hints Where will I find ...? First aid kit The first aid kit is located in the trunk on the left side secured by a hook and loop fastener. 1 First aid kit 2 Hook and loop fastener Unfasten hook and loop fastener 2. Remove first aid kit 1.
  • Page 358 3 Arrow 4 Minispare wheel with spare wheel bolts in container on wheel rim 5 Vehicle tool kit storage well casing 6 Vehicle tool kit Remove vehicle tool kit 6. Storing the vehicle tool kit Place vehicle tool kit 6 in vehicle tool kit storage well casing 5.
  • Page 359 Practical hints Where will I find ...? The vehicle jack is located in the storage compartment underneath the trunk floor. Storage position Turn crank handle in direction of arrow as far as it will go. Push crank handle up. Operational position Turn crank handle clockwise.

  • Page 360: Minispare Wheel

    Tilt both plates upward 1. Fold the lower plate outward 2. Guide the tabs of the lower plate all the way into the openings of the base plate 3. For information on where to place wheel chocks when changing a wheel, see “Lift- ing the vehicle”...

  • Page 361: Where Will I Find

    Practical hints Where will I find ...? Storing the Minispare wheel Place Minispare wheel 3 in wheel well. Place vehicle tool kit storage well casing 4 over the Minispare wheel. Make sure arrow 2 on vehicle tool kit storage well casing 4 points in the direction of travel.

  • Page 362: Unlocking/Locking In An Emergency

    Unlocking/locking in an emergency Unlocking the vehicle If you are unable to unlock the vehicle with the SmartKey, open the driver’s door and the trunk using the mechanical key. Unlocking and opening the driver’s door and/or the trunk with the mechanical key will trigger the anti-theft alarm system*.

  • Page 363: Locking The Vehicle

    Practical hints Unlocking/locking in an emergency Unlocking and opening the trunk A minimum height clearance of 5.71 ft (1.74 m) is required to open the trunk lid. The trunk lid lock is located next to the handle above the rear license plate recess. 1 Unlocking in an emergency 2 Handle Insert the mechanical key into the...

  • Page 364: Manually Unlocking The Transmission Gear Selector Lever

    1 Locking Insert the mechanical key into the driver’s door lock until it stops. Turn the mechanical key clockwise to position 1. The driver’s door is locked. This procedure does not arm the anti-theft alarm system, nor does it lock the fuel filler flap. Manually unlocking the transmission gear selector lever In case of power failure, the transmission...

  • Page 365: Opening/Closing In An Emergency

    Practical hints Opening/closing in an emergency Power tilt/sliding sunroof* You can open or close the tilt/sliding sunroof manually should an electrical malfunction occur. The tilt/sliding sunroof drive is located behind the lens 1 of the interior overhead light. 1 Lens Remove SmartKey from the starter switch.

  • Page 366: Resetting Activated Head Restraints

    For your convenience, we recommend that you have this work carried out by an authorized Mercedes-Benz Center. You will find the reset tool for manually operating the active head restraints in the Mercedes-Benz vehicle literature pouch. Warning! For safety reasons, have the active head re-...

  • Page 367: Replacing Smartkey Batteries

    When replacing batteries, always replace both batteries of both SmartKeys. The required replacement batteries are available at any Mercedes-Benz Center. SmartKey Replacement batteries: Lithium, type CR 2025 or equivalent. Remove the mechanical key from the SmartKey ( page 361).

  • Page 368: Replacing Bulbs

    Correct headlamp adjustment is extremely important. Have headlamps checked and readjusted at regular intervals and when a bulb has been replaced. See an authorized Mercedes-Benz Center for headlamp adjustment. Practical hints Replacing bulbs If the headlamps or front fog lamps are...

  • Page 369: Bulbs

    W 5 W lamp Vehicles with Bi-Xenon* headlamps: Low beam and high beam use the same D2S-35W lamp. Do not replace the Xenon bulbs yourself. Contact an authorized Mercedes-Benz Center. Lamp Type 5 Front fog lamp HB4 (51 W) Corner-illuminating...
  • Page 370 Xenon* lamps Front fog lamps Front side marker lamps Practical hints Replacing bulbs Do not replace the LEDs yourself. You could otherwise damage the LEDs or parts of the vehicle. Only have the LEDs replaced by an authorized Mercedes-Benz Center.

  • Page 371: Replacing Bulbs For Front Lamps

    Practical hints Replacing bulbs Replacing bulbs for front lamps Before you start to replace a bulb for a front lamp, do the following first: Turn the exterior lamp switch to position M ( page 109). Open the hood ( page 274). Halogen headlamp 1 Housing cover for low beam headlamp 2 Housing cover for high beam head-...
  • Page 372 High beam bulb Press the clamp on housing cover 2 and remove it. Pull the electrical connector off. Turn bulb socket 5 counterclockwise and take out the bulb. Insert the new bulb so that its socket locates in the recess of the lamp housing.
  • Page 373 Practical hints Replacing bulbs Bi-Xenon* headlamp Warning! Do not remove the cover 1 for the Bi-Xenon headlamp. Because of high voltage in Bi-Xenon lamps, it is dangerous to replace the bulb or repair the lamp and its compo- nents. We recommend that you have such work done by a qualified technician.

  • Page 374: Replacing Bulbs For Rear Lamps

    If a malfunction occurs or LEDs fail to function, the entire turn signal unit must be replaced. Have the turn signal unit replaced by an authorized Mercedes-Benz Center. Front side marker lamp bulbs Since replacing the side marker lamp bulbs...
  • Page 375 Practical hints Replacing bulbs Fold the corresponding trim panel to the side. Turn latch 1 to vertical position and remove the bulb carrier. Bulb carrier 2 Brake lamp bulb 3 Backup lamp bulb 4 Rear fog lamp (driver’s side only), tail and standing lamp bulb 5 Parking and side marker lamp bulb 6 Turn signal lamp bulb...

  • Page 376: Replacing Wiper Blades

    Never open the hood when the wiper arms are folded forward. For your convenience, we recommend that you have this work carried out by an authorized Mercedes-Benz Center. Remove SmartKey from starter switch. Removing wiper blades Do not pull on the wiper blade inserts. They could tear.
  • Page 377 Practical hints Replacing wiper blades Installing wiper blades 1 Recess 2 Tab 3 Locking 4 Taper piece 5 Square recess Lift up the wiper arm as far as you need to position the wiper blade under the wiper arm and hold it. Hold on to the wiper arm.

  • Page 378: Flat Tire

    50 mph (80 km/h). Drive to the nearest Mercedes-Benz Center as soon as possible to have the Minispare wheel replaced with a regular road wheel. Never operate the vehicle with more than one Minispare wheel mounted.
  • Page 379 Practical hints Flat tire Lifting the vehicle Prevent the vehicle from rolling away by blocking wheels with wheel chocks or other sizable objects. One wheel chock is included with the vehicle tool kit ( page 356). When changing wheel on a level surface: Place the wheel chock in front of and another sizable object behind the wheel that is diagonally opposite to the...
  • Page 380 1 Take-up bracket 2 Jack Place jack 2 on firm ground. Position jack 2 under take-up bracket 1 so that it is always vertical (plumb-line) as seen from the side, even if the vehicle is parked on an incline. Jack up the vehicle until the wheel is a maximum of 1.2 in (3 cm) from the ground.
  • Page 381 Never apply oil or grease to wheel bolts. Damaged wheel hub threads should be repaired immediately. Do not continue to drive under these circumstances! Contact an authorized Mercedes-Benz Center or call Roadside Assistance. Incorrect wheel bolts or improperly tight- ened wheel bolts can cause the wheel to come off.
  • Page 382 Unscrew the alignment bolt, install last wheel bolt and tighten slightly. Warning! Only use genuine equipment Mercedes-Benz wheel bolts. Other wheel bolts may come loose. Do not tighten the wheel bolts when the vehicle is raised. Otherwise the vehicle could fall off the jack.

  • Page 383: Moextended System

    After driving in emergency mode, you must have the rims inspected by an authorized Mercedes-Benz Center to check if they are suitable for further use. The failed tire must be replaced in any case.

  • Page 384: Battery

    SmartKey is in the starter switch. Otherwise the alternator and other electronic components could be severely damaged. Have the battery checked regularly by an autho- rized Mercedes-Benz Center. Refer to Maintenance Booklet for maintenance intervals or contact an authorized Mercedes-Benz Center for further information.

  • Page 385: Disconnecting The Battery

    Practical hints Battery 2 Negative terminal 3 Positive terminal cover Disconnecting the battery Warning! With a disconnected battery you will no longer be able to turn the SmartKey in the starter switch automatic transmission*: the gear se- lector lever will remain locked in position P Always disconnect the battery in the order described below.

  • Page 386: Charging And Reinstalling The Battery

    Warning! Never charge a battery while still installed in the vehicle unless the accessory battery charge unit approved by Mercedes-Benz is being used. Gases may escape during charg- ing and cause explosions that may result in paint damage, corrosion or personal injury.

  • Page 387: Jump Starting

    (12V). Jump starting with a higher voltage battery could damage the vehicle’s electrical system, which will not be covered by the Mercedes-Benz Limited Warranty. Only use jumper cables with sufficient cross-section and insulated terminal clamps. Always make sure the jumper cables...
  • Page 388 Remove the jumper cables first from the negative terminals 3 and 4 and then from the positive terminals 2 and 1. You can now switch on the headlamps. Have the battery checked at the near- est authorized Mercedes-Benz Center.

  • Page 389: Towing The Vehicle

    Do not tow with one axle raised. Doing so could damage the transfer case, which is not covered by the Mercedes-Benz Limited Warranty. All wheels must be on or off the ground. Observe instructions for towing the vehicle with all wheels on the ground.
  • Page 390 Warning! If circumstances require towing the vehicle with all wheels on the ground, always tow with a tow bar if: the engine will not run there is a malfunction in the power supply or in the vehicle’s electrical system as that will be necessary to adequately control the towed vehicle.

  • Page 391: Installing Towing Eye Bolt

    Practical hints Towing the vehicle Installing towing eye bolt 1 Cover on right side of front bumper 2 Cover on right side of rear bumper Removing cover Press mark on cover 1 or 2 in direction of arrows. Lift cover off to reveal the threaded hole for towing eye bolt.

  • Page 392: Fuses

    (recognizable by its color or the fuse rating given on the fuse) of the amperage recommended in the fuse chart. Any Mercedes-Benz Center will be glad to advise you on this subject. If a newly inserted fuse blows again, have the cause determined and rectified by an authorized Mercedes-Benz Center.

  • Page 393: Main Fuse Box In Passenger Compartment

    Practical hints Fuses Main fuse box in passenger compartment The main fuse box is located in the passen- ger compartment on the driver’s side of the cockpit. 1 Main fuse box cover Opening fuse box Open the driver’s door. Pull fuse box cover 1 open with a screw driver or similar tool (see arrow).
  • Page 394 Opening fuse box 4 Fuse box cover 5 Clamps With a dry cloth, remove any moisture from the fuse box. Release clamps 5. Remove fuse box cover 4. Closing fuse box Make sure that the sealing rubber is properly positioned. Press fuse box cover 4 down and secure with clamps 5.

  • Page 395: Fuse Box In Trunk

    Practical hints Fuses Fuse box in trunk The fuse box is located in the trunk behind the left-hand trim panel. 1 Trim panel 2 Fuse extractor 3 Fuse box cover Opening fuse box Pull away trim panel 1. Remove fuse box cover 3. Closing fuse box Insert fuse box cover 3.

  • Page 396: Technical Data

    Technical data Parts service Warranty coverage Identification labels Layout of poly-V-belt drive Engine Rims and Tires Electrical system Main dimensions and weights Weights Fuels, coolants, lubricants, etc.

  • Page 397: Parts Service

    Therefore, Genuine Mercedes-Benz parts should be installed. The use of non-genuine Mercedes-Benz parts and accessories not authorized by Mercedes-Benz could damage the vehicle, which is not covered by the Mercedes-Benz Limited Warranty, or could compromise the vehicle’s durability or safety.

  • Page 398: Warranty Coverage

    Emission System Warranty Emission Performance Warranty California, Maine, Massachusetts, and Vermont Emission Control Systems Warranty Replacement parts and accessories are covered by the Mercedes-Benz Parts and Accessories warranties, copies of which are available at any Mercedes-Benz Center. Technical data Warranty coverage...

  • Page 399: Identification Labels

    Technical data Identification labels 1 Certification label (on driver’s B-pillar) The Vehicle Identification Number (VIN) can be found in the following locations: on the certification label. embossed underneath the carpet in front of the front passenger seat ( page 399). on the lower edge of the windshield ( page 399).
  • Page 400 4 Carpet 5 VIN Move the front passenger seat to the rear as far as possible. Fold carpet 4 in direction of arrow. VIN 5 is visible. 6 Emission control information label, includes both federal and California certification exhaust emission standards 7 Vacuum line routing diagram label 8 Engine number (engraved on engine)

  • Page 401: Layout Of Poly-V-Belt Drive

    Technical data Layout of poly-V-belt drive All models 1 Idler pulley 2 Idler pulley 3 Automatic belt tensioner 4 Power steering pump 5 Air conditioning compressor 6 Crankshaft 7 Coolant pump 8 Generator (alternator)

  • Page 402: Engine

    Firing order Poly-V-belt The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment. Premium fuel required. Performance may vary with fuel octane rating. C 230 (203.052) C 230 Sport (203.052)
  • Page 403 Maximum engine speed Firing order Poly-V-belt The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment. Premium fuel required. Performance may vary with fuel octane rating.

  • Page 404: Rims And Tires

    ® cle such as ABS or ESP . Tires specially developed for your vehicle and tested and ap- proved by Mercedes-Benz can be identified by finding the following on the tire’s sidewall: MO = Mercedes-Benz Original equipment tires MOE = Mercedes-Benz Original Extended (tires with limited run-flat characteristics) original equipment tires.

  • Page 405: Same Size Tires

    Technical data Rims and Tires Same size tires Model Rims (light alloy) Wheel offset All-season tires Winter tires Radial-ply tires Not available as factory equipment. Must be used in conjunction with Run Flat Indicator* only. C 230 C 280 C 280 4MATIC C 350 C 350 4MATIC 7 J x 16 H2...

  • Page 406: Mixed Size Tires

    Mixed size tires Model Front axle: Rims (light alloy) Wheel offset Summer tires Rear axle: Rims Wheel offset Summer tires Radial-ply tires Must be used in conjunction with Run Flat Indicator* only. Must not be used with snow chains. C 230 Sport C 350 Sport 7.5 J x 17 H2 1.42 in (36 mm)

  • Page 407: Minispare Wheel

    Technical data Rims and Tires Minispare wheel Model Rim (steel) Wheel offset Tire Must not be used with snow chains. Please compare the recommended tire in- flation pressure for your vehicle with the tire in- flation pressure on the yellow label located on the spare wheel rim.

  • Page 408: Electrical System

    Electrical system Model Generator (alternator) Starter motor Battery Spark plugs Electrode gap Tightening torque all models 14 V/150 A 12 V/1.4 kW 12 V/100 Ah Bosch Platin Y 7 MPP 33 NGK PLKR 6A 0.031 in (0.8 mm) 18 – 22 lb-ft (25 – 30 Nm) Technical data Electrical system...

  • Page 409: Main Dimensions And Weights

    Technical data Main dimensions and weights Main dimensions Model C 230 C 230 Sport Overall vehicle length 178.4 in (4532 mm) Overall vehicle width (exte- 77.8 in (1977 mm) rior rear view mirrors fold- ed out) Overall vehicle height 55.6 in (1413 mm) Wheelbase 106.9 in (2715 mm) Track, front...

  • Page 410: Fuels, Coolants, Lubricants, Etc

    Therefore only use products tested and approved by Mercedes-Benz. Please refer to the Factory Approved Service Products pamphlet, or inquire at your Mercedes-Benz Center. Engine with oil filter Automatic transmission Manual transmission Warning! Comply with all valid regulations with respect to handling, storing, and disposing of service fluids.
  • Page 411 Technical data Fuels, coolants, lubricants, etc. Rear axle Front axle Transfer case Power steering Front wheel hubs Brake system Cooling system Model Capacity C 230 (all models) 1.0 US qt (1.0 l) C 280 (all models) 1.2 US qt (1.1 l) C 350 1.2 US qt (1.1 l) C 350 Sport...
  • Page 412 Fuel tank including a reserve of Air conditioning system Windshield washer Windshield washer and headlamp cleaning system* Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing point or MB Windshield Washer Concentrate “MB SummerFit” and commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios ( Model Capacity 16.4 US gal (62.0 l)

  • Page 413: Engine Oils

    For a listing of approved engine oils and oil filters, refer to the Factory Ap- proved Service Products pamphlet, or con- tact an authorized Mercedes-Benz Center. Using engine oils and oil filters of specifica- tion other than those expressly required for the Maintenance System (U.S.

  • Page 414: Premium Unleaded Gasoline

    Fuels, coolants, lubricants, etc. Gasoline additives A major concern among engine manufacturers is carbon build-up caused by gasoline. Mercedes-Benz recommends only the use of quality gasoline containing additives that prevent the build-up of carbon deposits. After an extended period of using fuels...

  • Page 415: Fuel Requirements

    In areas where carbon deposits may be encountered due to lack of availability of gasolines which contain these additives, Mercedes-Benz recommends the use of additives approved by us for use on Mercedes-Benz vehicles. Refer to Factory Approved Service Products pamphlet for a listing of approved product(s).
  • Page 416 Use of E85 may reduce your driving range. Maintenance Please inform your authorized Mercedes-Benz Center if you use or have used E85 fuel when your vehicle is deliv- ered for maintenance or repairs. Technical data Fuels, coolants, lubricants, etc.

  • Page 417: Coolants

    Add premixed coolant solution only. Adding water and MB 325.0 Anticorrosion/Antifreeze separately from each other, could cause engine damage not covered by the Mercedes-Benz Limited Warranty If the antifreeze mixture is effective to -22°F (-30°C), the boiling point of the coolant in the pressurized cooling system is reached at approx.
  • Page 418 The coolant is also regularly checked each time you bring your vehicle to an authorized Mercedes-Benz Center for service. Technical data Fuels, coolants, lubricants, etc. Anticorrosion/antifreeze quantity Model Approx.

  • Page 419: Windshield Washer And Headlamp Cleaning System

    Technical data Fuels, coolants, lubricants, etc. Windshield washer and headlamp cleaning system* Both the windshield washer and headlamp cleaning system* are supplied from the windshield washer fluid reservoir. The washer fluid reservoir has a capacity of approx.: 3.2 US qt (3.0 l) in vehicles without headlamp cleaning system* 6.4 US qt (6.0 l) in vehicles with headlamp cleaning system*...

  • Page 420: Index

    ABS 25, 82 Malfunction indicator lamp 322, 323 Messages in display 335 Accelerator position, automatic transmission 155 Accessory weight 304 Accident In case of 53 Active head restraints see Head restraints Additional turn signals 368 Air bags 59 Children 75 Front passenger front air bag off indicator lamp 27, 68, 331 Front, Driver 63...
  • Page 421 Index Audio system 187 Audio and telephone, operation 187 Button and soft key operation 190 CD changer* with MP3 202 CD operation 201 Operating and display elements 188 Operating audio system 190 Operating safety 187 Radio operation 194 Telephone* operation 208 Auto-dimming mirror* 161 Automatic central locking Activating/deactivating...
  • Page 422 Brake fluid 412 Checking 273 Message in display 344 Brake lamps Cleaning lenses 316 Replacing bulbs 373 Brake pads Message in display 344 Brakes 262 Warning lamp 25, 324 Break-in period 260 Bulbs, replacing see Replacing bulbs California retail buyers and lessees, important notice 11 Cargo area see Trunk Cargo tie-down rings* 236...
  • Page 423 Index COMAND* see separate COMAND operating instructions Combination switch 50, 113 Control system 121 Multifunction display 121 Multifunction steering wheel 122 Resetting to factory default 131 Control system menu 121 AUDIO 127 Menus overview 124 NAV* 129 Settings 131 Standard display 126 TEL* 146 Trip computer 144 Vehicle status...
  • Page 424 Displays Digital speedometer 126 Maintenance service indicator 310 Multifunction display 121 Outside temperature 126 Symbol messages 343 Text messages 335 Vehicle status messages memory 130, 333 Distance to empty (range), Trip computer 146 Door control panel 30 Doors Entry lamps 117 Locking/unlocking, SmartKey 92 Opening from inside/outside 93, 96 Remote door unlock (Tele Aid*) 252...
  • Page 425 Index Emergency, in case of Battery, Jump starting 386 First aid kit 322, 356 Flat tire, Changing 377 Fuses 391 Hazard warning flasher 115 Instrument cluster, Indicator lamps 322–330 Roadside Assistance 12, 250 Towing the vehicle 388 Emission control 270 Information label 399 System warranties 10 Engine...
  • Page 426 Fog lamps 112 Message in display 350, 352 Replacing bulbs 368 Four wheel electronic traction system ® (4MATIC) with ESP 4MATIC 88 Front air bags 63 Front lamps see Headlamps Front passenger front air bag 63 Messages in display 337–340 Front passenger front air bag off indicator lamp 27, 68, 331, 332 Front seat head restraints see...
  • Page 427 Index Halogen headlamp see Headlamps Hands-free microphone 29 Hard plastic trim items, cleaning 318 Hazard warning flasher 115 Head restraints 36, 101 Active head restraint 73, 365 Front seat, Removing and installing 101 Manual seat, Adjusting 36 Power seat*, Adjusting 37 Rear seat, Folding back 102 Rear seat, Removing and installing 104...
  • Page 428 Interior lighting 116 Delayed shut-off 142 Interior rear view mirror 42 Antiglare positions 160 Auto-dimming mirrors* 161 Interior storage spaces see Storage compartment Jack 356 Jacking up the vehicle 378 Jump starting 386 Key, mechanical 361 Key, SmartKey Batteries 95 Battery check lamp 95 Changing batteries 366 Factory setting 93...
  • Page 429 Index SRS 25, 59, 330 Turn signals 25 Language, Setting 134 LATCH-type child seat anchors see Children in the vehicle Leather upholstery, Cleaning and care of 320 License plate lamps Messages in display 351 Replacing bulbs 368 Light alloy wheels Cleaning 317 Technical data 404, 405 Light sensor 349...
  • Page 430 MOE tires* see MOExtended system* MOE* see MOExtended system* MOExtended system* 382 MOExtended tires* 403 Multicontour seats* (Canada only) 105 Multifunction display 121 Changing settings see Control system menus and Control system submenus Multifunction display messages ABS 335 Brake fluid 344 Brake lamps 349 Brake pads 344 Coolant 345–347...
  • Page 431 Index Paintwork code 398 Paintwork, Cleaning 314 Panic alarm* 81 Parcel net In front passenger footwell 239 Parking 54, 264 Parking brake 48, 54 Engaging 54 Message in display 344 Releasing 48 Parking lamps Messages in display 351 Replacing bulbs 368 Parts service 396 Passenger compartment 268 Interior lighting 116...
  • Page 432 Radio Operation 190, 194 Search function 142 Selecting stations (Control system) 127 Radio transmitters 268 Range (distance to empty) 146 Reading lamp 116, 117 Rear bench seat, foldable* 233 Rear door window Blocking operation 80 Rear fog lamp see Fog lamps Rear lamps see Tail lamps Rear outer seats Adjusting head restraint height 102...
  • Page 433 Index Safety Driving safety systems 82 Occupant 58 Reporting defects 18 Safety belts see Seat belts Satellite radio* 197 Seat belt force limiter 72 Seat belts 69 Children in the vehicle 74 Cleaning 319 Fastening 43 Height adjustment 45 Proper use of 45, 70 Safety guidelines 62 Telltale 25 Seat heating* 106...
  • Page 434 Side marker lamps Cleaning lenses 316 Messages in display 350 Replacing bulbs 373 Side windows see Power windows Sidewall 306 Ski sack* (Canada only) 230, 232, 233 SmartKey see Key, SmartKey Snow chains 309 Sound system* 191 Spare fuses 391 Spare wheel 406 Bolts 360 Mounting 377...
  • Page 435 Index Tachometer 25, 120 Overspeed range 120 Tail lamps Cleaning 316 Messages in display 352 Replacing bulbs 368, 373 Tar stains 314 Technical data Air conditioning refrigerant 412 Brake fluid 412 Coolant 409, 410, 416 Electrical system 407 Engine 401 Engine oil additives 412 Engine oils 412 Flexible fuel vehicles 414...
  • Page 436 Important notes, Tire inflation pressure 290 Inflation pressure 273, 289, 290 Information Placard 285 Inspection 282 Load rating 306 MOExtended system* 382 MOExtended* 294, 403 Ply composition and material used 306 Problems under-/overinflation 294 Retreads 281 Rims and tires 403 Rotating 307 Run Flat Indicator* 291 Service life 282...
  • Page 437 Index Individual settings 131, 132 Locking/unlocking 100 Locking/unlocking in an emergency 361, 362 Lowering 381 Modifications and alterations, Operating safety 16 Towing 388 Washing 314, 315 Weights 408 With flexible fuel 414 Vehicle jack 357 Vehicle lighting 273 Vehicle loading Cargo tie-down rings* 236 Instructions 235, 284 Load limit 408...
  • Page 440 If you have questions about carrying out any type of service, turn to the advice of an authorized Mercedes-Benz Center.

This manual is also suitable for:

2007 c 280 4matic2007 c 2802007 c 350 4matic2007 c 3502007 c-class2007 c 230 sport ... Show all

Table of Contents

Save PDF
