Sommer\ Corporate\ Media\ AG

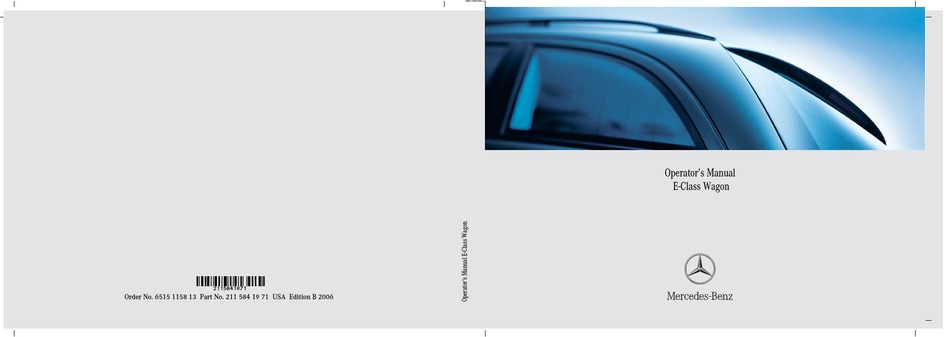

Operator's Manual

E-Class Wagon

Ê5/t3g/Ë

2115841971

Order No. 6515 1158 13 Part No. 211 584 19 71 USA Edition B 2006

Table of Contents

Advertisement

Chapters

Table of Contents

Need help?

Need help?

Do you have a question about the 2006 E -Class Wagon and is the answer not in the manual?

Questions and answers

Summary of Contents for Mercedes-Benz 2006 E -Class Wagon

Page 1 Sommer\ Corporate\ Media\ AG Operator’s Manual E-Class Wagon Ê5/t3g/Ë 2115841971 Order No. 6515 1158 13 Part No. 211 584 19 71 USA Edition B 2006...
Page 2 E 350 E 350 4MATIC E 500 4MATIC E 55 AMG...
Page 3 Your Mercedes-Benz represents the ef- forts of many skilled engineers and crafts- men. To help assure your driving pleasure, as well as your and your passengers' safe-...
Page 4: Table Of Contents
Operator’s Manual ... 10 Service and warranty information .. 10 Important notice for California retail buyers and lessees of Mercedes-Benz automobiles ... 11 Maintenance ... 12 Roadside Assistance ... 12 Change of address or ownership... 12 Operating your vehicle outside the USA or Canada...
Page 5 Contents Safety and Security ... 65 Occupant safety... 66 Air bags ... 67 Seat belts ... 72 Active head restraints ... 76 Children in the vehicle... 77 Blocking of rear door window operation... 89 Panic alarm ... 90 Activating ... 90 Deactivating ...
Page 6 Control system ... 155 Multifunction display... 155 Multifunction steering wheel... 156 Menus ... 158 Standard display menu ... 161 AUDIO menu ... 161 NAV* menu... 163 Distronic* menu... 163 Vehicle status message memory menu... 164 Settings menu... 165 Trip computer menu... 180 TEL menu* ...
Page 7 Contents Driving systems ... 239 Cruise control... 239 Distronic*... 243 Airmatic DC (Dual Control)* ... 255 Loading ... 260 Split rear bench seat ... 260 Expanding the cargo compartment... 262 Loading instructions... 263 Cargo tie-down rings ... 264 Cargo management system* (Canada only) ...
Page 8 Maximum tire inflation pressure .. 347 Uniform Tire Quality Grading Standards (U.S. vehicles) ... 348 Tire ply material ... 350 Tire and loading terminology... 350 Rotating tires ... 353 Winter driving ... 355 Winter tires ... 355 Block heater* (Canada only) ... 356 Snow chains...
Page 9 Contents Fuses ... 462 Aids for replacing fuses... 462 Main fuse box in passenger compartment... 463 Fuse box in cargo compartment... 463 Technical data... 465 Parts service ... 466 Warranty coverage... 467 Loss of Service and Warranty Information Booklet... 467 Identification labels...
Page 10: Introduction
Product information Please observe the following in your own best interest: We recommend using Genuine Mercedes-Benz parts as well as conversion parts and accessories explicitly approved by us for your vehicle model. We have tested these parts to determine their reliability, safety and special suitability for Mercedes-Benz vehicles.
Page 11: Operator's Manual
Therefore, you may find explanations for optional equipment not installed in your vehicle. If you have any questions about the operation of any equipment, your au- thorized Mercedes-Benz Center will be glad to demonstrate the proper proce- dures. We continuously strive to improve our...
Page 12: Mercedes-Benz Automobiles
30 calendar days. Written notification should be sent to us, not a dealer, at Mercedes-Benz USA, LLC, Customer Assistance Center, One Mercedes Drive, Montvale, NJ 07645-0350.
Page 13: Maintenance
Always have the Maintenance Booklet with you when you take the vehicle to your au- thorized Mercedes-Benz Center for ser- vice. The service advisor will record each service in the booklet for you. Roadside Assistance...
Page 14: Operating Your Vehicle Outside The Usa Or Canada
Certain Mercedes-Benz models are avail- able for delivery in Europe under our Euro- pean Delivery Program. For details, consult your authorized Mercedes-Benz Center or...
Page 15: Where To Find It
Here you will find all the information you need for your first drive. You should read this section first if this is your first Mercedes-Benz vehicle or if you are rent- ing or borrowing this vehicle. Safety and Security Here you will find descriptions of the safety and security features of your vehicle.
Page 16: Symbols
Symbols ® Registered trademarks ® is a registered trademark of DaimlerChrysler. ® HomeLink is a registered trademark of Prince, a Johnson Controls Compa- The following symbols are found in this Operator’s Manual: Optional equipment is identified with an asterisk. Since standard equipment varies between models, the descriptions and illustrations in this manual may differ slightly from...
Page 17: Operating Safety
Electronic malfunctions could seri- ously impair the operating safety of your vehicle. See your authorized Mercedes-Benz Center for repairs or modifications to electronic components. Other improper work or modifications on the vehicle could also have a negative impact on the operating safety of the vehicle.
Page 18: Problems With Your Vehicle
If you should experience a problem with your vehicle, particularly one that you believe may affect its safe operation, we urge you to immediately contact an authorized Mercedes-Benz Center to have the problem diagnosed and corrected if required. If the matter is...
Page 19: Reporting Safety Defects
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Mercedes-Benz USA, LLC. If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 20: Vehicle Data Recording
Vehicle data recording Information regarding electronic recording devices (Including notice pursuant to California Code § 9951) Please note that your vehicle is equipped with devices that can record vehicle systems data and, if equipped with the Tele Aid system, may transmit some data in certain accidents. This information helps, for example, to diagnose vehicle systems after a collision and to continuously improve vehicle safety.
Page 22: At A Glance
At a glance Cockpit Instrument cluster Multifunction steering wheel Center console Overhead control panel Storage compartments Door control panel...
Page 23: Cockpit
At a glance Cockpit...
Page 24 Item Page 1 Parking brake pedal 52, 60 2 Hood lock release 3 Steering wheel adjustment stalk Heated steering wheel* 4 Parking brake release 5 Combination switch Turn signals Windshield wipers High beam 6 Door control panel 7 Exterior lamp switch Item Page 8 Headlamp washer button*...
Page 25: Instrument Cluster
At a glance Instrument cluster...
Page 26 Item Page 1 L Left turn signal indicator lamp ® 2 v ABS/ESP warning lamp 3 Speedometer 4 Multifunction display 5 l Distance warning lamp Vehicles without Distronic*: Warning lamp without func- tion. It illuminates when the ignition is on. It should go out when the engine is running.
Page 27: Multifunction Steering Wheel
At a glance Multifunction steering wheel Item Page 1 Multifunction display in speedometer Operating control system 2 Selecting the submenu or setting the volume: Press button æ up/to increase ç down/to decrease 3 Telephone*: Press button s to take a call to dial a call t to end a call to reject an incoming...
Page 28: Important Notice For California Center Console
Center console Upper part Item Page 1 Dual-zone automatic climate control, USA only 4-zone automatic climate control* 2 COMAND system, see sepa- rate operating instructions 3 Seat heating*, front passen- ger side Seat ventilation*, front pas- senger side 4 Electronic Stability Program ®...
Page 29: Lower Part
At a glance Center console Lower part Item Page 1 Ashtray 2 KEYLESS-GO* start/stop button 3 Gear selector lever for automatic transmission 4 Adaptive Damping System (ADS)* switch Item Page 5 Vehicle level control switch* 6 Thumbwheel for setting distance for Distronic* 7 Distance warning function* on/off switch 8 Program mode selector...
Page 30: Overhead Control Panel
Overhead control panel Item Page 1 Rear interior lighting on/off 2 Automatic interior lighting 3 Front interior lighting on/off 4 Temperature sensor 5 Right reading lamp on/off 6 Tilt/sliding sunroof* 7 Tele Aid (emergency call system) button At a glance Overhead control panel Item Page...
Page 31: Storage Compartments
At a glance Storage compartments...
Page 32 Item Page 1 Glove box 2 Front passenger seat storage compartment with first aid kit 3 Door pocket 4 Ashtray 5 Ruffled storage bag 6 Door pocket 7 Door pocket 8 Ruffled storage bag 9 Ashtray a Door pocket b Driver’s seat storage compart- ment c Sun visor card clip d Storage tray or CD changer*...
Page 33: Door Control Panel
At a glance Door control panel Item Page 1 Door handle 2 Seat adjustment 3 Memory function (for stor- ing seat, exterior mirror and steering wheel settings) 4 Exterior rear view mirror ad- justment 5 Switches for opening/clos- ing front and rear side win- dows, rear window override switch 6 Remote tailgate release...
Page 34: Getting Started
Getting started Unlocking Adjusting Driving Parking and locking...
Page 35: Unlocking
Getting started Unlocking The “Getting started” section provides an overview of the vehicle’s most basic functions. If you are already familiar with the basic functions described here, the “Controls in detail” section will provide you with further information. The corresponding page references are located at the end of each segment.
Page 36: Unlocking With Keyless-Go
The electrohydraulic brake system is activated ( page 96). Get in the vehicle and insert the SmartKey in the starter switch. For more information, see “Locking and unlocking” ( page 106). Unlocking with KEYLESS-GO* With the KEYLESS-GO function, you can lock and unlock the vehicle without using the remote control buttons on the SmartKey and start the engine without in-...
Page 37: Starter Switch Positions
Getting started Unlocking Starter switch positions Warning! When leaving the vehicle, always remove the SmartKey or SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle. Do not leave children unat- tended in the vehicle, or with access to an unlocked vehicle.
Page 38 When you switch on the ignition, the in- dicator and warning lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps unless acti- vated) in the instrument cluster come on. The indicator and warning lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps if...
Page 39 Getting started Unlocking KEYLESS-GO start/stop button 1 USA only 2 Canada only The SmartKey with KEYLESS-GO must be located in the vehicle. Make sure the gear selector lever is set to P. Do not depress the brake pedal. Position 0 Before you press the KEYLESS-GO start/ stop button, the vehicle’s on-board elec- tronics have status 0 (as with SmartKey...
Page 40 When you switch on the ignition, the in- dicator and warning lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps unless acti- vated) in the instrument cluster come on. The indicator and warning lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps if...
Page 41: Adjusting
Getting started Adjusting Warning! All seat, head restraint, steering wheel, and rear view mirror adjustments, as well as fas- tening of seat belts, must be done before the vehicle is put into motion. Seats Warning! Do not adjust the driver’s seat while driving. Adjusting the seat while driving could cause the driver to lose control of the vehicle.
Page 42 Seat adjustment The seat adjustment switches are located on the front doors. 1 Head restraint height 2 Seat height 3 Seat cushion tilt 4 Seat fore and aft adjustment 5 Backrest tilt Switch on the ignition ( page 36). Open the respective door. The memory function ( page 140) lets you store the settings for the seat posi- tion together with the settings for the...
Page 43: Steering Wheel
Getting started Adjusting Head restraint height Press the switch up or down in direc- tion of arrow 1. Adjust the head restraint in such a way that it is as close to the head as possi- ble. Warning! For your protection, drive only with properly positioned head restraints.
Page 44: Steering Wheel Adjustment
Steering wheel adjustment The stalk for steering wheel adjustment is located on the lower left of the steering column. 1 Adjusting steering column, in or out 2 Adjusting steering column, up or down Switch on the ignition ( page 36). Open the driver’s door.
Page 45 Getting started Adjusting Do not leave children unattended in the ve- hicle, or with access to an unlocked vehicle. Children could open the driver’s door and unintentionally activate the easy-entry/exit feature, which could result in an accident and/or serious personal injury. With the easy-entry/exit feature activated, the steering wheel will return to its last set position when you:...
Page 46: Mirrors
Mirrors Adjust the interior and exterior rear view mirrors before driving so that you have a good view of the road and traffic condi- tions. Warning! In case of an accident, liquid electrolyte may escape the mirror housing if the mirror glass breaks.
Page 47 Getting started Adjusting Switch on the ignition ( page 36). Press button 3 for the driver’s side ex- terior rear view mirror or button 1 for the passenger-side exterior rear view mirror. Push adjustment button 2 up, down, left or right according to the desired setting.
Page 48: Driving
Driving Warning! Do not lay any objects in the driver’s foot- well. Be careful that floor mats or carpets in the driver’s footwell have sufficient clear- ance for the pedals. During sudden driving or braking maneuvers the objects could get caught between the pedals.
Page 49 Getting started Driving Warning! Never let more people ride in the vehicle than there are seat belts available. Be sure everyone riding in the vehicle is correctly restrained with a separate seat belt. Never use a seat belt for more than one person at a time.
Page 50 Do not bleach or dye seat belts as this may severely weaken them. In a crash they may not be able to provide adequate protection. Damaged seat belts or belts that were highly stressed in an accident must be replaced. Contact an authorized Mercedes-Benz Center.
Page 51: Starting The Engine
Getting started Driving Starting the engine Warning! Inhalation of exhaust gas is hazardous to your health. All exhaust gas contains carbon monoxide, and inhaling it can cause uncon- sciousness and possible death. Do not run the engine in confined areas (such as a garage) which are not properly ventilated.
Page 52 Starting with KEYLESS-GO* Warning! As long as the SmartKey with KEYLESS-GO is in your vehicle, the vehicle can be started. Therefore, never leave children unattended in the vehicle, as they could otherwise acci- dentally start the engine. When leaving the vehicle, always take the SmartKey with KEYLESS-GO with you and lock the vehicle.
Page 53: Parking Brake
If the engine does not start after several starting attempts, there could be a mal- function in the engine electronics or in the fuel supply system. Notify an authorized Mercedes-Benz Center. Parking brake 1 Parking brake pedal 2 Release handle...
Page 54: Driving
Driving Depress the brake pedal. Move the gear selector lever to position D or R. Wait for the gear selection process to complete before setting the vehicle in motion. Release the brake pedal. Carefully depress the accelerator pedal. Once the vehicle is in motion, the automat- ic central locking system engages and the locking knobs drop down.
Page 55: Switching On Headlamps
Getting started Driving Switching on headlamps Low beam headlamps The exterior lamp switch is located on the dashboard to the left of the steering wheel. Exterior lamp switch 1 Off 2 Low beam headlamps on Turn the exterior lamp switch to position B.
Page 56: Windshield Wipers
The combination switch resets automati- cally after major steering wheel move- ments. To signal minor directional changes such as changing lanes, press the com- bination switch only to point of resis- tance and release. The corresponding turn signals will flash three times. Windshield wipers The combination switch is located on the left of the steering column.
Page 57 Getting started Driving Intermittent wiping Do not leave windshield wipers in intermittent setting when the vehicle is taken to an automatic car wash or during windshield cleaning. Windshield wipers will operate in the presence of water sprayed on the windshield, and windshield wipers may be damaged as a result.
Page 58: Rear Window Wiper/Washer
I, set the combination switch to the next highest wiper speed have the windshield wipers checked at the nearest authorized Mercedes-Benz Center Getting started Driving Rear window wiper/washer The button is located on the center con- sole.
Page 59: Problems While Driving
Unburned gasoline may have entered the catalytic converter and damaged it. Give very little gas. Have the problem repaired by an authorized Mercedes-Benz Center as soon as possible. The coolant temperature is above 248°F (120°C) The coolant is too hot and is no longer cooling the engine.
Page 60: Parking And Locking
Parking and locking You have now completed your first drive. You have properly stopped and parked your vehicle. End your drive as follows. Warning! With the engine not running, there is no power assistance for the brake and steering systems. In this case, it is important to keep in mind that a considerably higher degree of effort is necessary to brake and steer the vehicle.
Page 61: Parking Brake
Getting started Parking and locking Parking brake 1 Parking brake pedal 2 Release handle Step firmly on parking brake pedal 1. When the engine is running, the warn- ing lamp ; (USA only) or 3 (Canada only) in the instrument cluster will be illuminated.
Page 62: Switching Off Headlamps
Switching off headlamps Turn the exterior lamp switch to M ( page 54). For more information, see the “Controls in detail” section ( page 143). Turning off engine Move the gear selector lever to position P. Apply the parking brake ( page 60). Always set the parking brake in addi- tion to shifting to position P.
Page 63: Releasing Seat Belts
Such damage is not covered by the Mercedes-Benz Limited Warranty. Damaged seat belts must be replaced. Contact an authorized Mercedes-Benz Center.
Page 64 Locking with the SmartKey After exiting the vehicle, press lock button ‹ on the SmartKey ( page 34). All turn signal lamps flash three times. An acoustic signal sounds three times (if equipped and feature acti- vated). For more information, see “Factory setting”...
Page 66: Safety And Security
Safety and Security Occupant safety Panic alarm Driving safety systems Anti-theft systems...
Page 67: Occupant Safety
SRS self-check has detected a malfunction. For your safety, we strongly recommend that you visit an authorized Mercedes-Benz Center immediately to have the system checked; otherwise the SRS may not be activated when needed in an acci-...
Page 68: Air Bags
If it is necessary to modify an air bag system to accommodate a person with disabilities, contact your local authorized Mercedes-Benz Center or call our Customer Assistance Center at 1-800-FOR-MERCedes (1-800-367-6372) for details. Air bags Warning! Air bags are designed to reduce the poten-...
Page 69 Be sure to give the buyer this Operator’s Manual. Warning! Accident research shows that the safest place for children in an automobile is in the rear seat. It should be noted that with respect to both front and rear side impact air bags there is a...
Page 70 Mercedes-Benz Center at an additional cost. Please contact your local authorized Mercedes-Benz Center or call our Customer Assistance Center at 1-800-FOR-MERCedes (1-800-367-6372) for details.
Page 71 These instructions are available from your authorized Mercedes-Benz Center. Given the considerable deployment speed, required inflation volume, and the textile structure of the air bags,...
Page 72 Warning! Only use seat covers which have been test- ed and approved by Mercedes-Benz for your vehicle model. Using other seat covers may interfere with or prevent the deployment of the front side impact air bags. Contact your authorized Mercedes-Benz Center for avail- ability.
Page 73: Seat Belts
Safety and Security Occupant safety The passenger front air bag will only be deployed if: the system, based on OCS weight sen- sor readings, senses that the front pas- senger seat is occupied the 75 indicator lamp in the center console is not lit ( page 84) the impact exceeds a preset deploy- ment threshold Side impact air bags, window curtain...
Page 74 and the vehicle speed exceeds 15 mph (25 km/h), the seat belt telltale < starts flashing and a warning chime sounds with increasing intensity until both the driver’s and front passenger’s seat belt are fastened, or for a maxi- mum of 60 seconds from the time the vehicle speed exceeded 15 mph (25 km/h) if either the driver’s or front passenger’s seat belt remains unfas-...
Page 75 Only use seat belts which have been ap- proved by Mercedes-Benz. Do not make any modifications to the seat belts. This can lead to unintended activation or to failure.
Page 76 The system is designed to enhance the protection offered to properly belted oc- cupants in certain frontal (front air bags and ETD) and side (side impact and win- dow curtain air bags and ETD) impacts which exceed preset deployment thresholds and in certain rollovers (win- dow curtain air bags and ETD).
Page 77: Active Head Restraints
Warning! Only use seat or head restraint covers which have been tested and approved by Mercedes-Benz for your vehicle model. Us- ing other seat or head restraint covers may interfere with or prevent the activation of the active head restraints. Contact your au- thorized Mercedes-Benz Center for availabil- ity.
Page 78: Children In The Vehicle
For removal of the active head restraints we recommend that you contact an autho- rized Mercedes-Benz Center. For information on reseting the activated active head restraints, see “Resetting acti- vated head restraints” ( page 428).
Page 79 Safety and Security Occupant safety Infant and child restraint systems We recommend all infants and children be properly restrained at all times while the vehicle is in motion. All lap-shoulder belts except the driver’s seat belt have special seat belt retractors for secure fastening of child restraints.
Page 80 Warning! According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat- ing position. Thus, we strongly recommend that children be placed in the rear seats whenever possible. Regardless of seating position, children 12 years old and under must be seated and properly secured in an appropriate infant or child restraint recom-...
Page 81 Safety and Security Occupant safety If you have to place a child in a forward-facing child restraint on the front passenger seat, move the seat as far back as possible, use the proper child restraint recommended for the age, size and weight of the child, and se- cure child restraint with the vehicle’s seat belt according to the child seat manufacturer’s instructions.
Page 82 Mercedes-Benz Center. Only seat accessories approved by Mercedes-Benz may be used. Both driver and the front passenger should always use the 75 indicator lamp as an indication of whether or not the front passenger is properly positioned.
Page 83 Safety and Security Occupant safety When the OCS senses that the front passen- ger seat occupant is classified as being up to or less than the weight of a typical 12-month-old child in a standard child re- straint, the 75 indicator lamp will illuminate when the engine is started and re- main illuminated, indicating that the front passenger front air bag is deactivated.
Page 84 Warning! According to accident statistics, children are safer when properly restrained in the rear seating positions than in the front seat- ing position. Thus, we strongly recommend that children be placed in the rear seats whenever possible. Regardless of seating position, children 12 years old and under must be seated and properly secured in an appropriate infant or child restraint recom-...
Page 85 Safety and Security Occupant safety If you have to place a child in a forward-facing child restraint on the front passenger seat, move the seat as far back as possible, use the proper child restraint recommended for the age, size and weight of the child, and se- cure child restraint with the vehicle’s seat belt according to the child seat manufacturer’s instructions.
Page 86 In order to ensure proper operation of the air bag system and OCS: Have the system checked as soon as possible by qualified technicians. Contact an authorized Mercedes-Benz Center. Do not place more than 4.4 lbs (2 kg) into the ruffled storage bag on the back of the front passenger seat.
Page 87 Occupant safety Warning! If the indicator lamp should not illuminate, the system is not functioning. You must see an authorized Mercedes-Benz Center before seating any child on the front passenger seat. For more information, see the “Practical hints” section ( page 390).
Page 88 With a child seat and top tether in- stalled in the right rear seat position and twin roller blind installed, make sure the top tether strap is positioned between seat backrest and twin roller blind. Warning! Always lock backrest in its upright position when rear seat bench is occupied by pas- sengers, or the extended cargo compart- ment is not in use.
Page 89 Safety and Security Occupant safety Child seat anchors - LATCH type This vehicle is equipped with two LATCH (Lower Anchors and Tethers for CHildren) type anchors (at each of the outer rear seats) for the installation of a “LATCH” child seat with the matching mounting fit- tings.
Page 90: Blocking Of Rear Door Window Operation
Damaged or impact damaged child seats or child seat mounting fittings must be re- placed. Do not leave children unattended in the vehicle, even if the children are secured in a child restraint system. Blocking of rear door window operation 1 Override switch 2 Indicator lamp Press override switch 1.
Page 91: Panic Alarm
Safety and Security Panic alarm An audible alarm and flashing exterior lamps will operate for approximately 2½ minutes. 1 Â button USA only: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any inter-...
Page 92: Driving Safety Systems
Driving safety systems In this section you will find information on the following driving safety systems: ABS (Antilock Brake System) BAS (Brake Assist System) ® (Electronic Stability Program) Electrohydraulic brake system 4MATIC (Four Wheel Electronic Traction System) In winter operation, the maximum effectiveness of the ABS, the BAS, the ®...
Page 93 Safety and Security Driving safety systems Braking If the ABS activates during braking, the ® warning lamp v in the in- ABS/ESP strument cluster dial flashes. Because of the electrohydraulic brake system, you will not feel any pulsation in the brake pedal. Keep firm and steady pressure on the brake pedal.
Page 94: Bas
The Brake Assist System (BAS) operates in emergency situations. If you apply the brakes very quickly, the BAS automatically provides full brake boost, thereby poten- tially reducing the braking distance. Apply continuous full braking pressure until the emergency braking situation is over.
Page 95: Driving Safety Systems
Safety and Security Driving safety systems Warning! ® Never switch off the ESP when you see the ® warning lamp v flashing in ABS/ESP the instrument cluster. In this case proceed as follows: While driving off, apply as little throttle as possible.
Page 96 ® Switching off the ESP Warning! ® The ESP should not be switched off during normal driving other than in the circum- stances described below. Disabling of the system will reduce vehicle stability in driving maneuvers. ® Do not switch off the ESP when a Minispare or collapsible tire is mounted.
Page 97: Electrohydraulic Brake System
Avoid spinning of a drive wheel for an ® extended period with the ESP switched off. This may cause serious damage to the drivetrain which is not covered by the Mercedes-Benz Limited Warranty. ® Switching on the ESP ® switch 1.
Page 98 Warning! The electrohydraulic brake system requires electrical power to operate. A malfunction in the vehicle’s power supply or electrical system may impair brake sys- tem operation and switch it into its emer- gency operation mode. In such a case, the red brake warning lamp ( page 374) and warning messages in the instrument cluster ( page 383) come on while driving.
Page 99 Have brake pad replacement and other work on the electrohydraulic brake system car- ried out by qualified technicians only. Con- tact an authorized Mercedes-Benz Center for further information. The electrohydraulic brake system must be deactivated prior to working on the system. High pressure is in- termittently built up in the system as part of its automatic self-test.
Page 100: Four Wheel Electronic Traction System (4Matic) With The Esp
Only Mercedes-Benz approved compo- nents (e.g. brake pads) should be installed on your vehicle. Brake pads not approved by Mercedes-Benz may impair the safety of your vehicle. Safety and Security Driving safety systems Four wheel electronic traction system ®...
Page 101 Do not tow with one axle raised. Otherwise the transfer case can be damaged, which is not covered by the Mercedes-Benz Limited Warranty. Performance testing must only be con- ducted on a two-axle dynamometer. Otherwise the transfer case can be damaged, which is not covered by the Mercedes-Benz Limited Warranty.
Page 102: Anti-Theft Systems
In case the engine cannot be started (yet the vehicle’s battery is charged), the system is not operational. Contact an authorized Mercedes-Benz Center or call 1-800-FOR-MERCedes (in the USA), or 1-800-387-0100 (in Canada). Safety and Security Anti-theft systems...
Page 103 Safety and Security Anti-theft systems If the alarm stays on for more than 30 seconds, a call to the Response Center is initiated automatically by the Tele Aid system ( page 282) provided Tele Aid service was subscribed to and properly activated, and that necessary cellular service and GPS coverage are available.
Page 104: Tow-Away Alarm
With KEYLESS-GO* Pull an outside door handle. The SmartKey with KEYLESS-GO must be within 3 ft (1 m) of the vehicle. Press the KEYLESS-GO* start/stop button ( page 37). The SmartKey with KEYLESS-GO must be inside the vehicle. Tow-away alarm Once the tow-away alarm is armed, a visual and audible alarm will be triggered when someone attempts to raise the vehicle.
Page 105 Safety and Security Anti-theft systems Disarming tow-away alarm To prevent triggering the tow-away alarm feature, switch off the tow-away alarm be- fore towing the vehicle, or when parking on a surface subject to movement, such as a ferry or auto train. The button is located on the overhead con- trol panel.
Page 106: Controls In Detail
Controls in detail Locking and unlocking Seats Memory function Lighting Instrument cluster Control system Automatic transmission Good visibility Dual-zone automatic climate control (USA only) 4-zone automatic climate control* Power windows Power tilt/sliding sunroof* Driving systems Loading Useful features...
Page 107: Locking And Unlocking
Controls in detail Locking and unlocking In the “Controls in detail” section you will find detailed information on how to oper- ate the equipment installed on your vehi- cle. If you are already familiar with the basic functions of your vehicle, this section will be of particular interest to you.
Page 108 Warning! When leaving the vehicle, always remove the SmartKey from the starter switch, take it with you and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. It is possible for children to open a looked door from the inside, which could result in an accident and/or serious personal injury.
Page 109 SmartKey. To determine whether or not your vehi- cle is equipped with this feature, con- tact an authorized Mercedes-Benz Center. If equipped and you wish to ac- tivate or deactivate the feature, or ad- just its signal volume, also contact an authorized Mercedes-Benz Center.
Page 110 Selective setting If you frequently travel alone, you may wish to reprogram the SmartKey so that pressing Œ only unlocks the driver’s door and the fuel filler flap. Press and hold buttons Œ and ‹ simultaneously for about 5 seconds un- til battery check lamp 5 ( page 106) flashes twice.
Page 111 ( page 425). Have the vehicle battery and the battery connections checked. If the SmartKey is malfunctioning, con- tact an authorized Mercedes-Benz Center. Checking the batteries Press button ‹ or Œ. Battery check lamp 5 ( page 106) comes on briefly to indicate that the SmartKey batteries are in order.
Page 112: Smartkey With Keyless-Go
Report the loss of the SmartKey or the mechanical key immediately to your car insurance company. If necessary, have the mechanical lock replaced. Your authorized Mercedes-Benz Center will be glad to supply you with a replace- ment. SmartKey with KEYLESS-GO* Vehicles equipped with KEYLESS-GO come...
Page 113 Controls in detail Locking and unlocking Warning! When leaving the vehicle, always take the SmartKey with KEYLESS-GO with you and lock the vehicle. Do not leave children unat- tended in the vehicle, or with access to an unlocked vehicle. It is possible for children to open a locked door from the inside, which could result in an accident and/or serious personal injury.
Page 114 You can also open and close the power windows and tilt/sliding sunroof* us- ing the SmartKey ( page 234). When you unlock the vehicle, the elec- trohydraulic brake system is activated ( page 96). Important notes on using KEYLESS-GO You can also use the SmartKey with KEYLESS-GO like a normal SmartKey ( page 106).
Page 115 KEYLESS-GO. To determine whether or not your vehi- cle is equipped with this feature, contact an authorized Mercedes-Benz Center. If equipped and you wish to ac- tivate or deactivate the feature, or ad- just its signal volume, also contact an authorized Mercedes-Benz Center.
Page 116 Global locking Press lock button on an outside door handle ( page 63) or tailgate ( page 118). All turn signal lamps flash three times. An acoustic signal sounds three times (if equipped and feature acti- vated). The locking knobs in the doors move down.
Page 117 ( page 424). Use the mechanical key to lock the driver’s door ( page 425). Have the vehicle battery checked by an authorized Mercedes-Benz Center. If the SmartKey with KEYLESS-GO is malfunctioning, contact an authorized Mercedes-Benz Center.
Page 118 SmartKey batteries are discharged. Replace the batteries ( page 429). You can obtain the required batteries at any authorized Mercedes-Benz Center. If the batteries are checked within sig- nal range of the vehicle, pressing the button ‹...
Page 119 Have the SmartKey with KEYLESS-GO deactivated by an authorized Mercedes-Benz Center. Report the loss immediately to your car insurance company. Have the mechanical lock replaced if necessary. Your authorized Mercedes-Benz Center will be glad to supply you with a replace- ment.
Page 120: Opening The Doors From The Inside
Opening the doors from the inside You can open a locked door from the in- side. Open door only when conditions are safe to do so. 1 Locking knob 2 Inside door handle Front doors Pull on door handle 2 on the respective front door to open door.
Page 121: Opening The Tailgate
Controls in detail Locking and unlocking Opening the tailgate Opening the tailgate from the outside A minimum height clearance of 6.76 ft (2.06 m) is required to open the tailgate. The handle is located above the rear license plate recess. In vehicles without KEYLESS-GO*: The ve- hicle must be unlocked.
Page 122 Always make sure there is sufficient overhead clearance. To lock the tailgate, move the catch 2 to the left. Warning! When leaving the vehicle, always remove the SmartKey or the SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle. Do not leave children unattended in the vehicle.
Page 123: Closing The Tailgate
Controls in detail Locking and unlocking The tailgate swings open upwards as long as you pull and hold the remote tailgate release switch. Always make sure there is sufficient overhead clear- ance. To stop the opening procedure, release the remote tailgate release switch.
Page 124 1 Strap in vehicles with folding bench seat Pull the tailgate down from the inside of the vehicle using strap 1. Warning! To prevent possible personal injury, always keep hands and fingers away from the cargo compartment opening when closing the tail- gate.
Page 125 Controls in detail Locking and unlocking You can also close the tailgate by hand. If the tailgate comes into contact with an object while closing (e.g. luggage that has been piled too high), the closing procedure is stopped and the tailgate reopens slightly.
Page 126: Locking And Unlocking
Closing the tailgate from the outside (vehicles with KEYLESS-GO*) In vehicles with tailgate opening/closing system* you can close the tailgate sepa- rately from the outside using the tailgate closing switch. 1 Tailgate closing switch Make sure you have the SmartKey with KEYLESS-GO with you.
Page 127 Controls in detail Locking and unlocking Even with the SmartKey with KEYLESS-GO removed from the vehicle, the tailgate clos- ing switch can be operated. Therefore, do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Unsu- pervised use of vehicle equipment may cause an accident and/or serious personal injury.
Page 128: Automatic Central Locking
Warning! Monitor the closing procedure carefully to make sure no one is in danger of being in- jured. To prevent possible personal injury, always keep hands and fingers away from the cargo compartment opening when clos- ing the tailgate. Be especially careful when small children are around.
Page 129: Locking And Unlocking From The Inside
Controls in detail Locking and unlocking Locking and unlocking from the inside You can lock or unlock the doors and the tailgate from inside using the central lock- ing switch. This can be useful, for example, if you want to lock the vehicle before start- ing to drive.
Page 130: Seats
For removal of the active head restraints we recommend that you contact an autho- rized Mercedes-Benz Center. Adjust the head restraint in such a way that it is as close to the head as possi- ble.
Page 131 Controls in detail Seats Folding head restraints back with switch in the center console 1 Head restraint release switch Switch on the ignition ( page 36). Press the symbol-side on switch 1 to release the head restraints. The head restraints will fold backward. Folding head restraints back manually (rear outer seats only) 1 Release button...
Page 132 Head restraint height (rear outer seats only) 1 Release button Raising: Manually adjust the height of the head restraint by pulling it upward. If the head restraint is fully retracted, push release button 1 and pull the head restraint out. Lowering: To lower the head restraint, push release button 1 and push down on...
Page 133 Controls in detail Seats Removing and installing rear seat head restraints Warning! For your protection, drive only with properly positioned head restraints. Adjust head restraint so that the head re- straint supports the back of the head at eye level. This will reduce the potential for injury to the head and neck in the event of an ac- cident or similar situation.
Page 134: Lumbar Support
Lumbar support The curvature of the driver’s seat can be adjusted to help enhance lower back sup- port and seating comfort. 1 Adjustment lever Move adjustment lever 1 in direction of the arrows until you have reached a comfortable seating position. Drive-Dynamic seat* with multicon- tour features The Drive-Dynamic seat automatically ad-...
Page 135 Controls in detail Seats Multicontour features Seat cushion depth Adjust the seat cushion depth to the length of your upper leg using switch 3. Backrest contour Move the backrest support to the bot- tom by using button 2 or to the center by using button 1.
Page 136: Seat Heating
Seat heating* Both switches for the front seats are locat- ed in the center console. The red indicator lamps in the switch come on to show which heating level you have selected. Level Three indicator lamps on (highest level) The seat heating automatically switches to level 2 after approxi- mately 5 minutes.
Page 137: Seat Ventilation
Controls in detail Seats Seat ventilation* The switch is located on the center con- sole. Seat ventilation can be activated manually with the ignition on, or by the summer opening feature ( page 234). The blue indicator lamps on the switch show the ventilation level selected: Level Three indicator lamps on...
Page 138: Folding Bench Seat In Cargo Compartment
Folding bench seat in cargo compart- ment The folding bench seat in the cargo compartment is approved only for per- sons up to a height of 4.6 ft (1.40 m) and a maximum weight of 110 lbs (50 kg). The twin roller blind must be installed when the folding bench seat is in use.
Page 139 Controls in detail Seats Pull release handle 1 and fold seat backrest for the folding bench seat up- ward. 3 Mountings for seat belts Hook seat belts into mountings 3. Pull release handle 2 and fold seat cushion for the folding bench seat into sitting position.
Page 140 Folding back folding bench seat 1 Tab 2 Backrest Pull seat cushion upward using tab 1 and fold it back into original position until it engages. 1 Release knob Press release knob 1 and fold head restraints down. To avoid damage, insert the head re- straints completely into their guides and engage the seat belt buckles in their guides.
Page 141: Memory Function
Controls in detail Memory function Prior to operating the vehicle, the driver should check and adjust the seat height, seat position fore and aft, and seat back- rest angle if necessary, to ensure adequate control, reach and comfort. The head re- straint should also be adjusted for proper height.
Page 142: Storing Positions Into Memory
Storing positions into memory Adjust the seats, steering wheel and exterior rear view mirrors to the de- sired position ( page 40). Press memory button M. Release memory button M and press memory position button 1, 2 or 3 with- in 3 seconds.
Page 143 Controls in detail Memory function 1 Passenger side, exterior rear view mir- 2 Adjustment button Stop the vehicle. Switch on the ignition ( page 36). Press button 1. The passenger-side exterior rear view mirror is selected. Adjust the exterior rear view mirror with button 2 so that you see the rear wheel and the road curb.
Page 144: Lighting
Relevant information can be obtained at your authorized Mercedes-Benz Center. Vehicles equipped with active Bi-Xenon* headlamps: The active Bi-Xenon headlamps moni-...
Page 145 Controls in detail Lighting Manual headlamp mode The low beam headlamps and the parking lamps can be switched on and off with the exterior lamp switch. Automatic headlamp mode The following lamps switch on and off automatically depending on the brightness of the ambient light: Low beam headlamps Tail and parking lamps...
Page 146 With the daytime running lamp mode activated and the exterior lamp switch in position M, the high beam head- lamps cannot be switched on. The high beam flasher is available at all times. Canada only The daytime running lamp mode is manda- tory and therefore in a constant mode.
Page 147 Controls in detail Lighting Fog lamps Warning! In low ambient lighting or foggy conditions, only switch from position U to B with the vehicle at a standstill in a safe location. Switching from U to B will briefly switch off the headlamps. Doing so while driving in low ambient lighting conditions may result in an accident.
Page 148: Combination Switch
Combination switch The combination switch is located on the left side of the steering column. Combination switch 1 High beam 2 High beam flasher High beam Turn the exterior lamp switch to position B or U ( page 143). Push the combination switch in direc- tion of arrow 1 to switch on the high beam.
Page 149: Interior Lighting In The Front
Controls in detail Lighting Switching on hazard warning flasher Press the hazard warning flasher switch 1. All turn signals are flashing. With the hazard warning flasher acti- vated and the combination switch set for either left or right turn, only the re- spective left or right turn signals will operate when the ignition is switched Switching off hazard warning flasher...
Page 150 For more information, see “Setting interior lighting delayed shut-off” ( page 175). If the door remains open, the interior lighting switches off automatically after approximately 5 minutes. Deactivating Press automatic control switch 3 again. The interior lighting remains switched off in darkness, even when you: unlock the vehicle remove the SmartKey from the starter switch...
Page 151: Door Entry Lamps
Controls in detail Lighting Door entry lamps For better orientation in the dark, the cor- responding door entry lamps will switch on in the darkness when you open a door and the automatic control is activated. The door entry lamps will switch off when the corresponding door is closed.
Page 152: Instrument Cluster
This may cause you and others to be unaware of certain risks and/or personal injury. Contact the nearest authorized Mercedes-Benz Center as soon as possible. Controls in detail Instrument cluster Instrument cluster illumination Use the reset button 1 to adjust the illu- mination brightness for the instrument cluster.
Page 153: Coolant Temperature Indicator
248°F (120°C). The engine should not be operated with the coolant temperature above 248°F (120°C). Doing so may cause serious en- gine damage which is not covered by the Mercedes-Benz Limited Warranty.
Page 154: Trip Odometer
Avoid driving at excessive engine speeds, as it may result in serious en- gine damage that is not covered by the Mercedes-Benz Limited Warranty. To help protect the engine, the fuel supply is interrupted if the engine is operated within the red marking.
Page 155 Controls in detail Instrument cluster When moving the vehicle into colder ambi- ent temperatures (e.g. when leaving your garage), you will notice a delay before the lower temperature is displayed. A delay also occurs when ambient temper- atures rise. This prevents inaccurate tem- perature indications caused by heat radiated from the engine during idling or slow driving.
Page 156: Multifunction Display
Control system The control system is activated as soon as the SmartKey in the starter switch is turned to position 1 or as soon as the KEYLESS-GO start/stop button* is in position 1. The control system enables you call up information about your vehicle change vehicle settings.
Page 157: Multifunction Steering Wheel
Controls in detail Control system Multifunction steering wheel The displays in the multifunction display and the settings in the control system ( page 155) are controlled by the buttons on the multifunction steering wheel. 1 Multifunction display in the speedometer Operating the control system 2 Selecting the submenu or setting the volume:...
Page 158 It is helpful to think of the menus, and the functions within each menu, as being ar- ranged in a circular pattern. If you press button è or ÿ re- peatedly, you will pass through each menu one after the other. If you press button k or j re- peatedly, you will pass through each function display, one after the other, in...
Page 159: Menus
Controls in detail Control system Menus This is what you will see when you scroll through the menus. The table on the next page provides an overview of the individual menus.
Page 160 Menus, submenus and functions Menu 1 Menu 2 Standard display AUDIO ( page 161) ( page 161) Digital speedometer Select radio station Call up maintenance system dis- Operate CD player play Check tire inflation pressure* Check engine oil level Controls in detail Menu 3 Menu 4 NAV*...
Page 161 Controls in detail Control system Menu 5 Menu 6 Vehicle status message Settings memory ( page 164) ( page 165) Call up vehicle malfunction, warn- Reset to factory settings ing and system status messages stored in memory Instrument cluster submenu Fuel consumption statistics since Time/Date submenu Lighting submenu Vehicle submenu...
Page 162: Standard Display Menu
Standard display menu Press button k or j repeatedly to select the functions in the standard display menu. The following functions are available: Function Page Calling up digital speedometer Calling up maintenance service indicator Checking tire inflation pressure* 335 Checking engine oil level Display digital speedometer Press button k or j repeatedly until the digital speedometer appears...
Page 163 Additional optional satellite radio equipment and a subscription to satel- lite radio service provider are required for satellite radio operation. Contact an authorized Mercedes-Benz Center for details and availability for your vehicle. For more information, refer to separate COMAND operating instructions.
Page 164: Nav* Menu
NAV* menu menu contains the functions needed to operate your navigation system. Press button è or ÿ repeatedly until you see the message in the multifunction display. If COMAND is switched off, the mes- sage NAV off appears in the multifunc- tion display.
Page 165: Vehicle Status Message Memory Menu
Mercedes-Benz Center to address the malfunction and warning messages ( page 383). Press button è or ÿ repeatedly...
Page 166: Settings Menu
Vehicle status messages have been recorded If conditions have occurred causing status messages to be recorded, the number of messages appears in the multifunction dis- play: Press button k or j. The stored messages will now be dis- played in the order in which they have occurred.
Page 167 Controls in detail Control system Resetting all settings You can reset all the functions of all sub- menus to the factory settings. Press the reset button in the instru- ment cluster ( page 151) for approxi- mately 3 seconds. In the multifunction display you will see the request to press the reset button again to confirm.
Page 168 The table below shows what settings can be changed within the various menus. Detailed instructions on making individual settings can be found on the following pag- INSTRUMENT CLUSTER TIME/DATE Select speedometer dis- Synchronizing the play mode time Select language Set time (hours) Select display (speed dis- Set time (minutes) play or outside tempera-...
Page 169 Controls in detail Control system Instrument cluster submenu Access the Instr. cluster submenu via menu. Use the Settings Instr. clus- submenu to change the instrument cluster display settings. The following functions are available: Function Page Select speedometer display mode Select language Select display (speed display or outside temperature) for status display...
Page 170 Available languages: German ( Deutsch English ( English French ( Français Italian ( Italiano Spanish ( Español Dutch ( Nederlands Danish ( Dansk Swedish ( Svenska Portuguese ( Português Turkish ( Türkçe Selecting display (speed display or out- side temperature) for status display Move the selection marker with button æ...
Page 171 Controls in detail Control system Time/Date submenu Access the Time/Date submenu via the menu. Use the sub- Settings Time/Date menu to change the time and date display settings. The following functions are avail- able: Function Page Synchronizing the time Set time (hours) Set time (minutes) Set date (month) Set date (day)
Page 172 Set time (minutes) This function can only be seen when time synchronization is switched off. Move the selection marker with button æ or ç to the Time/Date submenu. Press button j or k repeatedly until the message Clock, minutes pears in the multifunction display. The selection marker is on the minute setting.
Page 173: Set Daytime Running Lamp Mode
Controls in detail Control system Set date (year) Move the selection marker with button æ or ç to the Time/Date submenu. Press button j or k repeatedly until the message Set date year pears in the multifunction display. The selection marker is on the year setting.
Page 174: Setting Locator Lighting
Press button æ or ç to select manual operation ( manual ) or daytime running lamp mode ( constant ) activat- With daytime running lamp mode activated and the exterior lamp switch at position M or U, the low beam headlamps are switched on when the en- gine is running.
Page 175: Setting Ambient Lighting
Controls in detail Control system Press button j or k repeatedly until the message Function Surround lighting appears in the multifunction display. The selection marker is on the current setting. Press button æ or ç to switch the locator lighting function Turn the exterior lamp switch to position U when exiting the vehicle.
Page 176: Setting Interior Lighting Delayed
You can reactivate this function within 10 minutes by opening a door. Move the selection marker with button æ or ç to the Lighting submenu. Press button j or k repeatedly until the message Headlamps delayed shut-off appears in the multifunction display.
Page 177 Controls in detail Control system Vehicle submenu Access the Vehicle submenu via the Set- menu. Use the submenu to tings Vehicle make general vehicle settings. The follow- ing functions are available: Function Page Set automatic locking Limiting opening height of tail- gate* Setting automatic locking Use this function to activate or deactivate...
Page 178 Convenience submenu Access the Convenience submenu via the menu. Use the sub- Settings Convenience menu to change the settings for a number of convenience features. The following functions are available: Function Page Activate easy-entry/exit feature 177 Set parking position for exterior rear view mirror Activating easy-entry/exit feature Use this function to activate and deacti-...
Page 179 Controls in detail Control system Setting parking position for exterior rear view mirror Use the Mirror adjustment parking aid function to select whether the passen- ger-side exterior rear view mirror should be turned downward during parking maneu- vers when reverse gear R is engaged. For additional information, see “Activating ex- terior rear view mirror parking position”...
Page 180 Adjusting the dynamic seat The function dynamic seat adjustment lets you determine the way the seat adjusts while driving. Move the selection marker with button æ or ç to the Dynamic Seat submenu. Press button j or k repeatedly until the message Dyn.
Page 181: Trip Computer Menu
Controls in detail Control system Trip computer menu Use the trip computer menu to call up sta- tistical data on your vehicle. The following information is available: Function Page Fuel consumption statistics after start Fuel consumption statistics since last reset Call up range (distance to empty) 181 Fuel consumption statistics after start Press button ÿ...
Page 182: Tel Menu
All statistics stored since the last en- gine start will be reset approximately 4 hours after the SmartKey in the start- er switch is turned to position 0 or re- moved from the starter switch. Resetting will not occur if you turn the SmartKey back to position 1 or 2 with- in this time period.
Page 183: Phone Off
Controls in detail Control system from inside the vehicle while the engine is running. Doing so could lead to a malfunc- tion of the vehicle’s electronic system, pos- sibly resulting in an accident and/or personal injury. You can use the functions in the menu to operate your telephone, provided it is connected to a hands-free system and...
Page 184 Dialing a number from the phone book If your telephone is ready to receive calls, you may select and dial a number from the phone book at any time. Press button ÿ or è repeatedly until you see the menu in the mul- tifunction display.
Page 185: Automatic Transmission
Controls in detail Automatic transmission For more information on driving with an automatic transmission, see “Automatic transmission” ( page 50). Your vehicle’s transmission adapts its gear shifting process to your individual driving style by continually adjusting the shift points up or down. These shift point adjust- ments are performed based on current operating and driving conditions.
Page 186 Avoid spinning of a drive wheel for an extended period when driving off on slippery road surfaces. This may cause serious damage to the drivetrain which is not covered by the Mercedes-Benz Limited Warranty. Controls in detail Automatic transmission When the gear selector lever is in...
Page 187: Gear Selector Lever Position
Controls in detail Automatic transmission Gear selector lever position Effect ì Park position Gear selector lever position when the vehicle is parked. Place gear selector lever in position P only when vehicle is stopped. The park position is not intended to serve as a brake when the vehicle is parked.
Page 188: Driving Tips
Coasting the vehicle, or driving for any other reason with gear selector lever in N can result in transmission damage that is not covered by the Mercedes-Benz Limited Warranty. Warning! Getting out of your vehicle with the gear selector lever not fully engaged in position P is dangerous.
Page 189: Gear Ranges
Controls in detail Automatic transmission Stopping When you stop briefly, e.g. at traffic lights: Leave the transmission in gear. Hold the vehicle with the brake. When you stop longer with the engine idling and/or on a hill: Set the parking brake. Move the gear selector lever to position P.
Page 190: Automatic Shift Program
has reached its rpm limit, the transmission will upshift beyond any gear range limit selected. Effect ï The transmission shifts through sixth gear only (applies to vehicles with 7-speed automatic transmission only). î The transmission shifts through fifth gear only (applies to vehicles with 7-speed automatic transmission only).
Page 191: Gear Selector Lever One-Touch Gearshifting
P only when the vehicle is stopped. Avoid spinning of a drive wheel for an extended period when driving off on slippery road surfaces. This may cause serious damage to the drivetrain which is not covered by the Mercedes-Benz Limited Warranty.
Page 192: Steering Wheel Gearshift Control
Downshifting Warning! On slippery road surfaces, never downshift in order to obtain braking action. This could result in drive wheel slip and reduced vehicle control. Your vehicle’s ABS will not prevent this type of loss of control. Briefly press the gear selector lever to the left in the D- direction.
Page 193 This may cause serious damage to the drivetrain which is not covered by the Mercedes-Benz Limited Warranty. The steering wheel gearshift buttons are located to the left and right of the steering wheel.
Page 194: Manual Shift Program E 55 Amg
Downshifting Warning! On slippery road surfaces, never downshift in order to obtain braking action. This could result in drive wheel slip and reduced vehicle control. Your vehicle’s ABS will not prevent this type of loss of control. Briefly press button 1 on the left side of the steering wheel.
Page 195 This may cause serious damage to the drivetrain which is not covered by the Mercedes-Benz Limited Warranty. The program mode selector switch is located on the lower part of the center console.
Page 196 ( page 24). Otherwise the engine could be damaged which is not covered by the Mercedes-Benz Limited Warranty. Controls in detail Automatic transmission Briefly press the gear selector lever to the right in the D+ direction.
Page 197: Emergency Operation (Limp Home Mode)
Move gear selector lever to P. Turn off the engine. Wait at least 10 seconds before restarting. Restart the engine. Move gear selector lever to position D (for second gear) or R. Have the transmission checked at an authorized Mercedes-Benz Center as soon as possible.
Page 198: Good Visibility
Good visibility For information on windshield wipers, see “Windshield wipers” ( page 55). Headlamp cleaning system* The button is located on the left side of the dashboard. 1 Headlamp washer button Switch on the ignition ( page 36). Press button 1. The headlamps are cleaned with a high-pressure water jet.
Page 199 Controls in detail Good visibility Warning! The auto-dimming function does not react if incoming light is not aimed directly at sen- sors in the interior rear view mirror. The interior rear view mirror and the exterior rear view mirror on the driver’s side do not react, for example, when transporting cargo which covers the rear window.
Page 200: Sun Visors
Make sure the Mirror adjustment parking aid function in the Conve- nience submenu of the control system is switched to ( page 178). Switch on the ignition ( page 36). Press button 2 for the passenger-side exterior rear view mirror. Place the gear selector lever in reverse gear R.
Page 201: Roller Sunblind* In The Rear Doors
Controls in detail Good visibility 6 Mounting 7 Additional visor* 8 Sun visor If sunlight enters through a side window: Disengage sun visor 8 from mounting 6. Pivot sun visor 8 to the side. Adjust the sun visor 8 by pushing or pulling in direction of the arrows.
Page 202 Deactivating Press button F or 1 again. The indicator lamp on the button goes out. Warning! Any accumulation of snow and ice should be removed from the rear window before driv- ing. Visibility could otherwise be impaired, endangering you and others. If the rear window defroster switches off too soon and the indicator lamp starts flashing, this means that too...
Page 203: Dual-Zone Automatic Climate Control (Usa Only)
Controls in detail Dual-zone automatic climate control (USA only)
Page 204 1 Thumbwheel for air volume control for left center air vent 2 Left center air vent, adjustable 3 Cockpit air vent, fixed 4 Right center air vent, adjustable 5 Thumbwheel for air volume control for right center air vent 6 Right side defroster vent, fixed 7 Right side air vent, adjustable 8 Thumbwheel for air volume control for right side air vent...
Page 205 Controls in detail Dual-zone automatic climate control (USA only) 1 Temperature control, left 2 Front defroster 3 Increase air volume 4 Air distribution 5 Rear window defroster 6 Temperature control, right 7 AC cooling on/off 8 Air distribution display 9 Climate control on/off a Air volume display b Decrease air volume c Air recirculation...
Page 206 The climate control is operational whenev- er the engine is running. You can operate the climate control system in either the au- tomatic or manual mode. The system cools or heats the interior depending on the se- lected interior temperature and the cur- rent outside temperature.
Page 207: Deactivating The Climate Control System
Controls in detail Dual-zone automatic climate control (USA only) Deactivating the climate control system Deactivating Press button ´ ( page 204). When the climate control system is de- activated, the outside air supply and circulation are also deactivated. Only choose this setting for a short time. Otherwise the windows could fog up.
Page 208: Setting The Temperature
Deactivating Press button ˜ or Q ( page 204). The indicator lamp on the button U goes out. The automatic operation of air volume switches off. The selected blower speed is shown in the air volume display a ( page 204). Press air distribution button 4 ( page 204).
Page 209: Adjusting Air Distribution
Controls in detail Dual-zone automatic climate control (USA only) Adjusting air distribution Use air distribution control 4 ( page 204) to adjust the air distribution. The following symbols are located on the air distribution display 8 ( page 204): Symbol Function Directs air through the cock- pit, side and rear passenger compartment air vents...
Page 210: Adjusting Air Volume
Adjusting air volume Nine blower speeds are available. Press button ˜ to decrease or Q to increase air volume ( page 204) to the desired level. The indicator lamp on button U ( page 204) goes out. The automatic operation of air volume switches off. The selected blower speed is shown in the air volume display a ( page 204).
Page 211: Air Recirculation Mode
Controls in detail Dual-zone automatic climate control (USA only) Air recirculation mode Switch to air recirculation mode to prevent unpleasant odors from entering the vehicle from the outside (e.g. before a driving through a tunnel). This setting cuts off the intake of outside air and recirculates the air in the passenger compartment.
Page 212 Press and hold button , for approx- imately 2 seconds. The side windows and tilt/sliding sunroof* will close. You can release button , once the clos- ing procedure has begun. The windows and tilt/sliding sunroof* continue clos- ing until they are fully closed. Dual-zone automatic climate control (USA only) Deactivating Press button , ( page 204).
Page 213: Air Conditioning
If the air conditioning cannot be turned on again, this indicates that the air con- ditioning is losing refrigerant. The com- pressor has turned itself off. Have the air conditioning checked at the nearest authorized Mercedes-Benz Center.
Page 214: Rear Passenger Compartment Adjustable Air Vents
Rear passenger compartment adjustable air vents The air conditioning for the rear passenger compartment is controlled via the climate control panel ( page 204). The temperature at the center air vents for the rear passenger compartment 1 and 2 is the same as at the dashboard center air vents.
Page 215: 4-Zone Automatic Climate Control
Controls in detail 4-zone automatic climate control*...
Page 216 1 Thumbwheel for air volume control for left center air vent 2 Left center air vent, adjustable 3 Cockpit air vent, fixed 4 Right center air vent, adjustable 5 Thumbwheel for air volume control for right center air vent 6 Right side defroster vent, fixed 7 Right side air vent, adjustable 8 Thumbwheel for air volume control for right side air vent...
Page 217 Controls in detail 4-zone automatic climate control* USA only 1 Air distribution, left 2 Front defroster 3 Temperature rocker switch, left 4 Display 5 Temperature rocker switch, right 6 Rear window defroster 7 Air distribution, right 8 Air distribution and air volume, right (automatic, manual) 9 AC cooling on/off a Rear air-conditioning remote control...
Page 218 Canada only 1 Air distribution, left 2 Front defroster 3 Temperature rocker switch, left 4 Display 5 Temperature rocker switch, right 6 Rear window defroster 7 Air distribution, right 8 Air distribution and air volume, right (automatic, manual) 9 AC cooling on/off a Rear air-conditioning remote control b Increase air volume Controls in detail...
Page 219 Controls in detail 4-zone automatic climate control* Warning! When operating the climate control, the air that enters the passenger compartment through the air vents can be very hot or very cold (depending on the set temperature). This may cause burn or frostbite to unpro- tected skin in the immediate area of the air vents.
Page 220: Deactivating The Climate Control System
Nearly all dust particles, pollutants and odors are filtered out before outside air en- ters the passenger compartment through the air distribution system. The air conditioning will not engage (no cooling) if the A/C mode ( page 227) is deactivated. Warning! Follow the recommended settings for heat- ing and cooling given on the following pag-...
Page 221: Operating The Climate Control System In Automatic Mode
Controls in detail 4-zone automatic climate control* Reactivating Make sure the ignition is switched on. Press button ´ ( page 216) or ( page 217) again. The previous settings are once again in effect. To switch the system on, you can also press another button, with the excep- tion of 1, F and T ( page 216) or ( page 217).
Page 222: Setting The Temperature
Deactivating Press button ˜ or Q ( page 216) or ( page 217). The indicator lamp on the button goes disappears in the display 4 out. AUTO ( page 216) or ( page 217). The au- tomatic operation of air volume switch- es off.
Page 223: Adjusting Air Distribution
Controls in detail 4-zone automatic climate control* Adjusting air distribution Use the air distribution controls 1 and 7 ( page 216) or ( page 217) to separate- ly adjust the air distribution on each side of the passenger compartment. The following symbols are located on the controls: Symbol Function Directs air through the cock-...
Page 224: Adjusting Air Volume
Adjusting air volume Use buttons U ( page 216) or ( page 217) for automatic mode or air volume buttons ˜ or Q ( page 216) or ( page 217) to adjust air volume manually. Nine blower speeds are available. Press button ˜...
Page 225: Maximum Cooling Max Cool
Controls in detail 4-zone automatic climate control* Windshield fogged on the outside Keep this setting selected only until the windshield is clear again. Switch the windshield wipers on ( page 55). Press one button U ( page 216) or ( page 217). The indicator lamp on the button comes on.
Page 226 Activating Press button , ( page 216) or ( page 217). The indicator lamp on the button comes on. The air recirculation mode is activated automatically at high outside tempera- tures and if the concentration of car- bon monoxide and nitrogen oxide in the outside air increases, for example in a tunnel.
Page 227 Controls in detail 4-zone automatic climate control* Deactivating Press button , ( page 216) or ( page 217). The indicator lamp on the button goes out. The air recirculation mode is deactivat- ed automatically: after 5 minutes if the outside tem- perature is below approximately 41°F (5°C) after 5 minutes if the air condition-...
Page 228: Air Conditioning
4-zone automatic climate control* If the air conditioning cannot be turned on again, this indicates that the air con- ditioning is losing refrigerant. The com- pressor has turned itself off. Have the air conditioning checked at the nearest authorized Mercedes-Benz Center.
Page 229: Residual Heat And Ventilation (Canada Only)
Controls in detail 4-zone automatic climate control* Residual heat and ventilation (Canada only) With the engine switched off, it is possible to continue to heat or ventilate the interior for up to 30 minutes. This feature makes use of the residual heat produced by the engine.
Page 230: Rear Climate Control
Rear climate control The rear climate control is adjusted via the front climate control panel ( page 216) or ( page 217) or the rear climate control panel. The rear climate control panel is located in the rear center console. 1 Left rear center air vent, adjustable 2 Right rear center air vent, adjustable 3 Thumbwheel for air volume control...
Page 231 Controls in detail 4-zone automatic climate control* The rear climate control will not cool the air when the air conditioning is switched off ( page 227). Adjusting air distribution Push the slide for the left center vent 1 or right center vent 2 ( page 229) to the left, right, up, or down.
Page 232: Power Windows
Power windows Opening and closing the windows The side windows are opened and closed electrically. The switches for all of the side windows are on the driver’s door. The switches for the respective windows are on the front passenger door and the rear doors.
Page 233 Controls in detail Power windows You can also open or close the win- dows using the SmartKey, see “Sum- mer opening feature” ( page 234) and “Convenience closing feature” ( page 234). Depending on current position, the win- dows may also open or close when the air recirculation button , in the control panel of the climate control ( page 204), ( page 216) or...
Page 234: Synchronizing Power Windows
Fully closing the windows (Express-close) Pull switch 2 to 5 past the resis- tance point and release. The corresponding window closes com- pletely. If the upward movement of the window is blocked during the closing procedure, the window will stop and open slightly. Warning! Driver’s door only: If within 5 seconds switch is again pulled...
Page 235: Summer Opening Feature
Controls in detail Power windows Summer opening feature If the weather is warm, you can ventilate the vehicle before driving off by simulta- neously: opening the side windows opening the tilt/sliding sunroof* turning on the seat ventilation* for the driver’s seat The seat ventilation* for the driver’s seat is automatically set to the highest level if activated via summer opening...
Page 236 Vehicles with KEYLESS-GO*: Press and hold the lock button on an outside door handle ( page 63) until the windows and the tilt/sliding sun- roof* are completely closed. Release the lock button on the outside door handle to interrupt procedure. Warning! When closing the side windows and the tilt/sliding sunroof*, make sure that there is...
Page 237: Power Tilt/Sliding Sunroof
Controls in detail Power tilt/sliding sunroof* Opening and closing the power tilt/sliding sunroof The tilt/sliding sunroof is opened and closed electrically. The switch for the tilt/sliding sunroof is on the overhead con- trol panel. Sunroof switch 1 Push back to slide sunroof open 2 Push forward to slide sunroof closed 3 Push up to raise sunroof at rear 4 Pull down to lower sunroof at rear...
Page 238 When leaving the vehicle, always remove the SmartKey or the SmartKey with KEYLESS-GO* from the starter switch, take it with you, and lock the vehicle. Do not leave children unattended in the vehicle, or with access to an unlocked vehicle. Unsu- pervised use of vehicle equipment can cause an accident and/or serious personal injury.
Page 239: Tilt/Sliding Sunroof
Controls in detail Power tilt/sliding sunroof* Stopping the power tilt/sliding sunroof during Express-operation Move the sunroof switch in any direc- tion. If the movement of the tilt/sliding sun- roof is blocked during the Express-close procedure, the tilt/slid- ing sunroof will stop and reopen slightly.
Page 240: Cruise Control
Driving systems The driving systems of your vehicle are de- scribed on the following pages: Cruise control and Distronic*, with which the vehicle can maintain a preset speed Airmatic DC* adjusts the vehicle sus- pension characteristics automatically and controls the vehicle level For information on BAS, ABS, electrohy- ®...
Page 241 Controls in detail Driving systems 1 Set current or higher speed 2 Set current or lower speed 3 Cancel cruise control 4 Resume at last set speed Warning! The cruise control brakes automatically so that the set speed is not exceeded. Keep in mind that the cruise control is a convenience system designed to assist the driver during vehicle operation.
Page 242 Canceling cruise control There are several ways to cancel the cruise control: Step on the brake pedal. The cruise control is canceled. The last speed set is stored for later use. Briefly push the cruise control lever in direction of arrow 3 ( page 240). The cruise control is canceled.
Page 243 Controls in detail Driving systems Setting a higher speed Lift cruise control lever in direction of arrow 1 ( page 240) and hold it up until the desired speed is reached. Release the cruise control lever. The new speed is set. Setting a lower speed Depress the cruise control lever in di- rection of arrow 2 ( page 240) and...
Page 244: Distronic
Distronic* When activated, the Distronic adaptive cruise control system increases driving convenience afforded by the cruise control during travel on expressways and other major roads. If the Distronic distance sensor detects a slower moving vehicle directly ahead, your vehicle speed will be reduced so that you follow that vehicle at a preset distance.
Page 245 Controls in detail Driving systems Canada only: This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.
Page 246 Warning! Close attention to road and traffic condi- tions is imperative at all times, regardless of whether or not Distronic is activated. Use of Distronic can be dangerous on wind- ing roads or in heavy traffic because condi- tions do not allow safe driving at a steady speed.
Page 247 Controls in detail Driving systems 1 Segments If Distronic detects a vehicle directly ahead, the segments (representing the difference) from the speed of the vehicle ahead to the set speed come on. If Distronic calculates that there is a dan- ger of collision: The distance warning lamp l in the instrument cluster comes on red.
Page 248 Warning! Distronic brakes your vehicle with a maxi- mum deceleration of 6.5 ft/s (2 m/s This corresponds to about 20% of the maxi- mum deceleration ability of your vehicle. Distronic brakes the vehicle in an effort to restore the preset distance or to maintain the speed.
Page 249 Controls in detail Driving systems Distronic activated If you turn Distronic on, you will see the set speed in the multifunction display for about 5 seconds. When Distronic is activated, you will see the following display in the multifunction display. 1 Distronic activated Cruise control lever The Distronic system is operated by means...
Page 250 Setting the current speed Accelerate or decelerate to the desired speed. Briefly lift or depress the cruise control lever. The current speed is set. Remove your foot from the accelerator pedal. If you do not take your foot off the accelerator completely, the following message will appear in the multifunc- tion display:...
Page 251 Controls in detail Driving systems Fine adjustment in 1 mph (Canada: 1 km/h) increments Faster Briefly tip the cruise control lever in di- rection of arrow 4 ( page 248). Setting to last stored speed (“Resume” function) Warning! The speed stored in memory should only be set again if prevailing road conditions per- mit.
Page 252 Distronic deactivates automatically when you set the parking brake you drive slower than 20 mph (30 km/h) ® the ESP is active ( page 93) or you ® deactivate the ESP you move the gear selector lever into position N A signal will sound.
Page 253 Controls in detail Driving systems Decreasing distance Decreasing the distance setting tells Distronic to maintain a smaller following distance to the vehicle ahead. Turn thumbwheel 3 towards ®. Distance warning function When Distronic is deactivated, this func- tion will continue to warn you when recog- nizing a stationary obstacle or a slower vehicle moving in the vehicle’s path and the danger of a collision exists:...
Page 254 Driving with Distronic This section describes a number of driving situations where special precaution is re- quired on the part of the driver. Be pre- pared to brake in such situations. This will deactivate the Distronic system. Warning! Distronic works to maintain the speed se- lected by the driver unless a moving obsta- cle proceeding directly ahead of it in the same travel direction is detected (e.g.
Page 255 Controls in detail Driving systems Turns and bends In turns or bends, Distronic may not detect a moving vehicle in front, or it may detect one too soon. This may cause your vehicle to brake late or unexpectedly. Offset driving A vehicle traveling in your lane but offset from your direct line of travel may not be detected by Distronic.
Page 256: Airmatic Dc (Dual Control)
Narrow vehicles Because of their narrow profile, the vehi- cles traveling near the outer edges of the lane have not yet been detected by Dis- tronic. There will be insufficient distance to the vehicles ahead. Airmatic DC (Dual Control)* Airmatic automatically selects the opti- mum suspension tuning and ride height for your vehicle.
Page 257 Controls in detail Driving systems 1 Damping button 2 Indicator lamps Start the engine. Press the damping button 1 until the desired suspension style is set. If you have selected the Comfort sus- pension tuning, the vehicle lowers slightly when you lock it within approx- imately 60 seconds after switching off the engine.
Page 258 These height adjustments are so small that you may not notice any change. Select the “Raised” level only when re- quired by current driving conditions. Oth- erwise handling may be impaired fuel consumption may increase Warning! To help avoid personal injury, keep hands and feet away from wheel housing area, and stay away from under the vehicle when low- ering the vehicle chassis.
Page 259 Controls in detail Driving systems The following vehicle level settings can be selected when the vehicle is stationary and the engine is running: Vehicle level Indicator lamp Suspension when stationary tuning Normal Lamp off Comfort Normal Lamp off Sport 1 or 2 Raised Lamp on Comfort...
Page 260 The button is located in the lower section of the center console. 1 Vehicle level control button 2 Indicator lamp Start the engine ( page 36). Briefly press button 1 to change from normal level to raised level. When vehi- cle is at raised level, pressing the but- ton will return the vehicle to normal level.
Page 261: Loading
Controls in detail Loading Split rear bench seat To expand the cargo compartment, you can fold down the left and right rear seat backrests. The two sections can be folded down sep- arately to enlarge the cargo compartment. Warning! When expanding the cargo compartment, al- ways fold the seat cushions fully forward.
Page 262 If the rear center seat is to be occupied while driving, it may be necessary to fold the seat belt buckle up again. Returning seat backrest to original po- sition 1 Seat cushion 2 Seat backrest Swing seat backrest 2 to the rear until it engages.
Page 263: Expanding The Cargo Compartment
Controls in detail Loading Adjusting seat backrest position 1 Release catch 2 Seat backrest The seat backrests can be placed in an alternative upright position. This cre- ates a larger cargo compartment area or provides for improved seating com- fort on the folding bench seat, if re- quired.
Page 264: Loading Instructions
Leave the seat cushion hinge in this po- sition. The upholstery could be dam- aged if you fold the hinge back. Fold the seat backrest forward ( page 260). Loading instructions The total load weight including vehicle oc- cupants and luggage/cargo should not ex- ceed the load limit or vehicle capacity weight indicated on the corresponding placard located on the driver’s door B-pil-...
Page 265: Cargo Tie-Down Rings
Controls in detail Loading Warning! Always fasten items being carried as secure- ly as possible. In an accident, during hard braking or sud- den maneuvers, loose items will be thrown around inside the vehicle and can cause in- jury to vehicle occupants unless the items are securely fastened in the vehicle.
Page 266: Cargo Management System* (Canada Only)
Cargo management system* (Canada only) Your vehicle may be equipped with a cargo management system and accompanying accessories which enable you to utilize your cargo compartment in a variety of ways. You can store the cargo manage- ment system in the pouch that comes with the vehicle.
Page 267 Controls in detail Loading You can turn the mounting element in the cargo rail to four positions: ‹ To lock the mounting element. N To insert or remove the cargo tie-down ring, the belt reel or the telescoping rod. L To insert or remove the mount- ing element.
Page 268 Belt reel 1 Belt reel 2 Mounting element 3 Locking button The belt reel can be used to tighten light-weight loads against the side wall of the cargo compartment, thus secur- ing them from slipping. Insert two mounting elements 2 into a cargo rail.
Page 269: Storage Box In Cargo Compartment (Canada Only)
Controls in detail Loading Insert one mounting element 2 into each cargo rail. Turn mounting element 2 in cargo rail to N. Insert telescoping rod 1 into mount- ing element 2. Turn mounting element 2 in cargo rail until it engages in the ‹ position. You should be able to feel the mounting element engage in the cargo rail.
Page 270: Twin Roller Blind
Installing the storage box Fold rear seat backrests forward ( page 260). Insert storage box from behind into cargo compartment with the opening pointing in direction of travel. Press locking hooks of storage box into the space between the rear seat back- rest and the cargo compartment.
Page 271 Controls in detail Loading 1 Cargo net 2 Mountings for cargo net Pull cargo net 1 up and hook it onto mountings 2. You can use the cargo net even when the rear seat backrest is folded for- ward. The cargo net should then be hooked onto the front mountings.
Page 272 Controls in detail Loading Removing the twin roller blind Roll up cargo net and cargo compart- ment cover. Fold both rear seat cushions forward ( page 260). Push twin roller blind to the left out of its anchorage on the rear seat backrest and remove it.
Page 273: Useful Features
Controls in detail Useful features Storage compartments Warning! To help avoid personal injury during a colli- sion or sudden maneuver, exercise care when storing objects in the vehicle. Put lug- gage or cargo in the cargo compartment if possible. Do not pile luggage or cargo higher than the seat backs.
Page 274 Storage compartment in the rear cen- ter console Briefly press the top of the compart- ment. It extends automatically. Ruffled storage bags Ruffled storage bags are located on the back of the front seats. Controls in detail Useful features Warning! Do not place objects with a combined weight of more than 4.4 lbs (2 kg) into the ruffled storage bag.
Page 275: Cup Holders
Liquids spilled on vehicle equipment may cause damage not covered by the Mercedes-Benz Limited Warranty. When not in use, keep the cup holder closed. An open cup holder may cause injury to you or others when contacted during braking, vehicle maneuvers, or in an acci- dent.
Page 276 Keep in mind that objects placed in the cup holder may come loose during braking, vehi- cle maneuvers, or in an accident and be thrown around in the vehicle interior. Ob- jects thrown around in the vehicle interior may cause an accident and/or serious per- sonal injury.
Page 277 Controls in detail Useful features Removing cup holder 1 Dual cup holder 2 Locking pins Move both locking pins 2 in direction of arrows. Take cup holder 1 out upward. Reinstalling cup holder 3 Locking pins Insert cup holder. Move both locking pins 3 in direction of arrows.
Page 278: Ashtrays
Cup holder in the folding third row bench seat Briefly press the front of the cup holder. The cup holder unlocks. Pull the cup holder until it engages. Ashtrays Center console ashtray Opening ashtray Briefly press the marking on the bot- tom of cover 1.
Page 279: Cigarette Lighter
Controls in detail Useful features Reinstalling ashtray insert Install insert by pushing it back into frame until it engages again. Rear seat ashtray Opening rear seat ashtray Briefly press the top of the ashtray. The cover opens automatically. Cigarette lighter Warning! Never touch the heating element or sides of the lighter;...
Page 280: Power Outlet
The lighter socket can be used to ac- commodate 12V DC electrical acces- sories (up to a maximum of 85 W) designed for use with the standard “cigarette lighter” plug type. Keep in mind, however, that connecting acces- sories to the lighter socket (for exam- ple extensive connecting and disconnecting, or using plugs that do not fit properly) can damage the lighter...
Page 281: Floormats
Controls in detail Useful features Switching on Switch on the ignition ( page 36). Turn switch at the tip of stalk in direc- tion of arrow 3. The steering wheel is heated. Indicator lamp 1 comes on. The steering wheel heating is tempo- rarily suspended while indicator lamp 1 remains on when the temperature of the vehicle inte-...
Page 282: Telephone
The external antenna must be approved by Mercedes-Benz. Please contact an autho- rized Mercedes-Benz Center for informa- tion on the installation of an approved external antenna. Refer to the radio trans- mitter operation instructions regarding use of an external antenna.
Page 283: Tele Aid
Controls in detail Useful features Bear in mind that at a speed of just 30 mph (approximately 50 km/h), your vehicle is covering a distance of 44 feet (approximate- ly 14 m) every second. You can take and place telephone calls us- ing buttons s and t on the steering wheel.
Page 284 If a malfunction is indicated as outlined above, the system may not operate as ex- pected. Have the system checked at the nearest Mercedes-Benz Center as soon as possible.
Page 285 Controls in detail Useful features Emergency calls An emergency call is initiated automatical- ly following an accident in which the emer- gency tensioning devices (ETDs) or air bags deploy. An emergency call can also be initiated manually by opening the cover next to the interior rear view mirror labeled SOS, then briefly pressing the button located under the cover.
Page 286 Warning! If the indicator lamp in the SOS button is flashing continuously and there was no voice connection to the Response Center established, then the Tele Aid system could not initiate an emergency call (e.g. the rele- vant cellular phone network is not available). The message Call failed appears in the multifunction display for approximately 10 seconds.
Page 287 Located below the center armrest cover is the Roadside Assistance button •. Press and hold the button (for longer than 2 seconds). A call to a Mercedes-Benz Roadside As- sistance dispatcher will be initiated. The button will flash while the call is in progress. The message...
Page 288 Assistance Center representative and the occupants of the vehicle will be estab- lished. Information regarding the operation of your vehicle, the nearest authorized Mercedes-Benz Center or Mercedes-Benz USA products and services is available to you. For more details concerning the Tele Aid system, please visit www.mbusa.com and...
Page 289 Tele Aid system has detected a malfunction or the service is not cur- rently active, and may not initiate a call. Visit an authorized Mercedes-Benz Center and have the system checked or contact the Response Center at 1-800-756-9018 (in the USA) or 1-888-923-8367 (in Canada) as soon as possible.
Page 290 In case you have locked your vehicle unin- tentionally (e.g. SmartKey inside vehicle), and the reserve SmartKey is not handy: Contact the Mercedes-Benz Response Center at 1-800-756-9018 (in the USA) or 1-888-923-8367 (in Canada). You will be asked to provide your pass- word which you provided when you completed the subscriber agreement.
Page 291: Garage Door Opener
Report the incident to the police. The police will issue a numbered inci- dent report. Pass this number on to the Mercedes-Benz Response Center along with your password issued to you when you subscribed to the service. The Response Center will then attempt to covertly contact the vehicle’s...
Page 292 Warning! Before programming the integrated remote control to a garage door opener or gate operator, make sure people and objects are out of the way of the device to prevent po- tential harm or damage. When programming a garage door opener, the door moves up or down.
Page 293 Controls in detail Useful features Step 3: Hold the end of the hand-held remote control 5 of the device you wish to train approximately 2 to 5 in (5 to12 cm) away from the signal trans- mitter button (2, 3 or 4) to be pro- grammed, while keeping the indicator lamp 1 in view.
Page 294 Rolling code programming To train a garage door opener (or other rolling code devices) with the rolling code feature, follow these instructions after completing the “Programming” portion (steps 1 through 6) of this text. (A second person may make the following training procedures quicker and easier.) Step 8: Locate “training”...
Page 295 Controls in detail Useful features Gate operator/Canadian programming Canadian radio-frequency laws require transmitter signals to “time-out” (or quit) after several seconds of transmission which may not be long enough for the integrated signal transmitter to pick up the signal during programming. Similar to this Canadian law, some U.S.
Page 296 Reprogramming a single signal trans- mitter button To program a device using a signal trans- mitter button previously trained, follow these steps: Switch on the ignition ( page 36). Press and hold the desired signal transmitter button (2, 3 or 4). Do not release the button.
Page 297 If you should experi- ence further difficulties with program- ming the integrated remote control, contact an authorized Mercedes-Benz Center, or call Mercedes-Benz Customer Assistance Center (in the USA only) at 1-800-FOR-MERCedes, or Customer Service (in Canada) at 1-800-387-0100.
Page 298 Canada only: This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interfer- ence, and (2) this device must accept any inter- ference received, including interfer- ence that may cause undesired operation of the device.
Page 300: Operation
Operation The first 1000 miles (1500 km) Driving instructions At the gas station Engine compartment Tires and wheels Winter driving Maintenance Vehicle care...
Page 301: The First 1000 Miles (1500 Km)
Operation The first 1000 miles (1500 km) In the “Operation” section you will find de- tailed information on operating, maintain- ing and caring for your vehicle. The more cautiously you treat your vehicle during the break-in period, the more satis- fied you will be with its performance later Drive your vehicle during the first 1000 miles (1500 km) at varying but...
Page 302: Driving Instructions
Maintenance Booklet and as required by the Maintenance System. Contact an authorized Mercedes-Benz Center. Fuel consumption is also increased by driving in cold weather, in stop-and-go traffic, on short trips and in hilly area.
Page 303: Power Assistance
Operation Driving instructions Power assistance Warning! The brake system requires electrical energy for operation. A malfunction in the vehicle’s power supply or electrical system may impair brake sys- tem operation and switch it into its emer- gency operation mode. In such a case, the red brake warning lamp ( page 374) and warning messages in the instrument cluster ( page 383) come on while driving.
Page 304 Have the brake system inspected by quali- fied technicians immediately. Contact an authorized Mercedes-Benz Center. All checks and service work on the brake system should be carried out by qualified technicians only. Contact an authorized Mercedes-Benz Center.
Page 305: Driving Off
ESP switched off. Doing so may cause serious damage to the drivetrain which is not covered by the Mercedes-Benz Limited Warranty. Simultaneously depressing the acceler- ator pedal and applying the brake re- duces engine performance and causes premature brake and drivetrain wear.
Page 306: Tires
Inspect the tires and the vehicle underbody for possible damage. If the vehicle or tires appear unsafe, have the vehicle towed to the nearest Mercedes-Benz Center or tire dealer for repairs. Treadwear indicators (TWI) are required by law. These indicators are located in six...
Page 307: Tire Traction
If ice has formed on the road, tire traction will be substantially reduced. Under such weather conditions, drive, steer and brake with extreme caution. Mercedes-Benz recommends winter tires ( page 355) with a minimum tread depth of approximately in (4 mm) on all four wheels for the winter season to make sure normal balanced handling characteristics.
Page 308: Winter Driving Instructions
E 350, E 350 4MATIC E 500, E 500 4MATIC E 350 (Appearance Package*) Your vehicle is factory equipped with “H”-rated tires, which have a speed rating of 130 mph (210 km/h). An electronic speed limiter prevents your vehicle from exceeding a speed of 130 mph (210 km/h).
Page 309: Standing Water
Any such dam- age is not covered by the Mercedes-Benz Limited Warranty.
Page 310: Passenger Compartment
The cargo compartment is the preferred place to carry objects. Driving abroad Abroad, there is an extensive Mercedes-Benz service network at your disposal. If you plan to drive into areas which are not listed in the index of your Mercedes-Benz Center directory, you should request pertinent information from your authorized Mercedes-Benz Center.
Page 311: Catalytic Converter
Mercedes-Benz Center authorized techni- cians. Engine adjustments should not be altered in any way. Moreover, the specified service jobs must be carried out regularly according to Mercedes-Benz servicing re- quirements. For details refer to the Maintenance Booklet.
Page 312: Coolant Temperature
The engine should not be operated with the coolant temperature over 248°F (120°C). Doing so may cause serious en- gine damage which is not covered by the Mercedes-Benz Limited Warranty. Operation Driving instructions Warning! Driving when your engine is badly over-...
Page 313: At The Gas Station
Operation At the gas station Refueling Warning! Gasoline is highly flammable and poisonous. It burns violently and can cause serious injury. Whenever you are around gasoline, avoid inhaling fumes and skin contact, extin- guish all smoking materials. Never allow sparks, flame or smoking materials near gasoline! The fuel filler flap is located on the right-hand side of the vehicle towards the...
Page 314: Windshield Washer System And Headlamp Cleaning System
Noti- fy an authorized Mercedes-Benz Center immediately. Do not add brake fluid as this will not solve the problem. For more information, see “Practical hints”...
Page 315 Operation At the gas station Coolant For normal replenishing, use water (pota- ble water quality). For more information on coolant, see “Coolant level” ( page 321) and see “Fuels, coolants, lubricants etc.” ( page 482). Engine oil level For more information on engine oil level, see “Engine oil”...
Page 316: Engine Compartment
Engine compartment Hood Warning! Do not pull the release lever while the vehi- cle is in motion. Otherwise the hood could be forced open by passing air flow. Opening 1 Hood release Pull lever 1 downwards. The hood is unlocked and handle 2 will extend out of the radiator grille.
Page 317: Engine Oil
Do not use any special lubricant addi- tives, as these may damage the drive assemblies. Using special additives not approved by Mercedes-Benz may cause damage not covered by the Mercedes-Benz Limited Warranty. More information on this subject is available at any Mercedes-Benz Center.
Page 318 Checking engine oil level with the con- trol system (E 500, E 55 AMG) When checking the oil level the vehicle must be parked on level ground with the engine at operating tempera- ture, the vehicle must have been stationary for at least 5 minutes with the engine turned off with the engine not at operating tem- perature yet, the vehicle must have...
Page 319 Mercedes-Benz Center. Excess oil must be siphoned or drained off. It could cause damage to the engine and catalytic converter not covered by the Mercedes-Benz Limited Warranty. For more information on messages in the multifunction display concerning engine oil, see the “Practical hints” section ( page 404).
Page 320 (U.S. vehicles) or FSS PLUS (Canada vehicles), or changing of oil and oil filter at change intervals longer than those called for by the Maintenance System (U.S. vehicles) or FSS PLUS (Canada vehicles) will result in engine damage not covered by the Mercedes-Benz Limited Warranty.
Page 321: Transmission Fluid Level
Excess oil must be siphoned or drained off. It could cause damage to the engine and catalytic converter not covered by the Mercedes-Benz Limited Warranty. Screw filler cap 1 back on filler neck. For more information on engine oil, see the “Technical data”...
Page 322: Coolant Level
Coolant level The engine coolant is a mixture of water and anticorrosion/antifreeze. To check the coolant level, the vehicle must be parked on level ground and the engine must be cool. The coolant expansion tank is located on the driver’s side of the engine compart- ment.
Page 323: Batteries
When replacing batteries, always use bat- teries approved by Mercedes-Benz. If you do not intend to operate your vehicle for an extended period of time, consult an authorized Mercedes-Benz Center about steps you need to observe.
Page 324: Windshield Washer System And Headlamp Cleaning System
Windshield washer system and headlamp cleaning system* The windshield washer reservoir is located in the engine compartment. 1 Washer fluid reservoir Fluid for the windshield washer system and the headlamp cleaning system is supplied from the windshield washer reservoir. It has a capacity of: 4.8 US qt (4.5 l) in vehicles without headlamp cleaning system...
Page 325: Tires And Wheels
When replacing rims, only use Genuine Mercedes-Benz wheel bolts specified for the particular rim type. Failure to do so can re- sult in the bolts loosening and possibly an accident.
Page 326: Tire Care And Maintenance
Tire care and maintenance Warning! Regularly check the tires for damage. Dam- aged tires can cause tire inflation pressure loss. As a result, you could lose control of your vehicle. Worn, old tires can cause accidents. If the tire tread is badly worn, or if the tires have sustained damage, replace them.
Page 327 Operation Tires and wheels Tread depth Do not allow your tires to wear down too far. Adhesion properties on wet roads are sharply reduced at tread depths under in (3 mm). Treadwear indicators (TWI) are required by law. These indicators are located in six places on the tread circumference and become visible at a tread depth of approx- imately...
Page 328: Direction Of Rotation
Direction of rotation Unidirectional tires offer added advan- tages, such as better hydroplaning perfor- mance. To benefit, however, you must make sure the tires rotate in the direction specified. An arrow on the sidewall indicates the intended direction of rotation (spinning) of the tire.
Page 329 Operation Tires and wheels 1 Driver’s door B-pillar Following is a discussion on how to work with the information contained on the two placards with regards to loading your vehi- cle. Tire and Loading Information Warning! Do not overload the tires by exceeding the specified load limit or vehicle capacity weight as indicated on the placard on the driver’s door B-pillar.
Page 330 The placard showing the load limit informa- tion is located on the driver’s door B-pillar. If your vehicle is equipped with the Tire and Loading Information placard (Example A), locate the statement “The combined weight of occupants and cargo should never exceed XXX kilograms or XXX lbs.”...
Page 331 Operation Tires and wheels Placard (Example B) 1 Seating capacity Steps for determining correct load limit The following steps have been developed as required of all manufacturers under Title 49, Code of U.S. Federal Regulations, Part 575 pursuant to the “National Traffic and Motor Vehicle Safety Act of 1966”.
Page 332 Example Combined Number of weight limit occupants of occu- (driver and pants and passengers) cargo from placard 1500 lbs 1500 lbs 1500 lbs The higher the weight of all occupants, the less cargo and luggage load capacity is available. For more information, see “Trailer tongue load”...
Page 333 The tongue load typically is 10 percent of the trailer weight and every- thing loaded in it. Your Mercedes-Benz has been designed primarily to carry passengers and their cargo. Mercedes-Benz does not recom- mend trailer towing with your vehicle.
Page 334: Recommended Tire Inflation Pressure
Recommended tire inflation pressure Warning! Follow recommended tire inflation pressures. Do not underinflate tires. Underinflated tires wear excessively and/or unevenly, adversely affect handling and fuel economy, and are more likely to fail from being over- heated. Do not overinflate tires. Overinflated tires can adversely affect handling and ride comfort, wear unevenly, increase stopping distance, and result in sudden deflation...
Page 335 Operation Tires and wheels Placard (Example B) 1 Vehicle Tire Information placard with recommended cold tire inflation pressures Placard (Example B) lists the recommend- ed cold tire inflation pressures for maxi- mum loaded vehicle weight. The tire inflation pressures listed apply to the tires installed as original equipment.
Page 336: Checking Tire Inflation Pressure
Checking tire inflation pressure Regularly check your tire inflation pressure at least once a month. Check and adjust the tire inflation pressure when the tires are cold. The tires can be considered cold if the vehicle has been parked for at least 3 hours or driven less than 1 mile (1.6 km).
Page 337: Tires And Wheels
Operation Tires and wheels The TPMS only functions on wheels that are equipped with the proper electronic sensors. It monitors the tire inflation pres- sure, as selected by the driver, in all four tires. A warning is issued to alert you to a decrease in pressure in one or more of the tires.
Page 338 TPMS malfunctions may occur for a variety of reasons, including the installation of in- compatible replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly.
Page 339 Operation Tires and wheels Reactivate the TPMS after adjusting the tire inflation pressure to the infla- tion pressure recommended for the vehicle operating condition. Tire pres- sure should only be adjusted on cold tires. Observe the recommended tire inflation pressure on the placard on the driver’s door B-pillar ( page 328).
Page 340 Potential problems associated with underinflated and overinflated tires Underinflated tire inflation pressure Underinflated tires can: cause excessive and uneven tire wear adversely affect fuel economy lead to tire failure from being overheated adversely affect handling characteristics Warning! Follow recommended tire inflation pressures.
Page 341: Moextended System
Operation Tires and wheels MOExtended system* The MOExtended system allows you to continue driving your vehicle even if there is a total loss of pressure in one or more tires. You may only use the MOExtended system with the Tire Pressure Monitoring System* (TPMS*) ( page 335).
Page 342 Tire size designation, load and speed rating 1 Tire width 2 Aspect ratio in % 3 Radial tire code 4 Rim diameter 5 Tire load rating 6 Tire speed rating For illustration purposes only. Actual data on tires are specific to each vehi- cle and may vary from data shown in above illustration.
Page 343 Operation Tires and wheels Rim diameter The rim diameter 4 ( page 341) is the diameter of the bead seat, not the diameter of the rim edge. Rim diameter is indicated in inches (in). Tire load rating The tire load rating 5 ( page 341) is a numerical code associated with the maximum load a tire can support.
Page 344 Tire speed rating The tire speed rating 6 ( page 341) indicates the approved maximum speed for the tire. Warning! Even when permitted by law, never operate a vehicle at speeds greater than the maximum speed rating of the tires. Exceeding the maximum speed for which tires are rated can lead to sudden tire failure, causing loss of vehicle control and...
Page 345: Load Identification
Operation Tires and wheels Any tire with a speed capability above 186 mph (300 km/h) must include a “ZR” in the size designation AND the service description must be placed in parenthesis. Example: 275/40 ZR 18 (99Y). The “(Y)” speed rating in paren- thesis designates the maximum speed capability of the tire as being above 186 mph (300 km/h).
Page 346: Dot, Tire Identification Number (Tin)
In addition to tire load rating, special load information may be molded into the tire sidewall following the letter designating the tire speed rating 1 ( page 343). No specification given: absence of any text (like in above example) indicates a standard load (SL) tire.
Page 347: Maximum Tire Load
Operation Tires and wheels DOT (Department of Transportation) A tire branding symbol 1 ( page 345) which denotes the tire meets require- ments of the U.S. Department of Transpor- tation. Manufacturer’s identification mark The manufacturer’s identification mark 2 ( page 345) denotes the tire manufacturer.
Page 348: Maximum Tire Inflation Pressure
Warning! Do not overload the tires by exceeding the specified load limit or vehicle capacity weight as indicated on the placard located on the driver’s door B-pillar. Overloading the tires can overheat them, possibly causing a blowout. Overloading the tires can also result in handling or steering problems, or brake failure.
Page 349: Uniform Tire Quality Grading Standards (U.s. Vehicles)
Operation Tires and wheels Uniform Tire Quality Grading Standards (U.S. vehicles) Tire manufacturers are required to grade tires based on three performance factors: treadwear, traction and temperature resis- tance. 1 Treadwear 2 Traction 3 Temperature resistance For illustration purposes only. Actual data on tires are specific to each vehi- cle and may vary from data shown in above illustration.
Page 350 Traction The traction grades, from highest to low- est, are AA, A, B, and C. Those grades rep- resent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction perfor- mance.
Page 351: Tire Ply Material
Operation Tires and wheels Tire ply material 1 Plies in sidewall 2 Plies under tread For illustration purposes only. Actual data on tires are specific to each vehi- cle and may vary from data shown in above illustration. This marking tells you about the type of cord and number of plies in the sidewall and under the tread.
Page 352 DOT (Department of Transportation) A tire branding symbol which denotes the tire meets requirements of the U.S. Department of Transportation. GAWR (Gross Axle Weight Rating) The GAWR is the maximum permissible axle weight. The gross vehicle weight on each axle must never exceed the GAWR for the front and rear axle indicated on the certification label located on the driver’s door B-pillar.
Page 353 Operation Tires and wheels PSI (Pounds per square inch) A standard unit of measure for air pressure -> bar, kilopascal (kPa). Recommended tire inflation pressure Recommended tire inflation pressure listed on placard located on driver’s door B-pillar for normal driving conditions. Provides best handling, tread life and riding comfort.
Page 354: Rotating Tires
Uniform Tire Quality Grading Standards A tire information system that provides consumers with ratings for a tire’s traction, temperature and treadwear. Ratings are determined by tire manufacturers using government testing procedures. The ratings are molded into the sidewall of the tire.
Page 355 Wheels could become loose if not tightened with a torque of 96 lb-ft (130 Nm). Only use Genuine Mercedes-Benz wheel bolts specified for your vehicle’s rims. For information on wheel change, see the “Practical hints” section ( page 422) and...
Page 356: Winter Driving
Winter driving Before the onset of winter, have your vehicle winterized at an authorized Mercedes-Benz Center. This service includes: Check of anticorrosion and antifreeze concentration. Addition of cleaning concentrate to the water of the windshield and headlamp cleaning system. Add MB Concentrate “S” to a premixed...
Page 357: Block Heater* (Canada Only)
Follow the manufac- turer’s mounting instructions. Only use snow chains that are ap- proved by Mercedes-Benz. Your autho- rized Mercedes-Benz Center will be glad to advise you on this subject. Use of snow chains may be prohibited depending on location.
Page 358 Even on vehicles with all-wheel-drive, use snow chains on rear tires only. Some tire sizes do not leave adequate clearance for snow chains. To help avoid serious damage to your vehicle or tires, use of snow chains is not permis- sible with the following tire sizes: 265/35 ZR18 XL (Extra load) T 155/70 R17 110 M...
Page 359: Maintenance
Operation Maintenance We strongly recommend that you have your vehicle serviced by an authorized Mercedes-Benz Center, in accordance with the Maintenance Booklet at the times called for by the maintenance service indi- cator display. Failure to have the vehicle maintained in...
Page 360 Vehicles equipped with FSS PLUS (Flexible Service System PLUS) only (Canada vehicles): The interval be- tween maintenance services depends on your driving habits. A gentle driving style, moderate engine speeds and the avoidance of short-distance trips will lengthen the interval between services. Clearing the maintenance service indicator message The maintenance service indicator mes-...
Page 361: Calling Up The Maintenance Service Indicator Display
Service A exceeded by XXX Days Service A exceeded by X Day In addition, a signal sounds when the mes- sage appears. Any authorized Mercedes-Benz Center will reset the maintenance service indicator following a completed maintenance service. Calling up the maintenance service...
Page 362: Resetting The Maintenance Service Indicator
In the event that the maintenance service on your vehicle is not carried out by an au- thorized Mercedes-Benz Center, you can have the maintenance service indicator re- set. The automotive maintenance facility carrying out the maintenance service will...
Page 363: Vehicle Care
Post-production treatment is neither necessary nor recommended by Mercedes-Benz because of the possibility of incompatibility between materials used in the production process and others ap- plied later.
Page 364 We have selected car-care products and compiled recommendations which are specially matched to our vehicles and which always reflect the latest technology. You can obtain Mercedes-Benz approved car-care products at an authorized Mercedes-Benz Center. Scratches, corrosive deposits, corrosion or damage due to negligent or incorrect care cannot always be removed or repaired with the car-care products recommended here.
Page 365 Hand-wash Do not use hot water or wash your vehicle in direct sunlight. Only use a mild car wash detergent, such as Mercedes-Benz approved Car Shampoo. Thoroughly spray the vehicle with a dif- fused jet of water. Direct only a very weak spray towards the ventilation intake.
Page 366 Vehicle care Headlamps, tail lamps, side markers, turn signal lenses Use a mild car wash detergent, such as Mercedes-Benz approved Car Sham- poo, with plenty of water. Only use window cleaning solutions that are suitable for plastic lamp lens- es. Window cleaning solutions which are not suitable may damage the plas- tic lamp lenses of the headlamps.
Page 367 1 Distronic system sensor cover Switch off the ignition ( page 36). Use a mild car wash detergent, such as Mercedes-Benz approved Car Sham- poo, with plenty of water and a non-scratching cloth to clean sensor cover 1. To prevent scratches or damage, never...
Page 368 Operation Vehicle care When applying Mercedes-Benz ap- proved Tire Care and Mercedes-Benz approved Wheel Care products, take care not to spray them on the brake disks. Plastic and rubber parts...
Page 369 To prevent scratches, do not use scour- ing agents. Steering wheel and gear selector lever Wipe with a damp cloth and dry thor- oughly or clean with Mercedes-Benz approved Leather Care. Carpets Use Mercedes-Benz approved Carpet and Fabric Care for cleaning the car- pets.
Page 370 Carefully dab nubuck leather uphol- stery with a dry microfiber cloth to re- move oil stains. Do not use Mercedes-Benz approved Leather Care or any solvents to clean nubuck leather upholstery. Avoid hard scrubbing on nubuck leath- er upholstery.
Page 372: Practical Hints
Practical hints What to do if … Where will I find ...? Unlocking/locking in an emergency Opening/closing in an emergency Resetting activated head restraints Replacing SmartKey batteries Replacing bulbs Replacing wiper blades Flat tire Batteries Jump starting Towing the vehicle Fuses...
Page 373: What To Do If
Read and observe messages in the multifunction display ( page 383). Have the system checked at an autho- rized Mercedes-Benz Center as soon as possible. Failure to follow these instructions in- creases the risk of an accident.
Page 374 ( page 96). ® If the ESP cannot be switched back on, have the system checked at an autho- rized Mercedes-Benz Center as soon as possible. When driving off, apply as little throttle as possible. While driving, ease up on the acceler- ator.
Page 375 Release the parking brake. Observe the additional message in the multifunction display. Risk of accident! Do not drive any fur- ther. Consult a Mercedes-Benz Service Center. Under no circum- stances should you top up the brake fluid. This will not solve the problem.
Page 376 What to do if … Suggested solution Have the vehicle checked as soon as possible by an authorized Mercedes-Benz Center. An on-board diagnostic connector is used by the service station to link the vehicle to the shop diagnostics system. It allows the accu-...
Page 377 Have the cooling system checked. If the coolant temperature is below 257°F (125°C), you can continue driving to the nearest authorized Mercedes-Benz Center. Avoid high engine loads (e.g. driving uphill) and stop-and-go driving. Stop as soon as possible in a safe lo- cation and allow the engine and cool- ant to cool down.
Page 378 Problem Only vehicles with Distronic*: The red distance warning lamp comes on while driving. Only vehicles with Distronic*: The red distance warning lamp comes on while driving and you hear a warning chime sound. The yellow fuel tank reserve warning lamp comes on while driving.
Page 379 Read and observe messages in the mul- tifunction display. Have the TPMS* checked by an authorized Mercedes-Benz Center. After the malfunction has been remedied the combination low tire pressure/TPMS malfunction telltale goes out after few minutes driving.
Page 380 Warning! Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recom- mended by the vehicle manufacturer on the vehicle placard or the tire inflation pressure label. (If your vehicle has tires of a different size than the size indicated on the vehicle placard or the tire inflation pressure label, you should determine the proper tire infla-...
Page 381 SRS may not be operational. For your safety, we strongly recommend that you visit an authorized Mercedes-Benz Center immediately to have the system checked; otherwise the SRS may not be activated when needed in an acci-...
Page 382: Lamp In Center Console
The system is malfunctioning. Practical hints What to do if … Suggested solution Have the system checked as soon as possible by an authorized Mercedes-Benz Center. Read and observe messages in the multifunction display and follow cor- rective steps ( page 390).
Page 383 If the light remains out, have the system checked as soon as possible by an authorized Mercedes-Benz Center. Do not transport a child on the front passen- ger seat until the system has been repaired.
Page 384: Vehicle Status Messages In The Multifunction Display
Mercedes-Benz Center. Failure to repair condition noted may cause damage not covered by the Mercedes-Benz Limited Warranty, or result in property dam- age or personal injury. Warning!
Page 385 Practical hints What to do if … Switching on the ignition causes all in- strument cluster lamps (except low beam headlamp indicator lamp, high beam headlamp indicator lamp, and turn signal indicator lamps unless acti- vated) as well as the multifunction dis- play to come on.
Page 386 Continue driving with added caution. Wheels will lock during hard braking, reduc- ing steering capability. Have the system checked at an authorized Mercedes-Benz Center as soon as possible. Continue driving with added caution. Wheels will lock during hard braking, reduc- ing steering capability.
Page 387 The Distronic* is switched off and is temporarily unavailable. The Distronic* is malfunctioning or the display is malfunctioning. Have the cruise control or Distronic* checked by an authorized Mercedes-Benz Center. Try activating the Distronic* again later. Visit an authorized Mercedes-Benz Center as soon as possible.
Page 388 Display Display message Possible cause/consequence Distronic Currently unavailable Distronic* is switched off if: See Operator’s Manual Warning! Distronic* cannot take weather conditions into account. Switch off Distronic* or do not turn it on if the sensor is dirty or visibility is Possible solution If necessary, clean the Distronic* cover in the area of the radiator grille.
Page 389 Continue driving with added caution. Have the system checked at an authorized Mercedes-Benz Center as soon as possible. ® Synchronize the ESP . With the vehicle sta- tionary, turn the steering wheel completely to the left and then to the right to synchro- ®...
Page 390 What to do if … Continue driving with added caution. Have the system checked at an authorized Mercedes-Benz Center as soon as possible. Place the gear selector lever in position P. Place the gear selector lever in position P or N. Make sure the brake pedal is de-...
Page 391 Practical hints What to do if … Display messages Possible cause/consequence Front passenger Front passenger front air bag is airbag activated while driving even activated though a child, small individual, or See Operator’s Manual object below the system’s weight threshold is on the front passen- ger seat, or the front passenger seat is empty.
Page 392 75 indicator lamp will remain illuminated or go out. If above conditions are not met, the system is not working properly. Have the sys- tem checked as soon as possible by an authorized Mercedes-Benz Center. out even after performing the above correc-...
Page 393 Practical hints What to do if … Display messages Possible cause/conse- quence Front passenger Front passenger front air bag is airbag deactivated while driving even deactivated though an adult or someone See Operator’s Manual larger than a small individual is occupying the front passenger seat.
Page 394 75 indicator lamp will remain illuminated or go out. If above conditions are not met, the system is not working properly. Have the sys- tem checked as soon as possible by an authorized Mercedes-Benz Center. illuminated with an adult occupant on the...
Page 395 Possible solution Have the TPMS* checked by an authorized Mercedes-Benz Center. Have the TPMS* checked by an authorized Mercedes-Benz Center. Have the wheel sensors installed by an authorized Mercedes-Benz Center.
Page 396 Do not continue to drive. Otherwise the engine will overheat due to an in- operative water pump which may re- sult in damage to the engine. Notify an authorized Mercedes-Benz Center. If it is intact: Drive immediately to the nearest authorized Mercedes-Benz Center.
Page 397 Stop the vehicle in a safe location as soon as it is safe to do so. Adjust driv- ing to be consistent with reduced braking responsiveness. Notify an authorized Mercedes-Benz Center. Start the engine ( page 50). The electrical consumers will come back online as soon as on-board voltage is suf- ficient.
Page 398 Do not drive any further. Stop the vehicle in a safe location as soon as it is safe to do so and notify an authorized Mercedes-Benz Center. Prevent the vehicle from rolling away by blocking the wheels with wheel chocks or other sizable objects.
Page 399 Possible solution Continue driving with added caution. Adjust driving to be consistent with reduced braking responsiveness. Visit an authorized Mercedes-Benz Center as soon as possible. Visit an authorized Mercedes-Benz Center as soon as possible. Relieve the load on the brake system.
Page 400 Risk of accident! Stop the vehicle in a safe location as soon as it is safe to do so and notify an authorized Mercedes-Benz Center. Do not add brake fluid! This will not solve the problem. Do not add brake fluid before checking the brake system.
Page 401 Do not ignore the low engine coolant level warning. Extended driving with the message and symbol displayed may cause serious engine damage not covered by the Mercedes-Benz Limited Warranty. Possible solution Have the measuring system checked by an authorized Mercedes-Benz Center.
Page 402 The engine should not be operated with the coolant temperature above 248°F (120°C). Doing so may cause serious damage which is not covered by the Mercedes-Benz Limited Warranty. Practical hints What to do if … Possible solution Stop the vehicle in a safe location as soon as it is safe to do so.
Page 403 Do not continue to drive. Otherwise the engine will overheat due to an inoperative water pump which may result in damage to the engine. Notify an authorized Mercedes-Benz Center. Do not continue to drive the vehicle with this mes- sage displayed. Doing so could result in serious engine damage that is not covered by the Mercedes-Benz Warranty.
Page 404 Continue driving with added caution. When the display is malfunctioning, warnings and malfunction messages might not be displayed. Have the electronic systems checked by an authorized Mercedes-Benz Center. Have the electronic systems checked by an authorized Mercedes-Benz Center. Close the doors.
Page 405 If you must add engine oil frequently, have the engine checked for possible leaks. The engine oil level warnings should not be ignored. Extended driving with the symbol displayed could result in serious engine damage that is not covered by the Mercedes-Benz Limited Warranty.
Page 406 Display symbol Display messages Engine oil level Stop, engine off Engine oil level Visit workshop Change engine oil Visit workshop Possible cause/consequence E 500, E 55 AMG only: There is no oil in the engine. There is a danger of engine damage. E 500, E 55 AMG only: The engine oil has dropped to a critical level.
Page 407 It may be that there is water in the engine oil. Possible solution Have oil siphoned or drained off. Ob- serve all legal requirements with re- spect to its disposal. Have the measuring system checked by an authorized Mercedes-Benz Center. Have the engine oil and the cooling system checked.
Page 408 Change the position of the SmartKey in the vehicle. Operate the vehicle with the SmartKey in the starter switch if nec- essary. Take the SmartKey out of the vehicle. Visit an authorized Mercedes-Benz Center as soon as possible.
Page 409 KEYLESS-GO* with you when leaving the vehicle. Remove the SmartKey from the start- er switch. Visit an authorized Mercedes-Benz Center as soon as possible. Refuel at the next gas station ( page 312). Check the fuel cap ( page 312).
Page 410 The active headlamps have malfunc- tioned several times in succession. Practical hints What to do if … Possible solution Visit an authorized Mercedes-Benz Center as soon as possible. Visit an authorized Mercedes-Benz Center as soon as possible. Visit an authorized Mercedes-Benz Center as soon as possible.
Page 411 Switch on headlamps using the exteri- or lamp switch. Replace the bulb as soon as possible. Bi-Xenon* headlamp: Visit an authorized Mercedes-Benz Center as soon as possible. Replace the bulb as soon as possible. Replace the bulb as soon as possible.
Page 412 What to do if … Possible solution Halogen headlamp: Replace the bulb as soon as possible. Bi-Xenon* headlamp: Visit an authorized Mercedes-Benz Center as soon as possible. Visit an authorized Mercedes-Benz Center as soon as possible. Visit an authorized Mercedes-Benz Center as soon as possible.
Page 413 This message will only appear if all light emitting diodes have stopped working. Possible solution Visit an authorized Mercedes-Benz Center as soon as possible. Visit an authorized Mercedes-Benz Center as soon as possible. Replace the bulb as soon as possible.
Page 414 Display symbol Display messages Please rectify tire pressure Tire pressure Caution, tire defect Tire pressure Check tires Warning! Do not drive with a flat tire. A flat tire affects the ability to steer or brake the vehicle. You may lose control of the vehicle. Continued driving with a flat tire will cause excessive heat build-up and possibly a fire.
Page 415 SmartKey removed from the starter switch and the tilting portion of the tilt/sliding sunroof* open. Possible solution Visit an authorized Mercedes-Benz Center as soon as possible. Have the service memory checked by an authorized Mercedes-Benz Center. Close the tilt/sliding sunroof* ( page 236).
Page 416 SRS may not be operational. For your safety, we strongly recommend that you visit an authorized Mercedes-Benz Center immediately to have the system checked; otherwise the SRS may not be activated when needed in an accident,...
Page 417 Practical hints What to do if … Display symbol Display messages Function unavailable & Tailgate open Washer fluid, please refill Possible cause/consequence This display appears if button t or s on the multifunction steering wheel is pressed and the vehicle is not equipped with a telephone.
Page 418 Display symbol Display messages Vehicle rising Vehicle rising Please wait briefly Stop, car too low Possible cause/consequence Your vehicle is adjusting to your level se- lection. The vehicle level is too low. The Airmatic* is malfunctioning. Practical hints What to do if … Possible solution Do not drive off.
Page 419 Possible solution Do not drive faster than 50 mph (80 km/h). Have the vehicle checked at an autho- rized Mercedes-Benz Center. Do not drive faster than 50 mph (80 km/h). Have the vehicle checked at an autho- rized Mercedes-Benz Center.
Page 420: Where Will I Find
Where will I find ...? First aid kit The first aid kit is in the storage compart- ment at the front edge of the front passen- ger seat. 1 Tab Pull tab 1 upward. Fold the covering forward. Remove the first aid kit. Check expiration dates and contents for completeness at least once a year and replace missing/expired items.
Page 421 Practical hints Where will I find ...? Vehicles with foldable third row seat - Vehicle tool kit, jack and spare wheel (except E 55 AMG) or TIREFIT (E 55 AMG only) The vehicle tool kit is located in the cargo compartment underneath the third row seat cushions and footwell.
Page 422: Tirefit Kit
Vehicle tool kit (vehicles with TIREFIT) 1 Vehicle tool kit and jack 2 Electric air pump 3 TIREFIT kit Vehicle jack Warning! The jack is designed exclusively for jacking up the vehicle at the jack take-up brackets built into both sides of the vehicle. To help avoid personal injury, use the jack only to lift the vehicle during a wheel change.
Page 423 Practical hints Where will I find ...? Operational position Turn crank handle clockwise. Before storing the vehicle jack in its compartment: It should be fully collapsed. The handle must be folded in (storage position). Spare wheel If your vehicle is equipped with a spare wheel (Minispare or collapsible tire), it is located in the cargo compartment under- neath the third row seat cushions and foot-...
Page 424 In the case of a flat tire, you may tempo- rarily use the spare wheel when observing the following restrictions: Do not exceed a vehicle speed of 50 mph (80 km/h). Drive to the nearest tire repair facility to have the flat tire repaired or re- placed as appropriate.
Page 425: Unlocking/Locking In An Emergency
Practical hints Unlocking/locking in an emergency Unlocking the vehicle If you cannot unlock the vehicle with the SmartKey or SmartKey with KEYLESS-GO*, open the driver’s door and the tailgate using the mechanical key. Unlocking your vehicle with the me- chanical key will trigger the anti-theft alarm system.
Page 426: Locking The Vehicle
Locking the vehicle If you are unable to lock the vehicle with the SmartKey or SmartKey with KEYLESS-GO*, do the following: Close the passenger door, the rear doors and the tailgate. Press the central locking switch in the center console ( page 128). Check to see whether the locking knobs on the doors have moved down.
Page 427: Manually Unlocking The Gear Selector Lever
Practical hints Unlocking/locking in an emergency Manually unlocking the gear selector lever In case of power failure, the gear selector lever can be manually unlocked, e.g. to tow the vehicle. 1 Pin Open the storage compartment in the center armrest ( page 275). Take out the cup holder ( page 276).
Page 428: Opening/Closing In An Emergency
Opening/closing in an emergency Power tilt/sliding sunroof* You can open or close the tilt/sliding sun- roof manually should an electrical malfunc- tion occur. The tilt/sliding sunroof drive is located be- hind cover 1 of the interior overhead light. 1 Cover Remove the SmartKey from the starter switch.
Page 429: Resetting Activated Head Restraints
For your convenience, we recommend that you have this work carried out by an authorized Mercedes-Benz Center. You will find the reset tool for manually operating the head restraints in the Mercedes-Benz vehicle literature pouch.
Page 430: Replacing Smartkey Batteries
When inserting the batteries, make sure they are clean and free of lint. When replacing batteries, always re- place both batteries. The required replacement batteries are available at any Mercedes-Benz Cen- ter. Practical hints Replacing SmartKey batteries SmartKey Replacement batteries: Lithium, type CR 2025 or equivalent.
Page 431: Smartkey With Keyless-Go
Practical hints Replacing SmartKey batteries Pull battery compartment 3 ( page 429) out of the housing in di- rection of arrow. Remove the batteries 4 in direction of arrow. 4 Battery 5 Contact spring Using a lint-free cloth, insert new batteries 4 under the contact spring 5 with the positive terminal (+) side facing up.
Page 432: Replacing Bulbs
Have headlamps checked and readjusted at regular intervals and when a bulb has been replaced. See your autho- rized Mercedes-Benz Center for headlamp adjustment. If the headlamps or front fog lamps are fogged up on the inside as a result of...
Page 433 6 Front fog lamp H1 (55 W) Vehicles with Bi-Xenon* headlamps: Low beam and high beam use the same D2S-35W lamp. Do not replace the Bi-Xenon bulbs yourself. Contact your authorized Mercedes-Benz Center. Rear lamps Lamp Type 7 High mounted brake...
Page 434 Always use a clean lint-free cloth when handling bulbs. Your hands should be dry and free of oil and grease. If the newly installed bulb does not light up, visit an authorized Mercedes-Benz Center. Practical hints Replacing bulbs Have the LEDs and bulbs for the follow-...
Page 435: Replacing Bulbs For Front Lamps
Practical hints Replacing bulbs Replacing bulbs for front lamps 1 Housing cover for low beam halogen or Bi-Xenon* headlamp Warning! Do not remove the cover 1 for the Bi-Xenon* headlamp. Because of high voltage in Bi-Xenon* lamps, it is dangerous to replace the bulb or repair the lamp and its components.
Page 436 If a malfunction occurs or LEDs fail to func- tion, the entire turn signal unit must be re- placed. Have the turn signal unit replaced by an authorized Mercedes-Benz Center. Front side marker lamp bulbs Since replacing the side marker lamp bulbs...
Page 437: Replacing Bulbs For Rear Lamps
If the tail lamps are malfunctioning, have them exchanged at an authorized Mercedes-Benz Center. License plate lamp 1 Screw Turn the exterior lamp switch to position M ( page 143).
Page 438: Replacing Wiper Blades
Replacing wiper blades The windshield wipers must be in a ver- tical position before folding them away from the windshield. They could other- wise damage the hood. Removing front wiper blades Warning! For safety reasons, switch off wipers and re- move SmartKey from starter switch (vehi- cles with KEYLESS-GO*: Make sure the vehicle’s on-board electronics have...
Page 439: Installing Front Wiper Blades
For your convenience, we recommend that you have this work carried out by an authorized Mercedes-Benz Center. Removing rear wiper blade Warning! For safety reasons, switch off wipers and remove SmartKey from starter switch (vehi- cles with KEYLESS-GO*: Make sure the vehicle’s on-board electronics have...
Page 440: Installing Rear Wiper Blade
1 Wiper blade 2 Tab 3 Attachment 4 Removing Turn the wiper blade 1 at a right angle to wiper arm. Press tab 2 down and push wiper blade 1 downward in direction of arrow 4. Remove wiper blade 1. Installing rear wiper blade 1 Wiper blade 2 Tab...
Page 441: Flat Tire
Practical hints Flat tire Preparing the vehicle Park the vehicle in a safe distance from moving traffic on a hard, flat surface when possible. Turn on the hazard warning flasher ( page 147). Turn the steering wheel so that the front wheels are in a straight ahead po- sition.
Page 442 Do not drive the vehicle under such circum- stances. Contact your nearest Mercedes-Benz Center for assistance or call Roadside Assistance. Foreign objects (e.g. screws or nails) should not be removed from the tire.
Page 443 Practical hints Flat tire Screw the air pump’s air hose 5 onto flange 6 of the TIREFIT container. Stick TIREFIT container 1 upside down into notch 3 of the electric air pump. 7 Tire valve 8 Electric air pump switch 9 Air hose with pressure gauge and vent screw a Filler hose...
Page 444 TIREFIT to provide a reliable tire repair. In this case, TIREFIT cannot properly seal the tire. Do not drive the vehicle. Contact the nearest Mercedes-Benz Center or call Roadside Assistance. After attaining a tire inflation pressure of 26 psi (1.8 bar), press 0 on electric air pump switch 8.
Page 445 20 psi (1.3 bar) do not continue to drive the vehicle. Park your vehicle safely away from the road- way and contact the nearest authorized Mercedes-Benz Center or Roadside Assistance. If tire inflation pressure is at least 20 psi (1.3 bar), inflate tire to correct pres- sure (see placard on the driver’s door...
Page 446: Mounting The Spare Wheel
When driving with spare wheel mounted, ensure proper tire pressure and do not ex- ceed a vehicle speed of 50 mph (80 km/h). Drive to the nearest Mercedes-Benz Center as soon as possible to have the spare wheel replaced with a regular road wheel.
Page 447 Practical hints Flat tire Warning! The jack is designed exclusively for jacking up the vehicle at the jack take-up brackets built into either side of the vehicle. To help avoid personal injury, use the jack only to lift the vehicle during a wheel change. Never get beneath the vehicle while it is supported by the jack.
Page 448 Jack up the vehicle until the wheel is a maximum of 1.2 in (3 cm) from the ground. Never start engine while vehicle is raised. Warning! Position the jack only on the jack take-up brackets designed for this purpose. If the jack is not properly positioned, the ve- hicle may slip off of the jack.
Page 449 Damaged wheel hub threads should be re- paired immediately. Do not continue to drive under these circumstances! Contact an au- thorized Mercedes-Benz Center or call Roadside Assistance. Incorrect wheel bolts or improperly tight- ened wheel bolts can cause the wheel to come off.
Page 450 Inflating the collapsible tire (E 55 AMG without foldable third row seat only) Warning! Inflate collapsible tire only after the wheel is properly mounted. Inflate the collapsible tire using the electric air pump before lowering the vehicle. Warning! Observe instructions on air pump label. Do not lower the vehicle before inflating the collapsible tire.
Page 451 Practical hints Flat tire Press 0 on electric air pump switch 2. Turn the SmartKey in the starter switch to position 0. If the tire pressure is above 51 psi (3.5 bar), release excess tire pressure using the vent screw. Warning! Follow recommend inflation pressures.
Page 452: Moextended System
After driving in emergency mode, you must have the rims inspected by an authorized Mercedes-Benz Center to check if they are suitable for further use. The failed tire must be replaced in any case.
Page 453: Batteries
Practical hints Batteries Your vehicle is equipped with two batter- ies: Main battery (battery for starter and electrical consumers; located in the cargo compartment). Auxiliary battery (back-up battery; sta- bilizes the electrical system if the main battery is discharged; located in the en- gine compartment).
Page 454: Disconnecting The Battery
Have the battery checked regularly by an authorized Mercedes-Benz Center. Refer to Maintenance Booklet for main- tenance intervals or contact an autho- rized Mercedes-Benz Center for further information. Warning! Do not place metal objects on the battery as this could result in a short circuit.
Page 455: Removing The Battery
Warning! Never charge a battery while still installed in the vehicle unless the accessory battery charge unit* approved by Mercedes-Benz is being used. Gases may escape during charg- ing and cause explosions that may result in paint damage, corrosion or personal injury.
Page 456: Reconnecting The Battery
Reinstall the charged battery. Follow the previously described steps in re- verse order. The battery, its filler caps and the bat- tery ventilation tube must always be se- curely installed when the vehicle is in operation. Reconnecting the battery Turn off all electrical consumers. Remove SmartKey from starter switch.
Page 457: Jump Starting
(12 V). Jump start- ing with a more powerful battery could damage the vehicle’s electrical system, which will not be covered by the Mercedes-Benz Limited Warranty. Use only jumper cables with sufficient cross-section and insulated terminal clamps.
Page 458 Remove the jumper cables first from negative terminals on each battery and then from the positive terminals on each battery. Now you can turn on the lights. Have the battery checked at the near- est authorized Mercedes-Benz Center. Do not tow-start the vehicle.
Page 459: Towing The Vehicle
Practical hints Towing the vehicle Mercedes-Benz recommends that the vehi- cle be transported with all wheels off the ground using flatbed or appropriate wheel lift/dolly equipment. This method is pref- erable to other types of towing. Use flatbed or wheel lift/dolly equip- ment with SmartKey in starter switch turned to position 0.
Page 460 To be certain to avoid a possibility of damage to the drivetrain, however, we recommend the drive shaft be discon- nected at the rear axle drive flange (ve- hicles with 4MATIC: disconnected at the front and rear axle drive flanges) for any towing beyond a short tow to a nearby garage.
Page 461 Practical hints Towing the vehicle To signal turns while being towed with the hazard warning flasher in use, turn SmartKey in starter switch to position 2 and activate the combina- tion switch for the left or right turn sig- nal in the usual manner – only the selected turn signal will operate.
Page 462: Installing Towing Eye Bolt
Installing towing eye bolt Front of vehicle 1 Cover on right side of front bumper To remove cover: Press mark on cover 1 in direction of arrow. Lift cover 1 off to reveal the threaded hole for towing eye bolt. The towing eye bolt is supplied with the tool kit (located in the storage compart- ment under the cargo compartment floor).
Page 463: Fuses
Fuse chart Spare fuses Fuse extractor Warning! Only use fuses approved by Mercedes-Benz with the specified amperage for the system in question. Using other fuses may cause an overload leading to a fire, and/or cause damage to electrical components and/or systems.
Page 464: Compartment
Main fuse box in passenger compartment The main fuse box is located behind a cov- er in the dashboard on the driver’s side. 1 Recess in the cover 2 Cover Do not use sharp objects such as a screw driver to open the fuse box cover 2 in the dashboard, as this could damage it.
Page 466: Technical Data
Technical data Parts service Warranty coverage Identification labels Layout of poly-V-belt drive Engine Rims and tires Electrical system Main dimensions and weight Fuels, coolants, lubricants etc.
Page 467: Parts Service
The “Technical data” section provides the necessary technical data for your vehicle. All authorized Mercedes-Benz Centers maintain a stock of Genuine Mercedes-Benz parts required for mainte- nance and repair work. In addition, strate- gically located parts distribution centers provide quick and reliable parts service.
Page 468: Warranty Coverage
Emission System Warranty Emission Performance Warranty California, Maine, Massachusetts, and Vermont Emission Control System Warranty Replacement parts and accessories are covered by the Mercedes-Benz Parts and Accessories Warranties, copies of which are available at any authorized Mercedes-Benz Center. Technical data Warranty coverage...
Page 469: Identification Labels
Technical data Identification labels 1 Certification label (includes Paintwork code) 2 Vehicle Identification Number (VIN) Example E 350 3 Vacuum line routing diagram label 4 Engine number (engraved on engine) 5 Vehicle Identification Number (VIN) (lower edge of windshield) 6 Emission control information label, in- cludes both federal and California cer- tification exhaust emission standards When ordering parts, please specify ve-...
Page 470: Layout Of Poly-V-Belt Drive
Layout of poly-V-belt drive E 350/E 350 4MATIC 1 Idler pulley 2 Idler pulley 3 Automatic belt tensioner 4 Power steering pump 5 Air conditioning compressor 6 Crankshaft 7 Coolant pump 8 Generator (alternator) E 500/E 500 4MATIC 1 Automatic belt tensioner 2 Power steering pump 3 Air conditioning compressor 4 Crankshaft...
Page 471: Engine
Firing order Poly-V-belt The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment. Not available in the U.S. Premium fuel required. Performance may vary with fuel octane rating.
Page 472 Maximum engine speed Firing order Poly-V-belts The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corre- sponding data of all special bodies and special equipment. Premium fuel required. Performance may vary with fuel octane rating.
Page 473: Rims And Tires
ABS or ® . Tires specially developed for your vehicle and tested and approved by Mercedes-Benz can be identified by finding the following on the tire’s side- wall: MO = Mercedes-Benz Original equipment tires...
Page 474 Further information on tires and rims is available at any authorized Mercedes-Benz Center. A placard with the recommended tire inflation pres- sures is located on the driver’s door B-pillar. Some vehicles may have sup- plemental tire inflation pressure infor- mation for driving at high speeds...
Page 475: Same Size Tires
Technical data Rims and tires Same size tires 17’’ tires Rims (light alloy) Wheel offset Summer tires All-season tires Winter tires Radial-ply tires Not available as factory equipment. E 350 E 350 4MATIC E 500 4MATIC 8 J x 17 H2 1.5 in (38 mm) 245/45 R17 95H M+S 245/45 R17 99V XL (Extra Load) M+S.
Page 476 18’’ tires Rims (light alloy) Wheel offset Summer tires All-season tires Winter tires Not available in Canada. Radial-ply tires Not available as factory equipment. E 55 AMG 8 J x 18 EH2 1.18 in (30 mm) 245/40 R18 97V XL (Extra Load) M+S. - Technical data Rims and tires E 350 4MATIC (Sport Package*)
Page 477: Mixed Size Tires
Technical data Rims and tires Mixed size tires Front axle: Rims (light alloy) Wheel offset Summer tires Rear axle: Rims (light alloy) Wheel offset Summer tires Radial-ply tires Must not be used with snow chains. E 350 (Sport Package*) E 500 (Sport Package*) E 55 AMG 8 J x 18 EH2 1.18 in (30 mm)
Page 478: Moextended Tires
MOExtended tires* Rims (light alloy) Wheel offset Summer tires All-season tires 1,2,3 Winter tires Radial-ply tires Must be used in conjunction with Tire Pressure Monitoring System (U.S. vehicles) only. Not available as factory equipment. E 350 E 350 (Appearance Package*) E 350 4MATIC E 500 E 500 4MATIC...
Page 479: Spare Wheel
Technical data Rims and tires Spare wheel Please compare the recommended tire inflation pressure for your vehicle with the tire inflation pressure on the yellow label located on the spare wheel rim. If the tire inflation pressure on the yel- low label on the spare wheel rim differs from the values given in this Operator’s Manual, inflate the spare wheel tire to...
Page 480: Electrical System
Electrical system Model Generator (alternator) Starter motor Battery (auxiliary) Battery (main) Spark plugs Electrode gap Tightening torque E 350, E 350 4MATIC E 500, E 500 4MATIC 14 V/150 A 14 V/150 A 14 V/1.7 kW 14 V/1.7 kW 12 V/12 Ah 12 V/12 Ah 12 V/95 Ah 12 V/95 Ah...
Page 481: Main Dimensions And Weight
Technical data Main dimensions and weight Main dimensions Model Overall vehicle length Overall vehicle width (exterior view mirrors folded out) Overall vehicle height Overall vehicle height (Airmatic DC*) (optional on E 350; standard on E 500/E 55 AMG) Wheelbase Track, front Track, rear Not available in the U.S.
Page 482: Weight
Model Overall vehicle length Overall vehicle width (exterior view mirrors folded out) Overall vehicle height Overall vehicle height (Airmatic DC*) (optional on E 350; standard on E 500) Wheelbase Track, front Track, rear Weight Max. roof load 220 lbs (100 kg) E 320 4MATIC E 500 4MATIC 191.7 in (4868 mm)
Page 483: Fuels, Coolants, Lubricants Etc
8.0 US qt (7.5 l) 0.63 US qt (0.6 l) Please refer to the Factory Approved Ser- vice Products Pamphlet, or inquire at your authorized Mercedes-Benz Center. Fuels, coolants, lubricants etc. Approved engine oils MB Automatic Transmission Fluid Hypoid gear oil SAE 85 W 90...
Page 484 Model Rear axle E 350 E 350 4MATIC E 500 E 500 4MATIC E 55 AMG Transfer case E 350 4MATIC E 500 4MATIC Power steering Front wheel hubs Brake system Cooling system E 350 E 350 4MATIC E 500 E 500 4MATIC E 55 AMG Fuels, coolants, lubricants etc.
Page 485 Technical data Fuels, coolants, lubricants etc. Model Fuel tank including a reserve of all except E 55 AMG including a reserve of E 55 AMG Air conditioning system Windshield washer Windshield washer and head- lamp cleaning system Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre- mixed windshield washer solvent/antifreeze for temperatures below freezing point.
Page 486: Engine Oils
For a listing of approved engine oils and oil filters, refer to the Factory Ap- proved Service Products pamphlet, or con- tact an authorized Mercedes-Benz Center. Using engine oils and oil filters of spec- ification other than those expressly re- quired for the Maintenance System (U.S.
Page 487: Premium Unleaded Gasoline
Gasoline additives A major concern among engine manufac- turers is carbon build-up caused by gaso- line. Mercedes-Benz recommends only the use of quality gasoline containing additives that prevent the build-up of carbon depos- its. After an extended period of using fuels...
Page 488: Fuel Requirements
Mercedes-Benz vehicles listed in the Fac- tory Approved Service Products pamphlet are not covered by the Mercedes-Benz Limited Warranty.
Page 489 The replacement interval published in the Maintenance Booklet is only applicable if MB 325.0 anticorrosion/antifreeze solu- tion or other Mercedes-Benz approved products of equal specification (see Factory Approved Service Products pam- phlet) are used to renew the coolant con- centration or bring it back up to the proper level.
Page 490 Anticorrosion/antifreeze quantity Model Approx. freeze protection – 35°F (– 37°C) E 350/E 350 4MATIC 5.3 US qt (5.0 l) E 500/E 500 4MATIC 6.0 US qt (5.65 l) E 55 AMG 7.0 US qt (6.6 l) – 49°F (– 45°C) 5.9 US qt (5.5 l) 6.6 US qt (6.2 l) 7.7 US qt (7.3 l)
Page 491: Windshield And Headlamp Washer System
Technical data Fuels, coolants, lubricants etc. Windshield and headlamp washer system Both the windshield and headlamp washer systems are supplied from the windshield washer fluid reservoir. The washer fluid reservoir has a capacity of approximately: 7.4 US qt. (7.0 l) in vehicles with a headlamp cleaning system* or heated reservoir 4.8 US qt.
Page 492: Technical Terms
Bi-Xenon headlamps produce low beam and high beam. Technical terms (Customer Assistance Center) Mercedes-Benz customer service cen- ter which can help you with any ques- tions about your vehicle and provide assistance in the event of a break- down.
Page 493 Technical terms COMAND (Cockpit Management and Data Sys- tem) Information and operating center for vehicle sound and communications systems, including the radio and navi- gation system, as well as other optional equipment (CD changer, telephone, etc.). Control system The control system is used to call up vehicle information and to change component settings.
Page 494 FSS PLUS (Canada vehicles) (Flexible Service System PLUS) Maintenance service indicator in the multifunction display that informs the driver when the next vehicle mainte- nance service is due. FSS evaluates en- gine temperature, oil level, vehicle speed, engine speed, distance driven and the time elapsed since your last service, calculates other maintenance service work required, and calls for the...
Page 495 Engine speeds within the red marking on the tachometer dial. Avoid this en- gine speed range, as it may result in se- rious engine damage that is not covered by the Mercedes-Benz Limited Warranty. Poly-V-belt drive Drives engine-components (alternator, AC compressor, etc.) from the engine.
Page 496 Production options weight ( page 351) Program mode selector switch Used to switch the automatic transmis- sion between standard operation S and operation C. (Pounds per square inch) ( page 352) Recommended tire inflation pressure ( page 333) Restraint systems Seat belts, belt tensioners, air bags and child restraint systems.
Page 497 Technical terms Tire load rating ( page 352) Tire ply composition and material used ( page 352) Tire speed rating ( page 352) TPMS ( page 335) Traction ( page 352) Tread ( page 352) Treadwear indicators ( page 352) Uniform Tire Quality Grading Standards ( page 353) Vehicle capacity weight...
Page 498: Index
ABS 91, 491 Indicator lamp 372 Messages in display Accelerator position Automatic transmission 187 Accessory weight 350 Accident 58 Active head restraints 76 Air bags 67 Children 68 Front, Driver 71 Front, Passenger 71 Safety guidelines 70 Side impact 72 Window curtain 72 Air conditioning refrigerant 485 Air conditioning system see Climate con-...
Page 499 Index Shift program mode selector switch 189 Shift program mode selector switch, Manual shift program E 55 AMG 194 Starting engine 50 Steering wheel gearshift control one-touch gearshifting E 55 AMG 191 Winter program mode 189 Backrest 260 Folding rearward 261 Seat 41 Seat, multicontour 133 Backup lamps...
Page 500 Center console Lower part 28 PASS AIR BAG OFF indicator lamp 381 Upper part 27 Centigrate see Temperature display mode Central locking Automatic 127, 176 Locking/unlocking from inside 128 Central locking switch 128 Certification label 468 Checking Oil level 316 Children in the vehicle 77 Air bags 68 Blocking of rear window operation 89...
Page 501 Index Coolant Anticorrosion/antifreeze mixing ratio and quantity 489 Capacities 483 Checking coolant level 321 Messages in display 400, 401, 402 Temperature 311 Temperature indicator 152 Warning lamp 376 Cruise control 239, 492 Message in display 386 Cup holders 274 Cleaning 367 Curb weight 350 Customer Assistance Center see CAC Date display, setting 171, 172...
Page 502 Drive-Dynamic seat* with multicontour features 133 Massage function 134 Driving Abroad 309 Hydroplaning 305 In winter 307 Instructions 47, 301 Problems 58 Safety systems 91 Through standing water 308 With Distronic* 253 Driving safety systems 4MATIC ABS 91 BAS 93 Electrohydraulic brake system 96 ®...
Page 503: Tirefit Kit
Index Engine Belt layout 469 Block heater* (Canada only) 356 Cleaning 364 Compartment 315 Malfunction indicator lamp 375, 400 Maximum engine speed 471 Message in the display 375, 400 Number 468, 492 Starting 50 Starting with KEYLESS-GO* 51 Tachometer 25 Technical data 470 Turning off with KEYLESS-GO* 61 Turning off with the SmartKey 61...
Page 504 Folding bench seat Folding back 139 Folding bench seat in cargo compartment 137 Four wheel electronic traction system with ® see 4MATIC 4MATIC 99 Front air bags 71 Front lamps see Headlamps Front passenger front air bag Messages in display Front passenger front air bag off indicator lamp 72, 84 Front seat head restraints see Head re-...
Page 505 Index Gear selector lever, Cleaning 368 Global Positioning System see GPS Glove box 272 Good visibility 197 GPS 493 Gross Axle Weight Rating see GAWR Gross Vehicle Weight Rating see GVWR Gross Vehicle Weight see GVW GVW 351 GVWR 351 Halogen headlamps see Headlamps Hard plastic trim items, cleaning 368 Hazard warning flasher 147...
Page 506 Instrument lighting see Instrument cluster, Illumination brightness Instrument panel see Instrument cluster Instruments and controls see Cockpit Interior lighting Delayed shut-off 175 Interior rear view mirror 45 Auto-dimming mirrors 197 Interior storage spaces see Storage com- partments Jack 422 Jump starting 456 Key, Mechanical 424 Key, SmartKey Battery check lamp 106...
Page 507: Check Engine
Index Labels Certification 468 Emission control information 468 Emission control vacuum line routing 468 Lamp sensor Message in display 411 Lamps, exterior Light sensor 410, 411 Messages in display 409, 410, 411, Lamps, indicator and warning ABS 25, 372 Battery (SmartKey) 109, 115 Brakes 374 CHECK ENGINE 375 Coolant 376...
Page 508 Maintenance System (U.S. vehicles) 494 Manual headlamp mode see Headlamps Manual shift program E 55 AMG 193 Deactivating 196 Maximum inflation pressure 351 Maximum load rating 351 Maximum loaded vehicle weight 351 Mechanical key 424 Memory function 494 Memory function see Seats Menus see Control system menus Messages in display see Multifunction dis- play messages...
Page 509 Index Occupant Classification System see OCS Occupant distribution 351 Occupant safety 66 Air bags 67 Children and air bags 68 Children in the vehicle 77 Fastening the seat belt 47 Front passenger front air bag off indica- tor lamp 84 Infant and child restraint systems 78 LATCH-type child seat anchors 88 Seat belts 47, 70...
Page 510 Power seat see Seats Power tilt/sliding sunroof* 236 Emergency operations 427 Messages in display 414 Opening/closing 236 Opening/closing in an emergency 427 Stopping 238 Synchronizing 238 Power train 494 Power washer 363 Power windows 231 Cleaning 366 Operating 231 Rear door window, Blocking operation 89 Synchronizing 233 Practical hints 372...
Page 511 Index Reset button, In instrument cluster 25, 151, 166 Rest tool Depository 428 Restraint system see Children in the vehi- Restraint system see SRS Reverse gear position 186 Rim 352 Rims 472 Roadside Assistance 12 Roller sunblind* 200 RON 313, 495 Rubber parts, cleaning 367 Safety Driving safety systems 91...
Page 512 Shifting Into optimal gear range (automatic transmission) 191 Side impact air bags 72 Side marker lamps Cleaning lenses 365 Side windows see Power windows Sidewall 352 SmartKey see Key, SmartKey Snow chains 356 Snow tires 355 Spare fuses 462 Spare wheel 422 Mounting 445 Speed settings Cruise control 242...
Page 513 Index Technical data Air conditioning refrigerant 485 Brake fluid 485 Capacities fuels, coolants, lubricants etc. 482 Coolant 487 Electrical system 479 Engine 470 Engine oil additives 485 Engine oils 485 Fuel requirements 487 Gasoline additives 486 Premium unleaded gasoline 486 Rims and tires 472 Weight 481 Windshield washer and headlamp...
Page 514 Tires 324, 472 Air pressure Care and maintenance 325 Chains 356 Cleaning 326 Direction of rotation, Spinning 327 Driving instructions 305 Important notes, Tire inflation pressure 334 Inflation pressure 335, 339 Information Placard 328 Inspection 325 Messages in display 413 MOExtended system* 340, 451 Problems under-/overinflation 339 Retreads 324...
Page 515 Index Vacuum line routing diagram label 468 Vehicle Battery 452 Care 362 Control system, settings menu 155 Dimensions 480 Individual settings 165, 167 Locking/unlocking 34, 59, 106 Locking/unlocking in an emergency 424, 425 Lowering 450 Modifications and alterations, Operat- ing safety 16 Towing 458 Washing 362 Weight 481...
Page 516 Winter driving Block heater* (Canada only) 356 Snow chains 356 Tires 355 Winter driving instructions 307 Winter tires 355 Wood trims, cleaning 369 Xenon headlamps* see Headlamps Index...
Page 520 If you have any questions about carrying out any type of service, turn to the advice of an authorized Mercedes-Benz Center.
