Table Of Contents - Sanyo VCC-4372P Instruction Manual

Depending on the conditions of use, installation and environment,
please be sure to make the appropriate settings and adjustments. If
you need help with installation and/or settings, please consult your
dealer.
CONTENTS
PRECAUTIONS........................................................................................ 2
PARTS NAMES........................................................................................ 3
CONCERNING AUTO-IRIS LENSES......................................................... 5
FLANGE-BACK ADJUSTMENT................................................................ 6
MOUNTING THE LENS ........................................................................... 7
CONNECTIONS ....................................................................................... 9
SETTINGS................................................................................................10
TROUBLESHOOTING..............................................................................14
SPECIFICATIONS.....................................................................................15
1
English
FEATURES
• The optical filter is switched automatically to colour image or black
and white image according to the subject brightness.
• Built-in interline transfer method 1/3" CCD, approx. 470,000
picture elements
•
Low smear, anti-blooming, low lag, no burning and no geometric
distortion using the CCD solid state image device.
•
100% solid state components giving excellent immunity to shock
and vibration
• Not subject to interference from magnetic or electrostatic fields
• High sensitivity, minimum required illumination is 0.07 lux (F1.2)
•
Horizontal resolution, more than 460 TV lines
•
Power supply: 12 - 15 V DC operation

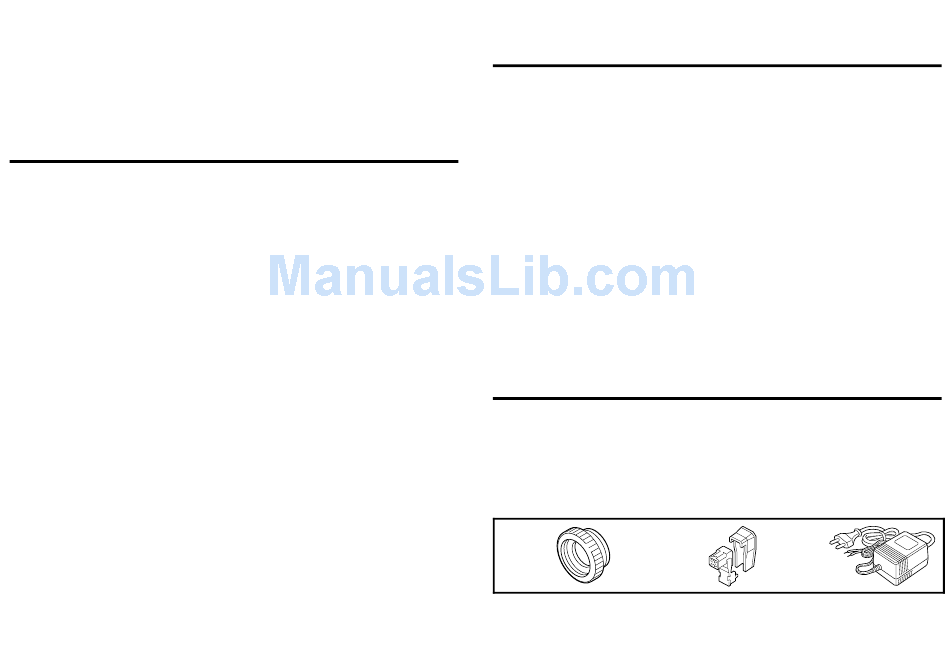

ACCESSORIES
1 C mount adaptor (5 mm).......................................................... 1 pc.
The C mount adaptor must be used to be able to install a C mount
lens on the camera.
2 Lens iris plug (4-pin).................................................................. 1 pc.
3 AC adaptor ............................................................................... 1 pc.
1 2 3
