Others

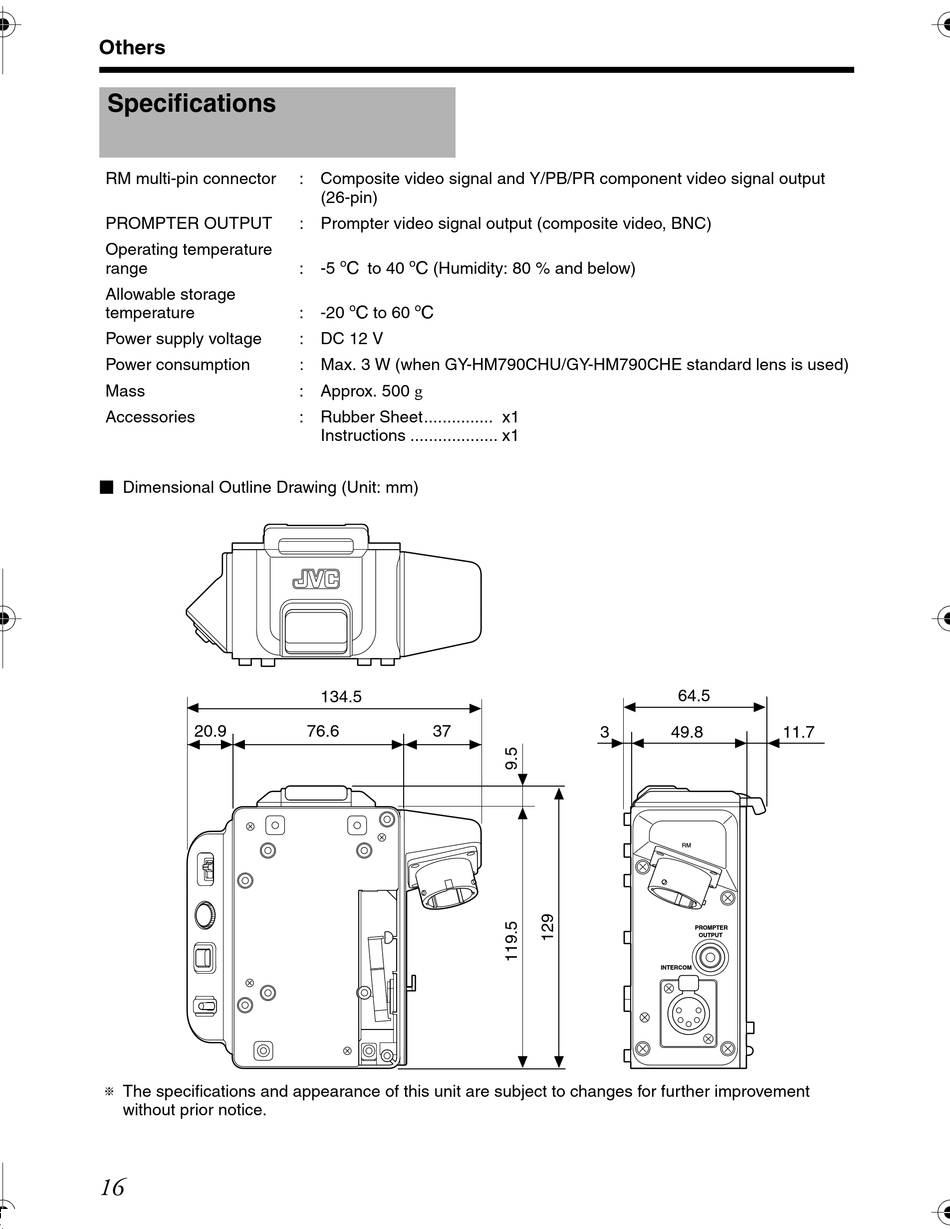

Specifications
RM multi-pin connector
PROMPTER OUTPUT
Operating temperature
range
Allowable storage
temperature
Power supply voltage
Power consumption
Mass
Accessories
Dimensional Outline Drawing (Unit: mm)
20.9
T The specifications and appearance of this unit are subject to changes for further improvement
without prior notice.
16
: Composite video signal and Y/PB/PR component video signal output
(26-pin)
: Prompter video signal output (composite video, BNC)
: -5 f to 40 f (Humidity: 80 % and below)
: -20 f to 60 f
: DC 12 V
: Max. 3 W (when GY-HM790CHU/GY-HM790CHE standard lens is used)
: Approx. 500 g
: Rubber Sheet............... x1
Instructions ................... x1
134.5
76.6
37
64.5
3
49.8
RM
PROMPTER
OUTPUT
INTERCOM
11.7
