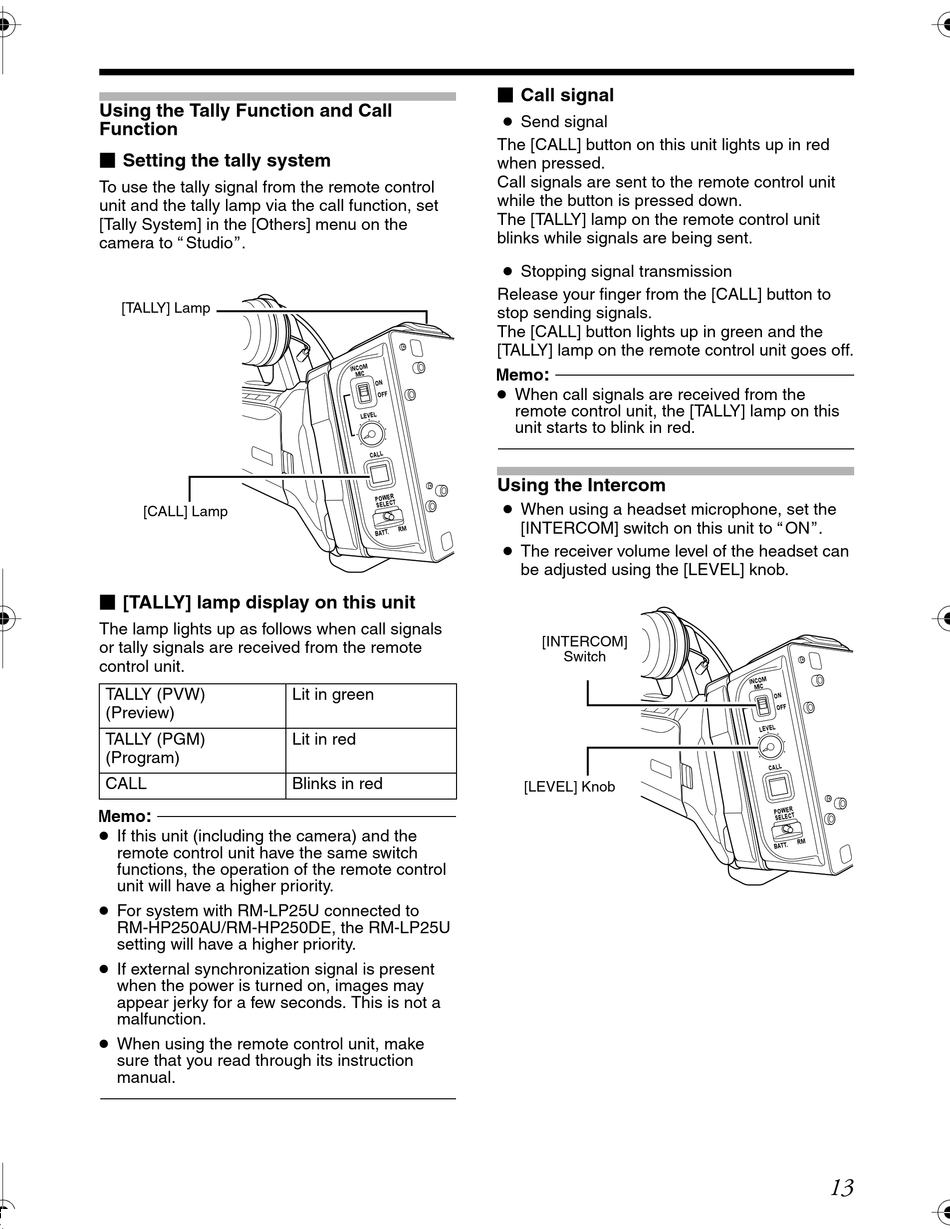

Using the Tally Function and Call
Function
Setting the tally system
To use the tally signal from the remote control
unit and the tally lamp via the call function, set
[Tally System] in the [Others] menu on the
camera to AStudioB.
[TALLY] Lamp
[CALL] Lamp
[TALLY] lamp display on this unit
The lamp lights up as follows when call signals
or tally signals are received from the remote
control unit.
TALLY (PVW)
(Preview)
TALLY (PGM)
(Program)
CALL
:
Memo
● If this unit (including the camera) and the
remote control unit have the same switch
functions, the operation of the remote control
unit will have a higher priority.
● For system with RM-LP25U connected to
RM-HP250AU/RM-HP250DE, the RM-LP25U
setting will have a higher priority.
● If external synchronization signal is present
when the power is turned on, images may
appear jerky for a few seconds. This is not a
malfunction.
● When using the remote control unit, make
sure that you read through its instruction
manual.
Lit in green
Lit in red
Blinks in red
Call signal
● Send signal
The [CALL] button on this unit lights up in red
when pressed.
Call signals are sent to the remote control unit
while the button is pressed down.
The [TALLY] lamp on the remote control unit
blinks while signals are being sent.
● Stopping signal transmission
Release your finger from the [CALL] button to
stop sending signals.
The [CALL] button lights up in green and the
[TALLY] lamp on the remote control unit goes off.
:
Memo
● When call signals are received from the
remote control unit, the [TALLY] lamp on this
unit starts to blink in red.

Using the Intercom

● When using a headset microphone, set the
[INTERCOM] switch on this unit to AONB.
● The receiver volume level of the headset can
be adjusted using the [LEVEL] knob.
[INTERCOM]
Switch
[LEVEL] Knob
13
