Remote Control Unit Connection

Connecting the Remote
Control Unit

Connection

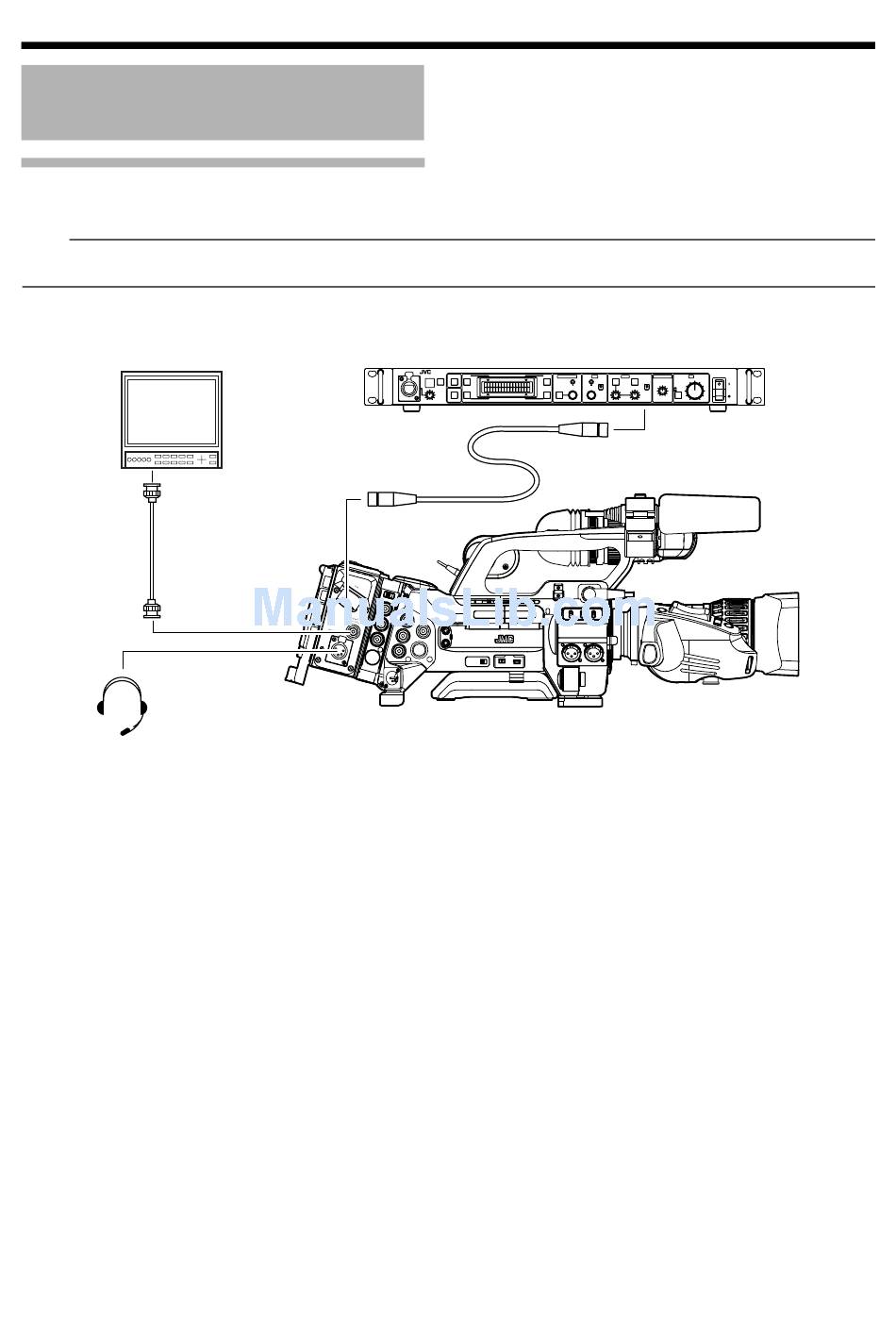

Connect the [RM] multi-pin connector of this unit to the remote control unit using a 26-pin camera cable.
Note:
● Turn off the power of the remote control unit before connecting.
Monitor
BNC Cable
[PROMPTER
OUTPUT] Terminal
[INTERCOM] Terminal
Headset
DT109 (Beyerdynamic)
● Use a 26-pin cable that is not longer than 100 m.
VC-P110 (5 m)
VC-P112 (20 m)
VC-P113 (50 m)
VC-P114 (100 m)
● When using an intercom headset, connect Headset DT109 to the [INTERCOM] terminal. (Only a
dynamic microphone can be used.)
● To check the prompter video (input signal of the remote control unit's [AUX VIDEO INPUT] terminal)
output from the remote control unit, connect [PROMPTER OUTPUT] terminal of this unit to the
monitor using a BNC cable.
RM-P210U/E*/RM-HP250AU/RM-HP250DE*
[RM] Terminal
Remote Control Unit
TALLY CALL FULL AUTO F1 F3 MENU/SHUTTER GAIN
SHUTTER
SHUTTER VARIABLE
PUSH-ON PUSH-ON
BARS F2 F4 MENU
GAIN
INTERCOM
DOWN UP DOWN UP
LEVEL
26-pin Camera Cable
REMOTE CONTROL UNIT RM-HP250
POWER
PAINT WHITE AUTO MASTER BLACK IRIS
STEP W.BAL
HIGH B
MID A
AUTO
R B MANU
LOW PRESET
CLOSE OPEN
11
