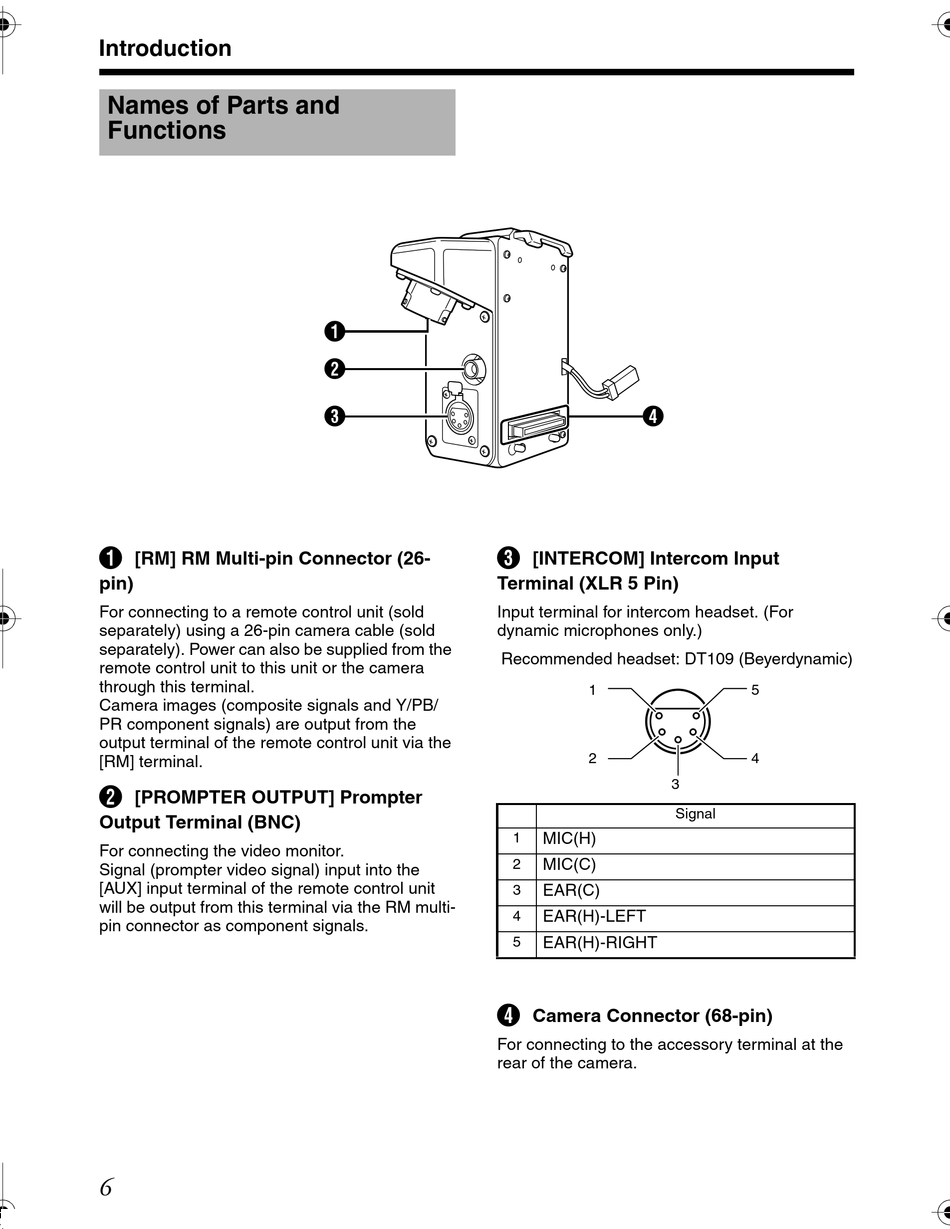

Names of Parts and
Functions
A
[RM] RM Multi-pin Connector (26-
pin)
For connecting to a remote control unit (sold
separately) using a 26-pin camera cable (sold
separately). Power can also be supplied from the
remote control unit to this unit or the camera
through this terminal.
Camera images (composite signals and Y/PB/
PR component signals) are output from the
output terminal of the remote control unit via the
[RM] terminal.
B
[PROMPTER OUTPUT] Prompter
Output Terminal (BNC)
For connecting the video monitor.
Signal (prompter video signal) input into the
[AUX] input terminal of the remote control unit
will be output from this terminal via the RM multi-
pin connector as component signals.
6
A
B
C
D
C
[INTERCOM] Intercom Input
Terminal (XLR 5 Pin)
Input terminal for intercom headset. (For
dynamic microphones only.)
Recommended headset: DT109 (Beyerdynamic)
1
2
1
MIC(H)
MIC(C)
2
3
EAR(C)
EAR(H)-LEFT
4
5
EAR(H)-RIGHT
D
Camera Connector (68-pin)
For connecting to the accessory terminal at the
rear of the camera.
5
4
3
Signal
