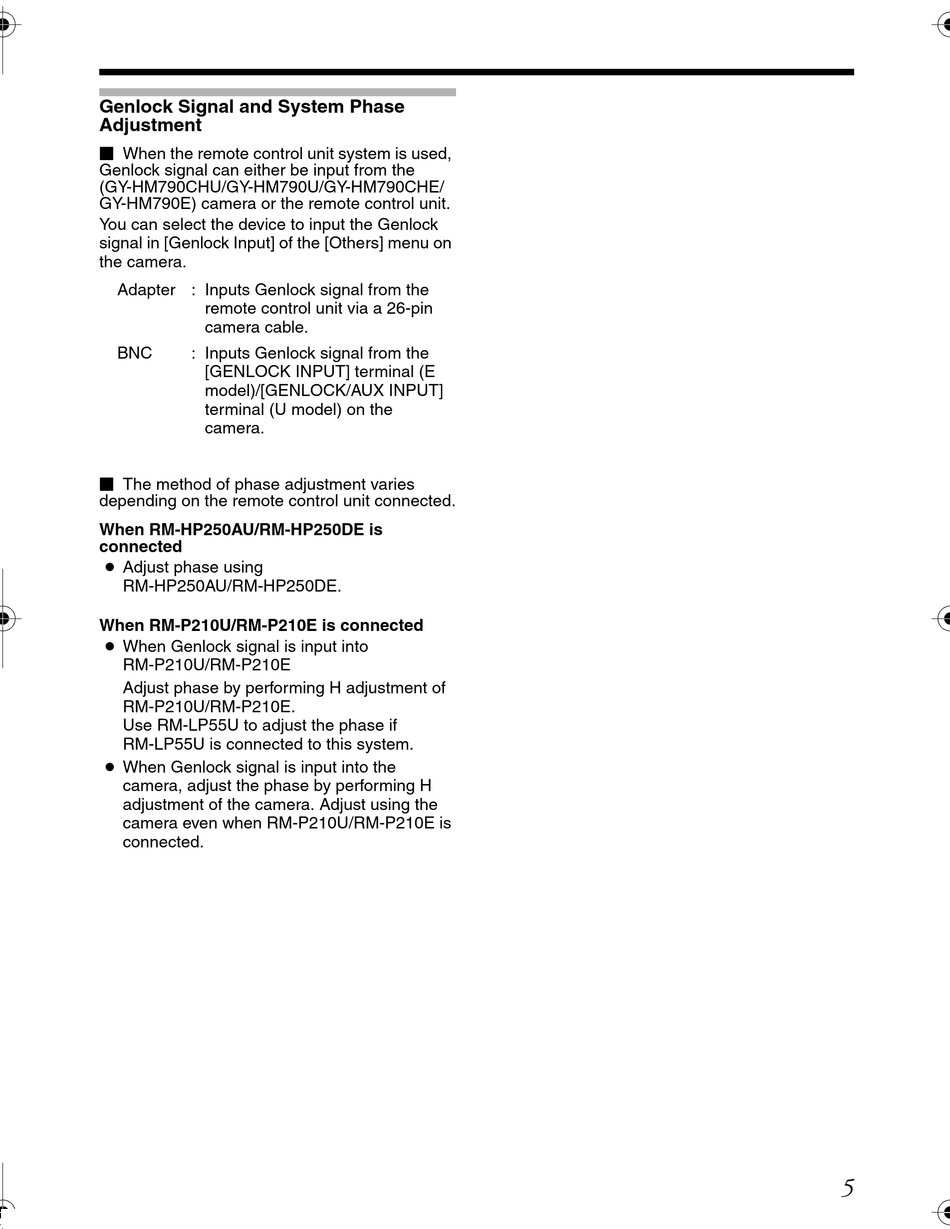

Genlock Signal and System Phase
Adjustment
When the remote control unit system is used,
Genlock signal can either be input from the
(GY-HM790CHU/GY-HM790U/GY-HM790CHE/
GY-HM790E) camera or the remote control unit.
You can select the device to input the Genlock
signal in [Genlock Input] of the [Others] menu on
the camera.
Adapter : Inputs Genlock signal from the
remote control unit via a 26-pin
camera cable.
BNC
: Inputs Genlock signal from the
[GENLOCK INPUT] terminal (E
model)/[GENLOCK/AUX INPUT]
terminal (U model) on the
camera.
The method of phase adjustment varies
depending on the remote control unit connected.
When RM-HP250AU/RM-HP250DE is
connected
● Adjust phase using
RM-HP250AU/RM-HP250DE.
When RM-P210U/RM-P210E is connected
● When Genlock signal is input into
RM-P210U/RM-P210E
Adjust phase by performing H adjustment of
RM-P210U/RM-P210E.
Use RM-LP55U to adjust the phase if
RM-LP55U is connected to this system.
● When Genlock signal is input into the
camera, adjust the phase by performing H
adjustment of the camera. Adjust using the
camera even when RM-P210U/RM-P210E is
connected.
5
