Summary of Contents for Memorex MP3114
-

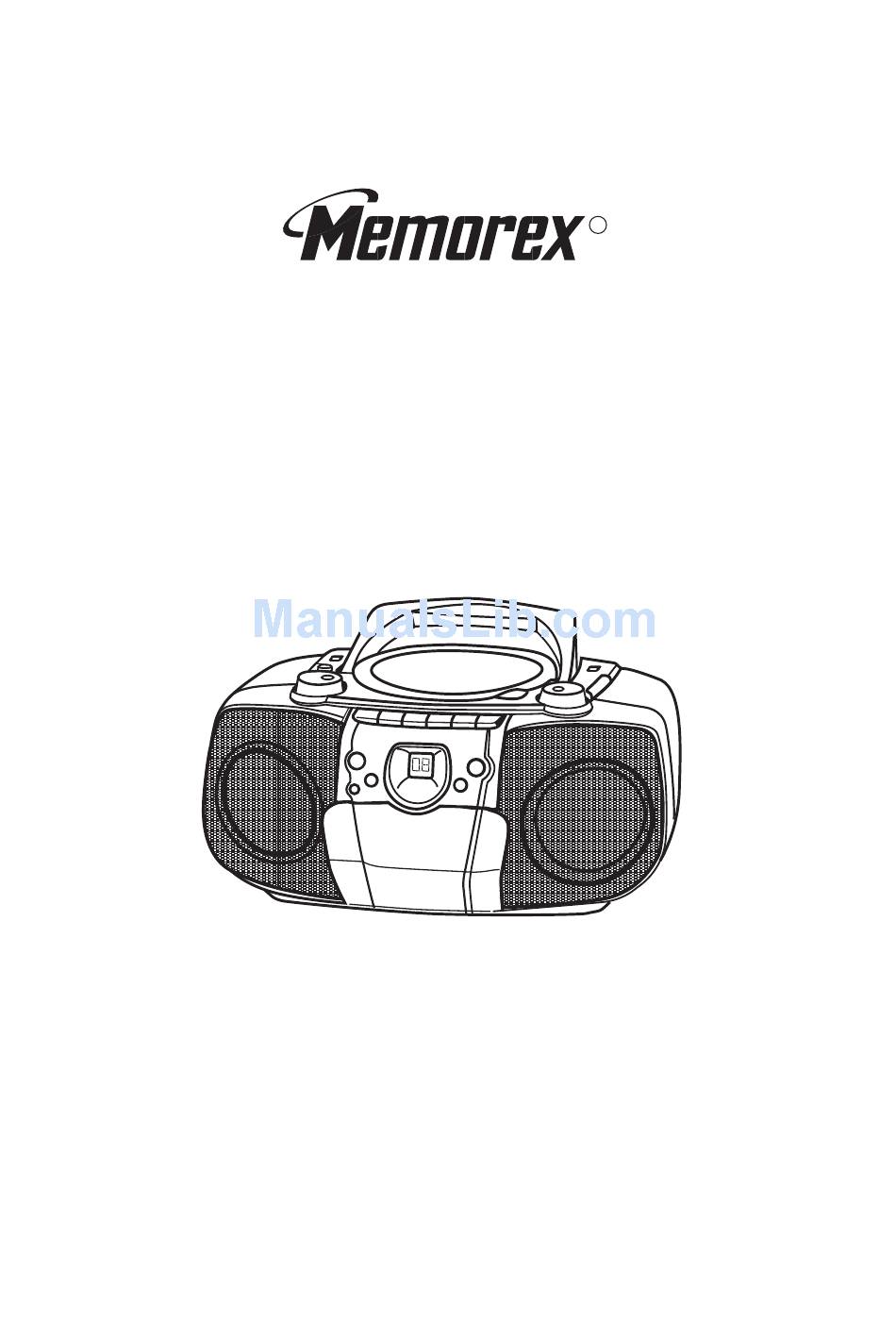

Page 1: Cassette Recorder
PORTABLE CD PLAYER AM / FM STEREO RADIO WITH CASSETTE RECORDER MODEL : MP3114 BEFORE OPERATING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS COMPLETELY... -
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS CAUTION : • Read all of these instructions. • Save these instructions for later use. • Follow all warnings and instructions marked on the audio equipment. 1. READ INSTRUCTIONS All the safety and operating instructions should be read before the product is operated. 2. - Page 3 15. OUTDOOR ANTENNA GROUNDING If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electrical Code, ANSI/ NFPA 70 provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
- Page 4 WARNING : To reduce the risk of fire or electric shock, do not expose it is appliance to rain or moisture. CAUTION : Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure. RISK OF ELECTRIC SHOCK DO NOT OPEN To reduce the risk of electric shock, do not remove cover ( or back ).
-
Page 5: Location Of Controls
LOCATION OF CONTROLS FUNCTION selector FM mode button VOLUME control CASSETTE function keys SKIP up / down button REPEAT button CD LED display CASS door STOP button PLAY / PAUSE button 10. TUNING knob 11. DIAL pointer 12. FM stereo indicator 13. -
Page 6: Listening To Radio
NOTE : Check your batteries regular, old or discharged batteries should be replaced. If the unit is not going to be used for some time or is being run exclusively on alternative power. Take away the batteries to avoid leakage and damage. Whenever convenient, use the power supply if you want to conserve battery life. -
Page 7: Listening To Tape
Selecting a desired track during Play mode Press Skip until the desired track appears on the Led display. The selected track number appear on the Led display. • If you press Skip once it will skip to the beginning of the current track and play the track again. •... -
Page 8: Specification
SPECIFICATION POWER SOURCE : AC : 120V ~ 60Hz BATTERIES : 8 X C CELLS (LR14 OR EQUIVALENT) RADIO FREQUENCY COVERAGE 88 -108MHz 530 - 1710kHz RECORDING SYSTEM RECORDING SYSTEM: DC BIAS ERASING SYSTEM : MAGNETIC ERASE GENERAL SPEAKER 16 OHMS POWER OUTPUT 0.8 WATT AT 10% T.H.D. -
Page 9: Troubleshooting Guide
TROUBLESHOOTING GUIDE BEFORE REQUESTING SERVICE, PLEASE REFER TO THE FOLLOWING CHART FOR THE SYMPTOM AND POSSIBLE SOLUTION. SYMPTOMS POSSIBLE CAUSES CD PLAYER CD PLAYER WILL NOT OPERATE FUNCTION SELECTOR SWITCH NOT SET TO CD POSITION CD NOT INSTALLED OR INSTALLED UPSIDE DOWN. CD SKIP WHILE PLAYING. - Page 10 We at MEMOREX believe you will be pleased with your new Audio Product. Please read this Warranty carefully. Memorex warrants this product to be free from manufacturing defects purchase in and if used in, the United States. Should you find your unit is not operating properly during the terms of full coverage of this warranty, ninety (90) days, you should contact your original place of purchase for an exchange with a valid receipt.
- Page 11 MEMCORP Inc. 7145 West 20 th Avenue Hialeah, FL 33014 U.S.A. © 2000, Memorex is a trademark of Memorex Telex. N.V. Printed in Hong Kong Visit Our Website : www.memorex. com...
