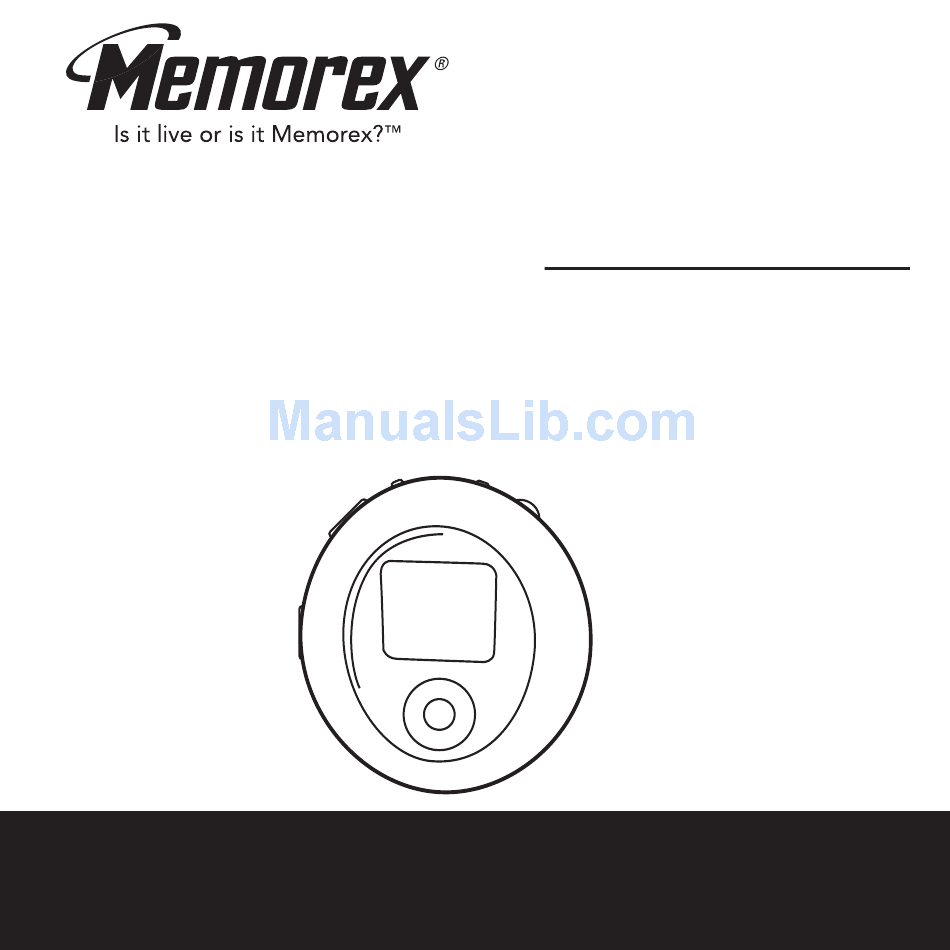

- Page 1 MMP8570 User’s Guide Personal FM Stereo MP3/WMA Player Before operating this product, please read these instructions completely.
-
Page 2: Road Safety
COPYRIGHT: • Distributing copies of MP3, WMA, WMA with DRM tracks without permission is a violation of international copyright laws. SAFETY: • Vibration experienced during walking or exercising will not affect the player. However, dropping the player or dropping a heavy object on the player may result in damage or sound distortion. -
Page 3: Fcc Declaration
FCC DECLARATION This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. - Page 4 Dear Customer: Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
- Page 5 Level Example Quiet library, soft whispers Living room, refrigerator, bedroom away from traffic Light traffic, normal conversation, quiet office Air conditioner at 20 feet, sewing machine Vacuum cleaner, hair dryer, noisy restaurant Average city traffic, garbage disposals, alarm clock at two feet THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE: Subway, motorcycle, truck traffic, lawn mower Garbage truck, chain saw, pneumatic drill...
-
Page 6: Location Of Controls
1. Menu/Lock Button 2. VOLUME +/– Buttons 3. Display 4. PRESS TO OPEN Button 5. PLAY/PAUSE ®p Button 6. Navigation √/Skip/Search m Button 7. Headphone Jack 8. Power/Stop Button 9. Navigation Control 10. Battery Compartment (Rear of Unit) 11. Tuning/Navigation Up Button 12. -
Page 7: Battery Installation
When the bars in the battery indicator (in the display) become low (see figure 1), replace the battery as follows. 1. Open the rear cover by pressing the PRESS TO OPEN button, then lift the rear cover up to remove it as shown in figure 2. - Page 8 CD Drive; the auto-run program will display the Main Menu window. Click “Software Drivers”. NOTE: If the Main Menu window does not appear, double click “Memorex Startup CD” application file on the Installation CD to open the Main Menu window.
-
Page 9: Windows 98 Driver Installation
Click “MMP8570” to run the Windows 98SE driver. Follow the on-screen instructions to install the software. - Page 10 Install the software under the directory as prompted. Warning: DO NOT change the installation path. Otherwise, the driver may not run properly.
- Page 11 5. After successfully installing the driver software, click "Finish" to finish the installation and exit the Setup menu. 6. When the installation has completed, the new program, “Memorex Chrono Digital Audio Player”, will be added to the PROGRAM menu on your computer.
-
Page 12: Downloading And Transferring Files
DOWNLOADING AND TRANSFERRING FILES TRANSFERRING FILES You can download digital music files from the Internet or use encoding software to convert music that you have on an audio CD into MP3 or WMA format. Once these files are stored on your computer you can easily copy them to your player. -
Page 13: Safely Remove Hardware
SAFELY REMOVING YOUR PLAYER FROM THE COMPUTER NOTE: To avoid damage to your player or data loss, always follow the procedure listed below before disconnecting the USB cable from your computer or disconnecting the player from the USB cable. Using your mouse, double click the "Safely Remove Hardware"... -
Page 14: Installing Musicmatch Jukebox
NOTE: WMA DRM protected files will not play if you use the ‘drag and drop’ procedure. You must follow the procedure below to play WMA DRM files on your MMP8570. 1. Install the MMJB Software as described above. 2. Turn the unit ON, then connect the USB cable to the unit and the USB port of the computer. - Page 15 INSTALLING MUSICMATCH JUKEBOX (CONTINUED)
- Page 16 EXTERNAL MEMORY CARD TO AVOID DAMAGE, make sure the unit is off before inserting or removing the card. Remove the rear cover by pressing the PRESS TO OPEN button, then lift the rear cover up to remove it as shown in Figure 1. Insert a SD/MMC memory card (not included) up to 512MB, facing up as shown in Figure 2.
-
Page 17: Operation
TURNING THE POWER ON/OFF Turn the unit on by pressing the Power/Stop button; the Memorex start screen will appear in the display temporarily. Then the Music Player menu will appear and the MP3/WMA track’s information will appear in the display. To turn the unit off, press and hold the Power/Stop button;... -
Page 18: To Listen To The Fm Radio
TO LISTEN TO THE FM RADIO Turn the unit on by pressing the Power/Stop button; the Memorex start screen will appear in the display temporarily. Then the Music Player menu will appear and the MP3/WMA track’s information will appear in the display. - Page 19 TO MANUALLY SET A STATION INTO MEMORY Follow the steps on the previous page to turn on the unit and enter the FM Tuner mode. Select the desired channel number to set using the Navigation/Skip/Search √/m 1 or ®/l 2 button. Tune a station using the Navigation control 3.
-
Page 20: To Listen To Mp3S/Wmas
TO LISTEN TO MP3s/WMAs Turn the unit on by pressing the Power/Stop button ; the Memorex start screen will appear in the display temporarily. Then the Music Player menu will appear and the MP3/WMA track’s information will appear in the display. Press the PLAY/PAUSE ®p button 2 2 to start playback;... -
Page 21: To Pause Playback
TO PAUSE PLAYBACK During playback, if you wish to pause the file momentarily, press the PLAY/PAUSE ®p button; playback will pause, the Pause indicator will appear and the timer will stop counting. TO SELECT/BROWSE THROUGH THE FILES Press the Menu/Lock button 1; the Main menu will appear. -
Page 22: Forward/Reverse Skip
FORWARD/REVERSE SKIP During playback, Navigation/Skip/Search ®/l button to advance the player to the beginning of the next file. Press the Navigation/Skip/Search ®/l button repeatedly to advance the player to higher-numbered files. HIGH-SPEED MUSIC SEARCH NOTE: If you are not in the Music Player menu, the Forward/Reverse Skip and High-Speed Music Search functions will not be available. - Page 23 TO SELECT A PLAY MODE Press the Menu/Lock button 1. Rotate the Navigation control 2 to select Settings, then press the Navigation control 2; the Settings menu will appear. Rotate the Navigation control to select a desired Play mode (Normal, Repeat Track, Repeat All, Shuffle or Shuffle Repeat) , then press the Navigation control;...
-
Page 24: To Set The Backlight
TO SET THE CONTRAST Press the Menu/Lock button 1. Rotate the Navigation control 2 to select Settings, then press the Navigation control 2; the Settings menu will appear. Rotate the Navigation control 2 to select Contrast, then press the Navigation control;... - Page 25 TO SET THE POWER SAVINGS Press the Menu/Lock button 1. Rotate the Navigation control 2 to select Settings, then press the Navigation control 2; the Settings menu will appear. Rotate the Navigation control 2 to select Power Savings, then press the Navigation control 2;...
-
Page 26: To Set The Language
TO SET THE LANGUAGE Press the Menu/Lock button 1. Rotate the Navigation control 2 to select Settings, then press the Navigation control 2; the Settings menu will appear. Rotate the Navigation control 2 to select Language, then press the Navigation control 2;... -
Page 27: Specifications
DELETING A FILE While in the Music Player Menu, press the Navigation/Skip/Search √/m 1 or ®/l 2 button to select the file that you wish to delete. NOTE: You can also use the Browse function (see page 20) to browse and select a file to delete. -
Page 28: Troubleshooting Guide
If you experience a problem with this unit, check the chart below before calling for service. SYMPTOM Unit will not turn on. No sound. FM distorted. Download Failure. The computer is not recognizing the player. CAUSE Dead battery, or not installed properly. - Page 29 SYMPTOM No buttons work. Unit acting erratically. WMA files with DRM cannot playback. CAUSE The Lock feature is activated. Unit needs to be reset Reset unit and/or or firmware needs to be update firmware, see updated. Unit needs to be reset Reset unit and/or or firmware needs to be update firmware, see updated.
-
Page 30: Formatting The Player
WARNING! Do not format this player unless it stops working and you are instructed to do so by technical support personnel. Formatting the Player 1. Use the USB cable to connect the player and the computer. 2. Double click on My Computer, right click the "Removable Disk"... -
Page 31: Updating The Firmware
Power/Stop button until the installation screen appears. 4. Follow the on-screen instructions to install the driver. 5. When finished, click START and locate the newly installed software “Memorex Chrono Digital Audio Player” and select “Firmware Download”. If the player is not operating properly, try resetting it by removing the battery for a few seconds. - Page 32 Audio Frequency Range Headphones Output S/N Ratio File Support Bit Rate Tag Info FM Tuner FM Frequency Range Antenna General Dimension Weight Battery Language Built-in Memory Max. Playtime Supported OS Operating Temperature Specifications are subject to change without notice. 20Hz – 20KHz 10mW, 16ohm (Max.
- Page 33 OR CONTACT CUSTOMER SERVICE AT (954) 660-7100. PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR TO MEMOREX. FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT 1-800-321-6993.
- Page 34 Memcorp, Inc. Weston, FL Printed in China Visit our website at www.memorexelectronics.com...
