Summary of Contents for Memorex MVDP1077

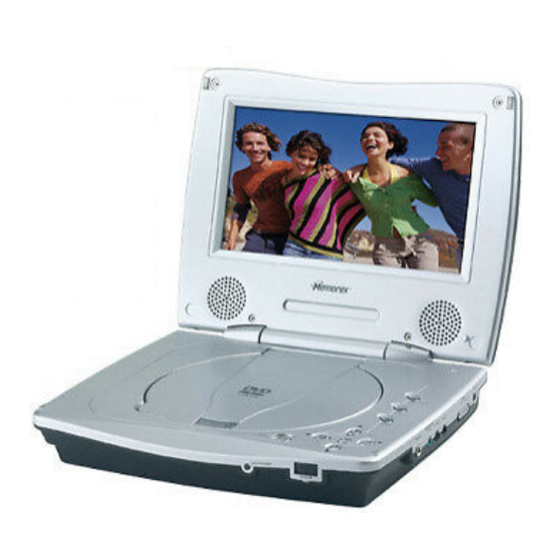

- Page 1 MVDP1077 User’s Guide 7'' TFT DISPLAY PORTABLE DVD PLAYER WITH REMOTE CONTROL Before operating this product, please read these instructions completely.
-
Page 2: Table Of Contents
Safety Instructions....2 Precautions ..... . . 5 Power Sources . -
Page 3: Safety Instructions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 4: Surge Protectors
SURGE PROTECTORS: It is recommended to use a surge protector for AC connection. Lightning and power surges ARE NOT covered under warranty for this product. LASER WARNING: This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury. - Page 5 Dear Customer: Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.
-
Page 6: Notes On Handling
The top and rear panels of the DVD player may become warm after a long period of use. This is normal and not a malfunction. • When the DVD player is not in use, be sure to remove the disc and turn off the power. •... -
Page 7: To Obtain A Clear Picture
AC outlet having 120 AC, 60 Hz, turn on the DVD player and leave it “ON” for two or three hours. After two or three hours, the DVD player will have warmed up and evaporated any moisture. -
Page 8: Headphones Jack
AC CONNECTION Insert the small end of the AC adapter into the DC IN jack (located on the side of the unit) and connect the other end to a wall outlet having 120V AC, 60 Hz. AC Adapter, DC 9V Z NOTES: •... -
Page 9: Charging The Battery Pack
BATTERY PACK INSERTION/REMOVAL Follow the diagram below to insert or remove the Battery Pack. TO REMOVE: Press down the Battery Release button on the rear of the Battery Pack, then slide the Battery Pack out towards the rear of the unit. CHARGING THE BATTERY PACK The Low Battery indicator will blink at the top left-hand corner of the screen when the Battery Pack is low and needs recharging. -
Page 10: Location Of Controls
MAIN UNIT Display Disc Compartment PLAY/PAUSE Button SETUP Button Navigation (π) Button OPEN Button Navigation (√)/Volume - Button ON/STANDBY Indicator Navigation (†) Button 10. Remote Sensor 11. Select/Enter Button 12. DC 9V IN Jack z 13. STOP Button 14. POWER ON/OFF Switch 15. -
Page 11: Rear
REAR REMOTE POWER DISPLAY VOLUME REPEAT 1/ALL MENU SUBTITLE PLAY TITLE AUDIO PAUSE/STEP F.B WD F.FWD ANGLE ZOOM PROGRAM NOTE: Slide the POWER switch (on the main unit) to turn the unit on; the ON/STANDBY indicator will light green. When the unit is on, if you press the POWER ON/STANDBY button (on the remote), the unit will turn to the Standby mode;... -
Page 12: Remote Control
BATTERY INSTALLATION Follow these precautions when using a battery in this device: Use only the size and type of battery specified. Be sure to follow the correct polarity when installing the battery as indicated next to the battery compartment. A reversed battery may cause damage to the device. If the device is not to be used for a long period of time, remove the battery to prevent damage or injury from possible battery leakage. -
Page 13: Connecting The Unit To A Tv Using The A/V Cable
CONNECTING THE UNIT TO A TV USING THE A/V CABLE (INCLUDED) From VIDEO/ AUDIO OUT Jack NOTES FOR CONNECTING TO A TV: • Set the TV’s TV/VIDEO button or switch to the VIDEO setting. • When connecting the unit, refer to the owner’s manual of the TV, as well as this manual. -
Page 14: Connecting The Unit To A Tv Using A S- Video Cable
Connect the unit to your TV directly. If you connect the unit through a VCR, the playback picture will be distorted because DVD video discs are copy protected. • If your TV has an S-Video input, connect the DVD player with the S-Video cable for best results. •... -
Page 15: Connecting The Unit To A Home Theater System
CONNECTING THE UNIT TO A HOME THEATER SYSTEM (COAXIAL JACK) Place the subwoofer, front, rear and center speakers in locations as shown/described here. After correctly positioning the speakers, perform the Tone Test on the AV Amplifier and adjust the Volume control(s) until the desired sound is achieved. -
Page 16: Playable Discs
It is important that you read the manual that accompanies the DVD disc, as there are features that are on the DVD player that cannot be used with certain DVDs. There are also extra features on the DVD disc that are different for each DVD disc, so they are not... - Page 17 DVD disc does not correspond to the Region number of this DVD player, this DVD player cannot play that disc. You may not be able to play back some DVD video discs on this player if they were purchased from outside your geographic area or made for business purposes.
-
Page 18: Setup Menu
The Setup menu lets you customize the DVD player by allowing you to select various language preferences, set video/audio settings, adjust what type of television screen you have and more. Use the following instructions to navigate and change the options as described on the upcoming pages. -
Page 19: System Setup Menu
SYSTEM SETUP MENU: Press the SETUP button to enter the Setup menu, select the System icon using the Navigation (√,®) buttons, then press the Navigation (†) button to select it. Select/change the Setup option as described on page 17. TV SYSTEM SYSTEM SETUP TV SYSTEM NTSC... -
Page 20: Language Setup Menu
SETUP MENU (CONTINUED) LANGUAGE SETUP MENU: Press the SETUP button to enter the Setup menu, select the Language icon using the Navigation LANGUAGE SETUP (√,®) buttons, then press the Navigation (†) button to select it. Select/change the Setup option OSD LANGUAGE ENGLISH as described on page 17. -
Page 21: Audio Setup Menu
SETUP MENU (CONTINUED) AUDIO SETUP MENU: Press the SETUP button to enter the Setup menu, select the Audio icon using the Navigation (√,®) buttons, then press the Navigation (†) button to select it. Select/change the Setup option as described on page 17. AUDIO OUTPUT AUDIO SETUP AUDIO OUTPUT... -
Page 22: Speaker Setup Menu
SETUP MENU (CONTINUED) SPEAKER SETUP MENU: Press the SETUP button to enter the Setup menu, select the Speaker icon using the Navigation (√,®) buttons, then press Navigation (†) button to select it. Select/change the Setup option as described on page 17. DOWNMIX SPEAKER SETUP DOWNMIX... -
Page 23: Basic Operation
When “INVALID KEY” appears while pressing a button, this means that the corresponding function cannot be performed either on the disc inserted, or TFT SET BUTTON POWER DISPLAY SETUP TFT SET VOLUME REPEAT 1/ALL MENU CLEAR SUBTITLE PLAY STOP TITLE SELECT Press the TFT SET button 1 to access the AUDIO... -
Page 24: Display Button
DISPLAY BUTTON DISPLAY Press the DISPLAY button for DVD: 1 press shows TT (Title), CH (Chapter) and the elapsed time of the chapter. 2 presses show Audio Language, Subtitle Language, Angle Setting. 3 presses show TT (Title), CH (Chapter) and the remaining time of the chapter. 4 presses show TT (Title), CH (Chapter) and the elapsed time of the title. -
Page 25: Playback Of A Dvd
It is important that you read the manual that accompanies the DVD disc as there are features that are on this DVD player that cannot be used with certain DVDs. There are also extra features that are different for each DVD disc, so they are not explained in this owner’s manual. - Page 26 POWER DISPLAY SETUP VOLUME REPEAT 1/ALL MENU SUBTITLE PLAY TITLE SELECT AUDIO PAUSE/STEP F.B WD F.FWD PREV ANGLE ZOOM PROGRAM Close the disc tray. After loading, the menu screen of the DVD should appear. Use the Navigation (√,®,π,†) buttons 1 to select the desired option and press the SELECT button 2 to select it.
-
Page 27: Skip
POWER DISPLAY SETUP TFT ON/OFF SKIP VOLUME REPEAT 1/ALL MENU CLEAR SUBTITLE PLAY STOP TITLE SELECT AUDIO PAUSE/STEP SLOW F.B WD F.FWD PREV NEXT ANGLE ZOOM PROGRAM SEARCH Press the Skip (n) button 1 to advance the DVD to the beginning of the next chapter. Press the Skip (o) button 2 to move the DVD to the beginning of the previous chapter. -
Page 28: Title/Chapter Search
TITLE/CHAPTER SEARCH Use this feature to directly go to a specific title and/or chapter. POWER DISPLAY SETUP TFT ON/OFF VOLUME REPEAT 1/ALL MENU CLEAR SUBTITLE PLAY STOP TITLE SELECT AUDIO PAUSE/STEP SLOW F.B WD F.FWD PREV NEXT ANGLE ZOOM PROGRAM SEARCH Press the SEARCH button 1. -
Page 29: Repeat Playback
REPEAT PLAYBACK While playing back a DVD, this unit can repeatedly playback a chapter or title. POWER DISPLAY SETUP VOLUME REPEAT 1/ALL MENU SUBTITLE PLAY TITLE SELECT AUDIO PAUSE/STEP F.B WD F.FWD PREV ANGLE ZOOM PROGRAM POWER DISPLAY SETUP AUDIO MENU VOLUME REPEAT 1/ALL... -
Page 30: Dvd Menu
DVD MENU POWER DISPLAY SETUP VOLUME REPEAT 1/ALL MENU SUBTITLE PLAY TITLE SELECT AUDIO PAUSE/STEP F.B WD F.FWD PREV ANGLE ZOOM PROGRAM Press the MENU button 1, and the Main Menu of the disc will appear. Use the Navigation (√,®,π,†) buttons 2 to select the desired option, and then press the SELECT button 3. -
Page 31: Programmed Playback
DISPLAY SETUP PROGRAMMED PLAYBACK The DVD player in this unit has a 16 chapter programmable memory that allows you to VOLUME program up to 16 chapters on any disc for playback in any desired order. You may program 16 REPEAT different chapters or you may also program certain chapters to play more than once. -
Page 32: Cd Operation
PLAYBACK OF A CD Slide the POWER switch (on the main unit) to the ON position to turn the unit on. If the unit is in Standby mode (the ON/STANDBY indicator is red), press the POWER ON/STANDBY button (on the remote) to turn the unit on. -
Page 33: Skip
POWER DISPLAY SETUP SKIP VOLUME REPEAT 1/ALL MENU SUBTITLE PLAY TITLE SELECT AUDIO PAUSE/STEP F.B WD F.FWD PREV ANGLE ZOOM PROGRAM Press the Skip (n) button 1 to advance to the beginning of the next track. Press the Skip (o) button 2 to move to the beginning of the previous track. -
Page 34: Selecting Tracks Using The Number Buttons
SELECTING TRACKS USING THE NUMBER BUTTONS POWER DISPLAY SETUP VOLUME REPEAT 1/ALL MENU SUBTITLE PLAY During playback, press the Number buttons TITLE SELECT corresponding to the track number to select AUDIO PAUSE/STEP your desired track, and the unit will playback the desired track automatically. -
Page 35: Programmed Playback
CD OPERATION (CONTINUED) POWER DISPLAY SETUP PROGRAMMED PLAYBACK This unit has a 16 track programmable memory that allows you to program up to 16 tracks VOLUME on any disc for playback in any desired order. You may program 16 different tracks or you REPEAT may also program certain tracks to play more than once. -
Page 36: Slide Show
Slide the POWER switch (on the main unit) to the ON position to turn the unit on. If the unit is in Standby mode (the ON/STANDBY indicator is red), press the POWER POWER DISPLAY SETUP TFT ON/OFF ON/STANDBY button (on the remote) to turn the unit on. -
Page 37: Troubleshooting Guide
Check the following before requesting service: SYMPTOM GENERAL No power. Power on, but unit not functioning properly. No picture. No sound. Playback picture rolls. The playback picture is poor. The Search feature is not working. The picture is not fitting properly. The remote control is not working. - Page 38 CONTACT CUSTOMER SERVICE AT PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. FOR PARTS AND ACCESSORIES, CONTACT FOX INTERNATIONAL AT 1-800-321-6993. POSSIBLE CAUSE DVD not inserted, or inserted upside-down.
-
Page 39: Care And Maintenance
Caring for Discs • Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the disc. • Do not attach adhesive tape, stickers, etc. to the disc label. •... -
Page 40: Compact Disc
Power Requirements ...DC IN 9V (Center Positive z) Battery Pack ...Lithium-ion Rechargeable Battery DC 7.4V 2000mAh Weight ...2 Lbs Dimensions ...8.2 (W) x 7 (D) x 1.8 (Thickness) Inches Operating Temperature ...41° to 95°F Operating Humidity Range ...5% to 90% (no condensation) Accessories Discs Played: DVD-VIDEO Disc... - Page 41 Memcorp, Inc. Weston, FL Printed in Hong Kong Visit our website at www.memorexelectronics.com...
