Memorex MT2251 Owner's Manual

25" color television

Advertisement

Quick Links

SPECIFICATIONS

AC Power Input:
120V, 60Hz
AC Power Consumption:
115 Watts
Chassis Construction:
IC Solid state
Picture Tube:
25" (measured diagonally)
Audio Power Output Rating:
1.5 Watts
Speaker:
1.5" x 2.7" Full Range, 8 ohm
Tuner Type:
181 Channel, Quartz PLL
Frequency Synthesized
Remote Control:
Infrared, Direct Access,
2 x AAA batteries

ACCESSORIES

Remote Control
FOR ADDITIONAL SET-UP OR OPERATING ASSISTANCE PLEASE CALL:
1-800-919-3647
FOR CUSTOMER SERVICE PLEASE CALL OR WRITE TO:
Memcorp Warranty Service
1200 E. Broadway
Princeton, Indiana 47670
(812)386-3200
3I00101A K
99/05

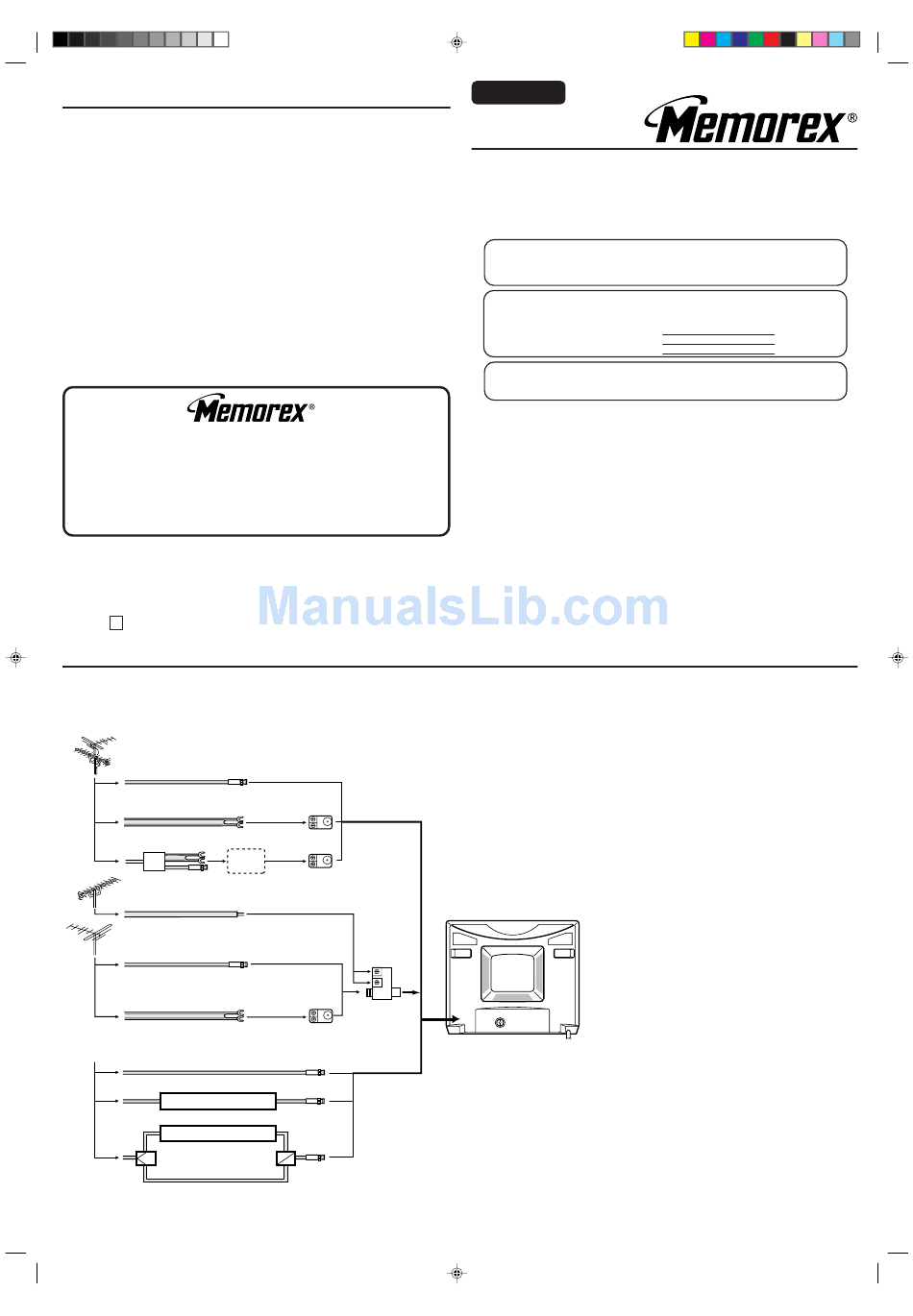

ANTENNA/CATV CONNECTIONS

Combination VHF/UHF Antenna
Single 75 ohm cable
300 ohm twin-lead wire
Splitter
Take off the Splitter
UHF Antenna
300 ohm twin-lead wire
VHF Antenna
Single 75 ohm cable
300 ohm twin-lead wire
Incoming CATV
Converter/Descrambler
Converter/Descrambler
Splitter
3I0-0101A E
2
Receiving Channels:
VHF
UHF
CATV
01-97 (5A)-(A-3)
98-99 (A-2)-(A-1)
14-22 (A)-(I)
23-36 (J)-(W)
37-65 (AA)-(FFF)
66-125 (GGG)-(125)
Antenna Input Impedance:
75 Ohm (VHF/UHF/CATV)
Coaxial Input
Dimensions:
24 1/3" (W) x 19 2/3" (D) x 20 2/3" (H)
Weight:
Printed in Thailand
300-75 Ohm Matching
Transformer
(not supplied)
Combiner
(not supplied)
300-75 Ohm matching
transformer
(not supplied)
This television has an extended tuning range and
can tune most cable channels without using a cable
company supplied converter box. Some cable
companies offer "premium pay channels" in which
the signal is scrambled. Descrambling these signals
A/B Switch A B
for normal viewing requires the use of a descrambler
device which is generally provided by the cable
company.
ENGLISH
OWNER'S
MANUAL
2-6
14-69
25" COLOR TELEVISION
Changes or modifications not expressly approved by the party responsible for
compliance with the FCC Rules could void the user's authority to operate this
equipment,
59.9 Ibs
For your protection in the event of theft or loss of loss of this product, please fill in
the information listed below which is for your own personal records.
Date of Purchase
Serial No.
Place of Pufchase
When shipped from the factory, the TV/CATV menu option is set to the "CATV"
(Cable Television) mode. If not using CATV, set this menu option to "TV " mode.

FEATURES

Quartz PLL Frequency Synthesized Tuning System - Electronically locks in and
memorizes available channels for perfect reception.
181 Channel Tuner - The tuning system is capable of receiving all 68 VHF/UHF
standard broadcast channels that are available in your area. When operating on a cable
system, it can tune to the standard VHF channel frequencies plus up to 113 cable
channel frequencies. The actual number of channels received depends upon channel
reception in your area or your cable system.
On-Screen 3 Language Display - Consists of channel, sleep timer, volume level,
muting, text/caption indicators and picture control adjustments. These can be displayed
in English, Spanish or French.
Picture Adjustments Using The Remote Control - The On-Screen display allows
precise remote control adjustment of BRIGHTNESS, COLOR, CONTRAST,
SHARPNESS and TINT.
Sleep Timer - Operable from the remote control, this TV can be programmed up to 120
minutes to turn off automatically.
Memory Back Up - This system prevents loss of memorized channel selections in case
a power interruption should occur.
V-Chip - The V-Chip function can rate a TV program or a movie content. It allows you to
set a restriction level.
Closed Captioned Decoder - Displays text captions or 1/3 of full screen text on the
screen for hearing impaired viewers.
1/1/32, 09:50
CAUTION
ATTENTION
:
:
:

TV/CATV MODE SELECTION

Combination VHF/UHF Antenna (Single 75 ohm
cable or 300 ohm twin-lead wire)
Connect the 75 ohm cable from a combination VHF/UHF
antenna to the antenna jack.
If your combination antenna has a 300 ohm twin-lead wire,
use the 300-75 ohm matching transformer (not supplied).
Combination VHF/UHF Antenna (Separate VHF
and UHF 300 ohm twin-leads)
Connect the UHF twin-lead wire to a combiner (not supplied).
Connect the VHF twin-lead to the 300-75 ohm matching
transformer (not supplied). Attach the transformer to the
combiner. Attach the combiner to the antenna jack.
Separate VHF/UHF Antennas
Connect the 75 ohm cable from the VHF antenna and the
UHF antenna twin-lead to a combiner (not supplied). Attach
the combiner to the antenna jack.
NOTE:If your VHF antenna has a twin-lead wire, use the
300-75 ohm matching transformer (not supplied), then
connect the transformer to the combiner.
For Subscribers of Basic Cable TV Service
For basic cable service not requiring a converter/
descrambler box, connect the CATV 75 ohm coaxial cable
directly to the antenna jack on the back of the television.
For Subscribers of Scrambled Cable TV Service
If you subscribe to a cable service which requires the use of
a converter/descrambler box, connect the incoming cable to
the converter/descrambler box and connect the output of
the box to the antenna jack on the back of the television.
Follow the connections shown left. Set the television to the
output of the converter/descrambler box (usually channel 3 or
4) and use the converter/descrambler box to select
channels.
For Subscribers of Unscrambled Basic Cable
with Scrambled Premium Channels
If you subscribe to a cable service in which basic cable
channels are unscrambled and premium channels require
the use of a converter/descrambler box, you may wish to
use a two-set signal splitter (sometimes called a "two-set
coupler") and an A/B switch box from the cable installer or
an electronics supply store. Follow the connections shown
on left. With the switch in the "B" position, you can directly
tune any nonscrambled channels on your TV. With the
switch in the "A" position, tune your TV to the output of the
converter/descrambler box (usually channel 3 or 4) and use
the box to tune scrambled channels.
MT2251
