Page 1: Operating Instructions

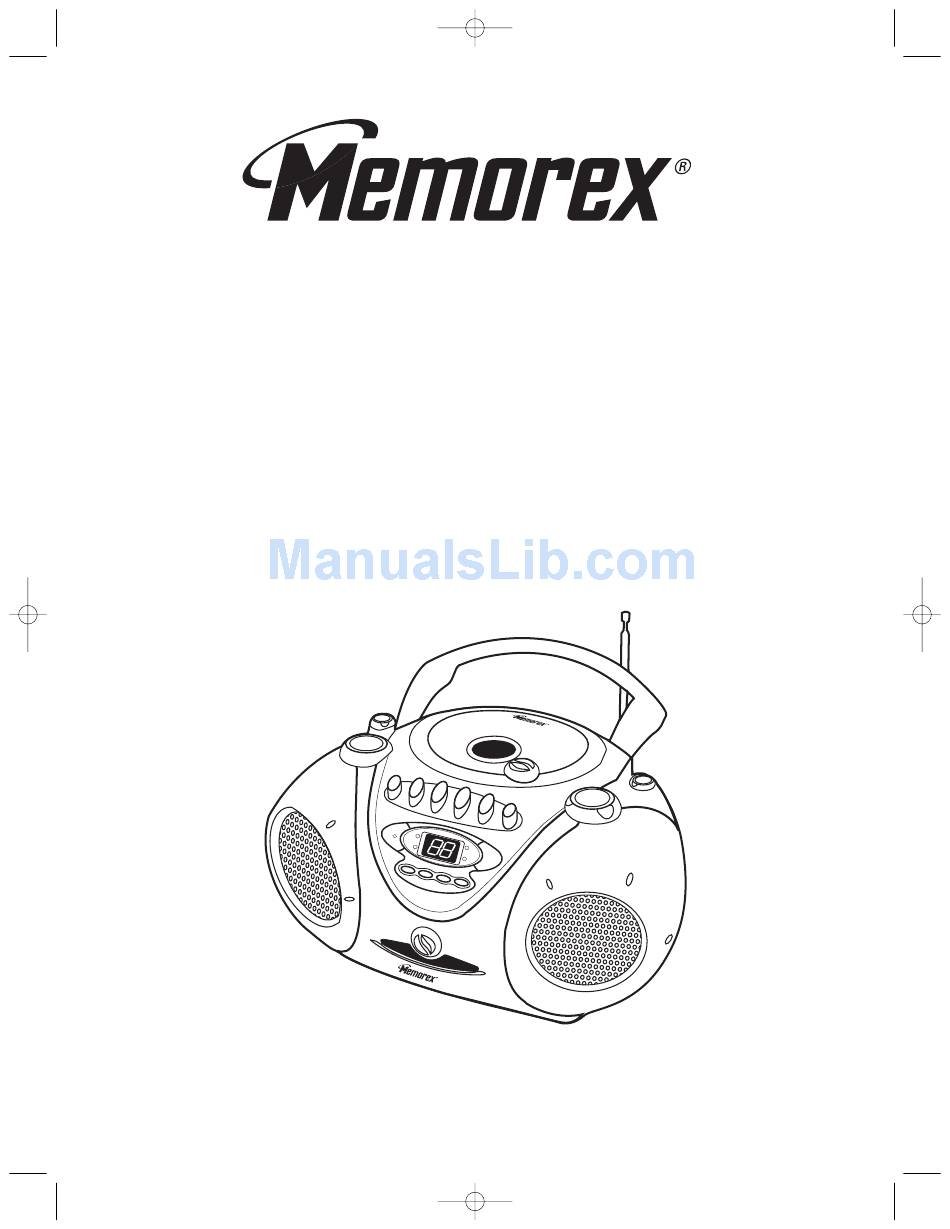

MP3823 O/M.QXD 4/30/02 10:57 AM Page 16 PORTABLE CD PLAYER WITH AM/FM STEREO RADIO AND CASSETTE RECORDER MODEL: MP3823 BEFORE OPERATING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS COMPLETELY. OPERATING INSTRUCTIONS... - Page 2 MP3823 O/M.QXD 4/30/02 10:57 AM TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
- Page 3 PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. For future reference, record the serial number of the unit printed on the rear of the cabinet.
-
Page 4: Location Of Controls
MP3823 O/M.QXD 4/30/02 10:57 AM Carrying Handle FUNCTION Control VOLUME Control Cassette Buttons (left to right): PAUSE ( ) STOP ( ) REWIND (❿❿) FAST FORWARD (➛➛) PLAY (➛) RECORD ( ) REPEAT Indicator STOP ( ) Button PROGRAM Indicator... -
Page 5: Power Sources
MP3823 O/M.QXD 4/30/02 10:57 AM This unit is designed to operate on AC household current or DC (batteries). Use the AC polarized line cord included with the unit for operation on AC power. Insert one end of the AC line cord into the AC power jack on the rear of the unit and the other end (with the 2 blades) into a conveniently located AC outlet having 120V, 60Hz. -
Page 6: Radio Operation
MP3823 O/M.QXD 4/30/02 10:57 AM TO PLAY THE RADIO Rotate the FUNCTION control to the RADIO position. When you have finished listening, rotate the FUNCTION control to the TAPE/OFF position. COMPACT DISC (CD) OPERATION TO INSERT A CD Rotate the CD OPEN control to the OPEN position to open the CD compartment door. - Page 7 MP3823 O/M.QXD 4/30/02 10:57 AM COMPACT DISC (CD) OPERATION (CONTINUED) TO PLAY A CD (STANDARD CD, CD-R AND CD-RW CAN BE USED) Rotate the FUNCTION control to the CD position. Insert a CD as described in the TO INSERT A CD section on page 5.
- Page 8 MP3823 O/M.QXD 4/30/02 10:57 AM COMPACT DISC (CD) OPERATION (CONTINUED) TO REPEATEDLY PLAY BACK ONE TRACK Rotate the FUNCTION control to the CD position. Insert a CD as described in the TO INSERT A CD section on page 5. TO REPEATEDLY PLAY BACK ALL TRACKS Rotate the FUNCTION control to the CD position.
- Page 9 SKIP/Search + • The CD player will stop after all programmed tracks have been played or the STOP ( ) button is pressed. If the STOP ( ) button was pressed, the programmed tracks will remain in memory. Simply press the PROGRAM button and then the PLAY/PAUSE (❿/ ) button to continue Program playback.
-
Page 10: Cassette Tape Operation
MP3823 O/M.QXD 4/30/02 10:57 AM CASSETTE TAPE OPERATION PLAYING CASSETTE TAPES Rotate the FUNCTION control to the TAPE position. Press the PLAY (➛) button to begin playback. To pause playback momentarily, press the PAUSE ( ) button. The tape movement stops but the tape motor is still running. - Page 11 MAKING A TAPE RECORDING The tape recorder in this system allows you to make direct recordings from the radio or CD player to a blank cassette in the tape compartment. An automatic recording volume level control (ALC) circuit will automatically control the volume level of your recordings to prevent distortion.
-
Page 12: Care And Maintenance
MP3823 O/M.QXD 4/30/02 10:57 AM Page 11 CARE AND MAINTENANCE SAFEGUARD AGAINST ACCIDENTAL ERASURE When a new recording is made, any program material previously recorded is automatically erased and only the new recording remains. To safeguard valuable recordings from being erased accidentally, the cassette and the deck are equipped with a special device. - Page 13 MP3823 O/M.QXD 4/30/02 10:57 AM CARE AND MAINTENANCE (CONTINUED) Caring for Compact Discs • Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the compact disc.
-
Page 14: Troubleshooting Guide
OR CONTACT CUSTOMER SERVICE AT 1-800-919-3647. PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90 DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TO YOUR PLACE OF PURCHASE OR MEMOREX. FOR PARTS AND ACCESSORIES, CONTACT FOX INT’L AT 1-800-321-6993. -
Page 15: Specifications
MP3823 O/M.QXD 4/30/02 10:57 AM Page 14 SPECIFICATIONS GENERAL: Power Source ...120V, 60Hz AC Battery ...12V DC (8 x 1.5V “C” Size batteries) Alkaline is recommended for longer life Speaker ...8 Ohms RADIO SECTION: Frequency Range (FM)...88 - 108MHz Frequency Range (AM)...530 - 1710kHz CD SECTION: Disc Diameter ...4.72”... - Page 16 MP3823 O/M.QXD 4/30/02 10:57 AM Page 15 Memcorp, Inc. Weston, FL Printed in Hong Kong Visit our website at www.memcorpinc.com...
