Aussie Adventurer 2400 Owner & User Manual

Pre-assembled portable lp gas grill with side table with side burner with side table and lantern with side burner and lantern with side burner, lantern and carry bag
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Aussie
PORTABLE LP Gas Grill
Pre-Assembled Grill
Owner's and Use Manual
This Owners Manual for use with Models:
2400 with Side Table
2410 with Side Burner
2420 with Side Table and Lantern
2430 with Side Burner and Lantern
2440 with Side Burner, Lantern and Carry Bag
FOR OUTDOOR HOUSEHOLD USE ONLY. NOT FOR COMMERCIAL USE.
For Customer Service, call 1-800-251-7558 or visit our website at www.meco.net
• Failure to follow these instructions could result in fire or explosion which could cause death,
serious personal injury, or property damage.
• Read and follow instructions carefully before assembly or use.
• Do not use this product for any other purpose than which it is intended.
• These instructions must be kept with the user. SAVE THESE INSTRUCTIONS.
FOR YOUR SAFETY
If you smell gas:
1. Do not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
Adventurer

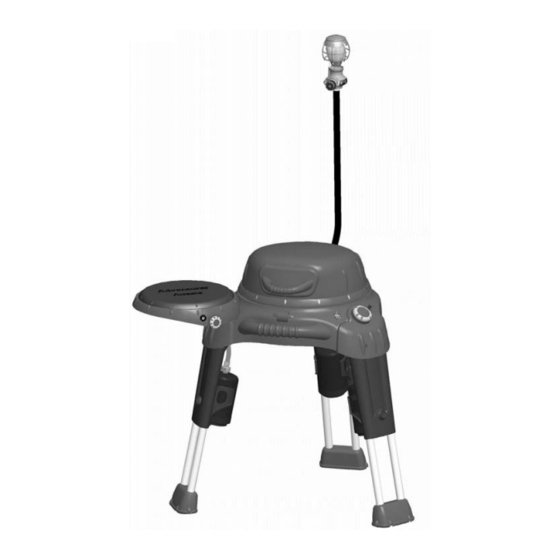

MODEL 2430 shown
(LP Cylinders not included)
FOR YOUR SAFETY
1. Do not store or use gasoline or other
flammable vapors and liquids within 25 feet
(7.62m) of this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored within 10 feet (3.05m) in the vicinity
of this or any other appliance.
3. Do not store any LP gas cylinder indoors.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Adventurer 2400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aussie Adventurer 2400

Summary of Contents for Aussie Adventurer 2400

  • Page 1 (LP Cylinders not included) FOR OUTDOOR HOUSEHOLD USE ONLY. NOT FOR COMMERCIAL USE. For Customer Service, call 1-800-251-7558 or visit our website at www.meco.net • Failure to follow these instructions could result in fire or explosion which could cause death, serious personal injury, or property damage.

  • Page 2: Table Of Contents

    1) Using Gas...11 2) Selecting a Location...11 MECO CORPORATION STRIVES TO BE A QUALITY SUPPLIER OF CONSUMER PRODUCTS. IF WE OMITTED ANY PARTS NEEDED FOR ASSEMBLY, OR YOU NEED TROUBLESHOOTING INFORMATION, PLEASE CONTACT US USING OUR TOLL FREE NUMBER. THANK YOU FOR PURCHASING A MECO CORPORATION PRODUCT.

  • Page 3: A) Parts Illustrations

    Parts Replacement Illustrations...

  • Page 4: Parts List

    PART # 03.6506.00 03.6506.01 03.6506.02 03.6506.03 03.6237.00 03.6506.04 03.6506.05 03.6506.06 03.6506.07 03.6506.08 03.6506.09 03.6506.10 03.6506.11 03.6506.12 03.6506.13 03.6506.14 03.6506.15 03.6506.16 03.6506.17 03.6506.18 03.6506.19 03.6506.20 03.6506.21 03.6506.22 03.6506.23 03.6506.24 03.6506.25 03.6506.26 MODEL MODEL MODEL MODEL 2400 2410 2420 MODEL 2430 2440...

  • Page 5: C) Setting Up Your Grill

    03.6506.46 03.6506.47 03.6506.48 03.6506.49 03.6506.50 03.6506.51 03.6506.53 03.6506.54 03.6506.55 1230.5.001 1240.5.001 SETTING UP YOUR GRILL Release Hood Latch MODEL MODEL MODEL MODEL 2400 2410 2420 2430 ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ----...
  • Page 6 STEP 2) Lift grill up at one leg mount. Release the spring lever at each leg foot. (FIG. 2A) Swing each leg all the way out one at a time, and let it rest on the floor. (FIG. 2B, 2C & 2D) The last leg will allow the grill to stand by itself.

  • Page 7: Side Table Assembly

    Lift Bowl Pan and Burner up and out Stryofoam Pads Fig. 4B To reduce the risk of serious bodily injury or death: · Do not load plastic side table or side burner with more than 10 lb./4.5kg (one gallon liquid/3.8L). Excess weight could tip grill over causing a fire or explosion and damage side table or side burner.

  • Page 8: Lantern Assembly

    STEP 3) Hook Side Burner Grid into far left hole in side table and lower two wires into the other two holes. (FIG. 5E) FIG. 5E STEP 4) Your Side Burner can be used as a Side Table when not using the Side Burner. Locate the 3-hooks of the polyethylene Side Burner Cover over the 3-slots on the side burner edge.

  • Page 9: C) Assemble Lantern To Gas Tube

    Insert Gas Tube into To reduce the risk of serious bodily injury or death: · Never light the LP gas grill without the Grease Container in place. From underneath the grill, align the tab and Grease Container opening with that in the bottom of the Bowl.

  • Page 10: D) Connecting/Disconnecting Lp Cylinder

    1. Do not attempt to light appliance. 2. Extinguish any open flame. 3. Disconnect from fuel supply. · Do not operate the LP gas grill without the LP gas cylinder attached or secured to the grill as shown in Assembly Instructions. ·...

  • Page 11: Operating And Maintaining Your Lp Gas Grill

    40 inches. · Locate your LP gas grill on a level stable surface in an area clear of combustible material. If surface is not level, grill must be leveled by adjusting the legs. An asphalt surface (blacktop) may not be acceptable for this purpose.

  • Page 12: Performing A Leak Test

    · Do not perform a leak test on a grill while it is hot or in use. · Do not use the LP gas grill if you detect a gas leak that cannot be corrected by using the leak test procedures on following page.

  • Page 13: B) Lighting The Gas Grill

    FIG. 13A Electrode Gas Collector Box FIG. 13B LIGHTING THE GAS GRILL 1. Open the Hood. Lift the Cooking Grid off the Grill. 2. Important: Make sure main grill control knob is turned “Off” first. 3. Hold a lit match near the burner ring. (FIG. 13C) 4.

  • Page 14: Ignition Lighting The Side Burner

    To reduce the risk of serious bodily injury or death: · Use only 1 pound LP cylinder with Side Burner. · Remove plastic Side burner cover before lighting the Side burner to prevent an explosion from gas build-up or melting of the cover. ·...

  • Page 15: Ignition Lighting The Lantern

    To reduce the risk of serious bodily injury or death: · Use only 1 pound LP cylinder with Lantern. · Do not use gas tube with Portable Lantern and 1 pound LP cylinder. It is unstable and will cause lantern to tip over and cause a fire.

  • Page 16: C) Operating The Gas Grill

    Keep animals and bystanders out of the grill area. Do not leave grill unattended. · Do not move an LP gas grill when in use or hot. Do not drag or put side pressure on the legs. · Do not allow cords of any electric appliance or rotisserie near heated surfaces of the LP gas grill;...

  • Page 17: End Of Cooking Session

    3) Wait until the grill is cool before closing the hood, cleaning or putting on a cover. 4) Regularly clean your LP gas grill between uses and after extended storage periods. To maintain the condition and extend the life of your grill, cover the unit when stored out side for any length of time, especially during the winter months.
  • Page 18 f) If grill is to be stored, coat Burner lightly with cooking oil and wrap in a protective cover to keep insects out. B) Lantern Burner: a) Remove the top cover and glass globe. Open up clogged burner holes with a small nail or wire. (FIG.

  • Page 19: Storage And Transport

    Make sure you disconnect cylinders away from you to avoid gas fumes and odor in your face. · Store your LP gas grill in a cool, dry place. You can store your grill indoors only if the cylinders are disconnected.

  • Page 20: Troubleshooting

    Tighten 1 pound Cylinder or coupling nut by hand. Do not use tools. Turn control knob to “Off” position. Wait five minutes. Relight LP gas grill. If flame remains to be low, turn off gas at the grill. Disconnect the regulator from the LP gas cylinder. Reconnect the regulator to the LP gas cylinder.
  • Page 21 Replace 1 pound disposable cylinder. Turn control knobs to “off” position and turn LP gas cylinder handle clockwise until it stops. Wait five minutes; relight LP gas grill. Tighten coupling nut by hand about one-half to three quarters additional turn. Do not use tools.

  • Page 22: Limited Warranty

    Burner and Cooking Grid are warranted for a period of one (1) year from the date of purchase. All other parts are warranted for a period of one (1) year from the date of purchase. Meco Corporation DOES NOT warrant in any way the propane cylinder (see label on cylinder for cylinder manufacturer’s warranty.) The LP cylinder manufacturer is responsible for the materials, workmanship and performance...
  • Page 24 Adventurer Aussie P/N 03.6506.00 REV. 04/06...
  • Page 25 Leg Lock Assembly Instructions for Open/Close Leg (Note: Use these instructions with Step 2 on page 6.) To reduce the risk of a cut or pinching injury: · Wear protective gloves when handling parts that have sharp edges. · When opening legs, keep hands and fingers away from the three body leg mount areas to avoid pinching.
  • Page 26 Instructions for Locking/UnLocking Legs Note: Use these steps after Step 2 of Owner’s Manual. After setting the grill up on all three legs, grab the rod hanging down near each leg. Push the “L” shaped end into the Leg Lock Clip recess to lock. PUSH ROD INTO SPRING CLIP ·...
