Summary of Contents for Ford 2010 Mondeo

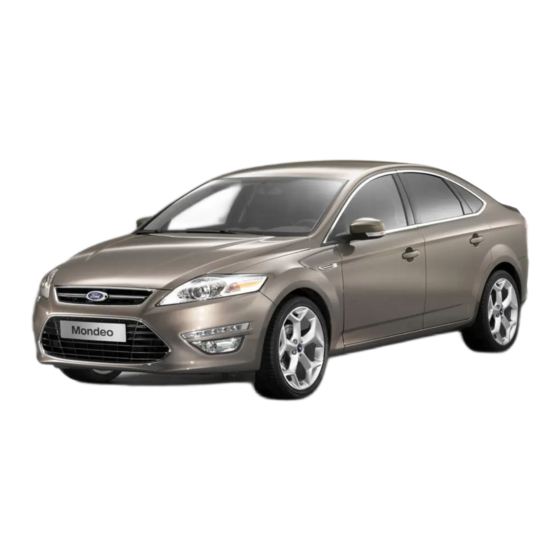

- Page 1 Feel the difference FordMondeo Quick guide...
- Page 2 This publication, or part thereof, may not be reproduced nor translated without our approval. Errors and omissions excepted. © Ford Motor Company 2010 All rights reserved. Part number: (CG3562en) 06/2010 20100709091242...
-
Page 3: About This Handbook
This Quick guide must be read in ABOUT THIS HANDBOOK conjunction with the Owner's handbook. Thank you for choosing Ford. We recommend that you take some time to WARNING get to know your vehicle better by reading Always drive with due care and... - Page 4 Instrument panel overview - right-hand drive E87720 Lighting controls. Air vents. Direction indicators. Telephone control buttons. Voice control buttons. Lane departure warning control buttons. Audio controls. Instrument cluster. Information display controls. Wiper lever. Start Button. Audio or navigation unit. Stability control (ESP)switch. Parking aid switch.
-
Page 5: Keyless Entry
Heated windscreen and heated rear window switches. Climate controls. Cigar lighter. Ignition switch. Cruise control and speed limiter switches. Adaptive cruise control switches. Speed limiter switches. Steering wheel adjustment lever. Horn. Cruise control and speed limiter switches. Adaptive cruise control switches. Speed limiter switches. -
Page 6: Changing The Wiper Blades
Locking and unlocking the Adjust the sensitivity of the rain sensor doors with the key blade using the rotary control. CHANGING THE WIPER BLADES WARNING For all warnings and cautions, refer to your Owner's handbook. Windscreen wiper blades CAUTION Set the windscreen wipers in the service position to change the wiper E87964 blades. -
Page 7: Automatic Main Beam Control
Switch off the ignition and move the wiper • Vehicle speed falls below 25 km/h (16 lever to position A within three seconds. mph). Release the lever when the windscreen • The camera sensor is too hot or wipers have moved to the service position. becomes blocked. -
Page 8: Electric Exterior Mirrors
Driver’s door switches Mirror tilting positions E70847 Reverse mirror dipping E121510 Depending on the switch position (A or C), You can operate all the windows with the the relevant exterior mirror will dip switches on the door trim panel of the whenever you select reverse gear, giving driver’s door. -
Page 9: Manual Climate Control
Turning the system on and off You can turn the system on and off using the information display. MANUALCLIMATECONTROL Cooling the interior quickly E124788 E71381 Using the system Heating the interior quickly The system displays a yellow indicator located in the exterior mirrors. E71377 Recommended settings for cooling... -
Page 10: Auxiliary Heater
Close the centre air vents and open the Recommended settings: AUTO, 22ºC side air vents. Mono mode Direct the side air vents toward the side windows. In mono mode, the temperature settings for both the driver’s and passenger’s side Defrosting and demisting the are linked. -
Page 11: Memory Function
Fuel operated heater MEMORY FUNCTION (depending on country) WARNINGS The fuel operated heater aids in warming Before activating the seat memory, the engine and the vehicle interior on make sure that the area immediately vehicles with a diesel engine. It is switched surrounding the seat is clear of on or off automatically depending on the obstructions and that all occupants are... -
Page 12: Keyless Starting
2. Adjust the seat and exterior mirrors to 5. Operate the same seat adjustment the desired position. control in the opposite direction for at least 3 seconds. Keep it held until the 3. Press and hold the desired pre-set seat stops at the mechanical end of its button B until a single chime sounds travel and a click is heard. -
Page 13: Using Eco Mode
Stopping the engine when the Anticipation vehicle is moving Adjusting your vehicle speed and the distance to other vehicles without the need WARNING for heavy braking or acceleration will Switching off the engine when the improve fuel consumption. vehicle is still moving will result in a loss of brake and steering Efficient speed assistance. -
Page 14: Using The Parking Aid
Note: The front and rear sensors are always activated or deactivated together. The parking aid is per default off. To switch the parking aid on, press the switch in the instrument panel or select reverse gear. The light in the switch illuminates when the parking aid is activated. -
Page 15: Using Lane Departure Warning
System display The system will automatically detect and track the lane markings on the road. If it When active the system will run detects that the vehicle is unintentionally automatically in the background and only drifting towards the lane boundaries then issue warnings if required. -
Page 16: Bluetooth Setup
During bonding, if your mobile phone asks you to authorize the automatic connection, select YES. Refer to your Owner's handbook and also www.ford-mobile-connectivity.com for details.
