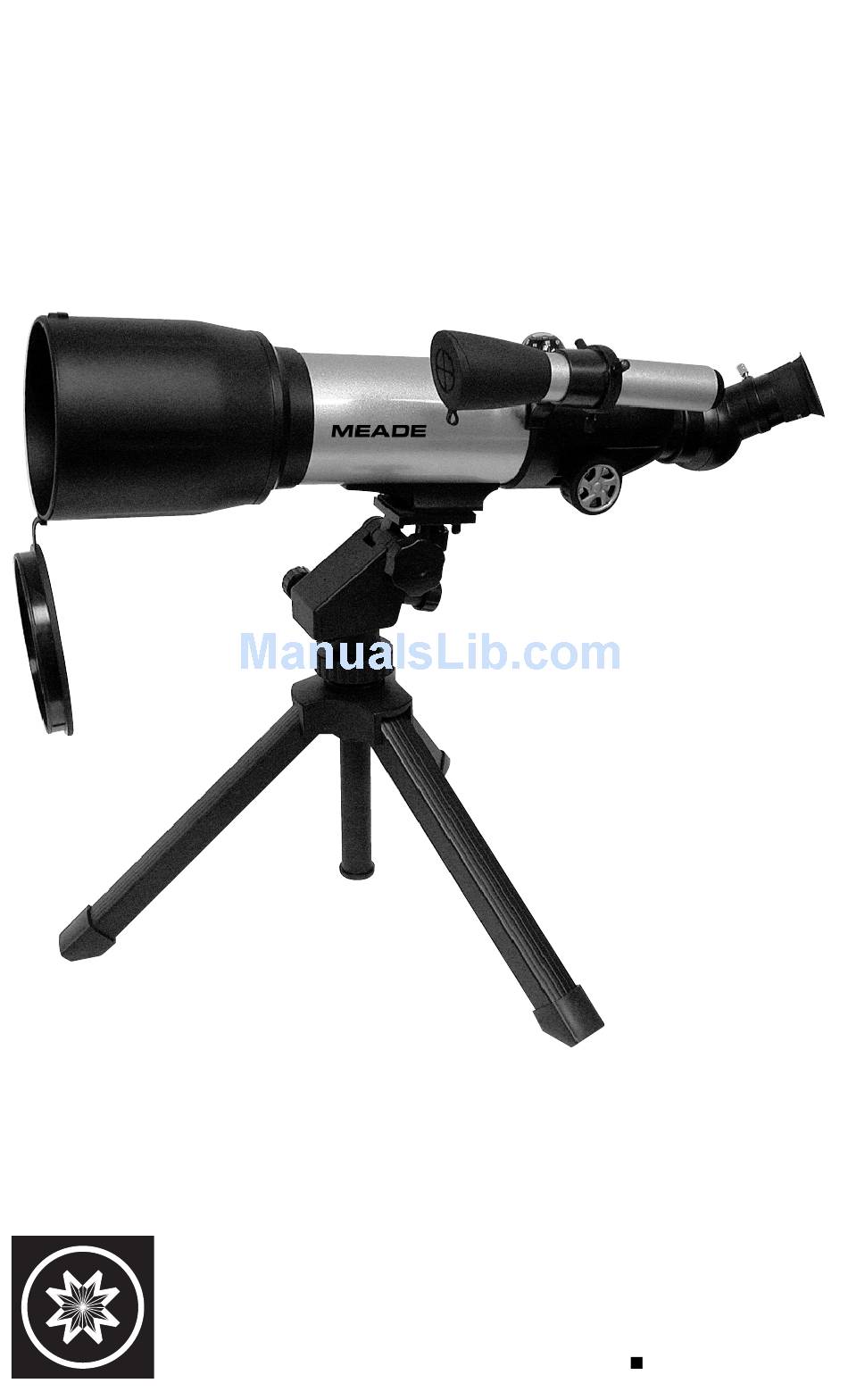

- Page 1 Instruction Manual Meade 70AZ-TR 70mm Compact Refractor Telescope Meade Instruments Corporation 6001 Oak Canyon, Irvine, California 92618 (949) 451-1450...
- Page 2 Meade 70mm Compact Refractor Telescope Fig. 1: Telescope Features Eyepiece Eyepiece thumbscrew Erecting roof prism with click-stop positions Focus knob Viewfinder Viewfinder holder Viewfinder attachment screws Viewfinder holder lock knob Viewfinder dew shield/rain guard Optical tube Dew shield/rain guard Slow motion horizontal...
- Page 3 THE SUN. CHILDREN SHOULD ALWAYS HAVE ADULT SUPERVISION WHILE OBSERVING. INTRODUCTION The Meade 70mm Compact Refractor is an easy to operate telescope, designed for both astronomical and terrestrial observing. Please take a few moments to read the instruction manual and familiarize yourself with its features.
- Page 4 USING THE TELESCOPE When the telescope is assembled, you are ready to begin observations. 1. Observing land objects during the daytime is a good way to become accustomed to the functions and operations of the telescope. At night, try observing the Moon first (if it is visible) or a bright star.
- Page 5 Keep in mind that a bright, clearly resolved, but smaller image will show far more interesting detail than a larger, dimmer, fuzzy image. 7. A number of fascinating objects are visible through your Meade 70mm compact refractor: Jupiter: Jupiter has cloud belts across its surface. It’s four major •...
- Page 6 MA17.5mm MA9mm MAINTENANCE The Meade 70mm Compact Refractor telescope should be stored in a dry and dust-free location. It should not be stored in direct sunlight. Avoid overcleaning the lens. A little dust on the the lens hardly affects image quality.
-
Page 7: Specifications
Corporation (“Meade”) to be free of defects in materials and workmanship for a period of ONE YEAR from the date of original purchase in the U.S.A. Meade will repair or replace a product, or part thereof, found by Meade to be defective, provided the defective part is returned to Meade, freight-prepaid, with proof of purchase.
