Instruction Manual
Meade 70AZ-ADR
70mm (2.4") Altazimuth Refracting Telescope
© 2005
(800) 626-3233
www.meade.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 70AZ-ADR and is the answer not in the manual?

Questions and answers

Related Manuals for Meade 70AZ-ADR

Summary of Contents for Meade 70AZ-ADR

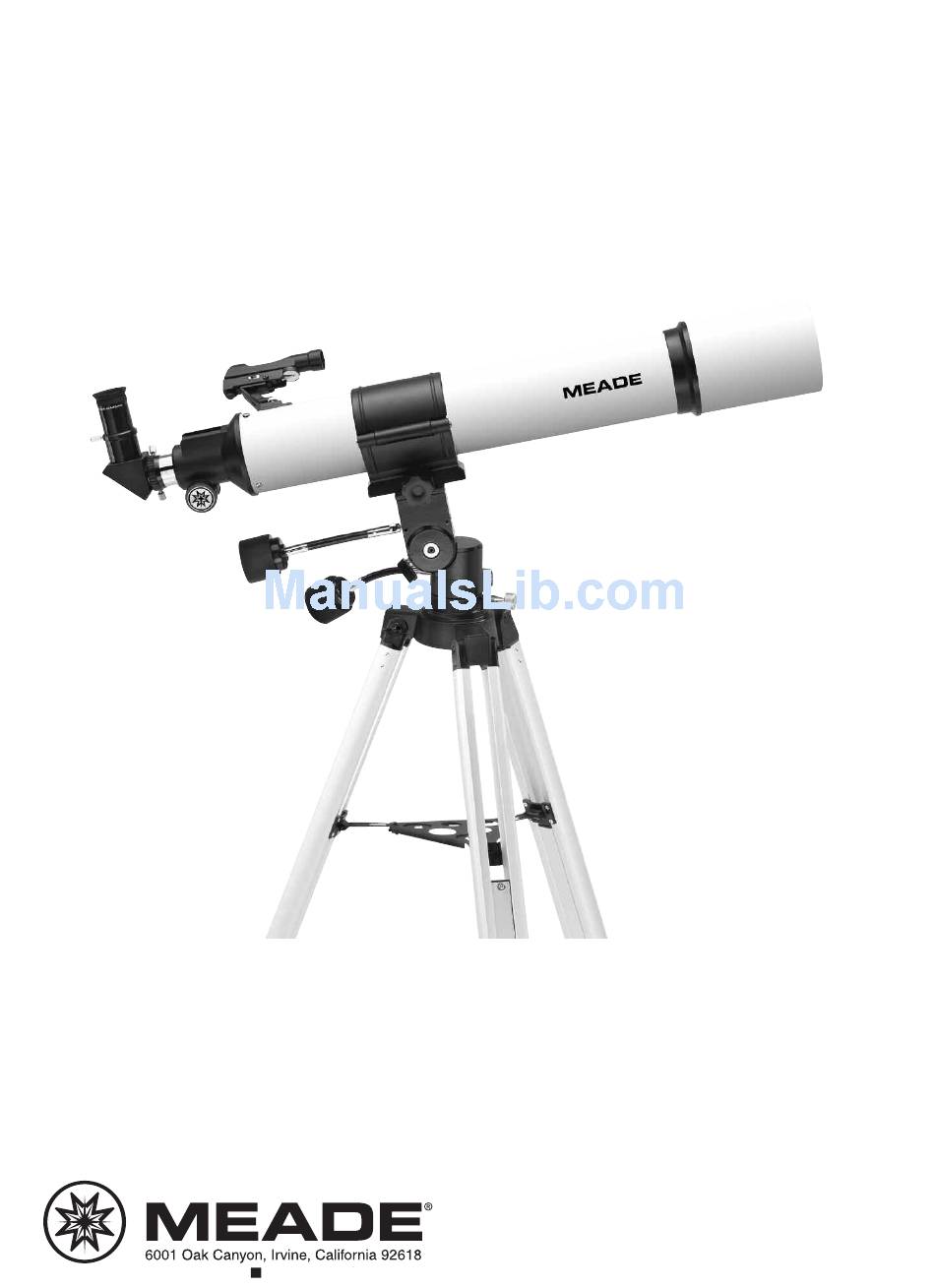

  • Page 1 Instruction Manual Meade 70AZ-ADR 70mm (2.4”) Altazimuth Refracting Telescope © 2005 (800) 626-3233 www.meade.com...

  • Page 2: Meade Limited Warranty

    Every Meade telescope, spotting scope, and telescope accessory is warranted by Meade Instruments Corporation (“Meade”) to be free of defects in materials and workmanship for a period of ONE YEAR from the date of original purchase in the U.S.A. Meade will repair or replace a product, or part thereof, found by Meade to be defective, provided the defective part is returned to Meade, freight-prepaid, with proof of purchase.

  • Page 3: Table Of Contents

    Taking Care of Your Telescope ........

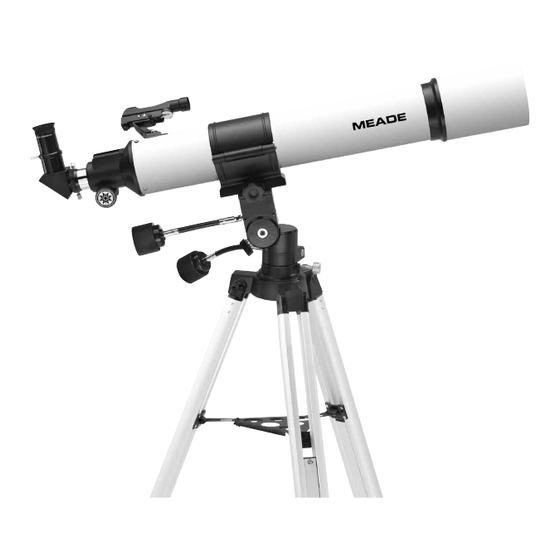

  • Page 4 Figure 1: Meade 70AZ-A Altazimuth Refracting Telescope Inset A: Tripod Leg; Inset B: Viewfinder Assembly 1. Eyepiece 2. Viewfinder 3. Viewfinder collimation screws 4. Optical tube assembly 5. Cradle assembly 6. Cradle lock knob (not visible) 7. Tripod legs 8. Leg brace 9.

  • Page 5: Introduction

    This manual details the set-up, operation, specifications and optional accessories of the Meade 70-AZ-ADR altazimuth refracting telescope. Designed for both astronomical and terrestrial observing, the Meade 70-AZ-ADR will be your companion in exploring a universe of celestial and earthly objects.

  • Page 6: Red Dot Viewfinder Alignment

    Observe the Moon: When you feel comfortable with the viewfinder, the eyepieces, the locks and the adjustment controls, you will be ready to try out the telescope at night. The Moon is the best object to observe the first time you go out at night. Pick a night when the Moon is a crescent. No shadows are seen during a full Moon, making it appear flat and uninteresting.
  • Page 7 You can also see mountain ranges and fault lines on the Moon. Use a neutral density filter (often called a “moon filter”) when observing the Moon. Neutral density filters are available from Meade as an optional accessory and enhance contrast to improve your observation of lunar features.

  • Page 8: Some Observing Tips

    Optional color filters help bring out detail and contrast of the planets. Meade offers a line of inexpensive color filters. Beyond the Solar System: Once you have observed our own system of planets, it’s time to really travel far from home and look at stars and other objects.
  • Page 9 Meade offers a complete line of eyepieces for your telescope. Most astronomers have four or five low- power and high power eyepieces to view different objects and to cope with different viewing conditions.

  • Page 10: Specifications

    Optical tube focal length is simply a measurement of the length of the optical tube. In other words, this is the distance light travels in the telescope before being brought to focus in you eyepiece. Your tube is 700mm long.

  • Page 11: Taking Care Of Your Telescope

    6.4, 9.7, 12.4, 15, 20, 26, 32, and 40mm. Contact your Meade Dealer or see the Meade catalog for more information. Visit us on the web at: meade.com.
  • Page 12 (800) 626-3233 www.meade.com 0705...
