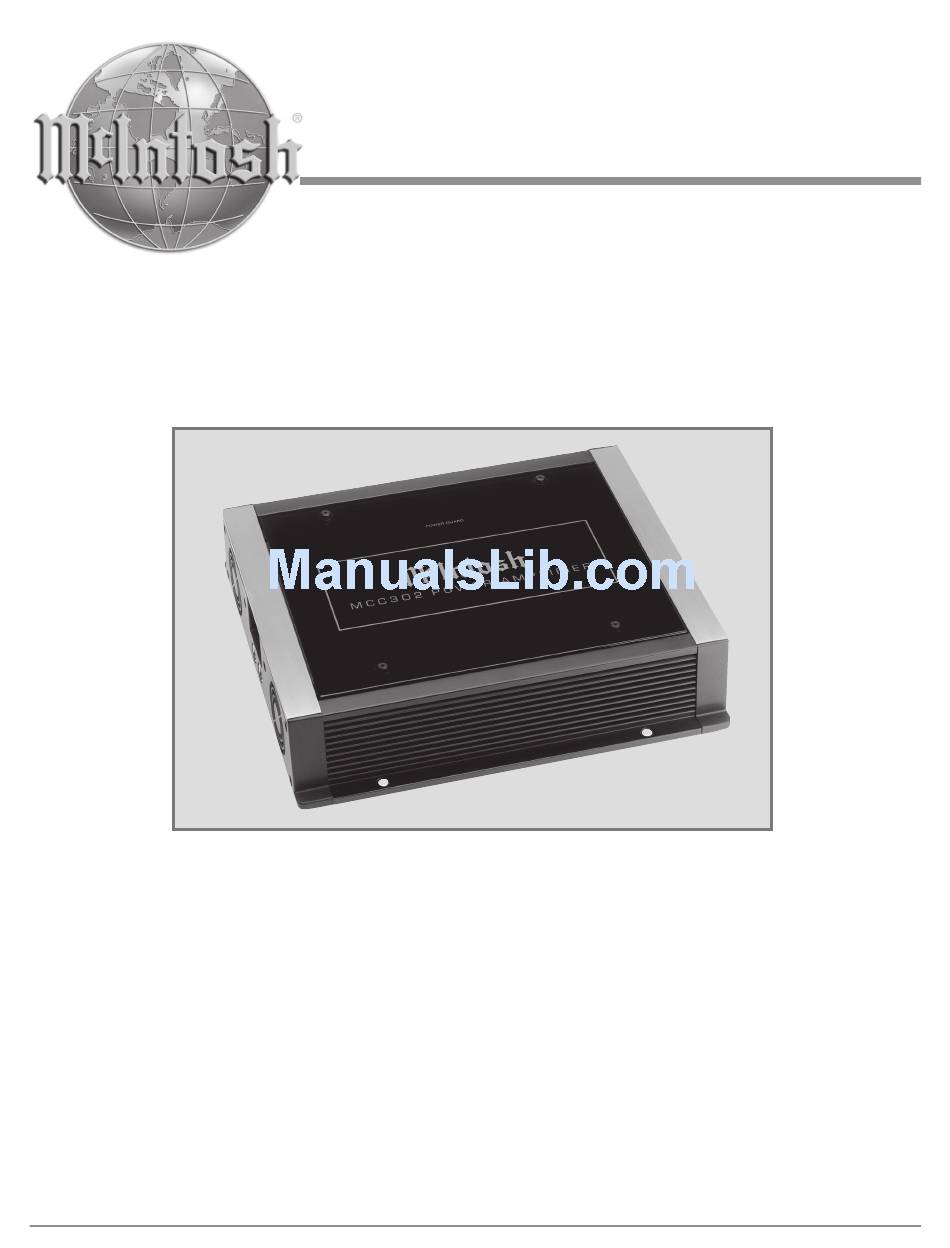

MCC302 Power Amplifier
MCC302M
Owner's Manual
McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCC302M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for McIntosh MCC302M

  • Page 1 MCC302 Power Amplifier MCC302M Owner’s Manual McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: 607-723-3512 FAX: 607-724-0549...
  • Page 2: Important Safety Instructions

    18. When replacement parts are required, be sure the ser- vice technician has used replacement parts specified by McIntosh or have the same characteristics as the origi- nal part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
  • Page 3: Table Of Contents

    Phone: 607-723-1545 Fax: 607-723-3636 Customer Service If it is determined that your McIntosh product is in need of repair, you can return it to your dealer. You can also return it to the McIntosh Laboratory Service Repair department. For assistance on factory repair return procedure, contact the McIntosh Repair Department at: McIntosh Laboratory, Inc.
  • Page 4: Introduction

    Introduction Now you can take advantage of traditional McIntosh stan- dards of excellence in the MCC302 Power Amplifier. Two 150 watt high current output channels will drive any high quality loudspeaker system to its ultimate performance. The MCC302 reproduction is sonically transparent and ab- solutely accurate.
  • Page 5: Dimensions

    Dimensions The following dimensions can assist in determining the best location for your MCC302. There is additional infor- mation on the next page pertaining to installing the MCC302 into your vehicle. " 11/32 10.93cm Top View of the MCC302 " 21/32 34.69cm 11.00"...
  • Page 6: Installation

    Installation It is recommended that a professional who is skilled in all aspects of installation and operation install the MCC302 and any associated mobile audio equipment. Amplifier Ventilation Always provide adequate ventilation for the MCC302. The amplifier requires an adequate airflow into the cooling fans, which are located on the left side of the amplifier.
  • Page 7: Side Panel Cooling And Connections

    Connect to the positve (+) vehicle battery terminal with an inline fuse Cooling Fan Air Intake Receives the Amplifier Turn-ON signal from a McIntosh Control Center OUTPUT Connections for loudspeakers Controls the Power Guard Circuit when connected to certain McIntosh Control Centers...
  • Page 8: How To Connect For Two Channels

    Note: All cables should be connected to the amplifier before connecting the DC power cables to the battery. 2. Connect a wire from a McIntosh Control Center with Power Guard to the MCC302 PG Connector on the right side of the amplifier.
  • Page 9: How To Connect With Subwoofer Channel

    Note: All cables should be connected to the amplifier before connecting the DC power cables to the battery. 2. Connect a wire from a McIntosh Control Center with Power Guard to the MCC302 PG Connector on the right side of the amplifier.
  • Page 10: Top Panel Controls, Displays And Switches

    CROSSOVER Filter Switch and Control select the low roll-off frequency, high roll-off frequency or flat frequency response MODE Switch selects STEREO or BRIDGE mode of operation Top Panel Controls, Display and Switches EQUALIZER Controls select the Frequency and the Level of Boost or Cut at the Center Frequencies for Channels 1 and 2...
  • Page 11: How To Operate

    Introduction The McIntosh MCC302 is a highly versatile amplifier that can be configured in many ways. This manual gives ex- amples of some of the most common configurations. The best way to set equalization and filter controls is through the use of a real-time spectrum analyzer and the expertise of a professional installer.
  • Page 12: How To Replace The Fuses

    12. Re-connect the power cables to the vehicle battery. If the replacement fuse(s) fails again, have the amplifier repaired at a McIntosh Service Center. How to Replace the Fuses emove Top Cover Screws Figure 9...
  • Page 13: Block Diagram

    Block Diagram...
  • Page 14: Specifications

    (Low pass is 24dB per octave in bridged mode) Subwoofer Output Low Pass filtered at 200Hz with a 6db per octave slope (level variable ±12db when using optional McIntosh Exter- nal Subwoofer Rotary Control) Intermodulation Distortion Maximum Intermodulation Distortion if instanta-...
  • Page 15: Packing Instruction

    If a shipping carton or any of the interior part(s) are needed, please call or write Customer Service Department of McIntosh Labo- ratory. Please see the Part List for the correct part numbers.
  • Page 16 McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, NY 13903 The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated who reserve the right to improve design without notice. Printed in the U.S.A. McIntosh Part No. 040757...
